400W LED High Mast Floodlights For Plaza And Port Lighting

Product Item: 400W LED High Mast Floodlights For Plaza And Port Lighting

Overview:

This range of LED Stadium Floodlight Luminaires provides an efficient traditional floodlight fittings replacement solution for SON or metal halide fittings for sports fields lighting.  With up to 50,000 hours lifespan this high mast lamp provides a maintenance-free solution for applications where luminaires changing is difficult or hazardous.

Adopting most powerful CREE high power LED and powerful lens, the lumen output of this high quality outdoor LED flood lights can reach 120-135 lumen/W, unlike SMD type of LED, the high power CREE LED offer you unparalleled performance under rainy or foggy weather, with same power and same lumen output, CREE XTE series or CREE XHP series light can go farther than SMD type of light source.

The pioneering cooling technology ensures low LED junction temperature, and compact sturdy lamp structure also makes it a low freight cost high mast lighting luminaire, and achieves energy savings of at least 70% over conventional light sources, with the same lux levels.

Features:

• World top level LED chip CREE XTE series or CREE XHP series with better performance under high temperature long-time working and with less luminous decay. Compared with SMD type of LED, fixture with CREE or XTEE XHP has stronger light beam and can reach farther under extreme rainy, foggy, or snowy weather.

• 400W LED high mast light system luminous efficacy 120-135lm/W (Lumileds, Osram, and other LED light source available)

• Sturdy but compact lamp size, less wind resistance, withstand Scale 17 hurricane.

• 5 years warranty Inventronics(or Mean Well) driver adopted.

• Multiple Light Beams: 10°/15°/20°/36°/60°/90°/70x140°/80x135°, from narrow to wide, from symmetric to asymmetric.

• Wattage: 400W, 500W, 600W, 800W, 1000W, 1200W. (1000W, 1500W, 2000W, 2500W HPS/HID/MH equivalent LED)

• Good ventilation lamp body structure, best control temperature rise for a longer life span.

• Intelligent dimming available: 1-10V dimming, DALI dimming, ZigBee wireless control.

• 10KV surge protection.(Additional SPD available)

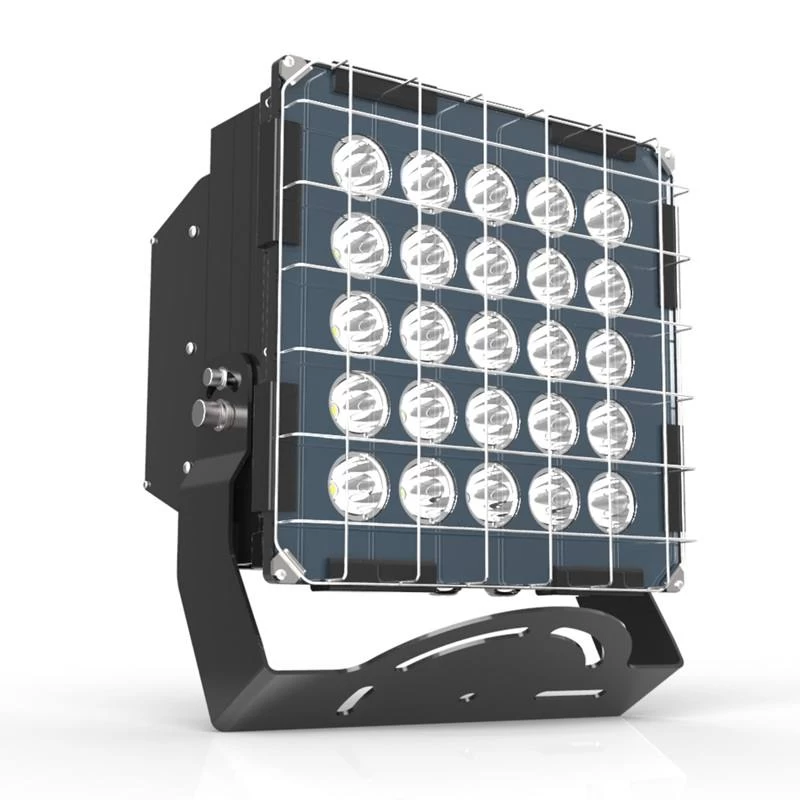

• Accessories available: light spill shield for less light pollution and glare; anti-collision wire guard for higher protection level, and aiming tool kit for highest precision over the aiming of a sports floodlighting project.

• IP66&IK08 rated: waterproof, durable even under extreme weather, 5mm high light transmittance tempered glass for better protection.

• Long lifespan 50, 000 hours, and maintenance free with 5 years warranty.

• Applications: stadiums illumination, car park illumination, harbor illumination, car race track illumination, sports center illumination, handball court illumination, basketball court illumination, cricket ball court illumination, etc.

Different LED Light Source & Lens/Reflector Configuration:

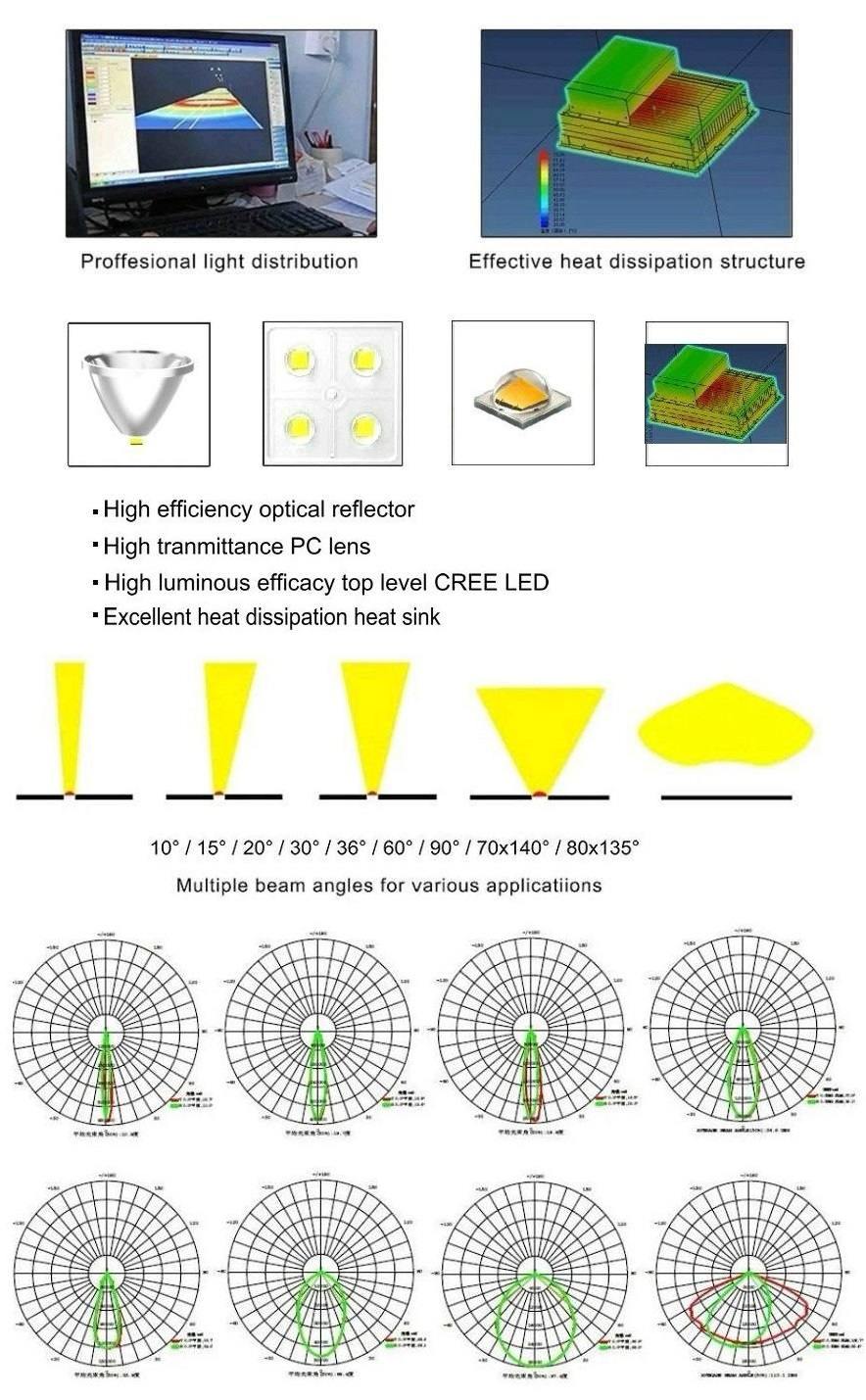

Professional Lighting Optical Design & Thermal Management Design:

High lumen output CREE/Lumileds LED chip, efficiency reflector, lens, super high transmittance tempered glass to ensure high luminous efficacy;

Aluminum lamp body structure designed with large heat dissipatition efficiency, excellent ventilation, and impressive appearance.

Multiple Beam Angles for Various Lighting Applications:

CREE XTE: 15°, 30°, 60°, 90°(adopt PC lens)

CREE XHP: 10°,20°, 36°, 60°(adopt reflector)

Lumileds SMD5050: 30°, 60°, 90°, 80x135° (adopt PC lens)

Both asymmetric and symmetric lighting distribution

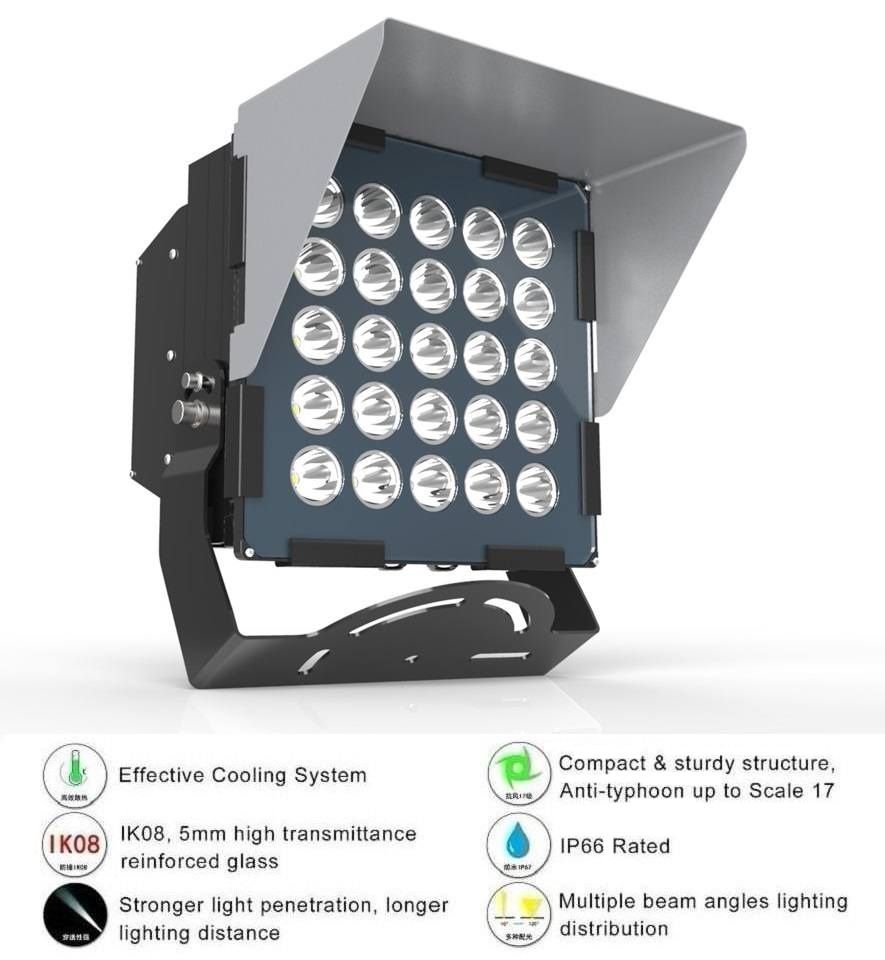

Considerate humanized design:

Lamp Holder: Easy for worker to carry the lamp, easier installation by taking the holder instead of by bracket.

Anti-scratching bar: Avoid unexpected danger of being scratched by lamp sharp edge, while keeping excellent ventilation.

Waterproof Wiring Terminal: Easier wiring and better protection.

180° Adjustable Bracket: Flexible in adjusting lighting area and easier for installation.

Better Performance Under Rainy or Foggy Weather:

CREE XTE/XHP LED Adopted: Compared with ordinary SMD LED on market, CREE XTE/XHP LED can reach farther distance under severe rainy or foggy weather, with its stronger light penetration. Moreover, CREE LED can withstand higher temperature with less lumnouse decay for such high power mast lighting. System reliabilty is further strengthened.

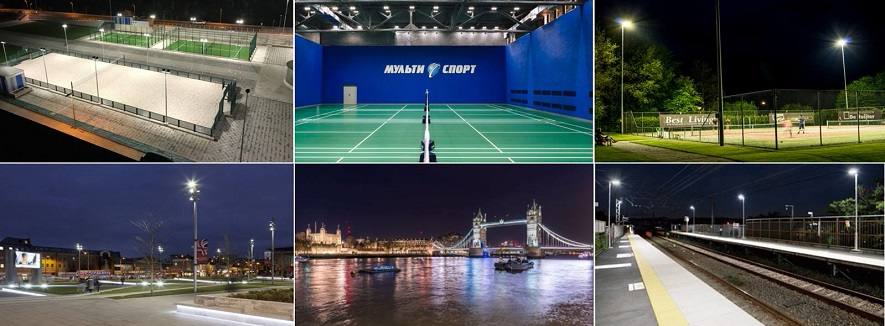

Application:

Widely applied to lighting of sports stadiums, tall buildings, squares, sea harbours, bridges, etc.
