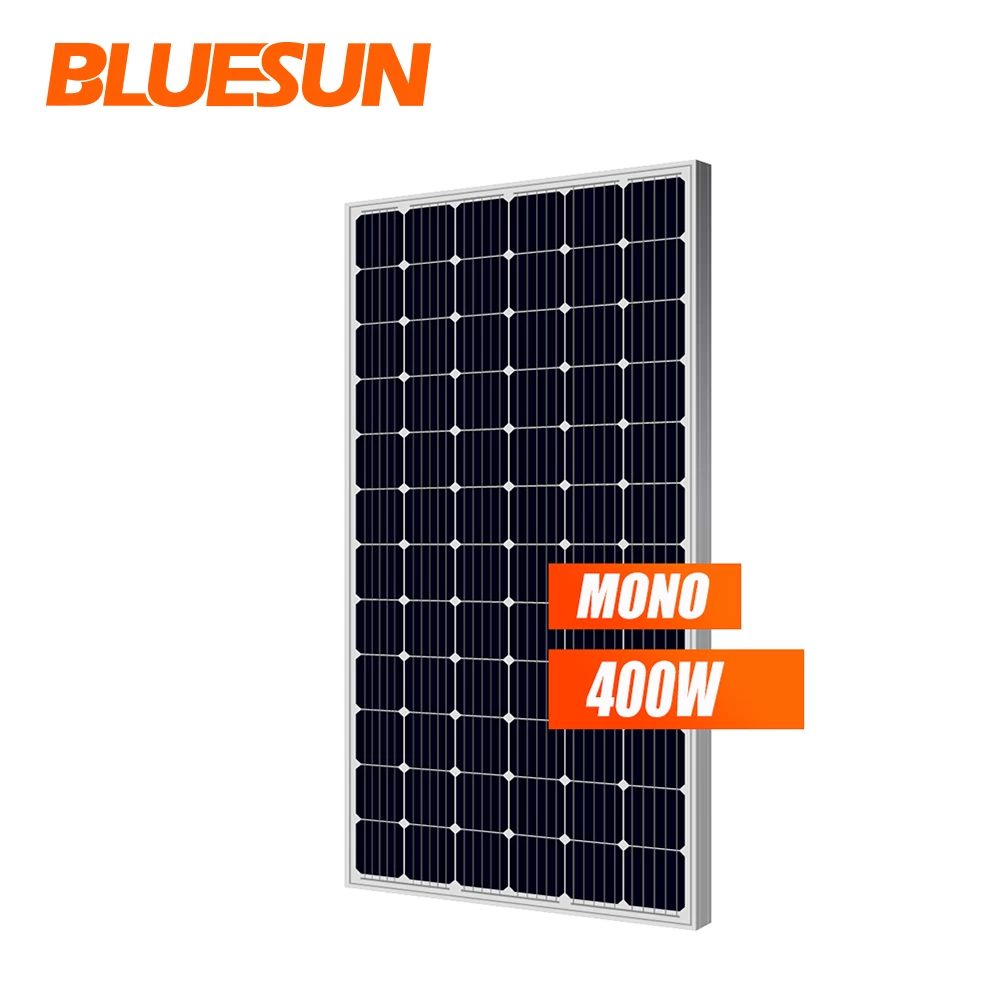

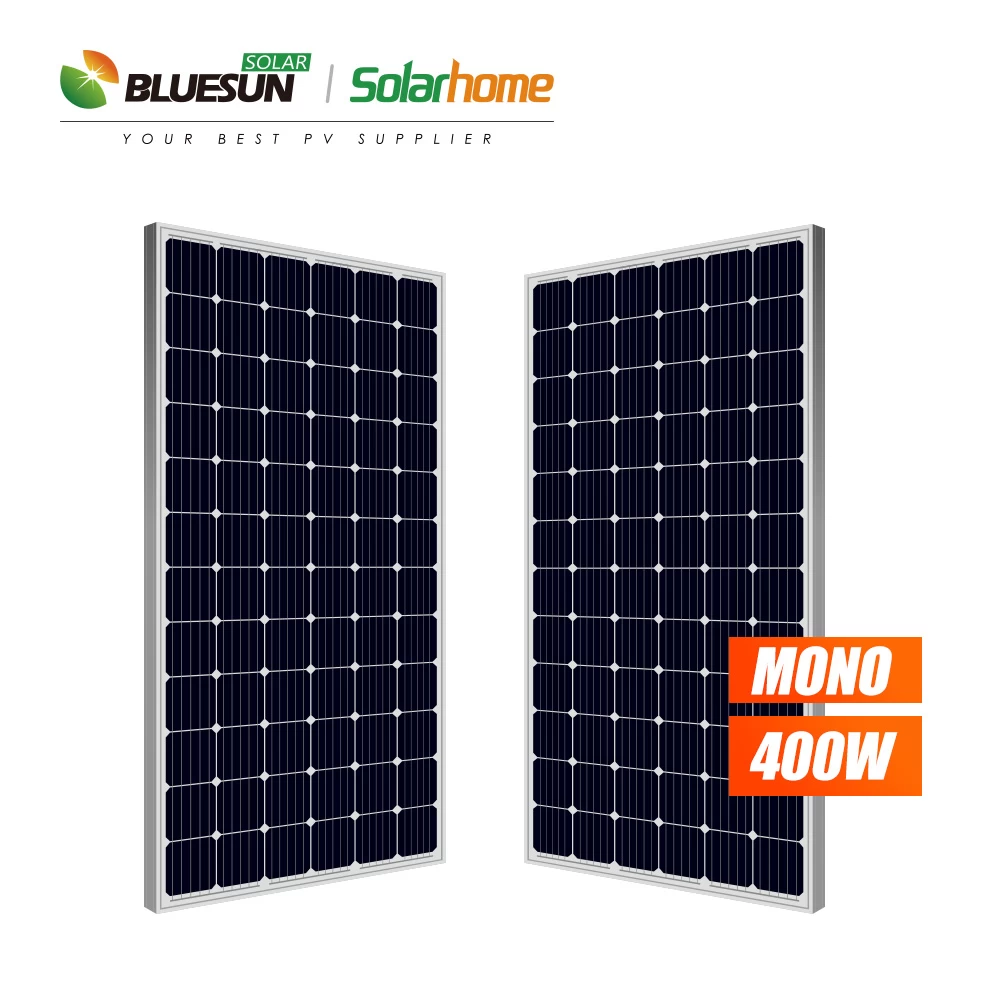

Monocrystalline 360W 370W 380W solar panel 48V PV system solar module for solar power plant
Product Description
|
ELECTRICAL PARAMETERS AT STC
|
|
Moduel
|
BSM370M-72
|
BSM380M-72
|
BSM390M-72
|
BSM400M-72
|
|
Rated Maximum Power at STC
|
370
|
380
|
390
|
400
|
|
Open Circuit Voltage(Voc/V)
|
48.23
|
48.67
|
49.11
|
49.55
|
|
Maximum Power Voltage(Vmp/V)
|
39.51
|
39.95
|
40.39
|
40.78
|
|
Short Circuit Current(Isc/A)
|
10.03
|
10.22
|
10.41
|
10.59
|
|
Maximum Power Current(Imp/A)
|
9.37
|
9.52
|
9.67
|
9.82
|
|
Module Efficiency(%)
|
19.06
|
19.58
|
20.09
|
20.61
|
|
Power Tolerance
|
-0~+5W
|
|
Standard Test Condition(STC)
|
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
|
Detailed&Production
Packing & Delivery
26 pieces per pallet , 280 pieces per 20ft container , 620 pieces per 40HQ container
Monocrystalline 390W solar panels and 72 cells series solar modules , normal package is 2 pieces per carton , we accept customized or OEM package too.
Project
Monocrystalline 390 Watt solar panel and higher efficiency 370 W 380 W solar panel, higher conversion efficiency , higher capacity and power output performance per unit area.
As follows some advantages of 5BB 390 W monocrystalline silicon solar panel for your reference:
Reduction of transportation costs 4%
Reduction of land costs 3%
Reduction of installation costs 2.5%
Reduction of BOS-costs 1.5%
Higher solar module efficiency lower solar system cost per watt .
If you are an end users , we can offer more detail information to you. So that you can get the satisfied solar power system for your home solar generator solution or factory solar system plant .
Any more doubts , you can ask our professional products consultant.
