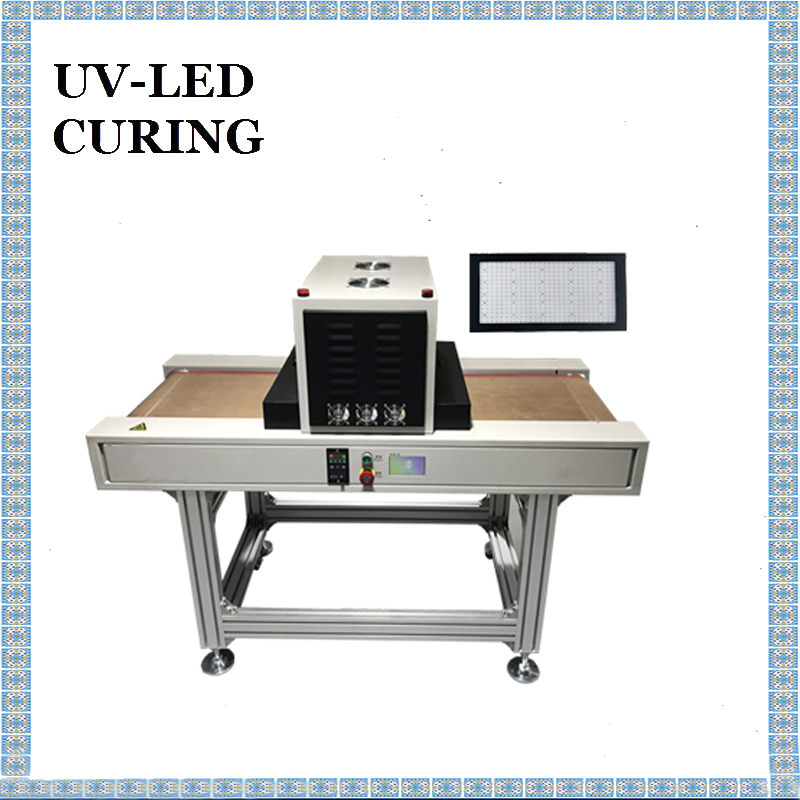

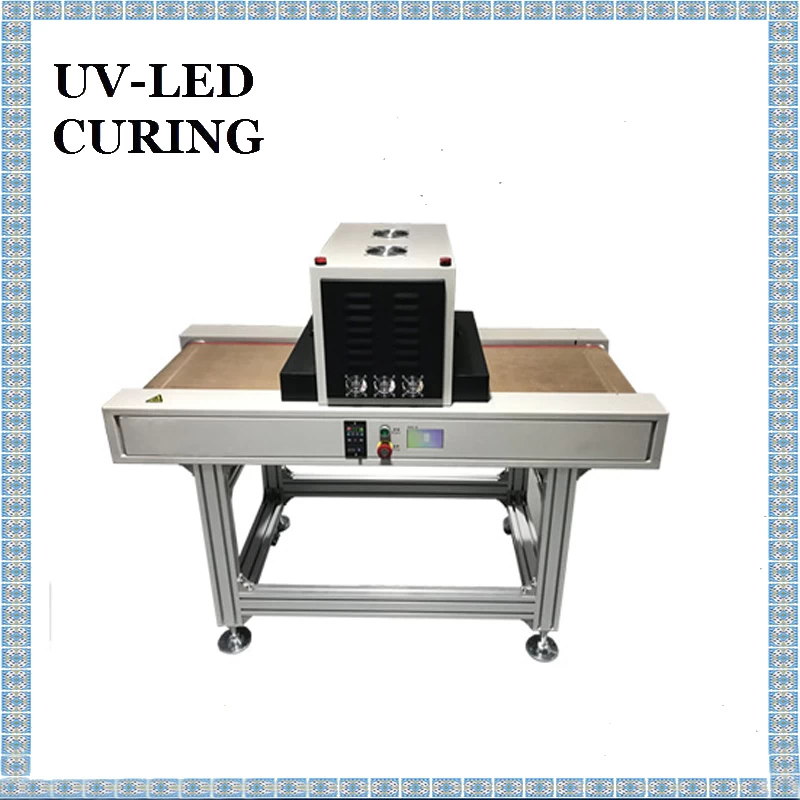

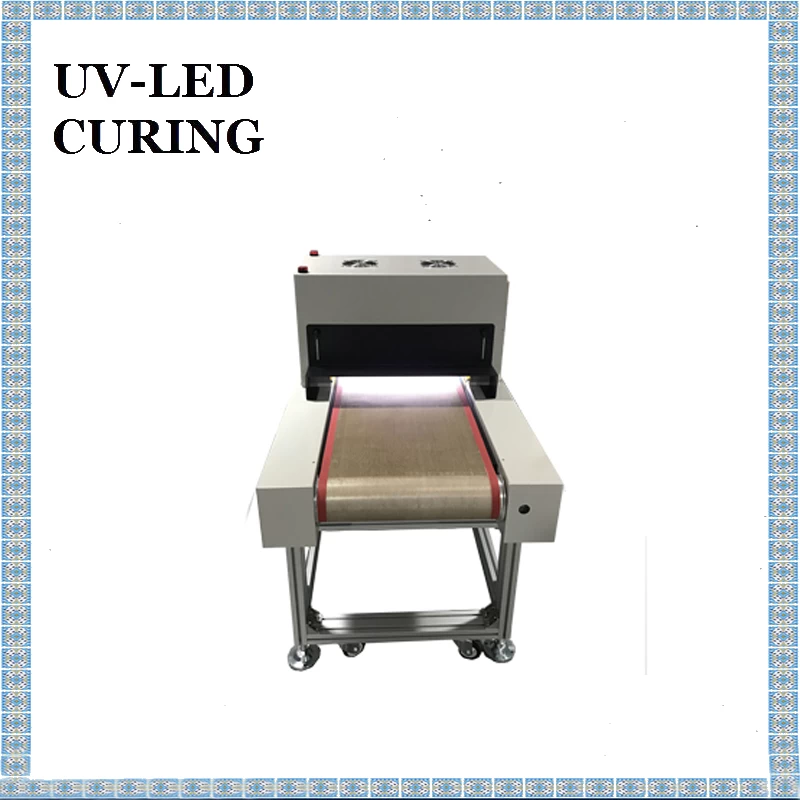

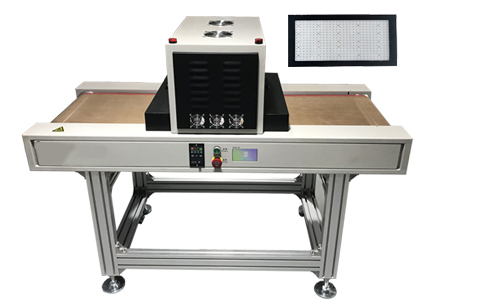

The UVLED head of the machine is integrated with imported high-intensity ultraviolet LED. The UV spectrum wavelength is 365nm. Portable High Efficiency UV LED Curing Machine for Coating supports external signal input and triggering. It can be used in semi-automatic or fully automatic production lines. The conveyor belt is made of Teflon.
Specification Sheet :
wavelength : 365nm
Model : DSX-S480-400X200-365
Electric power : 1440W
Optical power density : 1700MW/CM2
Irradiation area : 400X200mm
Heat dissipation method : Air cooled

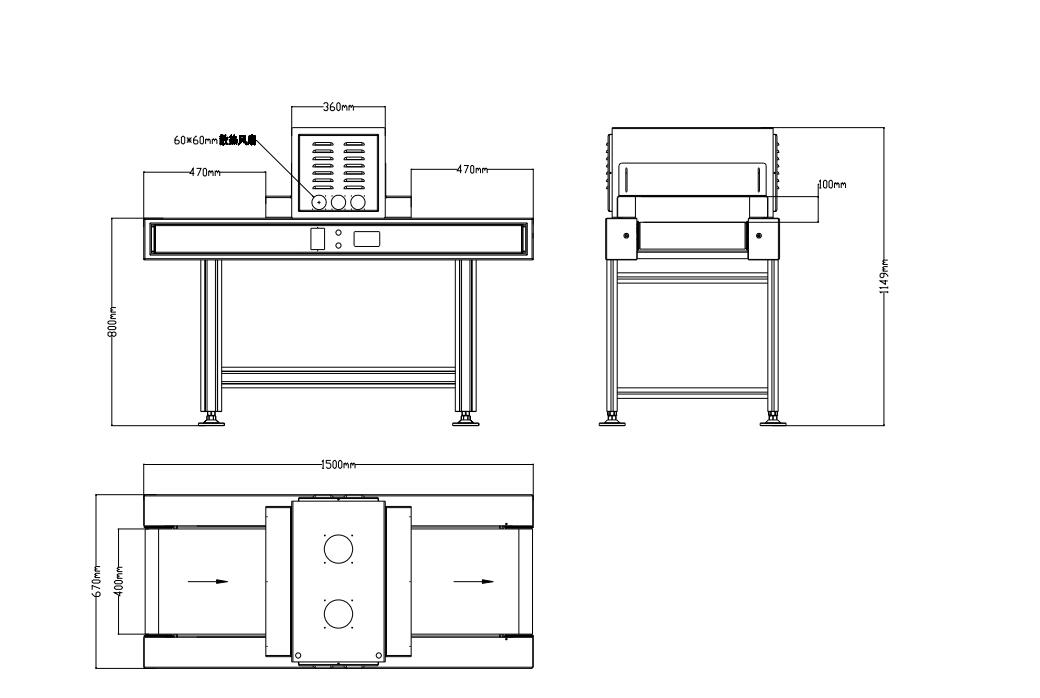

Overall size : L1500mm*W670mm*H1149mm
Product Overview ：
LED UV curing machine replaces traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing of various heat sensitive materials UV glue, infrared transmission Intelligent control, start-stop control on demand.
UV LED advantages ：
Replace the mercury lamp!
Extra-long life: 25000h~30000h
Energy saving: save 80% electrical energy than Mercury lamp
UV output adjustment: From 1% to 100%
Multiple control modes : Constant current, pedal control, intelligent optical and manual modes
Photoelectric induction, instant on/off, no preheating required.
No mercury, No Ozone, eco-friendly
Cold light source, low temperature
Stable output, high uniformity.
