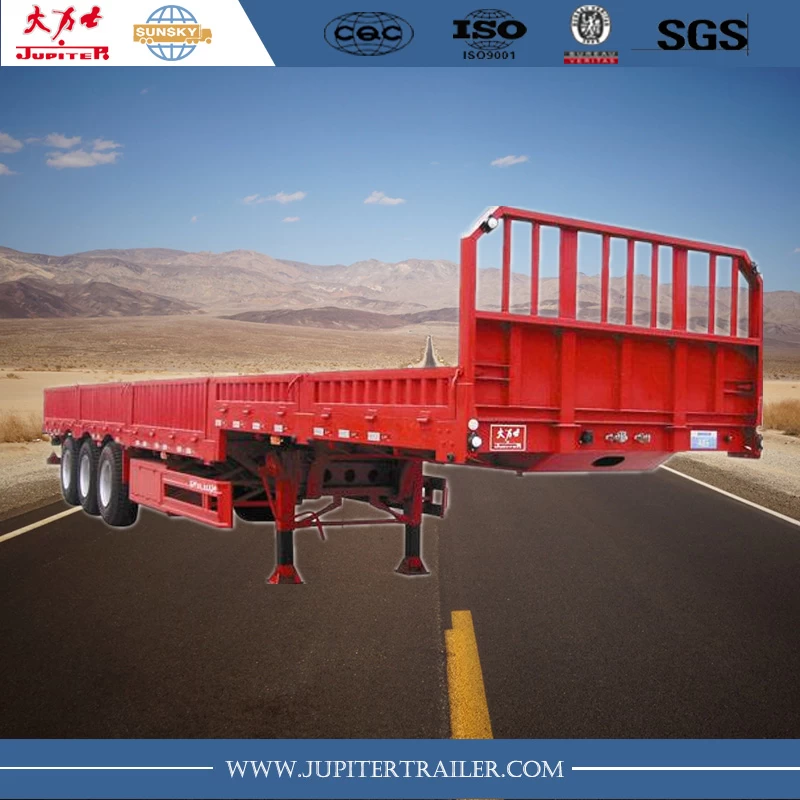

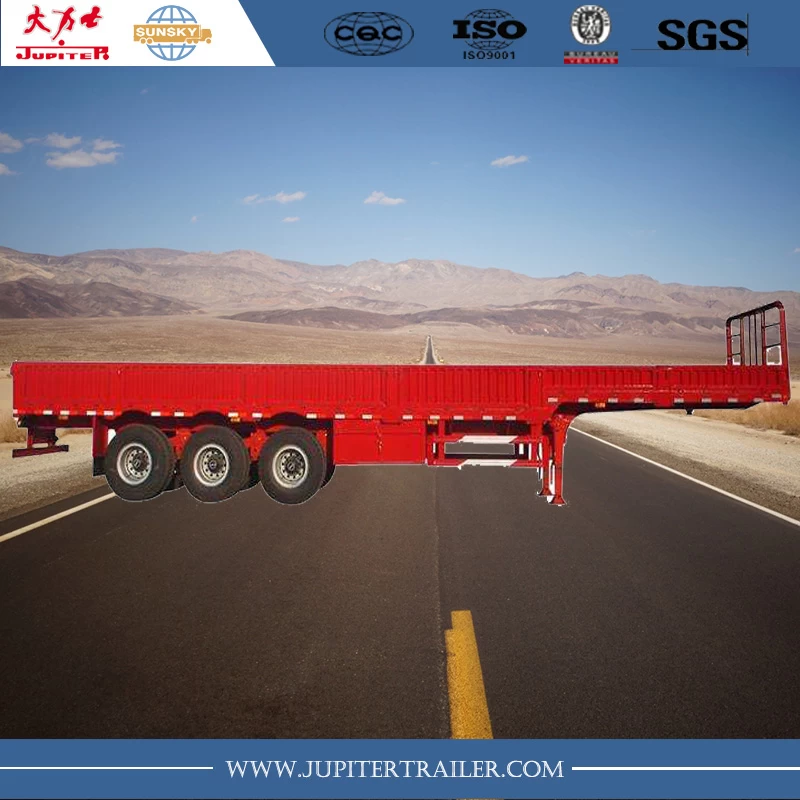

Sunsky brand 40ft 3-axle dropside semi-trailer for carry container
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
40FT Side Wall semi trailer
|
|
|
Feature:
|
|
Carry 1X20FT、1X40FT、or 2X20FT container;
Carry Bulk cargo
|
|
|
Dimension(L*W*H):
|
|
12600*2500*2300mm
|
|
|
The Height of Wall
|
|
800mm
|
|
|
Main frame:
|
|
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
|
Model:
|
|
SS9402TJZW
|
|
|
No. of axle:
|
|
3
|
|
|
Payload(kgs):
|
|
50000
|
|
|
Tare weight(kgs):
|
|
8200
|
|
|
Kingpin:
|
|
The world-famous JOST brand bolt-inwelded type 3.5”2”
|
|
|
Landing gear:
|
|
JOST brand two-speed manual operation 19”
|
|
|
Tire size:
|
|
11.00R20、11R22.5、12R22.5、31580R22.5、38565R22.5
|
|
|
Rim size:
|
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
|
Axle:
|
|
Original BPW-12T FUWA-13T
|
|
|
Suspension
|
|
Germany type with 12pcs of leafs spring Fuwa brand with 8pcs of leafs spring Airbag suspension
|
|
|
Brake system:
|
|
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T3030 air chamber, 46L air tank
|
|
|
Electric system:
|
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
|
Container locks
|
|
12(for 1x20GP,2X20GP,1X40HQ)
|
|
|
Painting:
|
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
|
Accessory:
|
|
One tool box; one set of standard tool
|
|
|
We can build the trailers according to customer’s design and requirement
|
|
