Item: 40FT 3 Axles FlatBed Trailer With Side Wall For Bulk Cargo Transport
Feature: dropside trailer
1. The main frame of 40FT 3 axles flatbed trailer with side wall is made of 16 mm high-tensile steel, reasonable structure, light weight, superior carrying capacity and no permanent deformation.
2. Can be made of foreign or domestic high-tensile steel to reduce tare weight, and the 3 axles flatbed trailer is customizable !
3. Equips the Axles, tires and other accessories of the well-known products which supplied by the domestic and foreign professional manufacturers. Like BPW Axles, FUWA Axles. Triangle tires, Double-Coin Tires. Meanwhile, they can be equipped with airbag suspension and super single tires as your requirement.
4. Powerful quality and people-oriented service,One year warranty!
Service: side wall trailer
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to design and produce the tanker trailer as your requirements，ensure to meet your local road regulation.

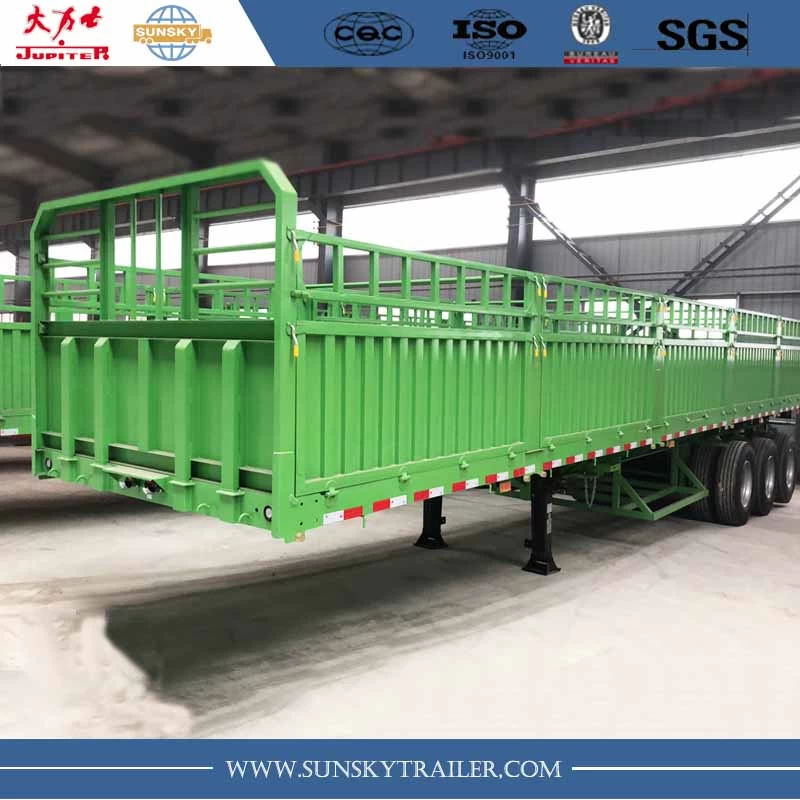

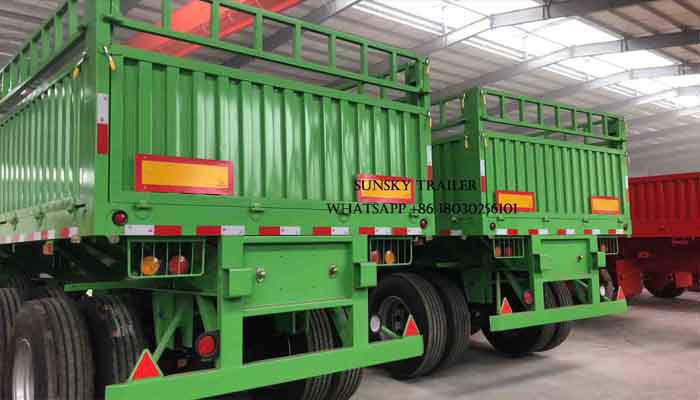

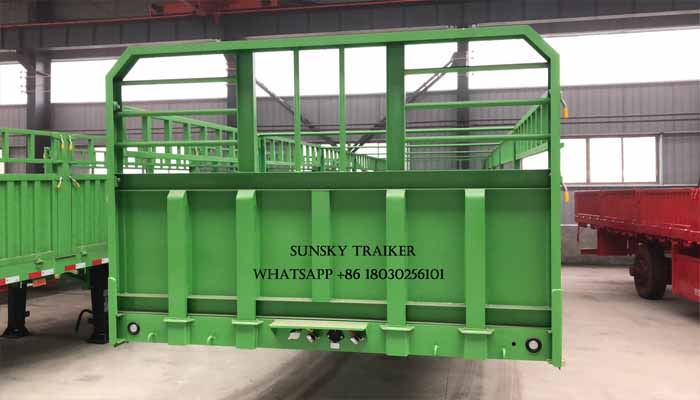

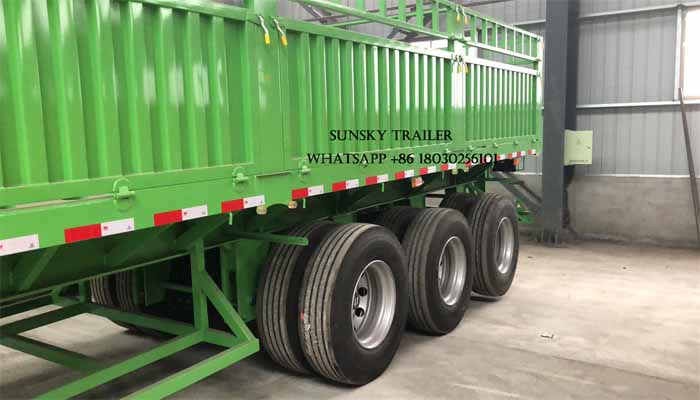

Detail Photo: dropside trailers for sale

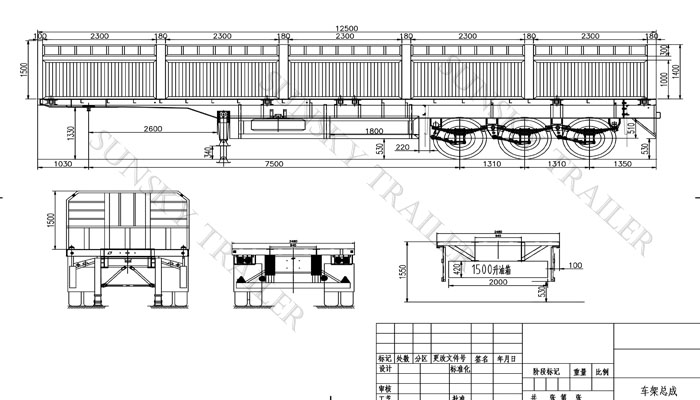

Drawing : flatbed trailer with sides
Specification
|
40FT Flatbed Trailer With Side Wall
|
|
Feature:
|
Carry Bulk cargo and container
|
|
Dimension(L*W*H):
|
12600*2480*2500 (mm)
|
|
The Height of Wall
|
1000 (mm)
|
|
Model:
|
XMS9380TP
|
|
No. of axle:
|
3
|
|
Payload(kgs):
|
40000
|
|
Tare weight(kgs):
|
8000
|
|
Kingpin:
|
JOST 3.5”/2”
|
|
Landing gear:
|
JOST two-speed manual operation 19”
|
|
Tire size:
|
315/80R22.5
|
|
Rim size:
|
9.00*22.5
|
|
Axle:
|
12T-10holes
|
|
Suspension
|
Spring suspension with 8pcs of leafs spring
|
|
Brake system:
|
Dual-line air brake system
|
|
Container locks:
|
12(for 1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box; one set of standard tool,one 1500 L fuel tank
|
|
We can build the trailers according to customer’s design and requirement
|
