Item: 40FT 4 Axle Side Wall Trailer
Introduction of china drop side trailer
Drop side trailers also called side wall
trailers, can be used to transport many kinds of objects, from boxes to bulk
cargo. Its side panel can be opened, which is more convenient to unload cargo.
The 4 axle side wall trailer is widely used by transportation companies in the
logistics industry. The shape and height of the side panel can be customized.
Height of side wall can be designed from 500mm to 1500mm. The 4 Axle side wall
trailers have larger payload design, popular used in west Africa countries like
Ghana, Nigeria and Senegal etc.
Advantage
1. High
strength and impact resistance new type suspension is adopted with patented rod
connecting design. It can ensure better performance in rough road condition and
keep longer service life
2. Use High
performance domestic and imported axles with ABS system optionally available
can significantly increase driving safety.
3. Optional to
install 2 to 4 axles to meet different payload requirements.
4. The main
frame of side wall trailers can be made of foreign or domestic high-tensile
steel to reduce tare weight.
Specification of side wall semi trailer for
sale
|
40FT
Side Wall semi trailer
|
|
Feature:
|
Carry 1X20FT、1X40FT、or 2X20FT container;
Carry Bulk cargo
|
|
Dimension(L*W*H):
|
12600*2500*2300mm
|
|
The Height of Wall
|
800mm
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high
tensible low carbon alloy Q345B steel; I beam welded by automotive
arc-submerge process
|
|
Model:
|
SS9402TJZW
|
SS9400TJZW
|
|
No. of axle:
|
4
|
3
|
|
Payload(kgs):
|
50000
|
40000
|
|
Tare weight(kgs):
|
8700
|
7800
|
|
Kingpin:
|
JOST brand
bolt-in 2”
|
|
Landing
gear:
|
JOST brand
19”
|
|
Tire
size:
|
12R22.5
|
|
Rim
size:
|
9.00*22.5
|
|
Axle:
|
FUWA
brand 13 Tons
|
|
Suspension
|
Spring
suspension / Airbag suspension
|
|
Brake
system:
|
Dual
line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air
chamber, 46L air tank
|
|
Electric
system:
|
One
unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse
light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container
locks
|
12(for
1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
|
|
Accessory:
|
One
tool box; one set of standard tool
|
|
We can
build the trailers according to customer’s design, requirement and budget.
Different
specification cost different price.
|

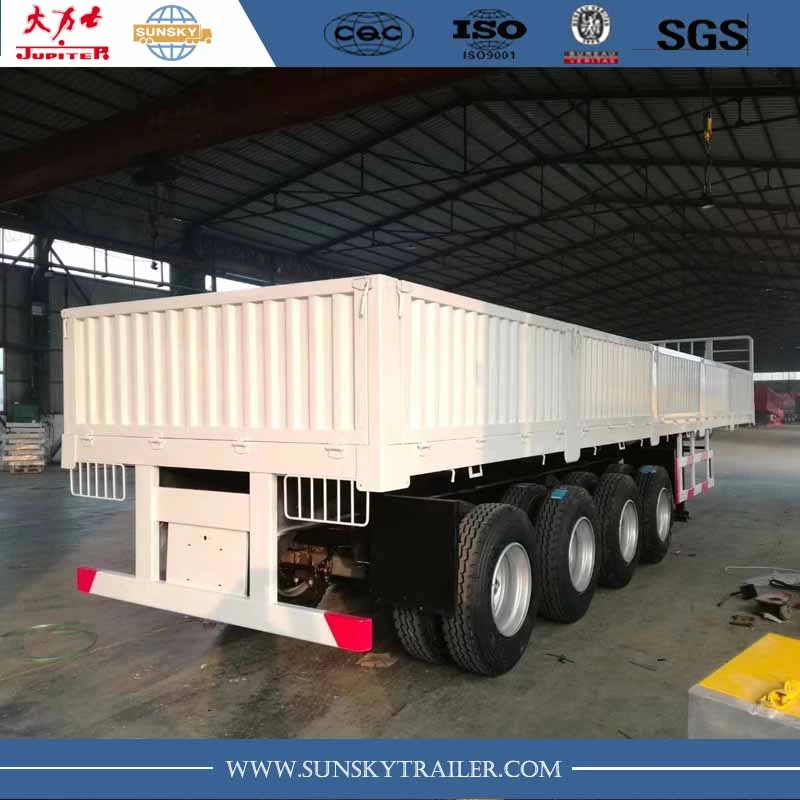

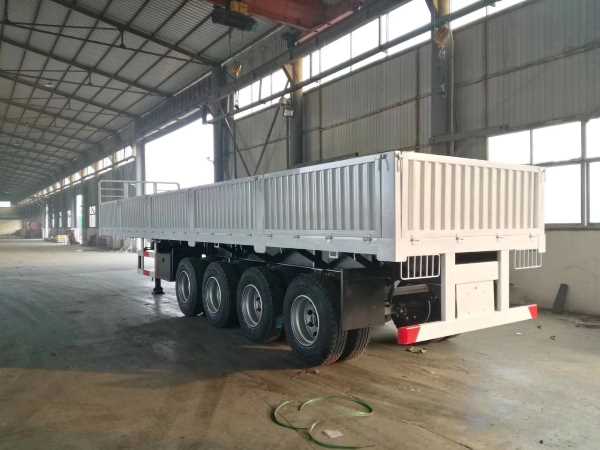

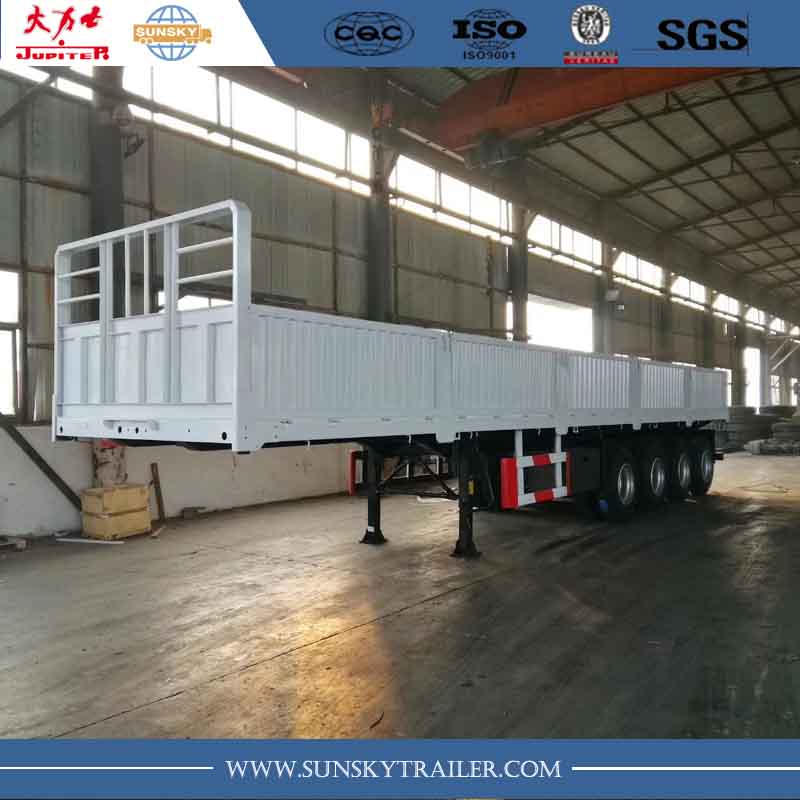

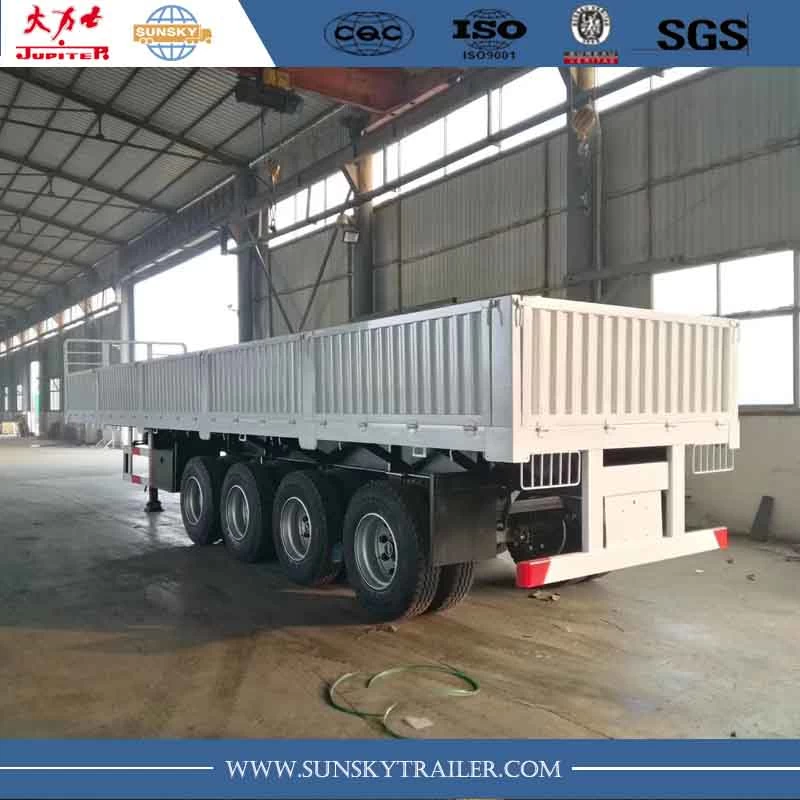

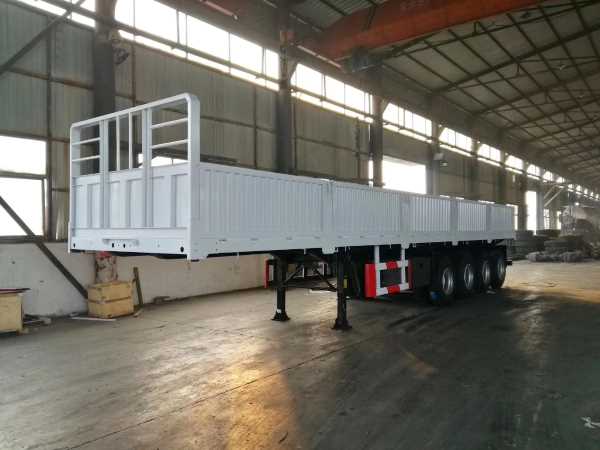

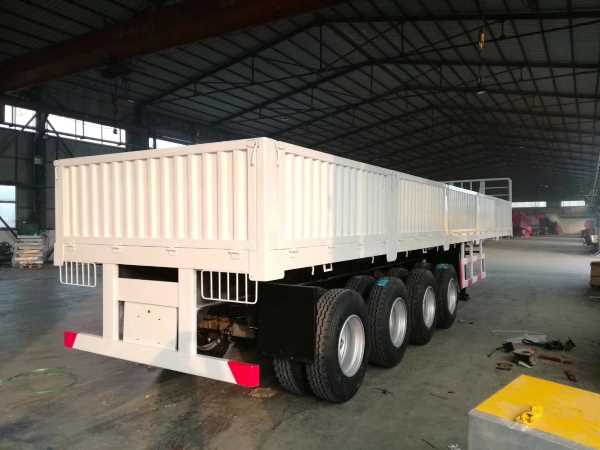

Detail Photo of 4 Axle drop side trailer
