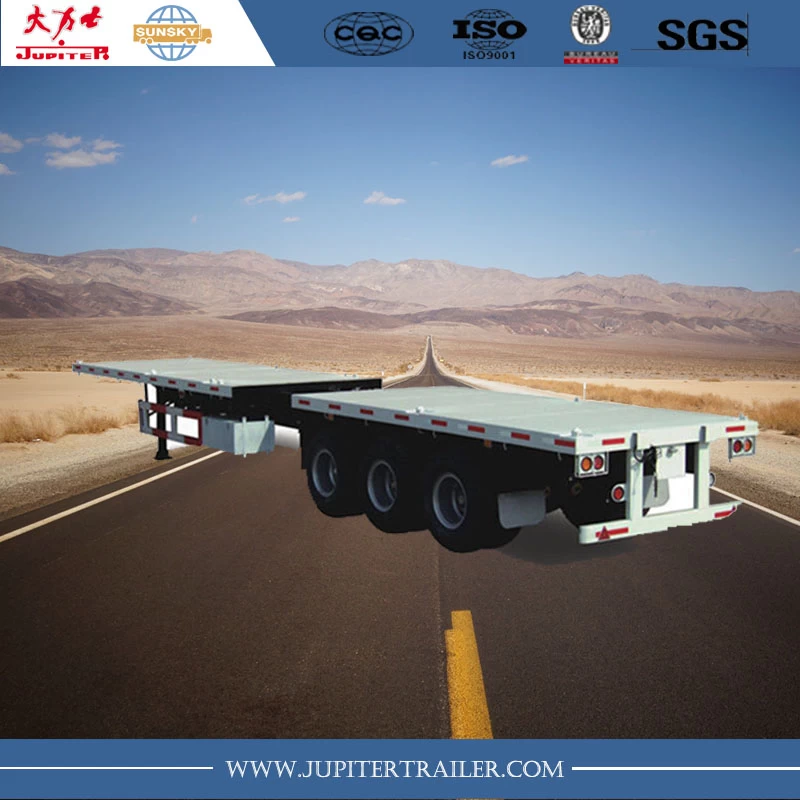

40ft or 45ft 3 axle extendable Flatbed semi trailer
1.It is mainly suitable for the long distance transportation of large-scale bulk cargo and container, good adapt ablity in cargo.
2.The main frame is made of 16Mn high-tensile steel,reasonable structure,light weight,superior carrying capacity and no permanent deformation.
3.It is optional to install the relevant accessories such as front plate,boomer, to meet the extra demand.
4.The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
5.The main frame can be made of foreign or domestic high-tensile steel to reduce tare weight.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
|
|
|
|
|
Dimension
|
Full Length
|
13,724mm*
|
Maximum Gross Weight
|
53,000kg*
|
|
Length
|
12,200mm
|
|
Width
|
2,498mm*
|
Maximum Payload
|
45, 000 kg*
|
|
Platform Height
|
1,460 mm*
|
Tare Weight
|
8,000 kg*
|
|
The Kingpin Height
|
1,200mm*
|
Axle Loading Distribution
|
|
Front Overhang
|
450 mm *
|
Fifth Wheel Load
|
Empty
|
2,640kg*
|
|
Rear Overhang
|
1,985 mm *
|
Full
|
17,490kg*
|
|
Wheel Space
|
1,310 mm*
|
Rear Axle Load
|
Empty
|
5,360kg*
|
|
Kingpin To The First Axle
|
9,500mm*
|
Full
|
35,510kg*
|
|
Tires
|
11R20
|
The Number Of Tires
|
12
|
|
SPECIAL FEATURES
|
|
|
|
1. After the extension, the vehicle can transport 45ft container, without extension, it can transport two 20ft containers, a 40ft container or loose cargos.
|
|
|
|
2.. After the entire extension the vehicle can reach 1520 mm
|
|
|
|
3. The main beam and other configuration parts are made of high-strength low-alloy steels by the exact design with advanced technology reasons. So the tare weight of whole vehicle is low but the carrying capability is strong.
|
|
|
|
5. Shot blasting twice and particular coat painting can guarantee the quality of the chassis surface.
|
|
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.
2. Why choose us
Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.
2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
