Item:40FT Tri Axle Flatbed Trailer For Zambia
Application and Feature： 40 ft flatbed trailer
Our full range of flat-deck semi trailers offer our customers the flexibility to be used in many applications such as general freight, container cartage, road train operations and more. Which have exported to many counties in Africa and Asia like Zambia,Tanzania,Kuwait,Philippines etc. We can custom built or provide our standard Flat Deck, Lead and Tag Trailer models. With the option of beaver tail models to come. All our products are manufactured to meet our customers’ demands with emphasis on design, durability, low tare weights, reduced maintenance costs and resale values.
SUNSKY are also able to offer a range of optional extra such as aluminium gates, aluminium or chrome wheels, container pins & pedestals, extra lights, extra tool boxes, etc which will enhance the already standard features of your trailer
Specification： tri axle flatbed trailer for sale
|
40FT 3-axle Flatbed semi trailer
|
|
Feature:
|
Carry 1X20FT、1X40FT、or 2X20FT container
|
|
Dimension(L*W*H):
|
12420*2480*1570mm
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
No. of axle:
|
3
|
|
Payload(kgs):
|
50000
|
|
Tare weight(kgs):
|
7200
|
|
Kingpin:
|
2"
|
|
Landing gear:
|
19”
|
|
Tire size:
|
12R22.5 (13 sets)
|
|
Rim size:
|
9.00*22.5 (13 sets)
|
|
Axle:
|
Germany Type 3 Axles,13 tons
|
|
Suspension
|
Spring suspension with 12pcs of leafs spring
|
|
Brake system:
|
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container locks
|
12(for 1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box; one set of standard tool
|
|
We can build the trailers according to customer’s design and requirement
|
Quality Guarantee: flatbed trailer for sale
1. Two years warranty term for I beam.Three to Six Month For the Axle, suspension etc.
2. Keep lifespan more than 10 years.
3. Spare parts support service.

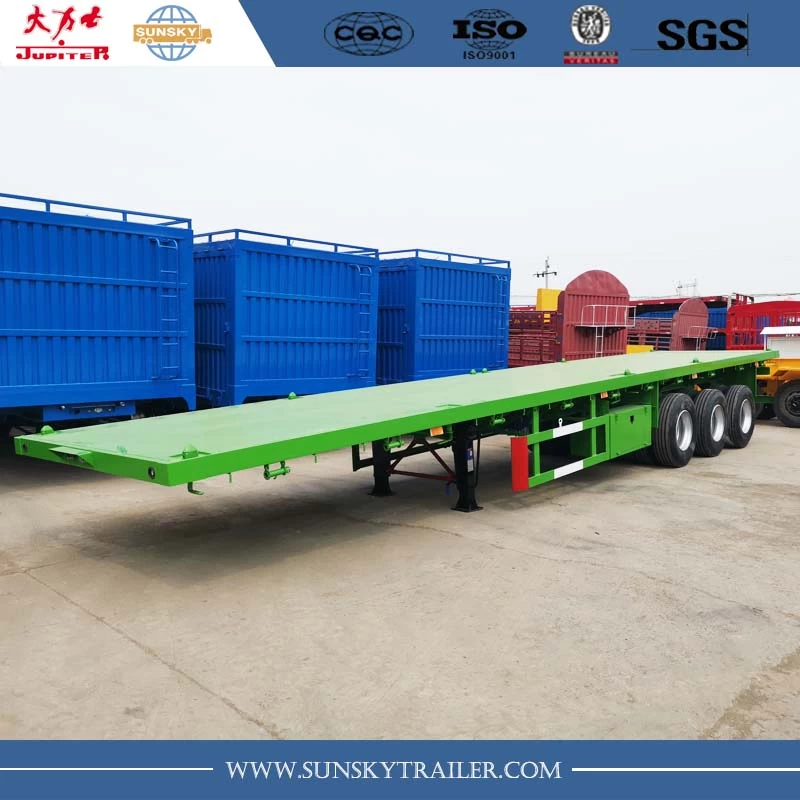

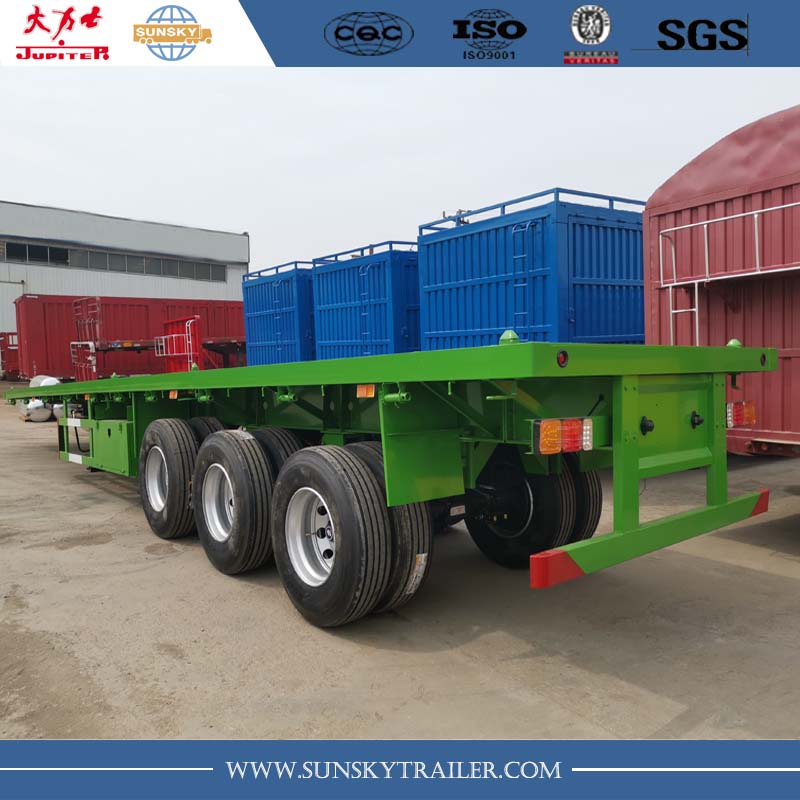

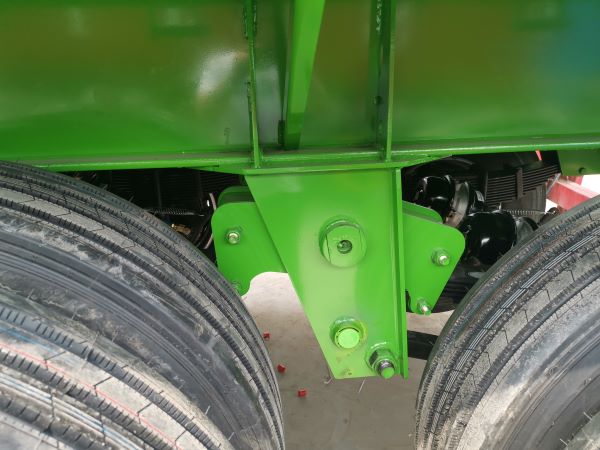

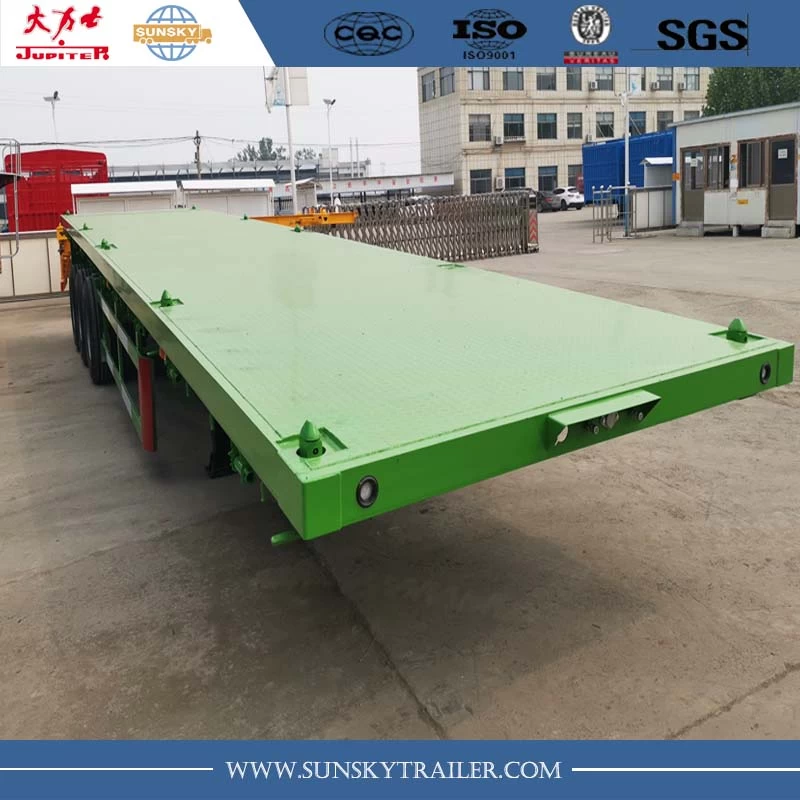

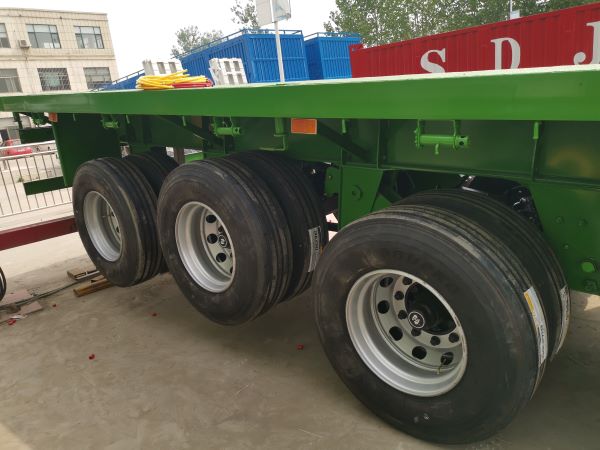

Detail Photo of 40FT Highbed Trailer

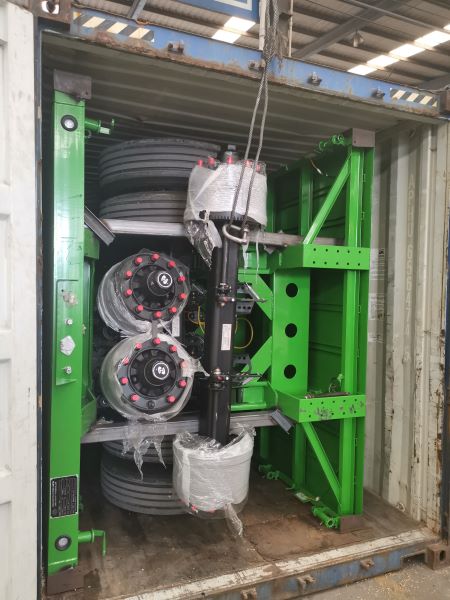

Loading Photo of Flatbed trailers
(2 Unit load into 40FT container)
