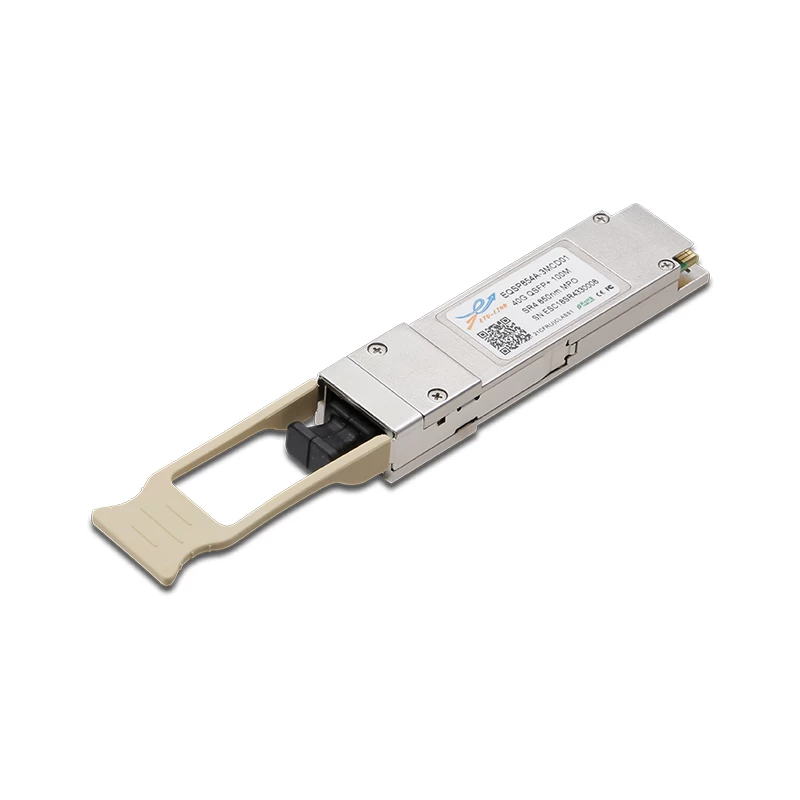

EQ854X-3MCD01
40Gbps 850nm 100M QSFP+ Optical Transceiver
Features
Ø High Channel Capacity: 40 Gbps per module
Ø Up to 11.1Gbps Data rate per channel
Ø Maximum link length of 100m links on OM3 multimode fiber
Or 150m links on OM4 multimode fiber
Ø High Reliability 850nm VCSEL technology
Ø Electrically hot-pluggable
Ø Digital diagnostic SFF-8436 compliant
Ø Case operating temperature range:0°C to 70°C
Ø Power dissipation < 1.5 W
Applications
Ø 40G Ethernet
Ø Infiniband QDR
Ø Fiber channel
Standard
Ø Compliant to IEEE 802.3ba
Ø Compliant to SFF-8436
Ø RoHS Compliant.
