Polyurethane composite roof plate features
☆ Three high wave roof sandwich panels,it is good for drainage for the metal roofing system;
☆ Concealed lock way is intensify the performance of waterproof;
☆ Eco-friendly material for PU core sandwich panel;
☆ With performance of heat insulation, soundproof, thermal insulation,especially waterproof, can widely used in different kinds of buildings.
Core material of PU sandwich roof panel
The brands of polyurethane are BASF,Huntsman,Wanhua,they are top in polyurethane chemical material industy.So that can guarantee the best quality in core material of PU sandwich panels.
Excellent waterproof PU sandwich roof panels specifications
|
Product name
|
40mm PU foam insulation roof boards
|
Remark
|
|
Effective width
|
1000 mm
|
|
|
Panel thickness
|
40 mm
|
Other thickness for roof:
|
|
50, 60, 75, 100, 120, 150 mm
|
|
Surface sheets
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel
|
|
|
Steel thickness
|
0.40 - 0.70 mm
|
|
|
Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
0.70 - 1.20 mm
|
|
|
Stainless steel
|
0.40 - 0.60 mm
|
|
|
Core material density
|
40 - 42 KG/M³
|
|
|
Regular panel color
|
White grey, Sea blue, Sliver grey, Dk grey, Iron grey
|
Color could be customized too.
|
|
Coating type choice
|
PE/ PVDF/ HDP/ SMP, etc.
|
|
|
Available length
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|

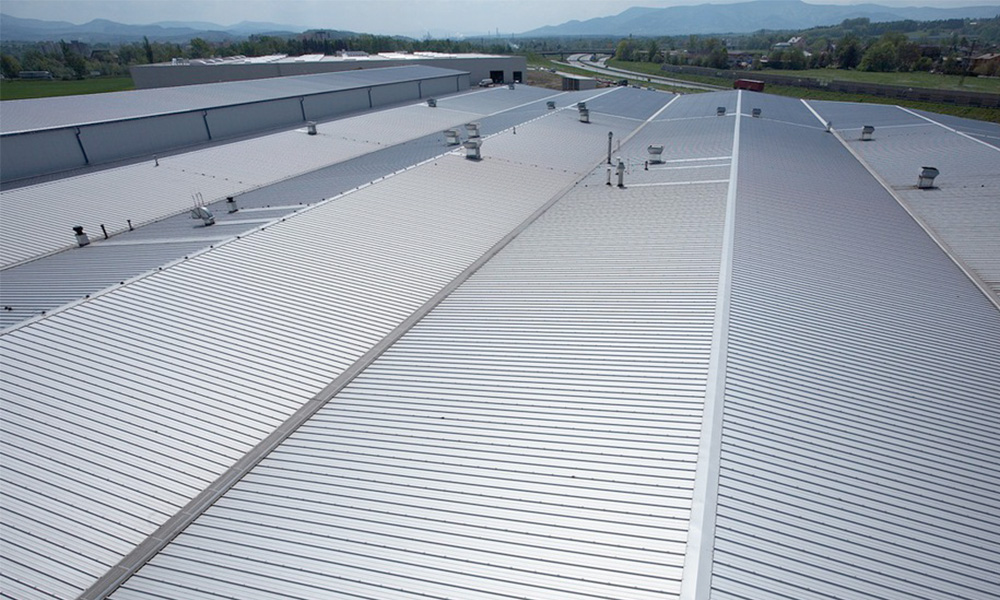

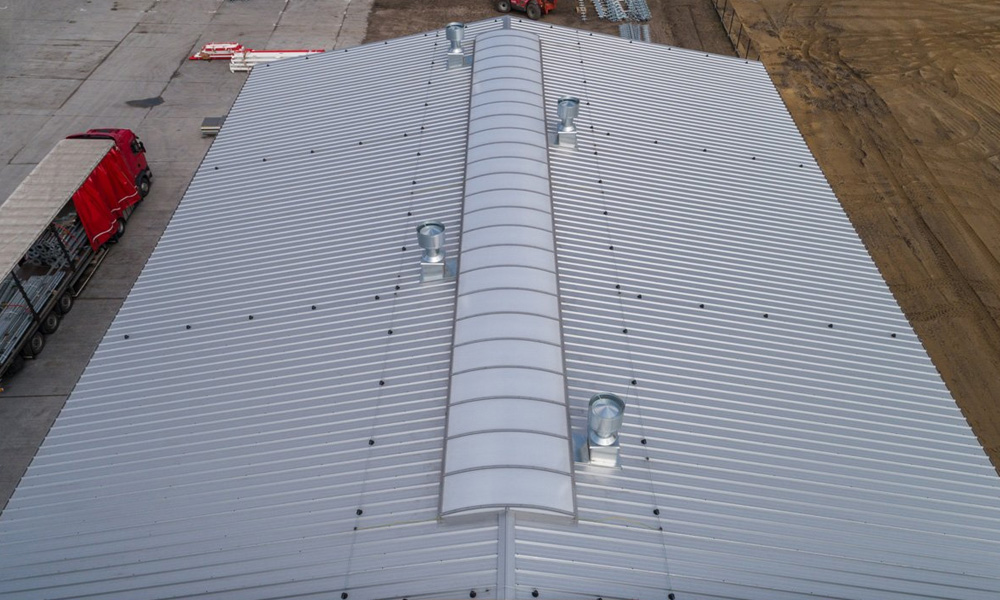

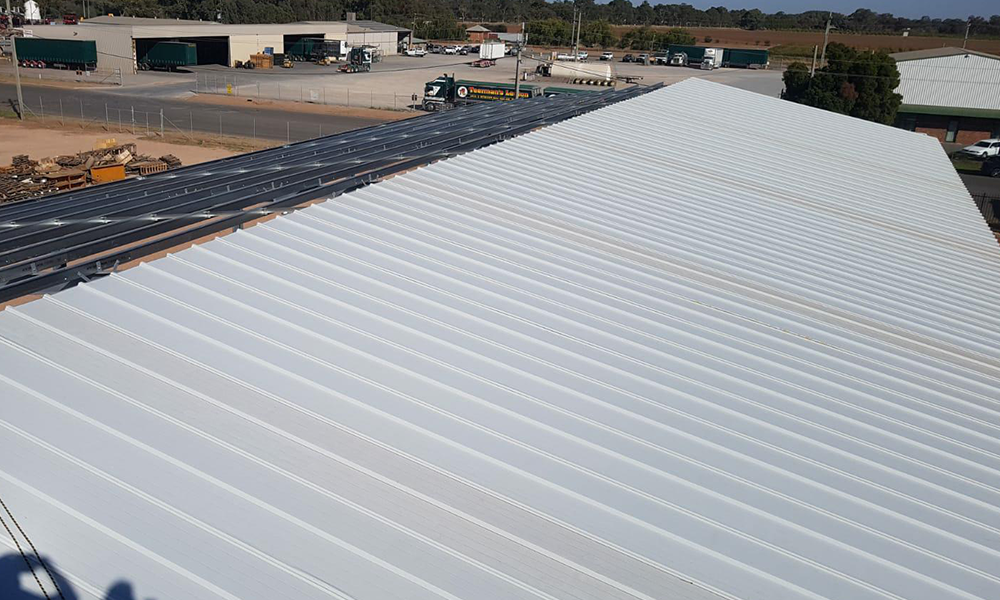

PU Composite panel applications
As the outstanding performance of waterproof, thermal & heat insulation, it is widely apply in recidential house, prefab house, packing room, warehouse, storage, carpot, offce buildings, shops, temporary civil houses,ect.

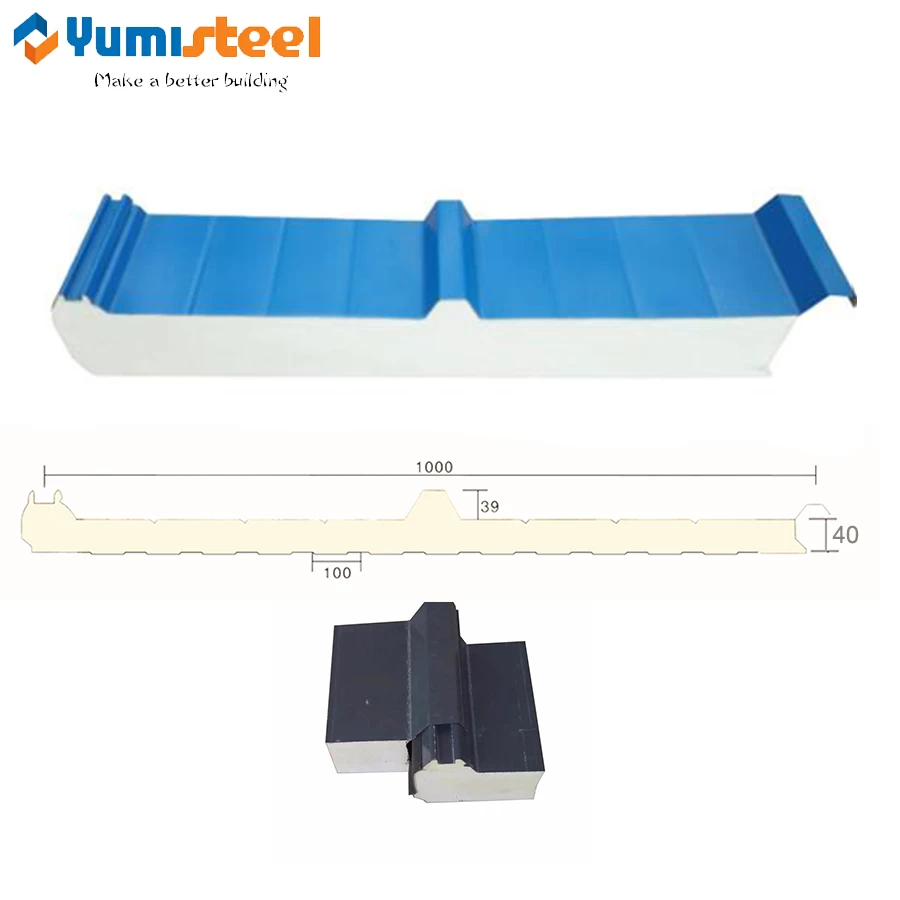

3 ribs Profiled metal roofing panel renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
