Building new profit concept in the age of “light weight”
(This series mainly refers to the Beiben light dump truck with internal length above 6.5m, classified into rectangular north benz dump body and U-shaped dump body)
Energy-saving, high efficiency, light weight, and environment-friendly
The steel material of the superstructure is completely upgraded to manganese steel and 610L steel adopted in partial portions, with strength up to 550-700Mpa, which is more than
2 times of conventional steel plate.

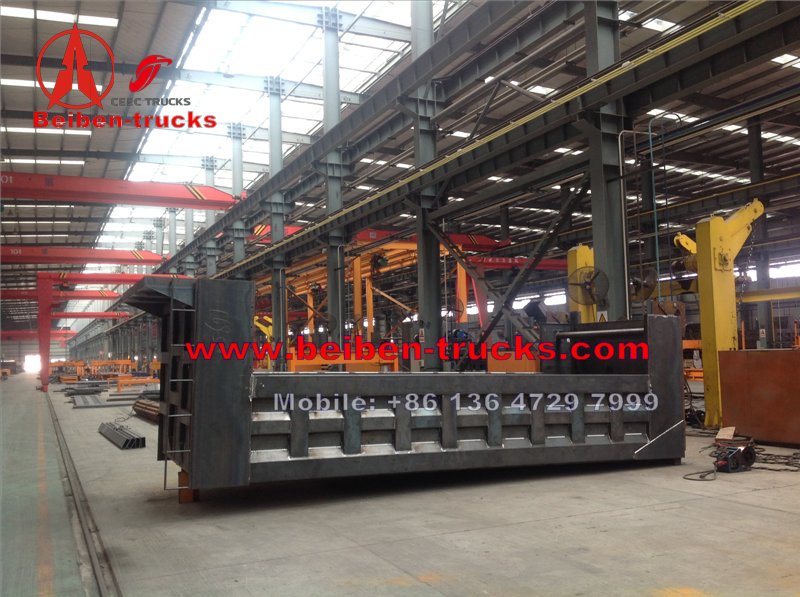

The width and thickness for the pillars and ribs of the beiben dump body are sufficiently optimized to effectively guarantee anti-expansion performance of dump body and ensure elegant
appearance.
The longitudinal beams of the frame sufficiently utilized the height and the side crossbeam adopts variable section type to reduce the dead weight and ensure sufficient strength.
Wide tail + middle balance stand structure ensure stable and safe lifting of dump body.
Powerful pump and large pipes of the hydraulic system relize fast lifting speed, high dumping efficiency, and durability.
Key Features:
◆Germany BENZ technology chassis with high durability and
reliability
◆ Germany BENZ technology engine combined with original rear axle
reducer gear and differential gear
◆Continuous welding throughout body for additional strength, Full
depth rear corner post with full depth rear crossmember.
◆ Enhanced body, and the motherboard adopts variable cross-section
beams.

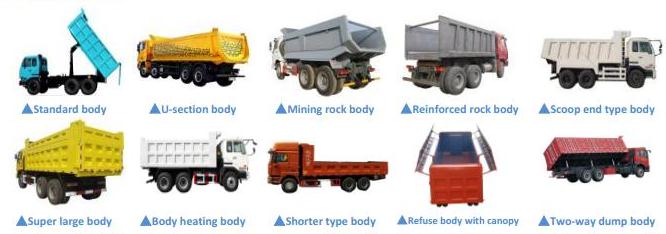

◆Special
Dump Body Design are optional
◆Other customer requirements are welcome
Technical Parameters:

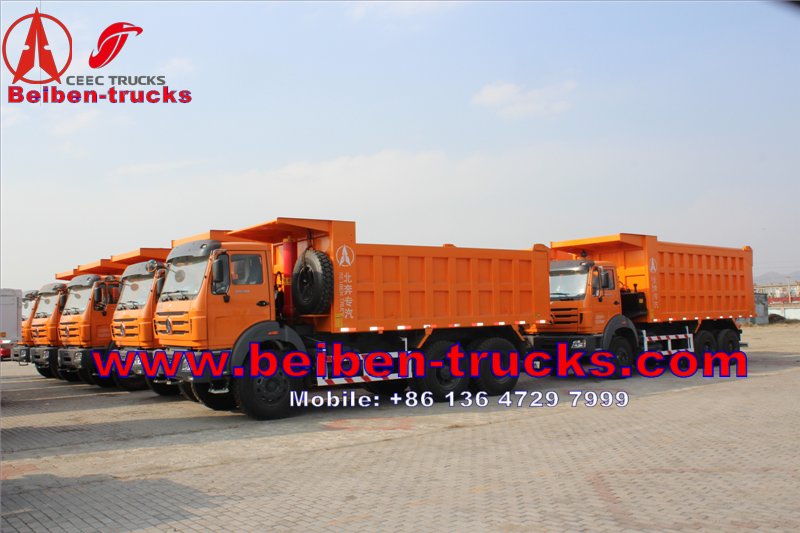

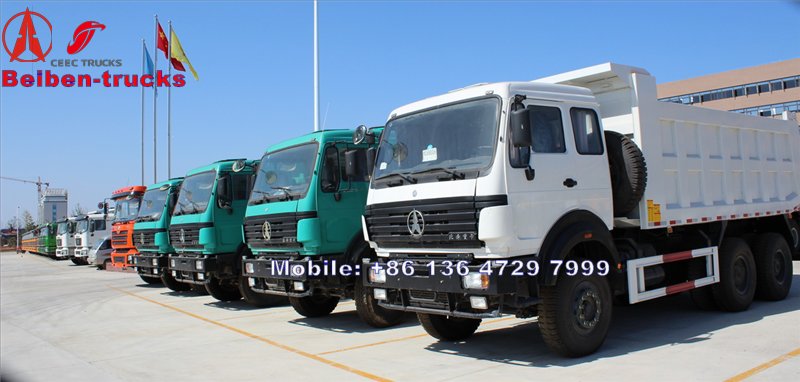

North Benz Beiben Dump Truck
WEICHAI engine,Fast Gear box
Parts are available
best after sales service
Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck
Traction type: 6X4
Driving type: LHD (RHD is optioned)
| Beiben V3 6x4 dump truck |
| Cab |
middle
length cab, made by full steel material, anti-crash performance can be
ensured by double hollow chamber structure. Inner A/C |
| Kerb weight |
12280kg |
| Gross Vehicle Weight |
25000kg |
| Wheelbase(mm) |
4750+1450 |
| Engine |
Brand:WEICHAI Model:WP10.375 Emission Standard:EUROII |
| Power (kw/hp):276/275 Max torque:1460N·m/1200—1600rpm |
| Type:Diesel Displacement (L):9.726 |
| Transmission |
Brand:FAST GEAR Model:9JS180 9-forward &1-reverse gears |
| Clutch |
Single dry frictional disc,Hydraulic boosting |
| Steering |
Model:ZJ120D |
| Brake |
Service
brake:Brake gap can be adjusted automatically, double circulation air
brake system Assistant brake:Engine exhaust brake Park brake:Potential
springs pressing on middle and rear wheels |
| Frame |
Fish belly shape,variable width, variable section side beam structure |
| Front axle (Mercedes Benz Technology) |
7.5 ton non-driving steering axle |
| Middle and Rear axle (Mercedes Benz Technology) |
13ton strengthened axle, double reduction driving axle with inter-wheel differential and differential lock |
| Tyre |
12.00R20 |
| Fuel tanker capacity (L) |
300 |

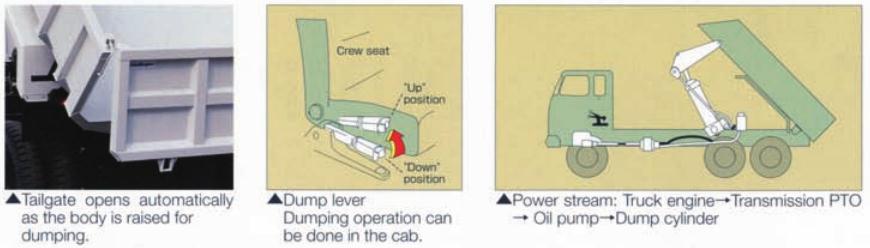

■Working principle

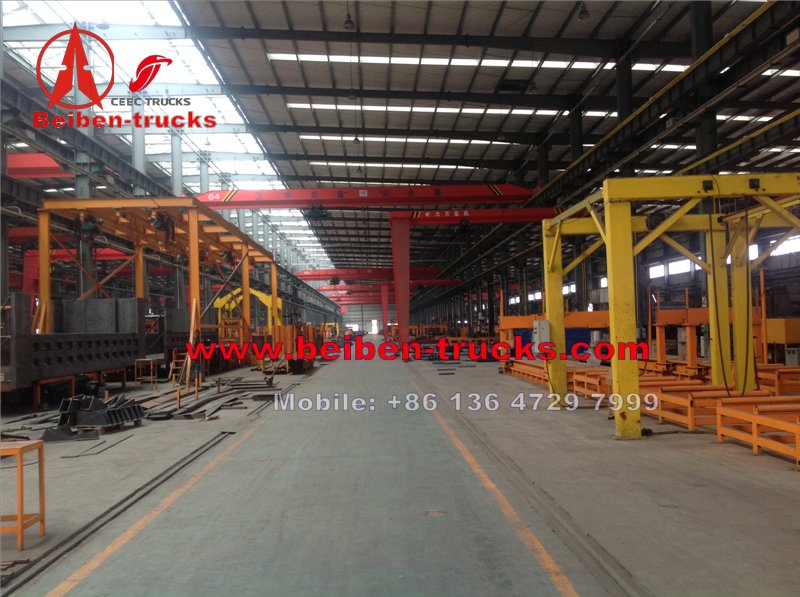

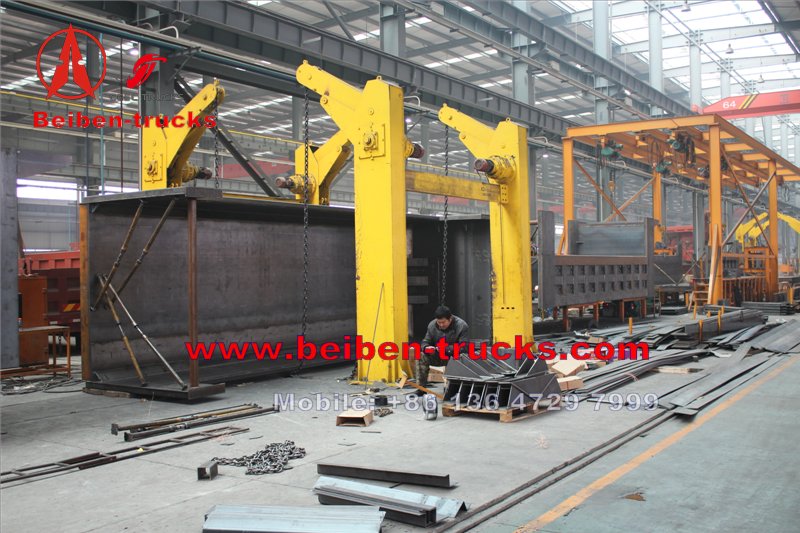

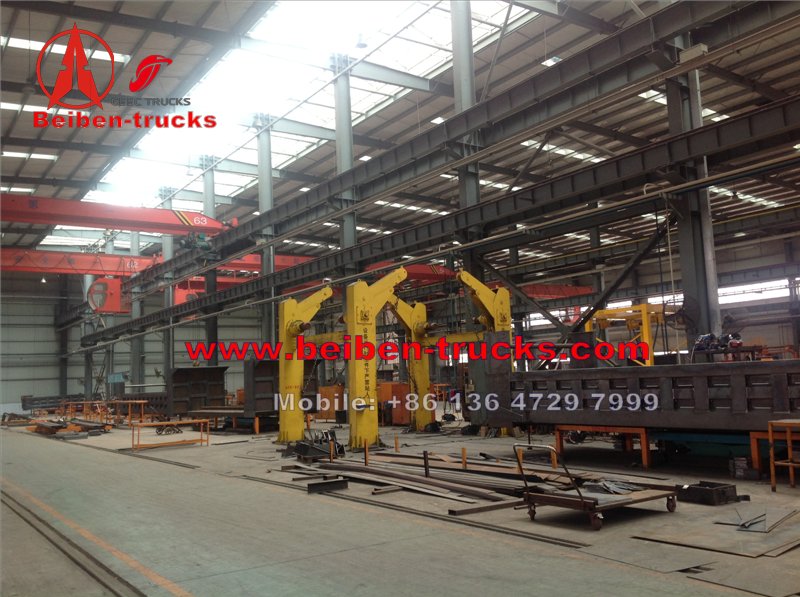

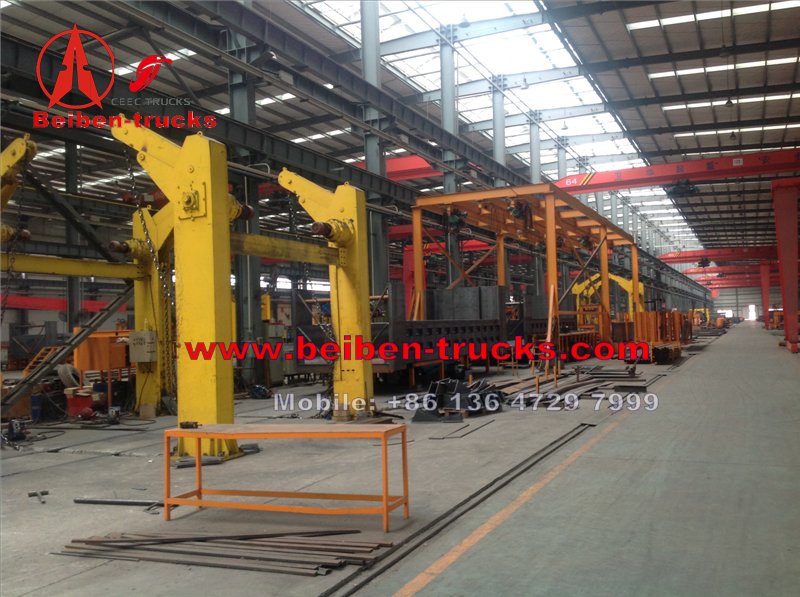

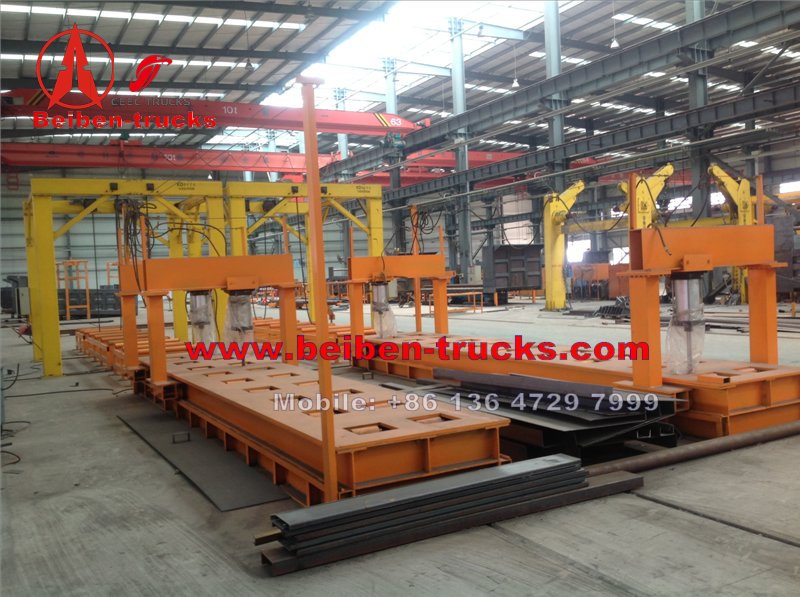

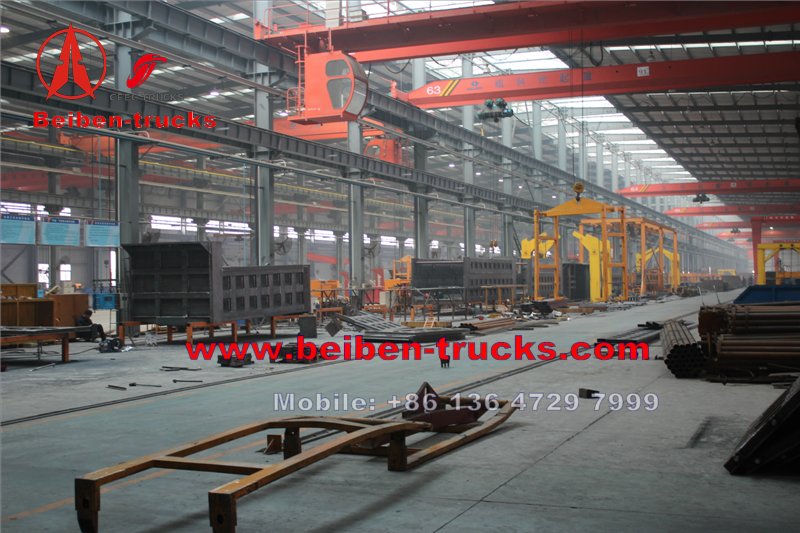

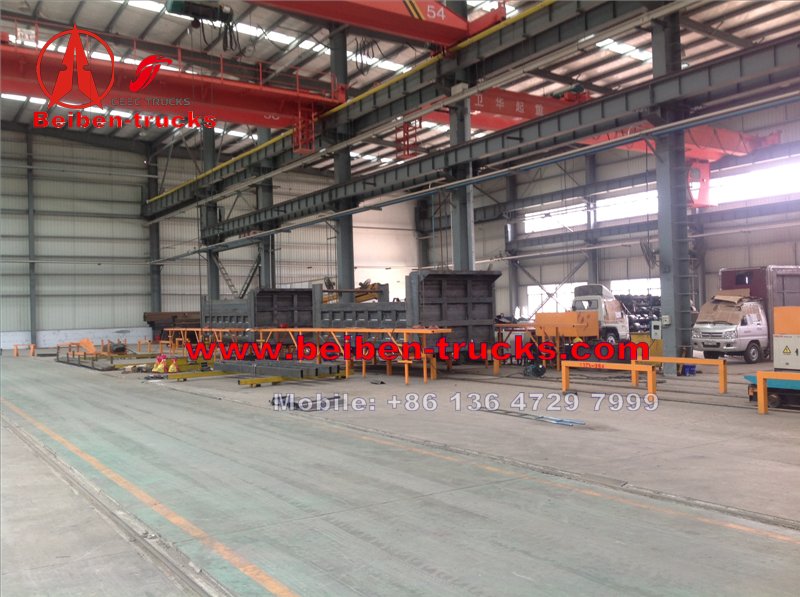

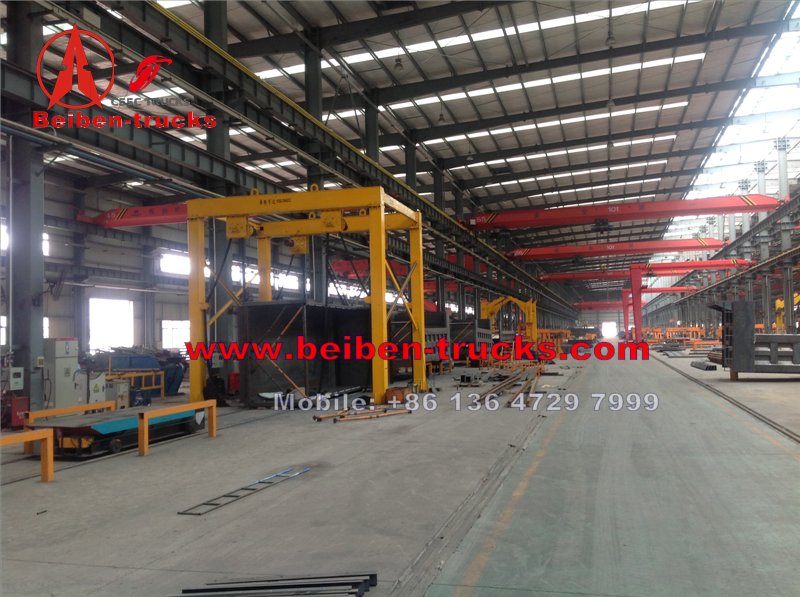

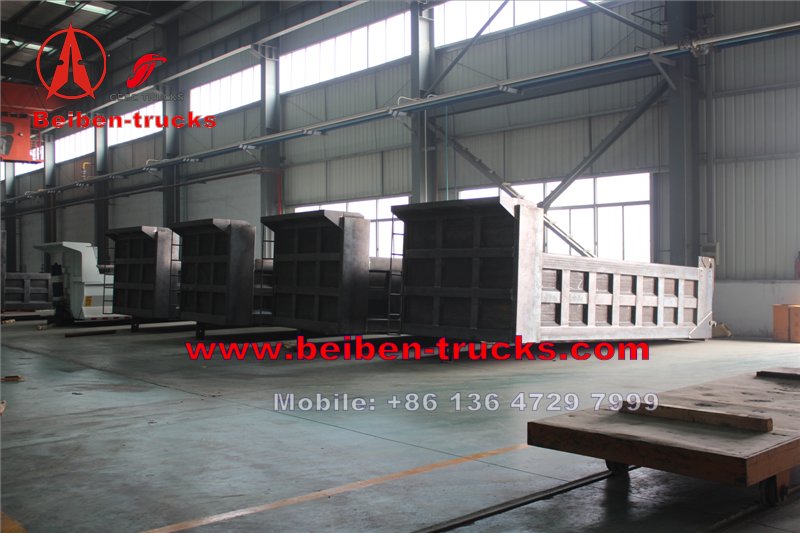

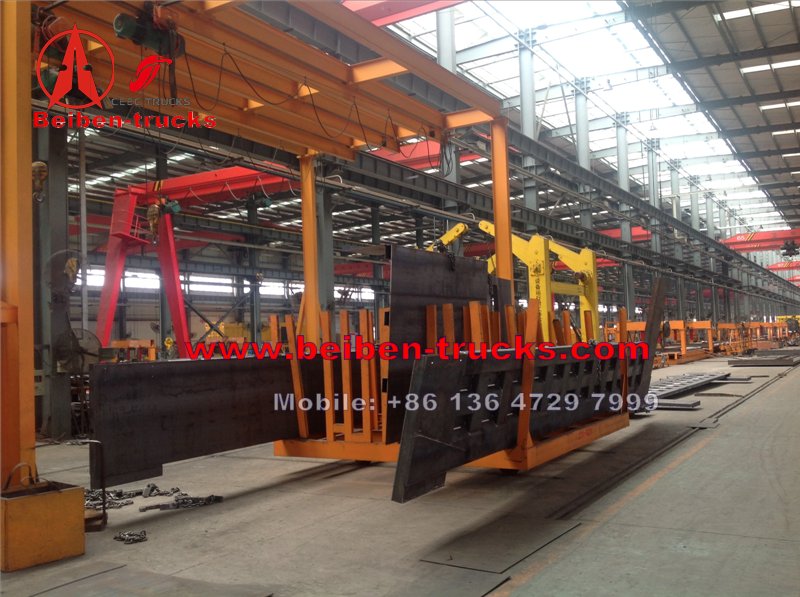

Beiben dump truck in great order from our plant.
