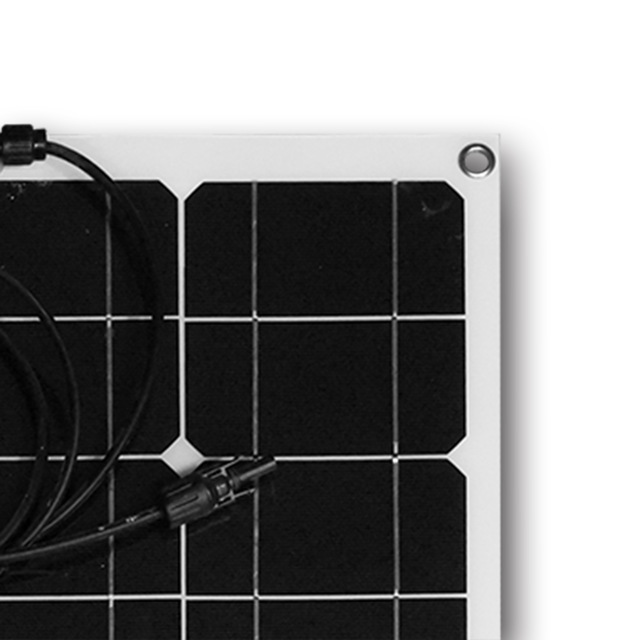

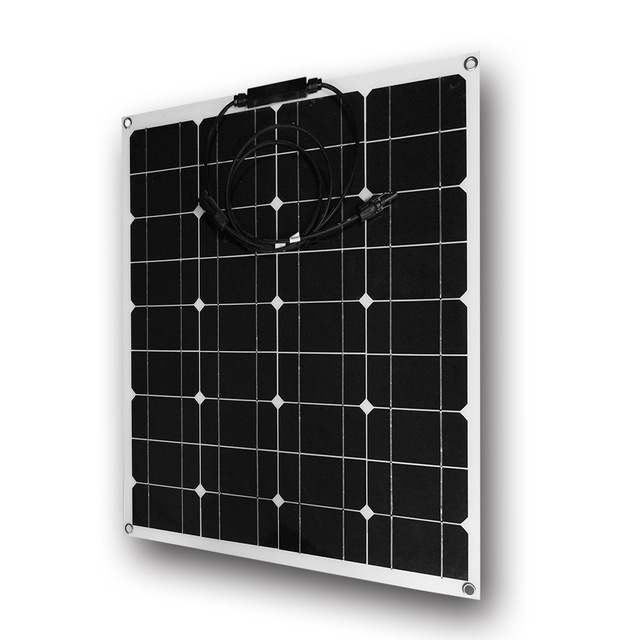

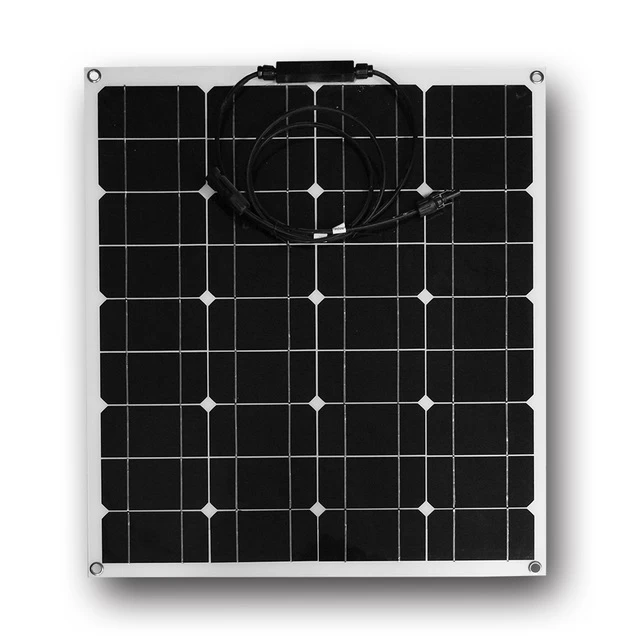

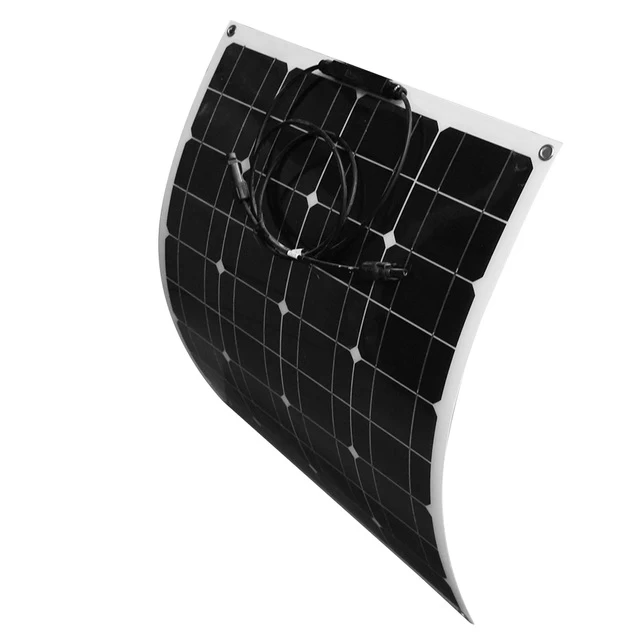

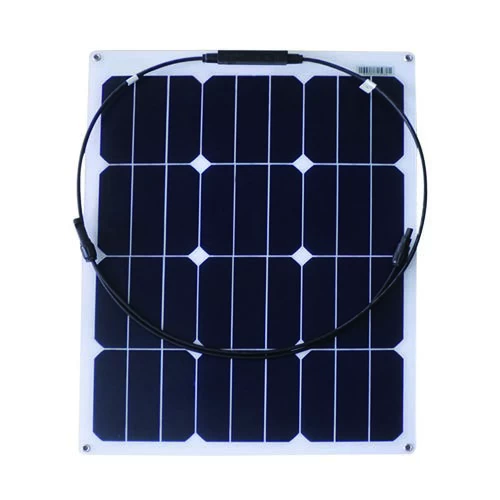

40W Flexible Mono-crystalline Photovoltaic Solar Panels
Solar Panel Details:
| Parameters | FGET-ETFE40WB |
| Peak power Pm(W) | 40±3% |
| Open circuit voltage Voc(V) | 23.6 |
| Max. power voltage Vmp(V) | 19.5 |
| Max. power current Imp(A) | 2 |
| Short circuit current Isc(A) | 2.2 |
| Solar cells Efficiency | 21-22.5% |

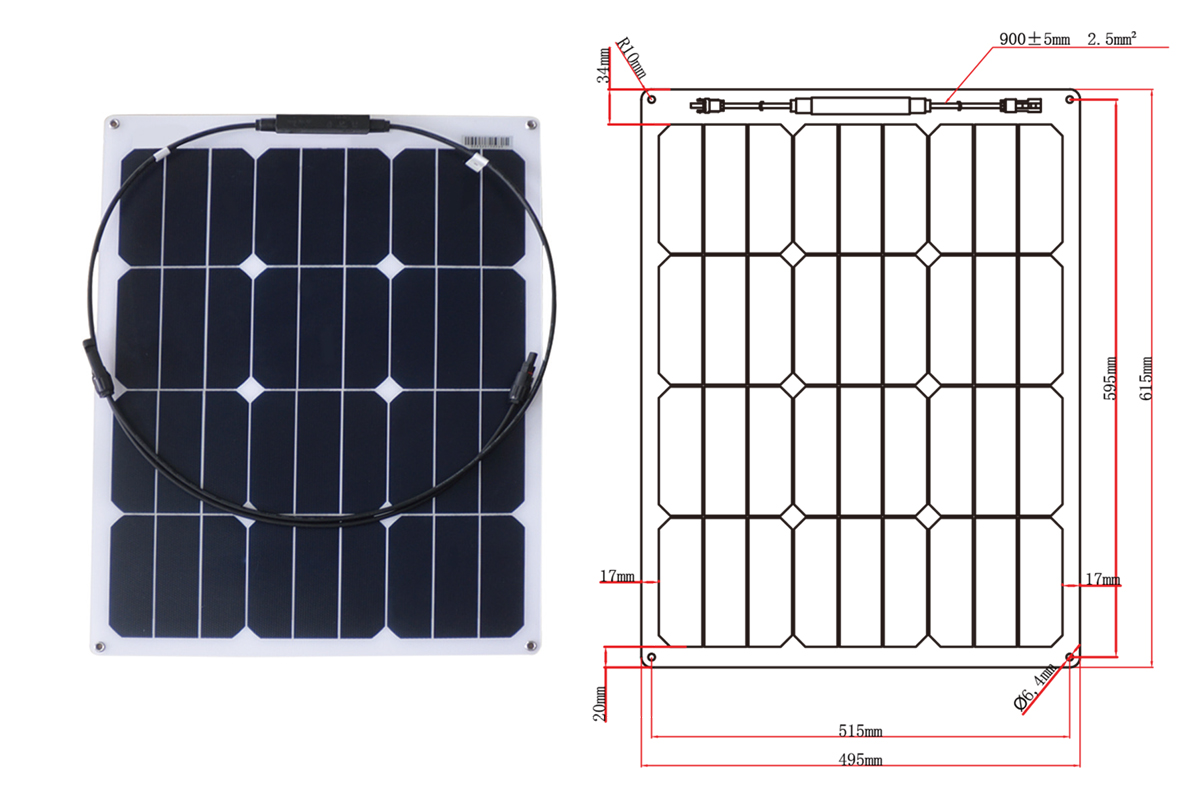

| Dimensions(L*W*T)/ Weight(kgs) | 560*425*3mm |
| solar cell / No. of cells and connections | Sunpower silicon /36 series |
| Front cover(material/thickness) | ETFE/0.025mm |
| Encapsulant(material) | Ethylene vinyl acetate(EVA) |
| Frame(material/collor) | No |
| Junction box protection degree | ≥IP65 |

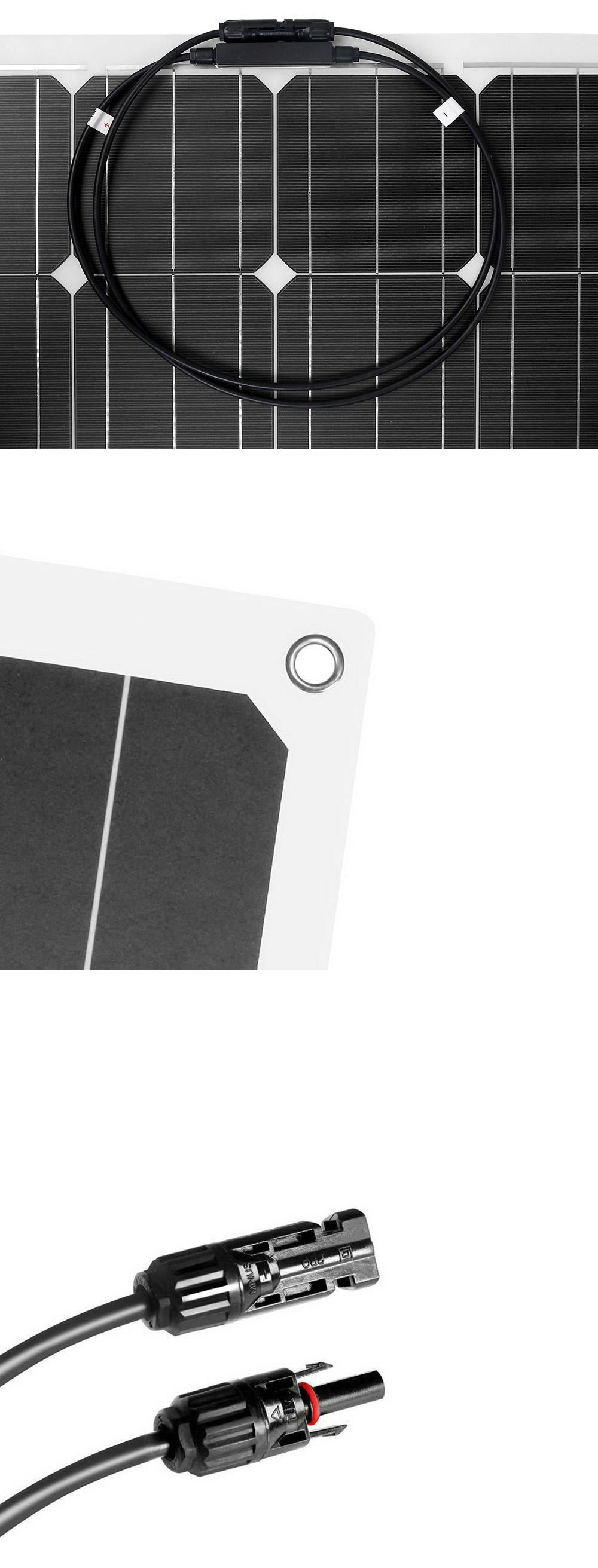

| Cable /Cable connector Model | 2-4SQMM,USB/MC4/5521/SAE |
| STC | Irradiance:1000W/m2,Cell temperature:25ºC,AM:1.5 |
| Max. static load ,front(e. g .,snow/wind) | 2400Pa |
| Max. static load ,back(e. g .,wind) | 2400Pa |
| Max. hailstone impact (diameter/velocity) | 25mm/ 23m/s |
| Max. system voltage (V) | 1000V DC |
| Application Class | Class A |
| NOCT | 48±2ºC |
| Operating temperature limits | -40ºC- +85ºC |
| Coefficient current TK | 0.1%/ºC |
| Coefficient voltage TK | -0.37%/ºC |
| Coefficient power TK | -0.45%/ºC |
| Life | ≥25 years |
| Warranty | 5years 100% power,10years 95%,15 years 90%,25years 80% |
| Product Certification / Standard | TUV,CE,ROHS,FCC,PSE/(IEC61215&IEC61730) |
| Other Certification | ISO 9001:2008 |
Quality assurance:
1,All the solar cells A grade from Taiwan (Sunpower from USA)
2,TPT+EVA+PET
3,Warranty:3-5 years
4,Useing Life: 10-20 years
5,CE ROHS Certificates
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
- OEM Welcomed
- Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
- After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
