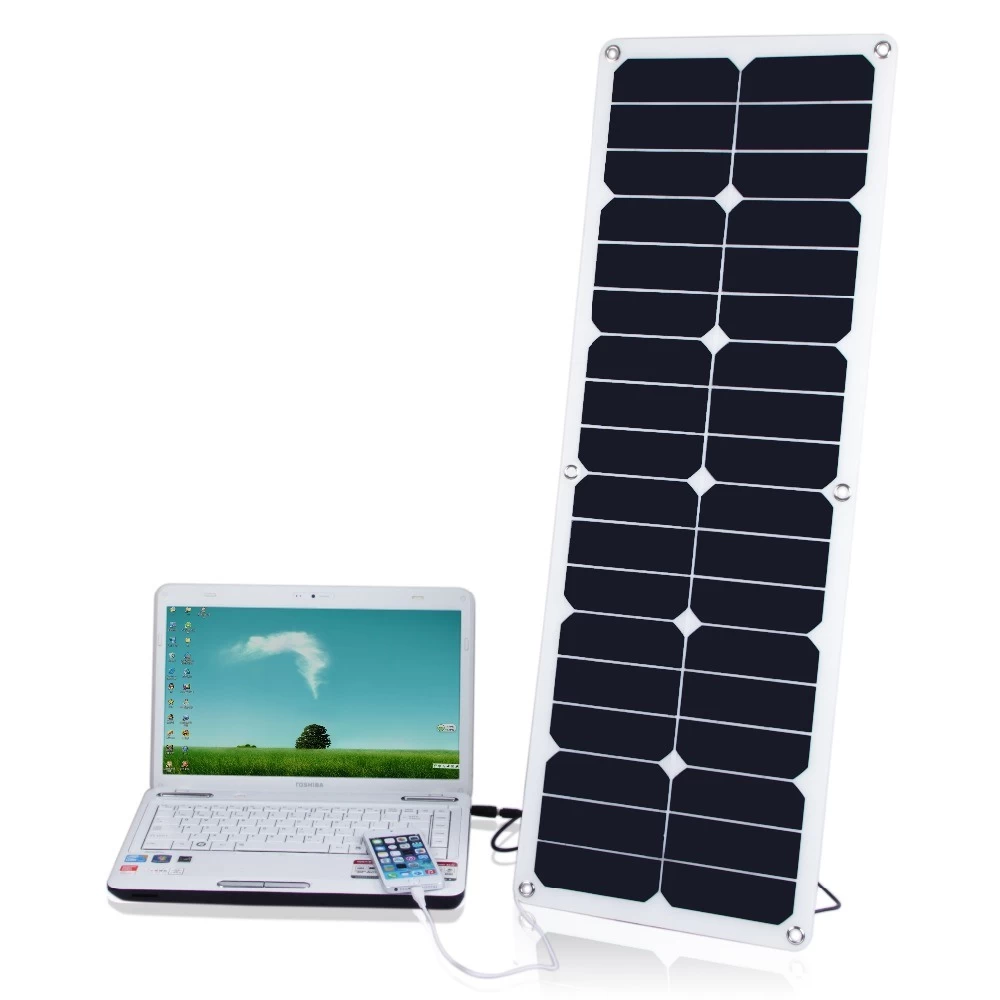

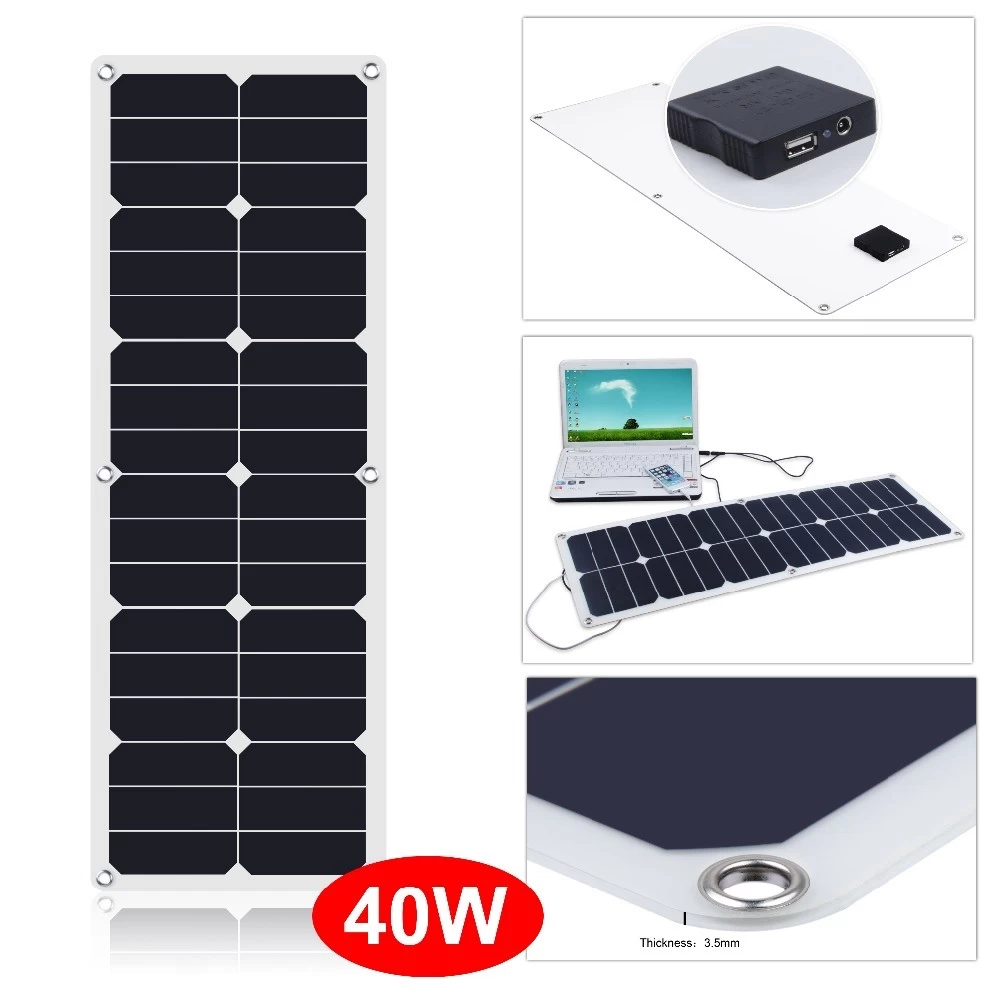

40W-B Flexible Mono-crystalline Photovoltaic Solar Panels
Solar Panel Details:
|
Parameters
|
FGET-ETFE40WB
|
|
Peak power Pm(W)
|
40±3%
|
|
Open circuit voltage Voc(V)
|
23.6
|
|
Max. power voltage Vmp(V)
|
19.5
|
|
Max. power current Imp(A)
|
2
|
|
Short circuit current Isc(A)
|
2.2
|
|
Solar cells Efficiency
|
21-22.5%
|
|

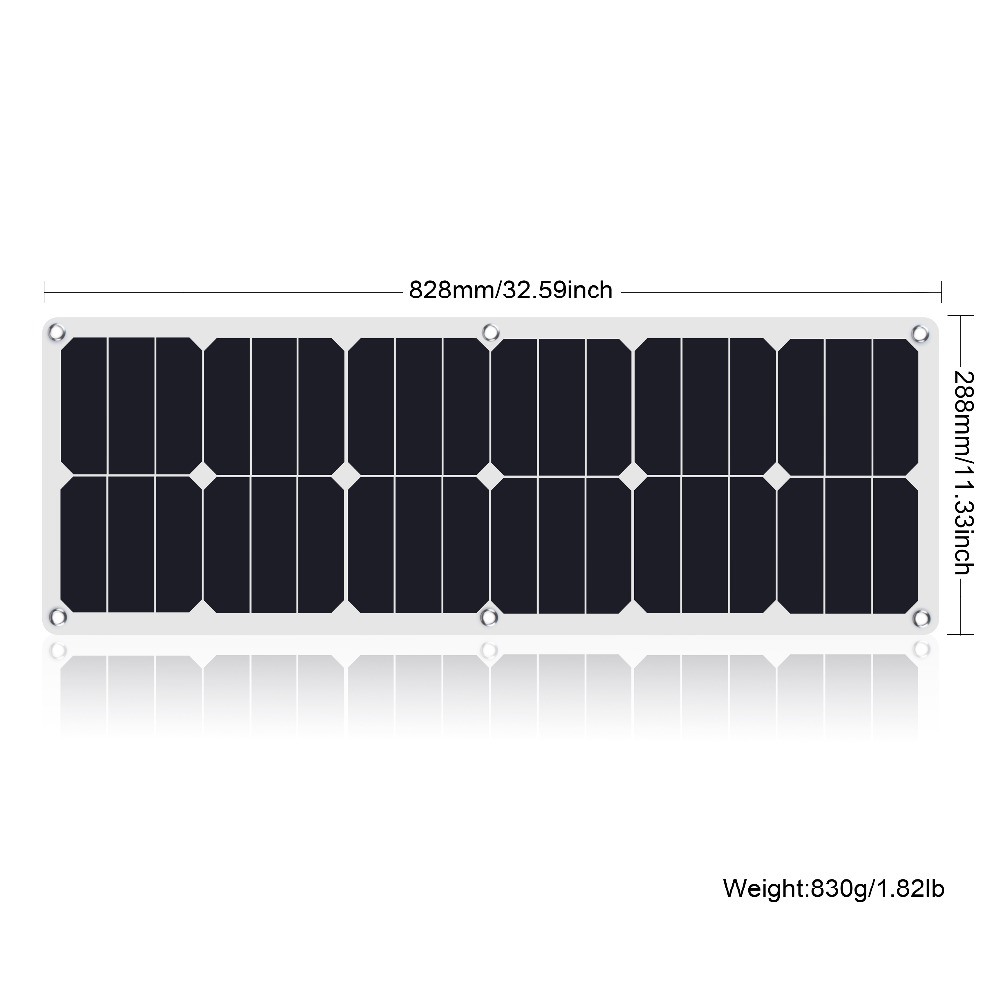

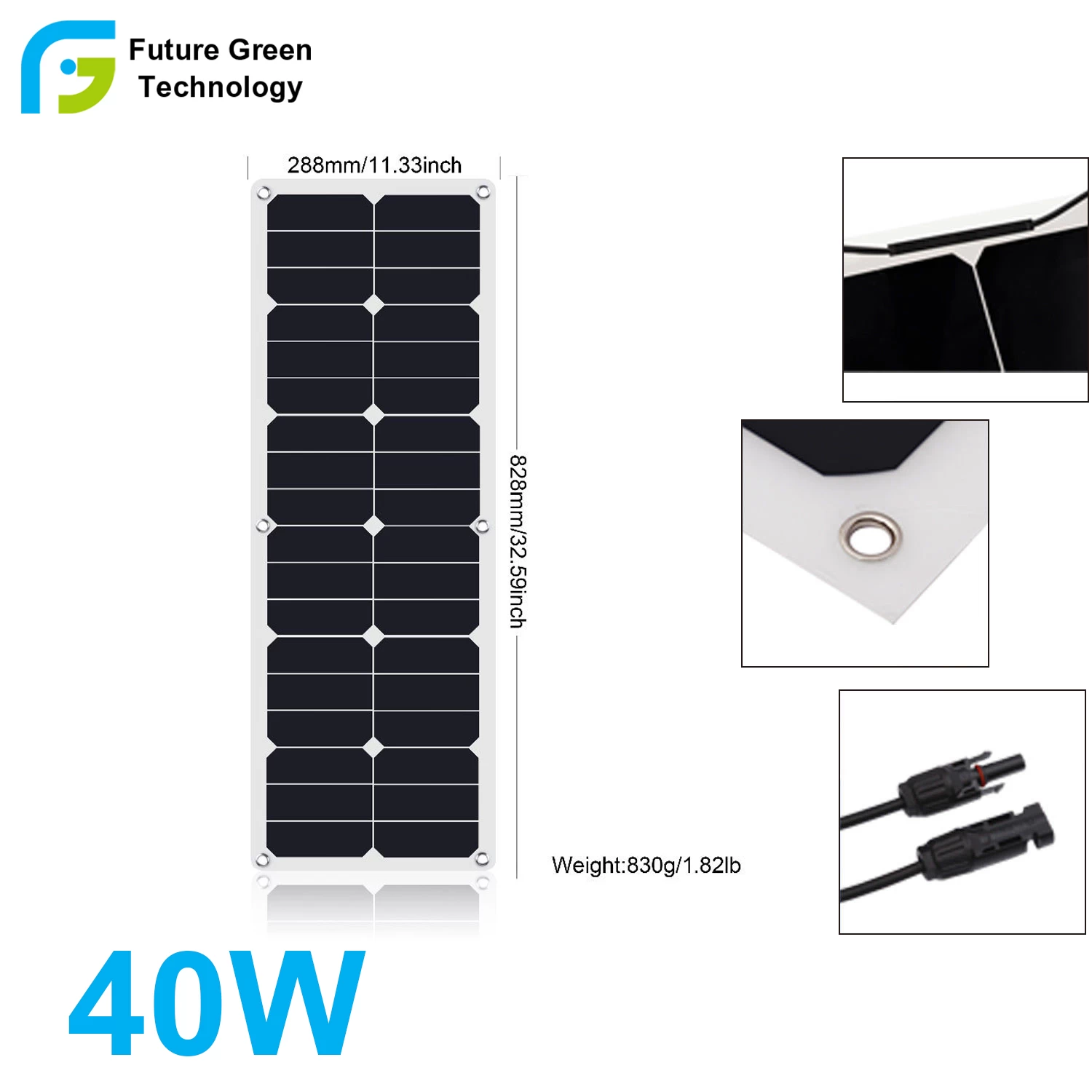

Dimensions(L*W*T)/ Weight(kgs)
|
828*288*2mm/0.83
kgs
|
|
solar cell / No. of cells and connections
|
Sunpower
silicon /36 series
|
|
Front cover(material/thickness)
|
ETFE/0.025mm
|
|
Encapsulant(material)
|
Ethylene
vinyl acetate(EVA)
|
|
Frame(material/collor)
|
No
|
|
Junction box protection degree
|
≥IP65
|
|

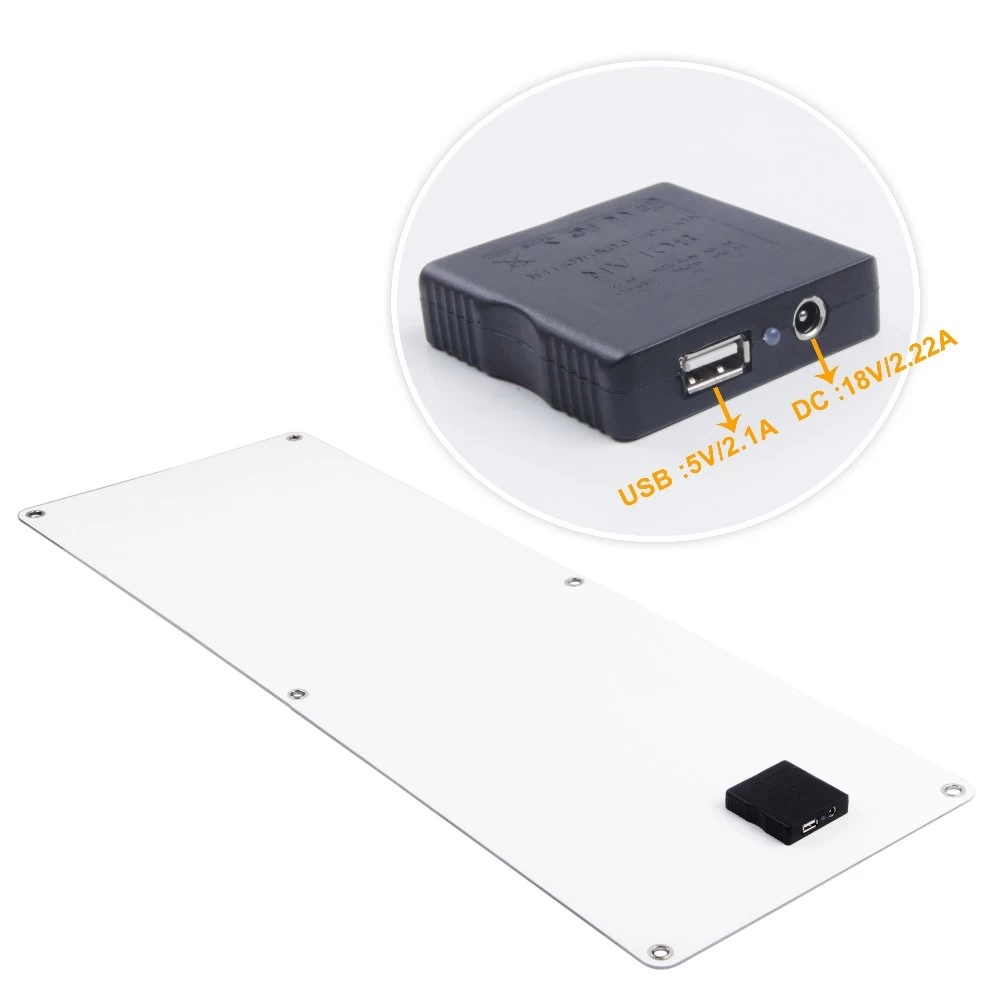

Cable /Cable connector Model
|
2-4SQMM,USB/MC4/5521/SAE
|
|
STC
|
Irradiance:1000W/m2,Cell
temperature:25ºC,AM:1.5
|
|
Max. static load ,front(e. g .,snow/wind)
|
2400Pa
|
|
Max. static load ,back(e. g .,wind)
|
2400Pa
|
|
Max. hailstone impact (diameter/velocity)
|
25mm/
23m/s
|
|
Max. system voltage (V)
|
1000V
DC
|
|
Application Class
|
Class
A
|
|
NOCT
|
48±2ºC
|
|
Operating temperature limits
|
-40ºC-
+85ºC
|
|
Coefficient current TK
|
0.1%/ºC
|
|
Coefficient voltage TK
|
-0.37%/ºC
|
|
Coefficient power TK
|
-0.45%/ºC
|
|
Life
|
≥25
years
|
|
Warranty
|
5years
100% power,10years 95%,15 years 90%,25years 80%
|
|
Product Certification / Standard
|
TUV,CE,ROHS,FCC,PSE/(IEC61215&IEC61730)
|
|
Other Certification
|
ISO
9001:2008
|
Quality assurance:
1,All the solar cells A grade from Taiwan (Sunpower from USA)
2,TPT+EVA+PET
3,Warranty:3-5 years
4,Useing Life: 10-20 years
5,CE ROHS Certificates
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
