Series
|
SMC-Flex
|
|
Part Number
|
41391-454-01-B1FX
|
|
Product Description
|
Pump Control Module
|
|
Controller Rating
|
All
|
|
Line Voltage
|
200 to 600 Volts AC
|
|
Voltage Rating
|
100 to 240 Volts AC
|
|
Starting Time Period
|
0 to 30 seconds
|
|
Stopping Time Period
|
0 to 120 seconds
|
|
Backspin Timer
|
Supported
|

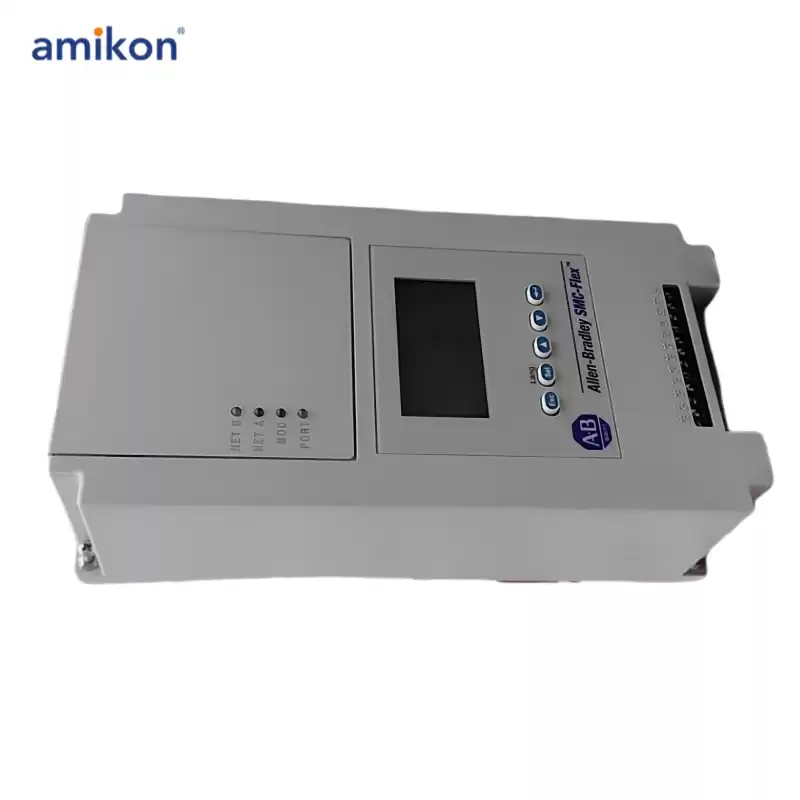

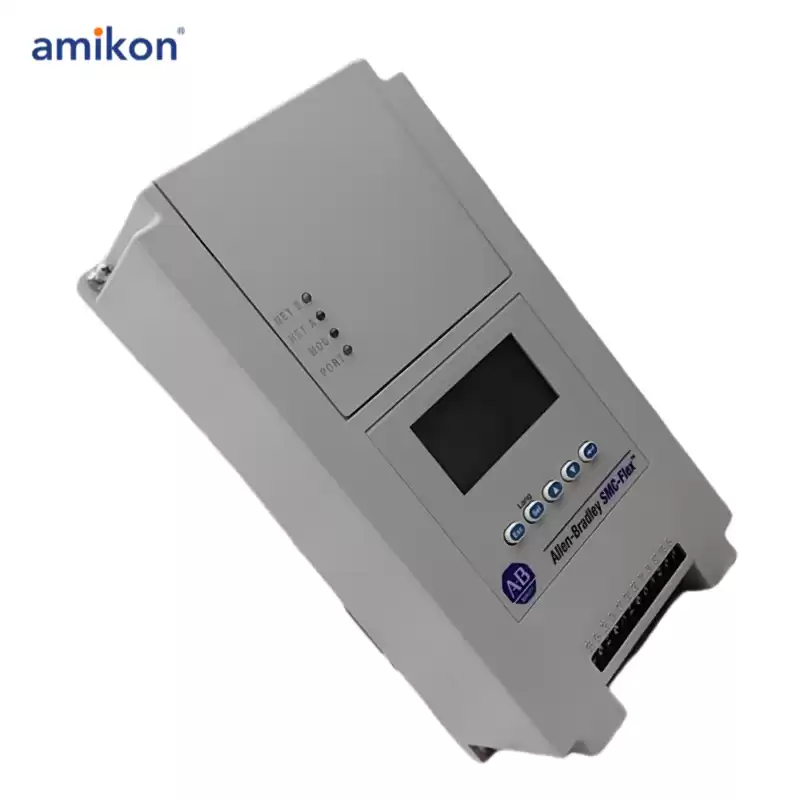

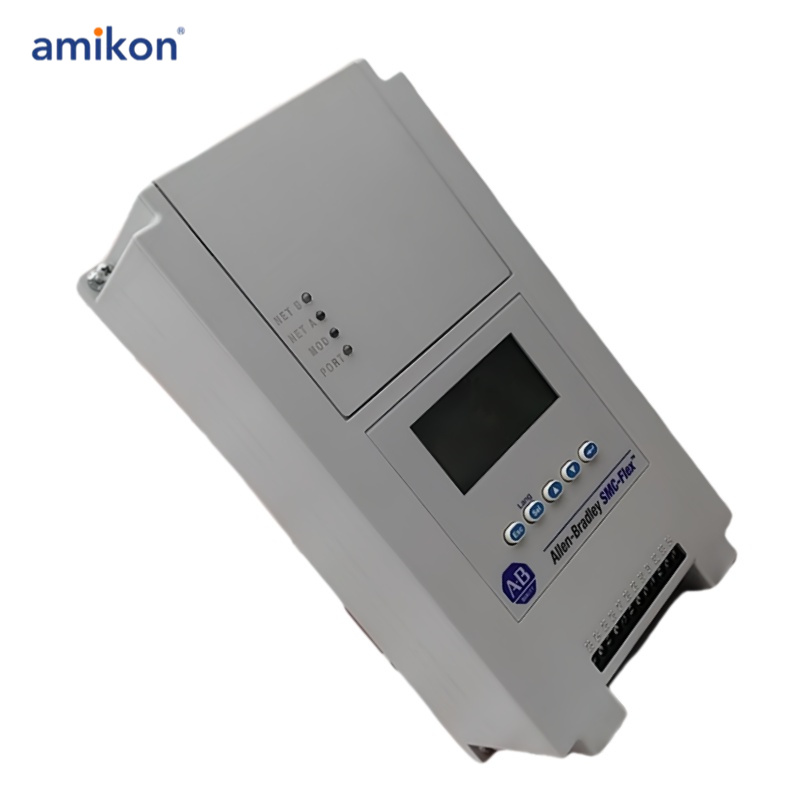

The 41391-454-01-B1FX Control Module is a pump control module from the SMC-Flex series, designed to manage pump operations efficiently. It supports a line voltage range of 200 to 600 Volts AC and a control input voltage range of 100 to 240 Volts AC. This microprocessor-based module offers a pump control option aimed at improving pump lifespan and reducing cavitation. By generating a motor start curve, the module ensures that the pump's starting characteristics are followed accurately.
The 41391-454-01-B1FX is part of the 41391 series of spare parts and is specifically designed to reduce surges in fluid piping systems. It also helps prevent issues like check valve slamming and fluid hammering. The module includes three primary operating modes for controlling pumps: SMC option, stop time, and starting modes. The stopping function allows users to set the delay time between 0 and 120 seconds.
To facilitate ease of operation, the module is equipped with three buttons for controlling pump functions: a green start button, a red stop button, and a jog button. Additionally, it features indicator LEDs, including Net A, Net B, Mod, and Port LEDs. With adjustable starting and stopping times and a backspin timer, the module effectively removes surges by controlling motor speed during start-up and shut-down operations.
