ITEM: 42000 Liters Fuel Tanker Trailer For Sale Africa
Feature
SUNSKY Tanker semi-trailers from China are popular used in many African countries like Tanzania，Malawi,Mozambique etc, perfectly tailored to the demanding requirements facing petrol station supply and haulage company . They are ideal for transporting fuel,diesel,gasoline etc. The trailer can be fitted with or without a dipstick measuring system. Weight-optimised trailers considerably reduce the empty weight and thus reduce heating consumption and tyre wear during transportation.
Advantages of fuel tanker trailer for sale
1.Design: The main frame and tank body of fuel tanker trailers are designed by 3D-CAD, have a more reasonable structure.
2.Material: The fuel tanker trailers are made of high-tensile Q345B steel, 5 mm thickness for dish, 6 mm thickness for shell, the tanker body is stronger.
3.Performance: Safe tanker facilities, manhole cover with p/v vent valves and safety valves，can be in carbon steel , aluminum and stainless steel materials.
4.Customized service: The capacity of fuel tanker trailer can be made from 30000 liters to 50000 liters capacity. Compartments from 1 to 8.To meet the clients' different requirements.
Specification
|
42,000L 3-axle Fuel Tanker Semi-trailer
|
|
Feature:
|
Carry Fuel,Oil,petroleum
|
|
Dimension(L*W*H):
|
11500*2500*3750 mm (42,000L)
|
|
Model
|
XM9400GRY
|
|
Material:
|
Carbon Steel
|
|
Compartment:
|
3 (14000L + 14000L + 14000L)
|
|
Capacity(kgs):
|
42,000L
|
|
Tare weight(kgs):
|
9,400kgs
|
|
Kingpin
|
JOST BRAND bolt-in 3.5”
|
|
Landing gear
|
JOST BRAND 19”
|
|
Tire size
|
12R22.5（13 sets）
|
|
Rim size
|
9.00*22.5（13 sets）
|
|
Axle
|
American type Axle,13 Tons
|
|
Leafs spring
|
Steel suspension with 8pcs of leafs spring
|
|
Brake system
|
RE 6 relay valve
|
|
Manhole:
|
Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
|
|
Discharge Valve
|
Aluminum alloy discharge valve with cover
|
|
Foot Valve
|
Pneumatic control DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
1set Pneumatic Control combined switch
1unit emergency switch
|
|
Discharge Hose
|
2 units 3”×6M factory PVC hose with quick coupling on both ends
|
|
Vapor Recovery & Overfill system
|
Optional
|
|
Fire Extinguisher Carrier
|
2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Prime & Topcoat painting
|
S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
|
|
We can build the trailers according to customer’s design and requirement
|
Quality Guarantee
1. More than 30 years experience in manufacturing
semi-trailers since 1984.
2. One year warranty on the chassis of semi-trailer.
3. Spare parts support service.
4. The best brand-Wabco brand of braking system to
ensure the brake performance and keep the driver safe.
5. Heavy duty design especially for the bad road
condition in Africa.

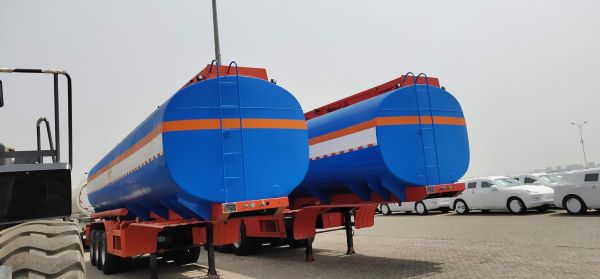

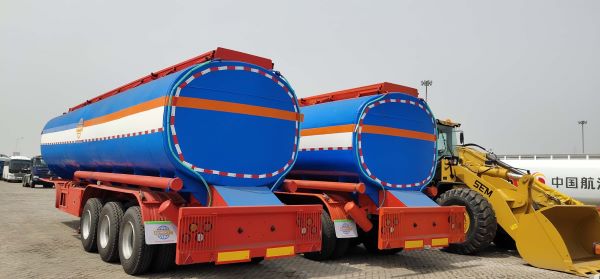

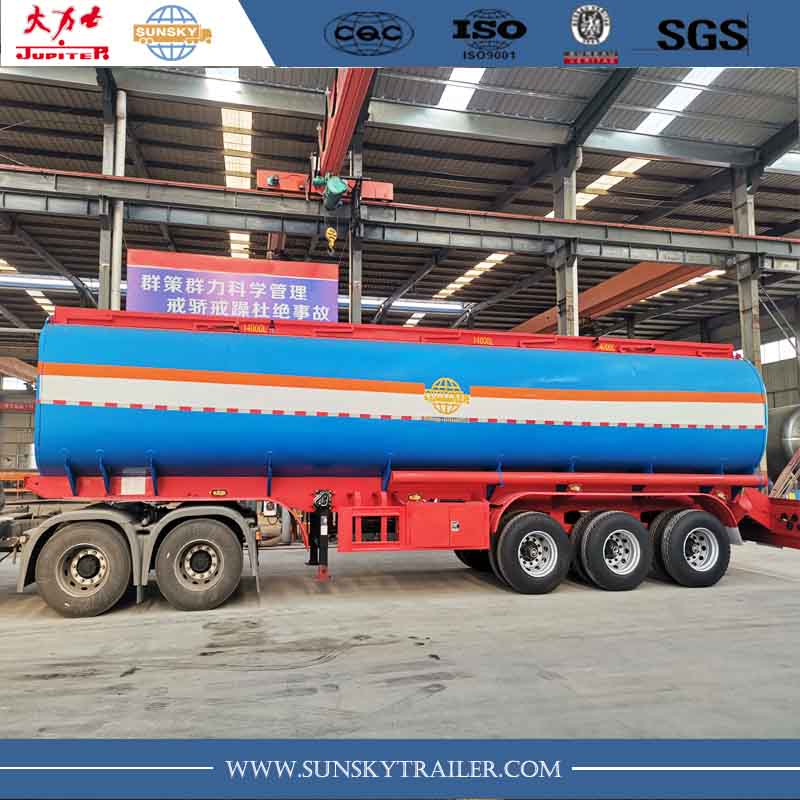

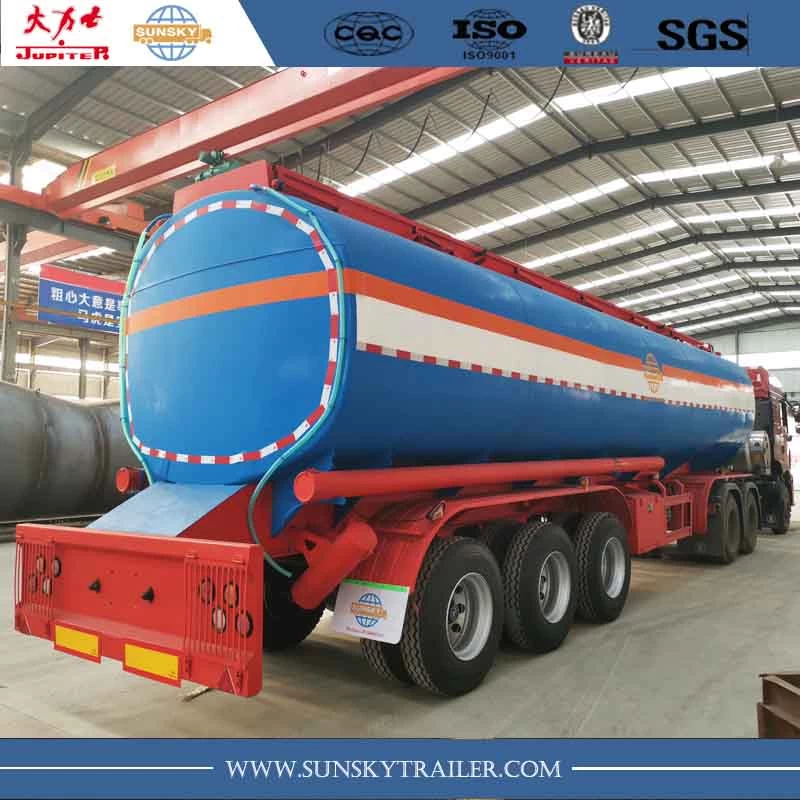

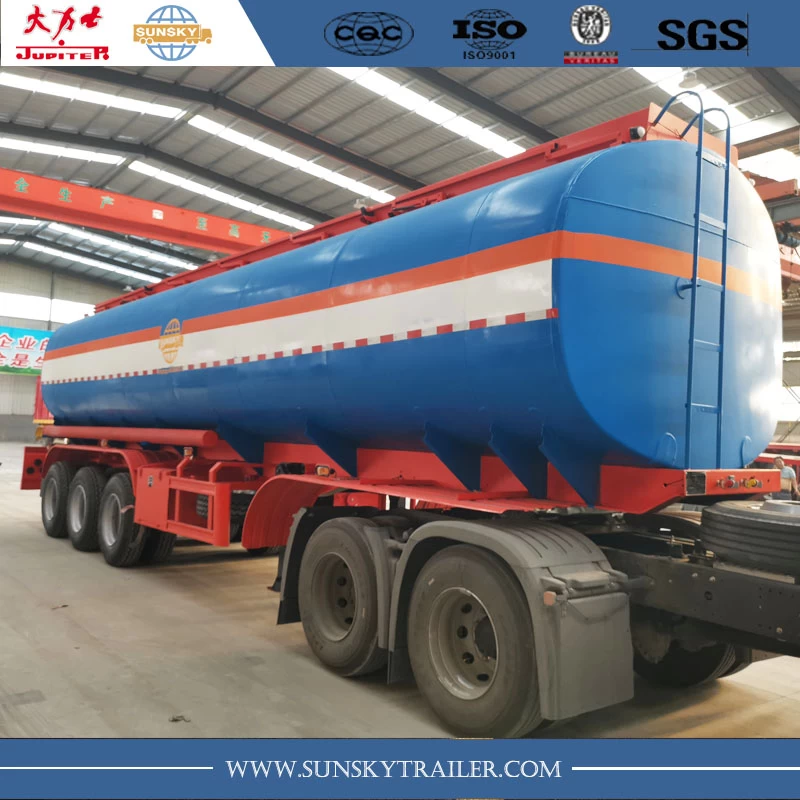

Detail photo of fuel tanker semi trailer for sale
