Dimension
|
7240*2500*3600mm
|
Approaching angle/Departure angle
|
16/60°
|
Overhang(front/rear)
|
1515/825mm
|
Wheel base
|
3450+1450mm
|
Max speed
|
110km/h
|
Curb weight
|
8800kg
|
Max towing weight
|
40000kg
|
Max loading on fifth wheel, Permitted(kg)
|
16070kg
|
Slope climbing capability
|
Max.40%
|
Engine
|
Model
|
WP12.400,water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail
|
Displacement
|
11.596L/Diesel
|
Stroke
|
126/155mm
|
Max. power
|
294/2100 (kw/rpm)
|
Max.torque
|
1780/1200-1500(Nm/rpm)
|
Emission stantard
|
EuroIII
|
Fuel tanker capacity
|
400L
|
Clutch
|
#430, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|

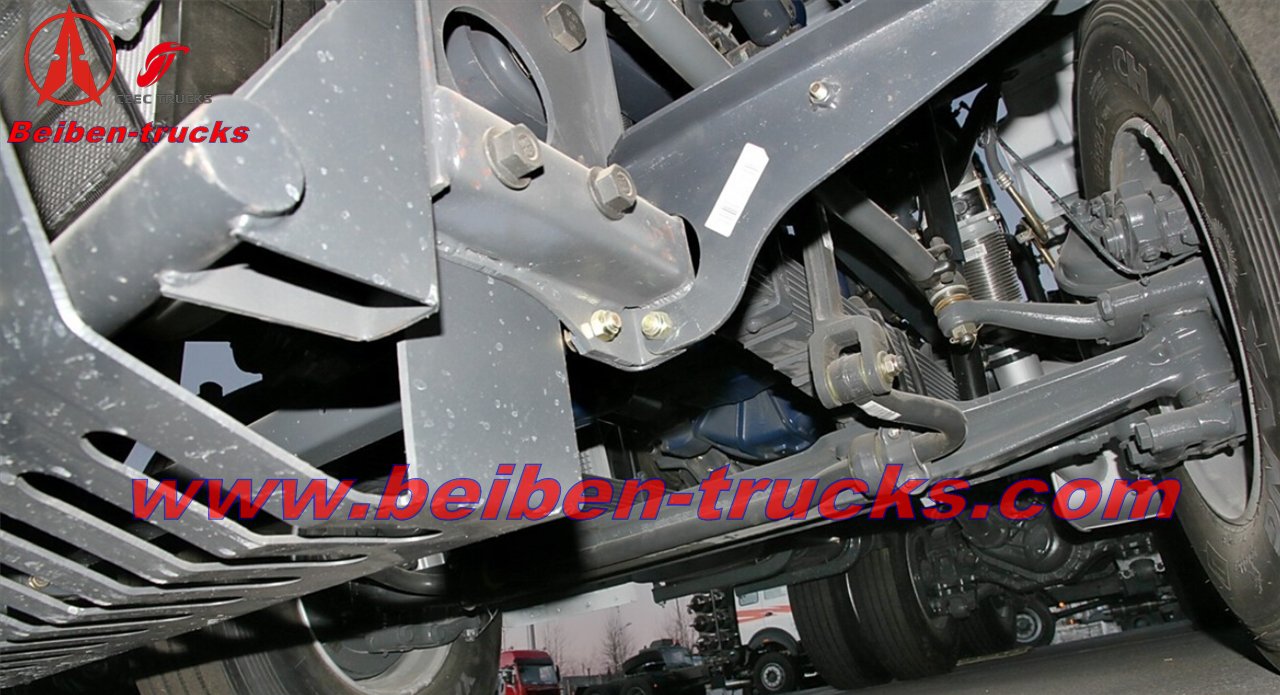

Suspension system
|

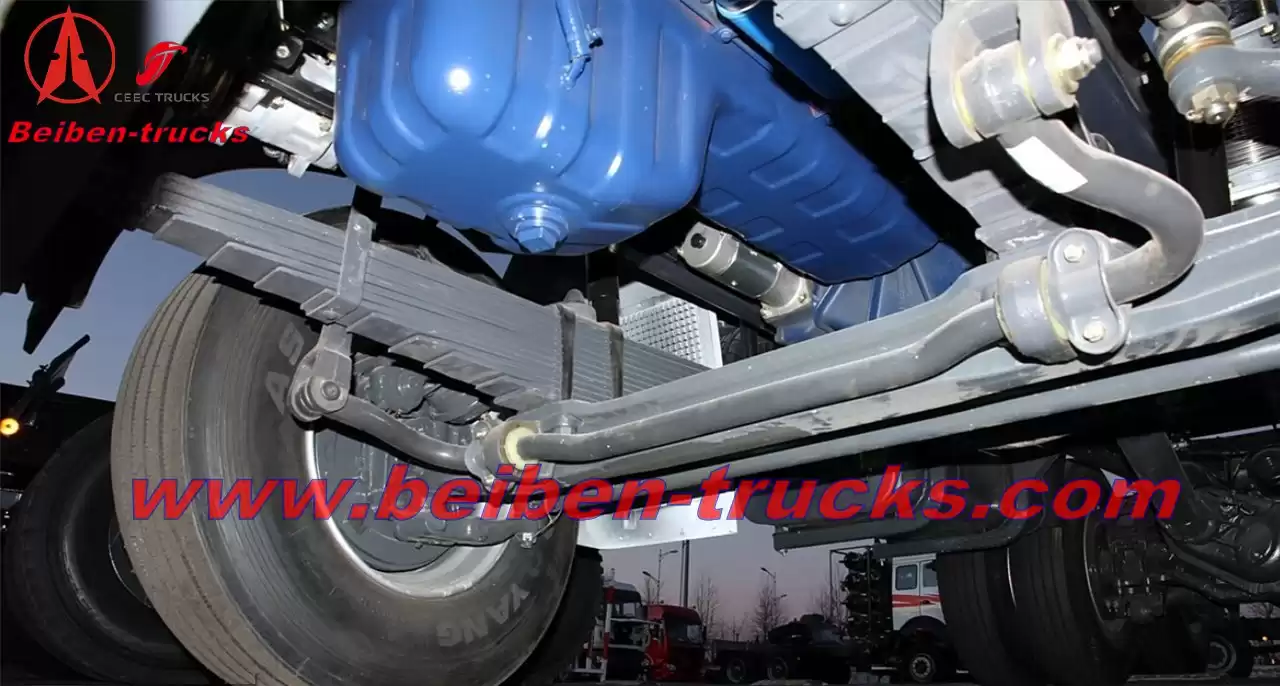

Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|

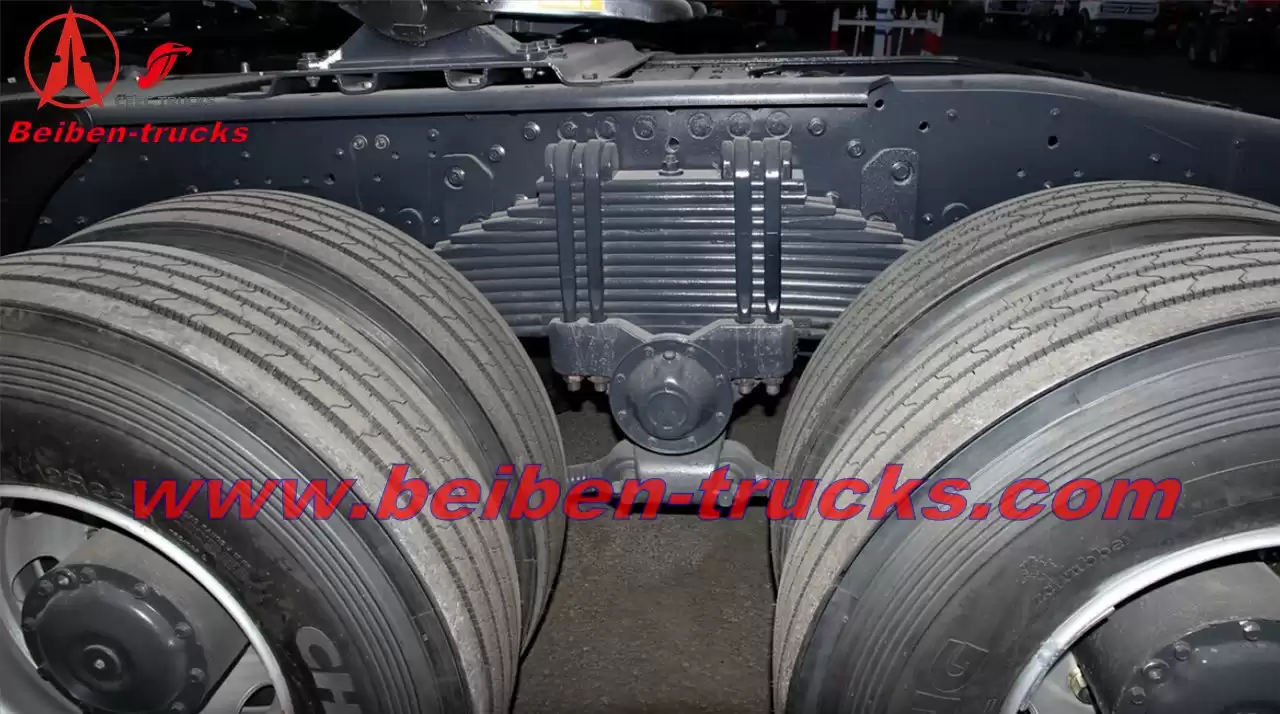

Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
Frame
|
Fish belly shape, variable width, variable sections
|

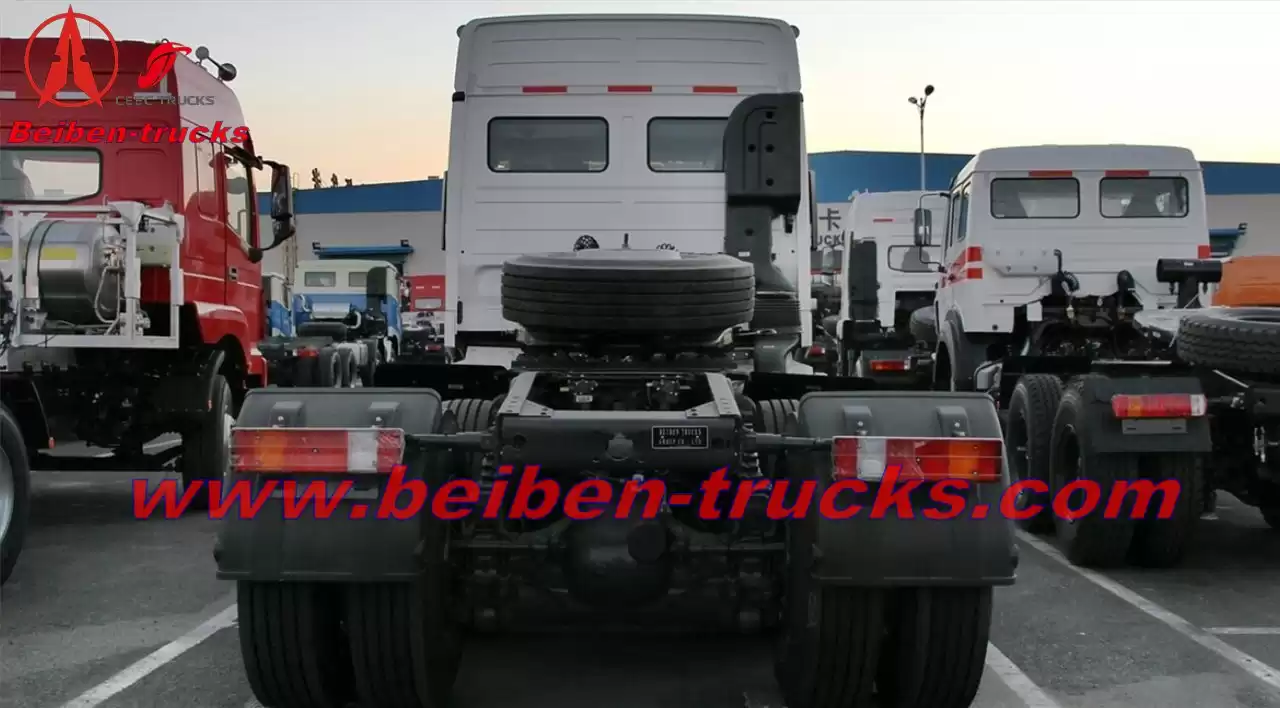

The Fifth wheel
|
Model
|
JOST #90 single direction
|
Height of fifth wheel(mm) (unload)
|
1410
|
Radius of front gap (mm)
|
2300
|
Radius of rear slew (mm)
|
2600
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|

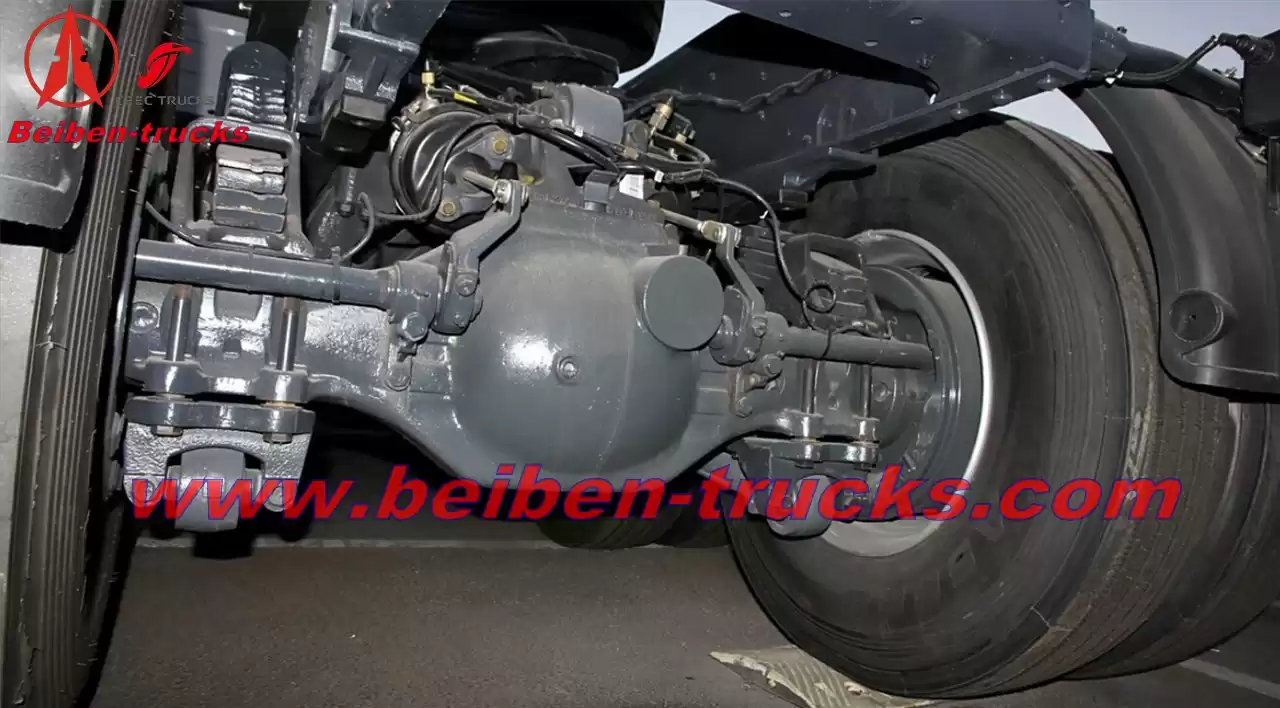

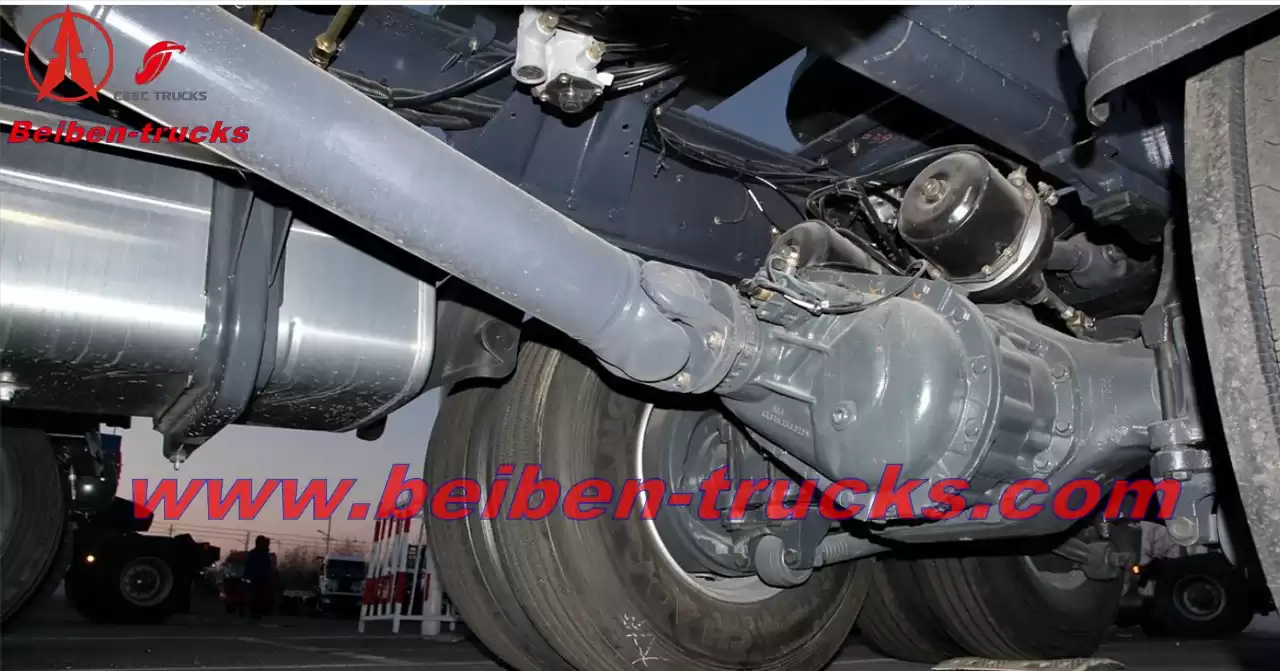

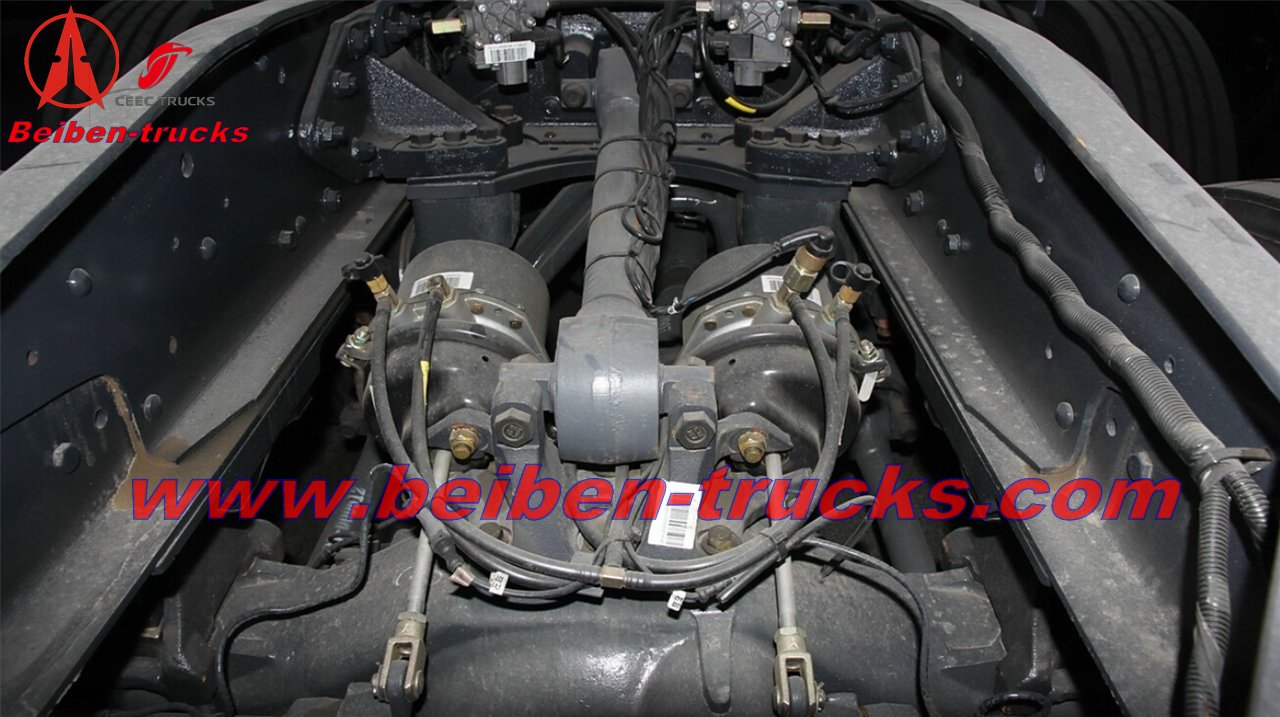

Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00-R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|

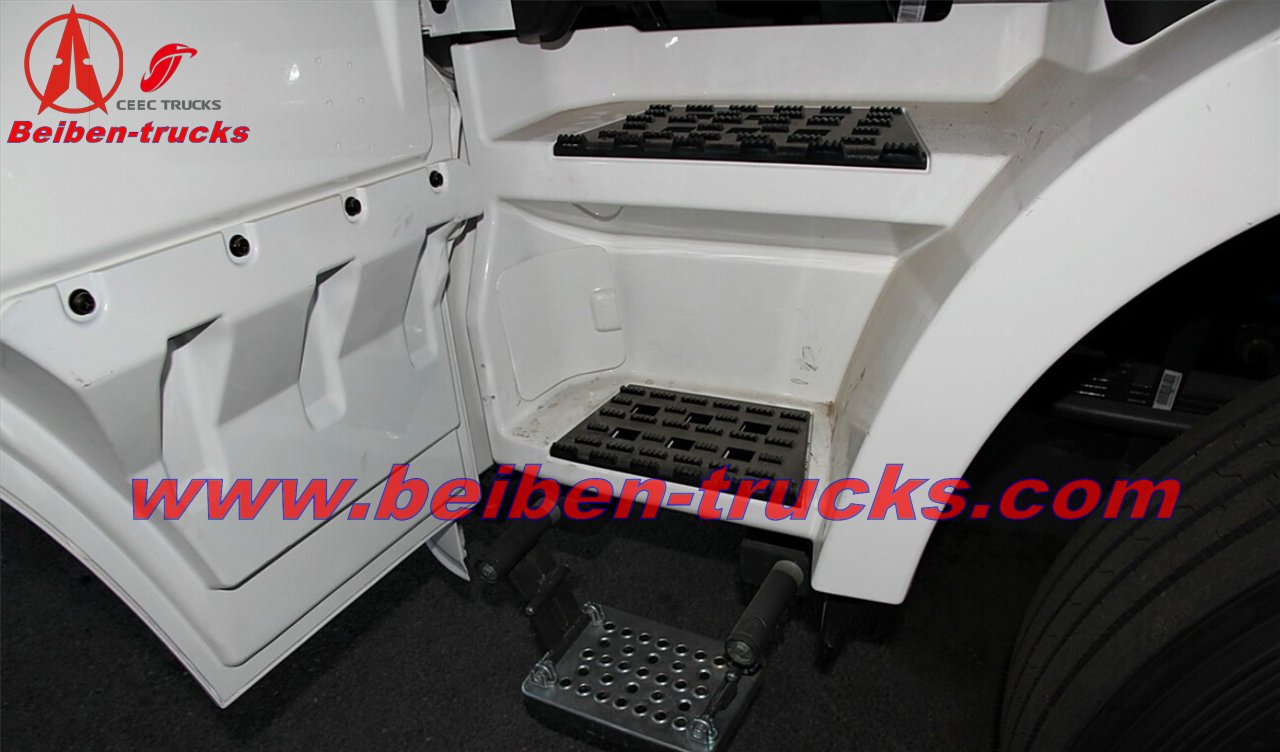

Cabin
|

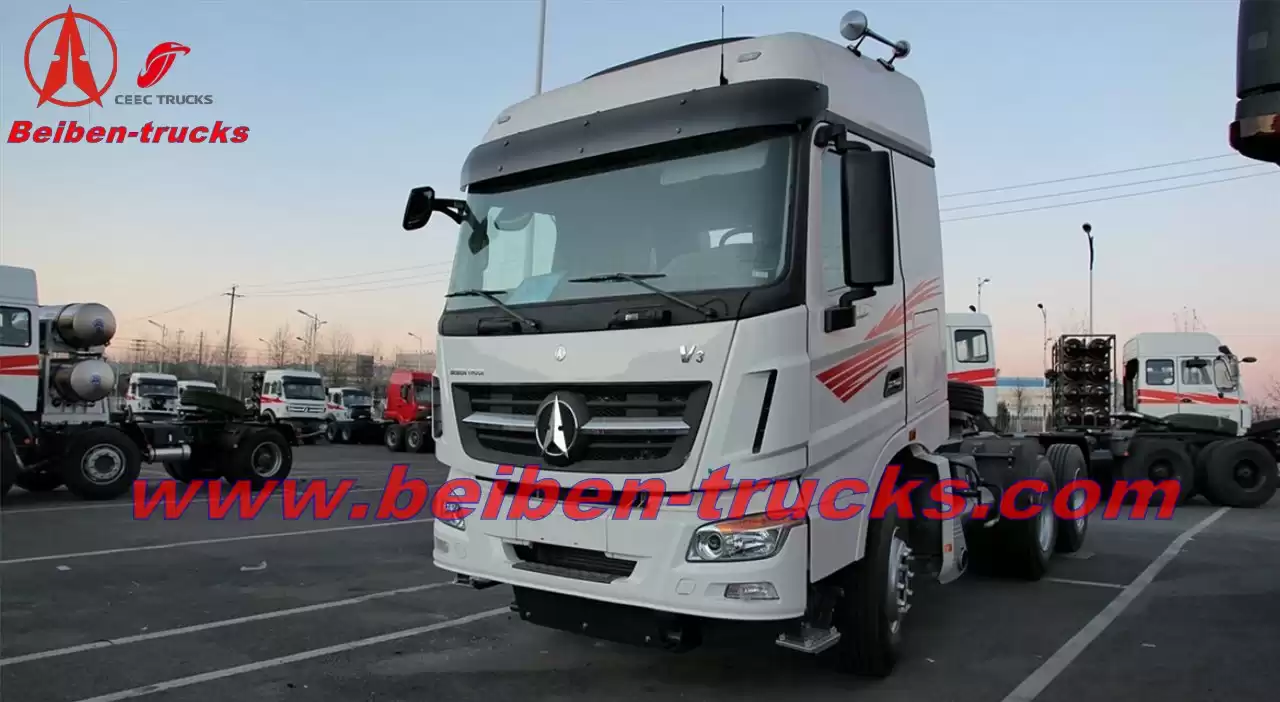

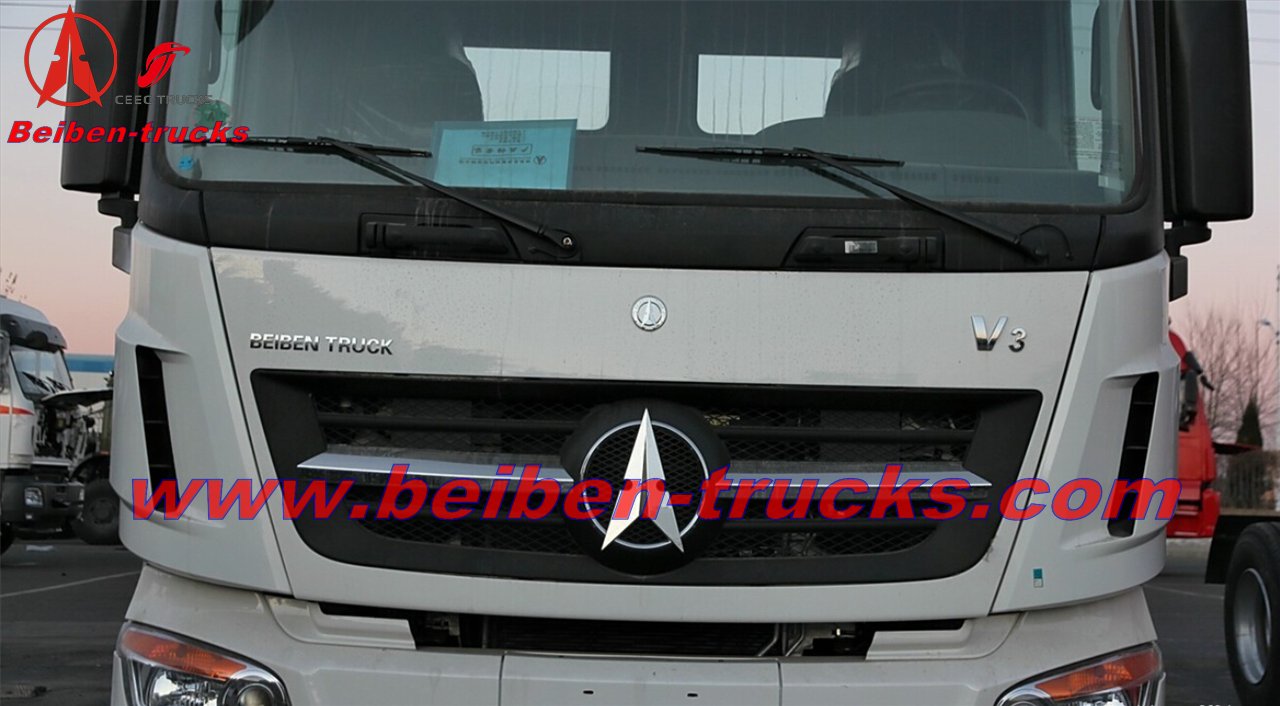

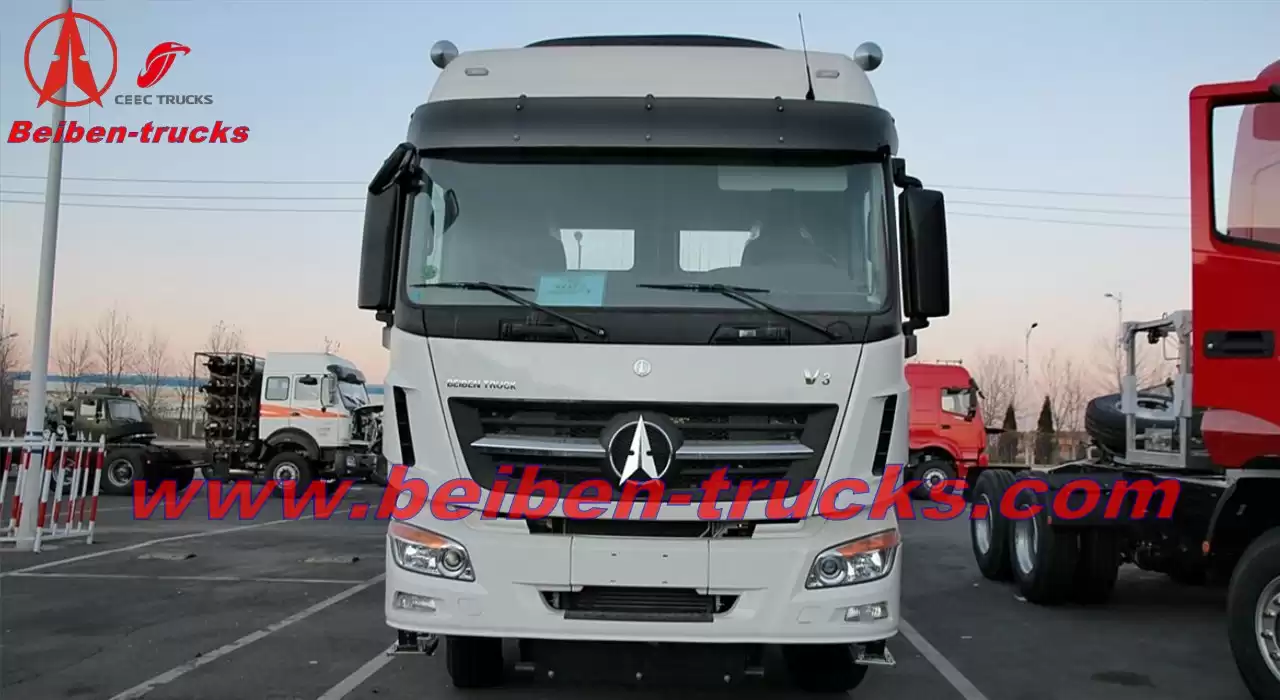

V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
