425W-455W 9BB Half Cut IP68 144 Cells Mono PV Module 1500V

With 166mm Cells Mono PERC with MBB & Half-cut Technology, Sunpal HiMAX4 144 Cell Series Solar Panel Power Range 425W 430W 435W 440W 445W 450W 455W.


  • ModelSP455M-72H
  • Junction BoxIP68, three diodes
  • Cell Orientation144 (6x24)
  • Junction BoxIP68, three diodes
  • Output Cable4mm2, 300mm in length,length can be customized
  • GlassSingle glass 3.2mm coated tempered glass
  • FrameSilver anodized aluminum alloy frame
  • Weight23.5kg±3%
  • Dimension2094x1038x35mm
  • Packaging30pcs per pallet 660 pcs per 40'ft Container

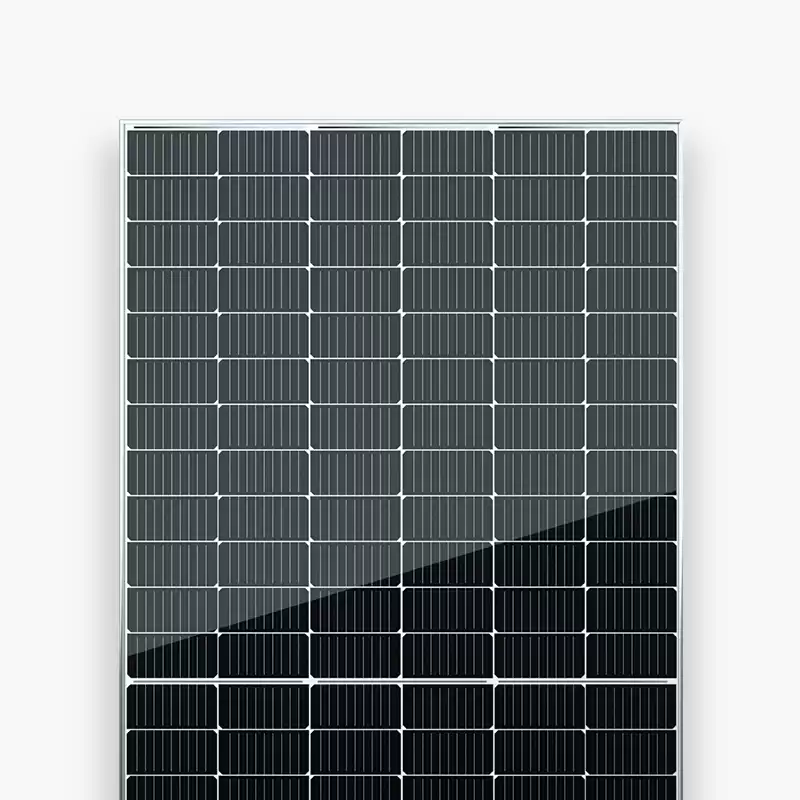

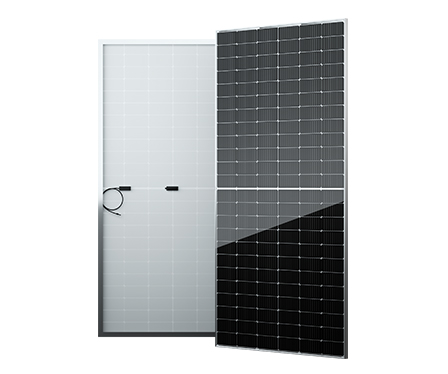

HiMAX4 Solar Panel

Sunpal HiMAX4 solar panel can be matched with transparent backboard, the weight of which is the same as that of single side components. Compatible tracking bracket, effectively reduce the cost per kilowatt hour. The products have passed IEC,TUV,UL certification, single and double side products have achieved high performance mass production.

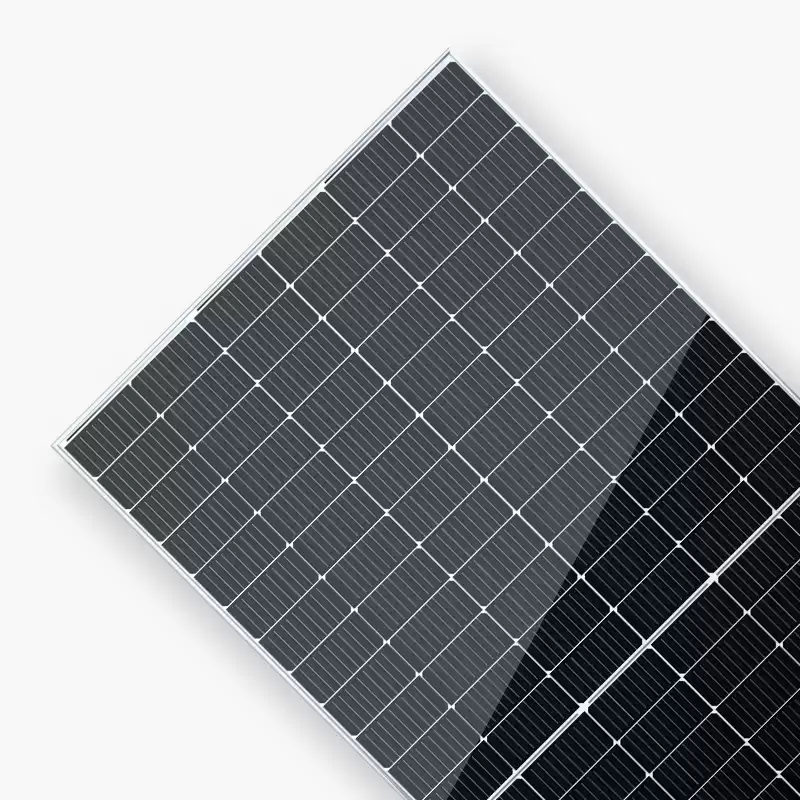

Half Cut technology

Sing high-efficiency single crystal double-sided half-chip.ool, combined with double glass technology, the product is surface power up to 455 W.

The maximum gain of the back power is 25%The junction box with safety class IP68. With an outstanding waterproof level, it supports all angled installation to prevent cables from long-term excessive bending and damage bad.






certifications of solar panel

HiMAX4 solar panel meet certifications:

IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety




HiMAX4 solar panel featureas:

  • Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 21%)
  • Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
  • Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current

Product Tags 1500V Solar Panel          9bb solar panel          IP68 Photovoltaic Panel          144Cell Solar Panel          Half Cut Solar Panel
