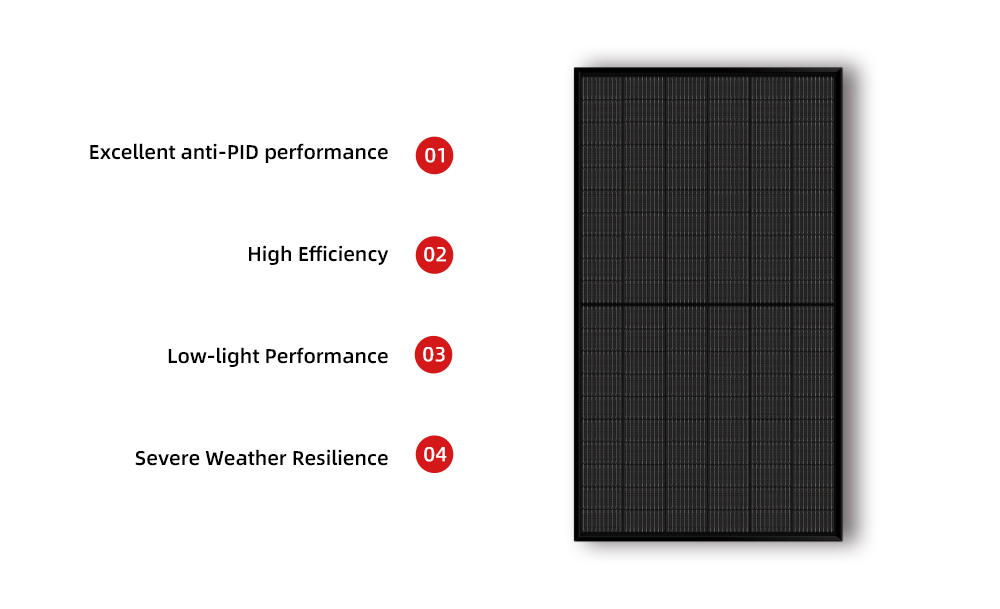

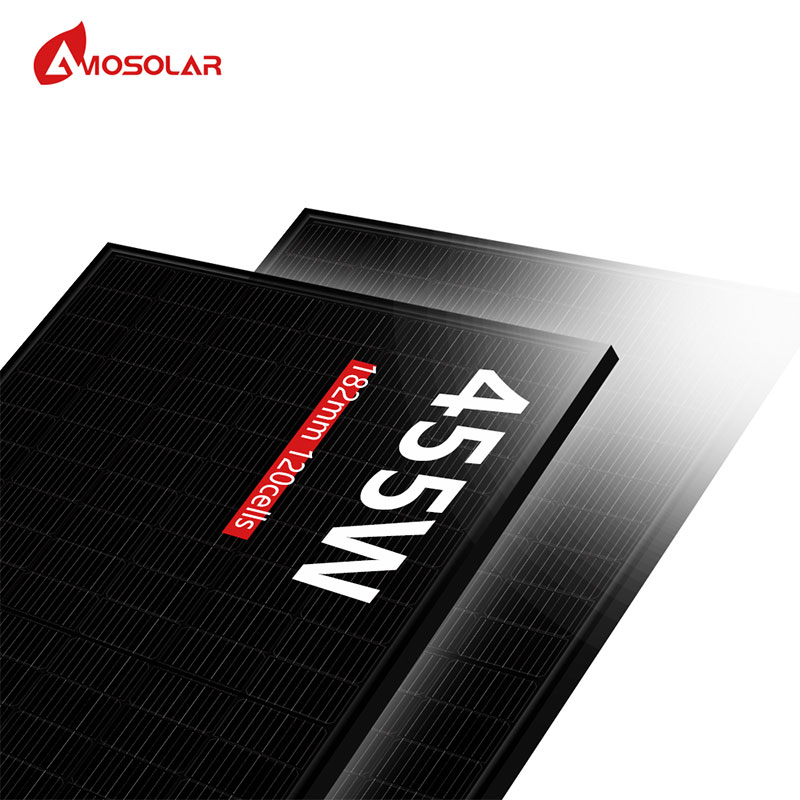

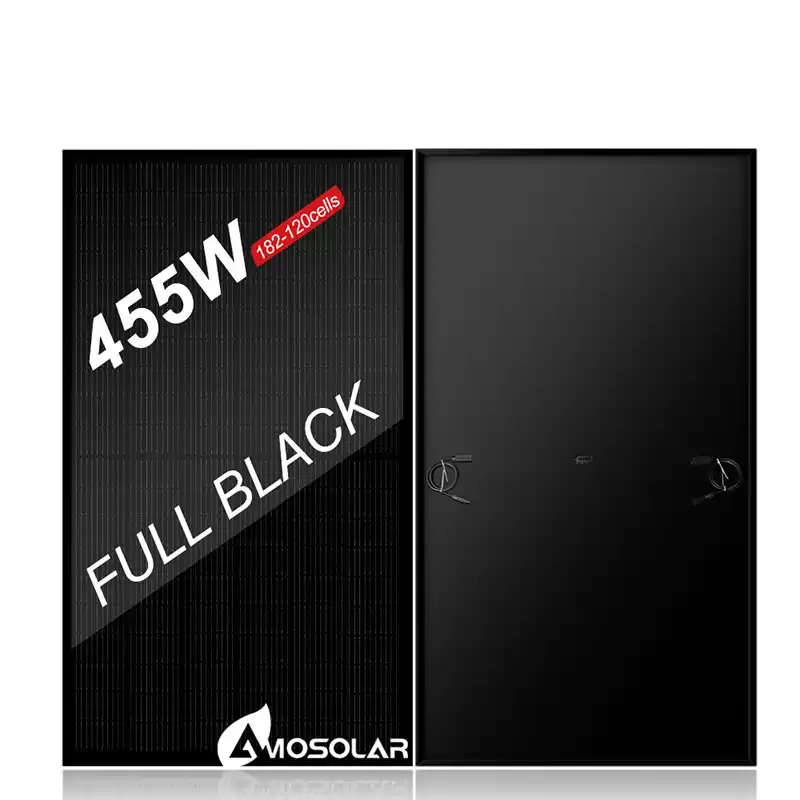

435W-455W All Black Half Cells Mono Solar Panel Chinese Supplier : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.

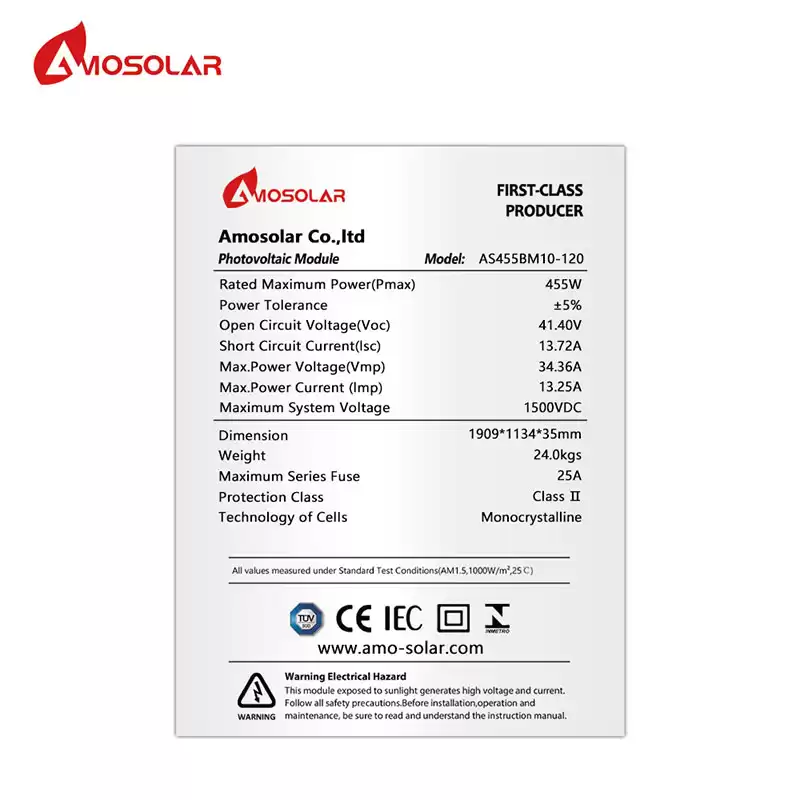

Electrical Performance Parameters (STC Test)
Model
|
AS435MB10-120
|
AS440MB10-120
|
AS445MB10-120
|
AS450MB10-120
|
AS455MB10-120
|
|
Rated Maximum Power at STC
|
435W
|
440W
|
445W
|
450W
|
455W
|
|
Open Circuit Voltage (Voc)
|
40.80
|
40.95
|
41.10
|
41.25
|
41.40
|
|
Maximum Power Voltage (Vmp)
|
33.76
|
33.91
|
34.06
|
34.21
|
34.36
|
|
Short Circuit Current (Isc)
|
13.34
|
13.41
|
13.52
|
13.62
|
13.72
|
|
Maximum Power Current (Imp)
|
12.89
|
12.98
|
13.07
|
13.16
|
13.25
|
|
PV Module Efficiency (%)
|
20.09
|
20.33
|
20.56
|
20.79
|
21.02
|
|
Standard
|
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 120( 6 × 20 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 24.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

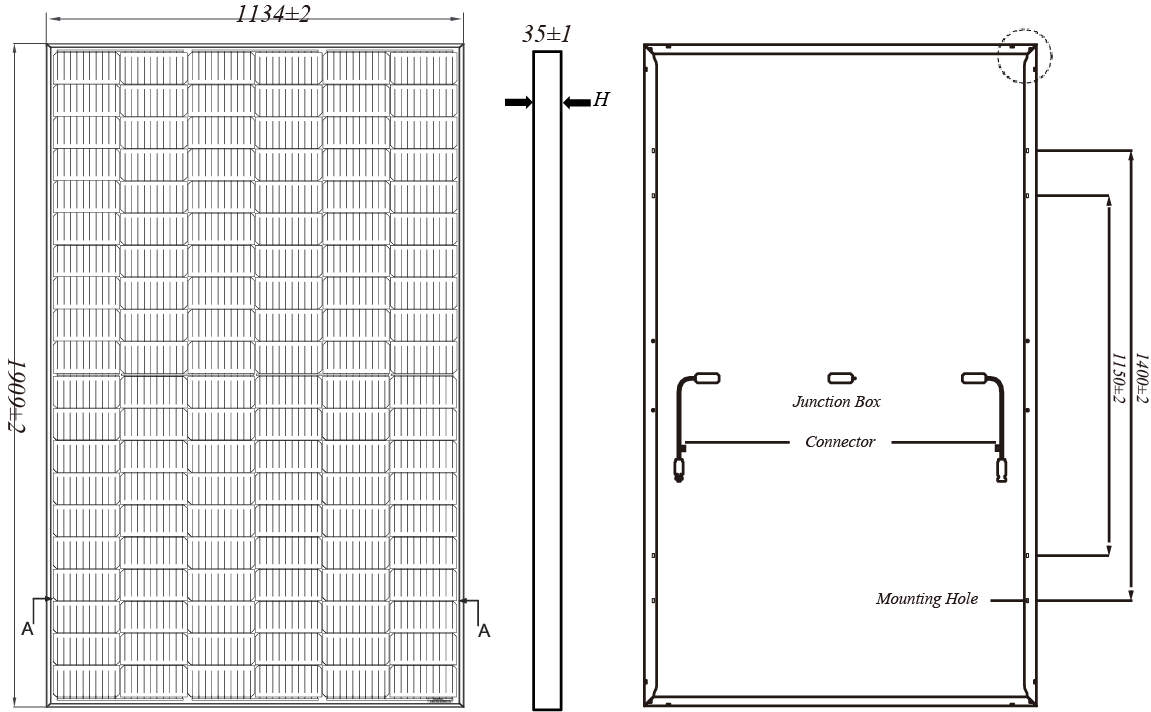

PV Size: 1909x1134×35mm

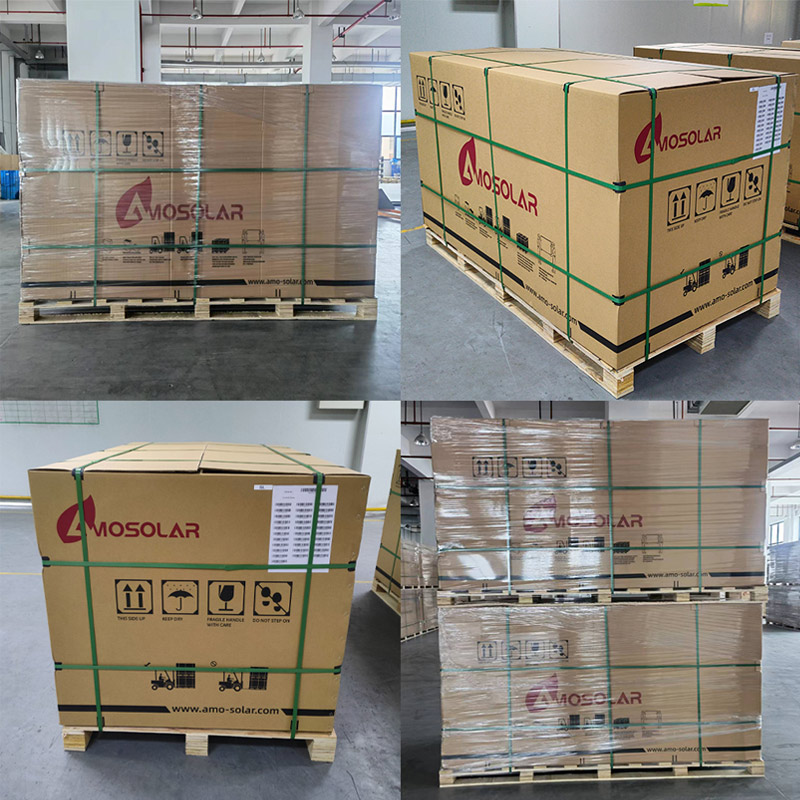

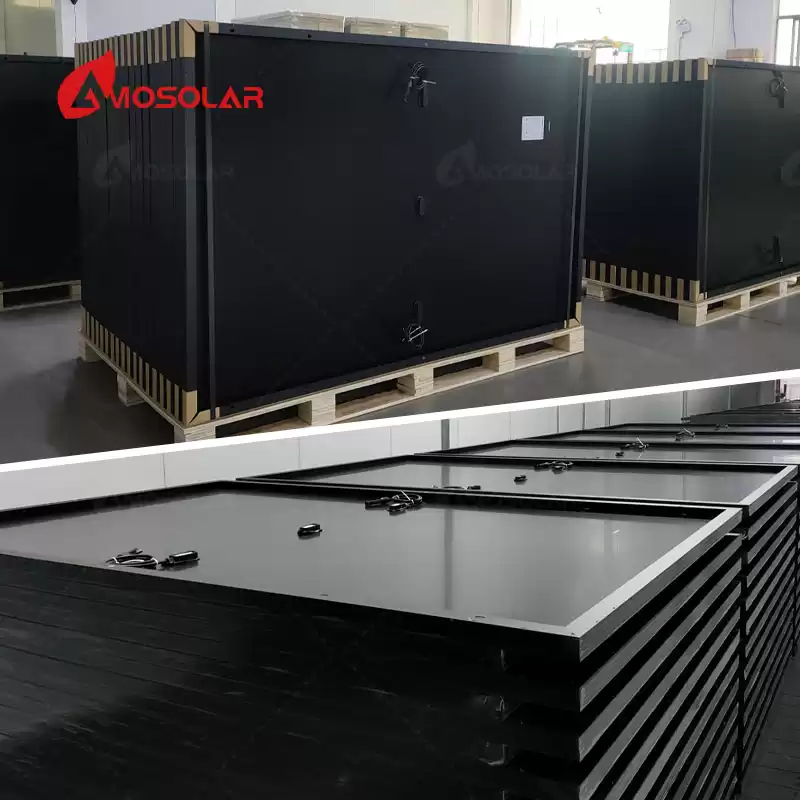

Packaging: 31 pcs / pallet
744 pcs / 40HQ container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
