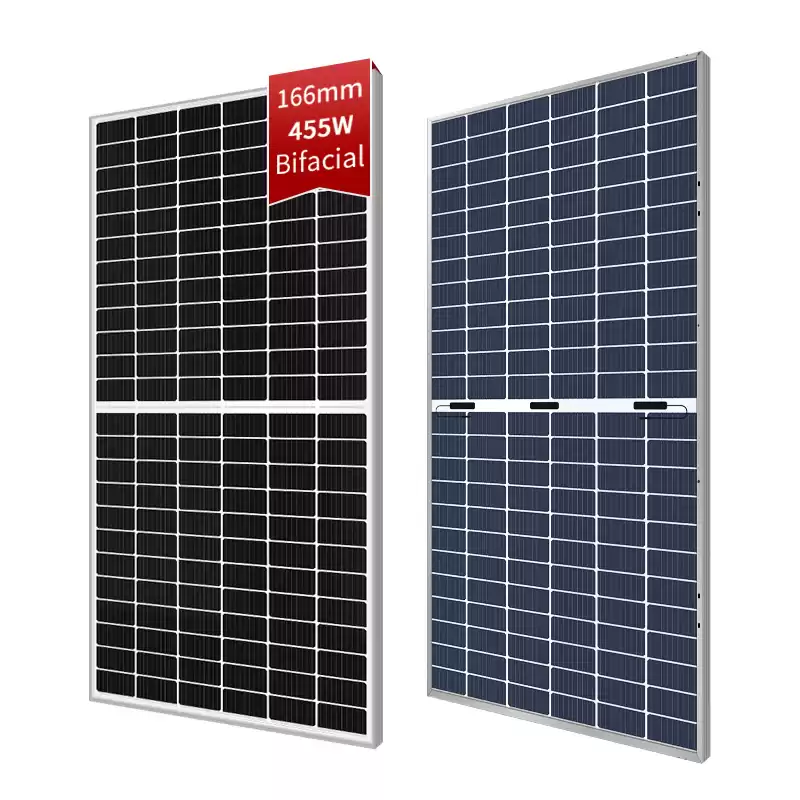

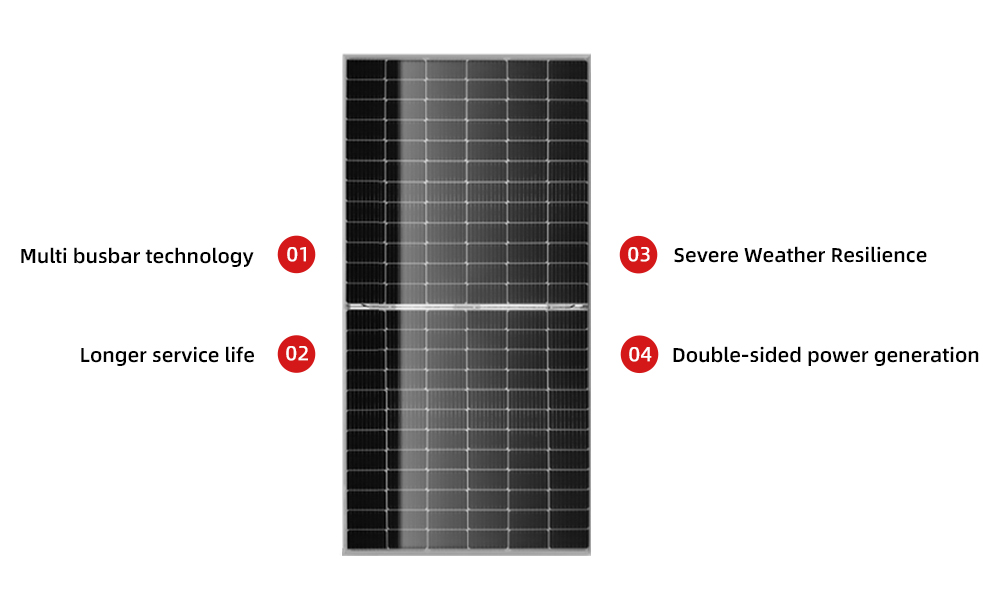

435W-455W Bifacial Double Glass Half Cells Mono Solar Panel Chinese Supplier : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.
Electrical Performance Parameters (STC Test)
Model
|
AS435M6-144B
|
AS440M6-144B
|
AS445M6-144B
|
AS450M6-144B
|
AS455M6-144B
|
Rated Maximum Power at STC
|
435W
|
440W
|
445W
|
450W
|
455W
|
Open Circuit Voltage (Voc)
|
48.96
|
49.16
|
49.36
|
49.56
|
49.76
|
Maximum Power Voltage (Vmp)
|
40.81
|
41.01
|
41.21
|
41.40
|
41.59
|
Short Circuit Current (Isc)
|
11.35
|
11.42
|
11.49
|
11.56
|
11.63
|
Maximum Power Current (Imp)
|
10.66
|
10.73
|
10.80
|
10.87
|
10.94
|
PV Module Efficiency (%)
|
20.01
|
20.24
|
20.47
|
20.70
|
20.93
|
Standard
|
|
Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5
|
Mechanical Parameters
Layout : 144( 6 × 24 )
Junction Box : Split junction box, IP68, 3 diodes
Weight: 28.1KG
Cable Length : 300mm (+) / 300mm(-)
Cable Size : 4mm²(IEC)

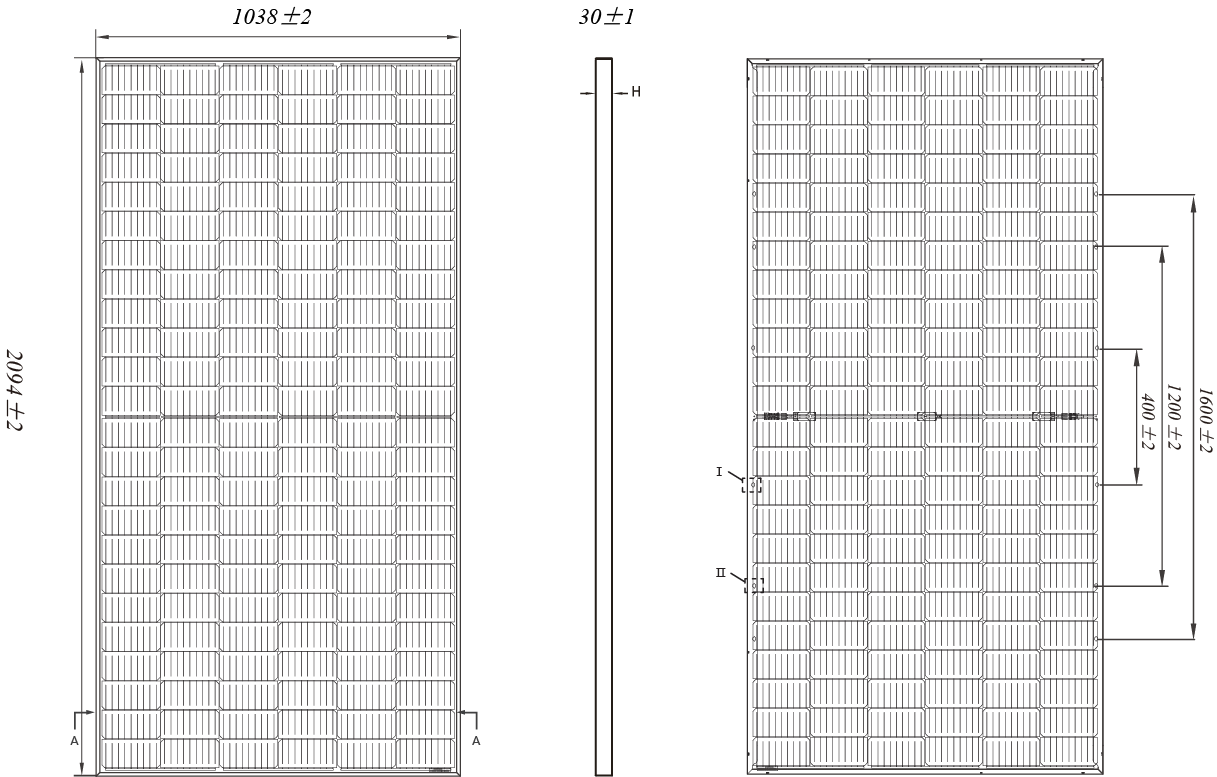

PV Size: 2094x1038×35mm

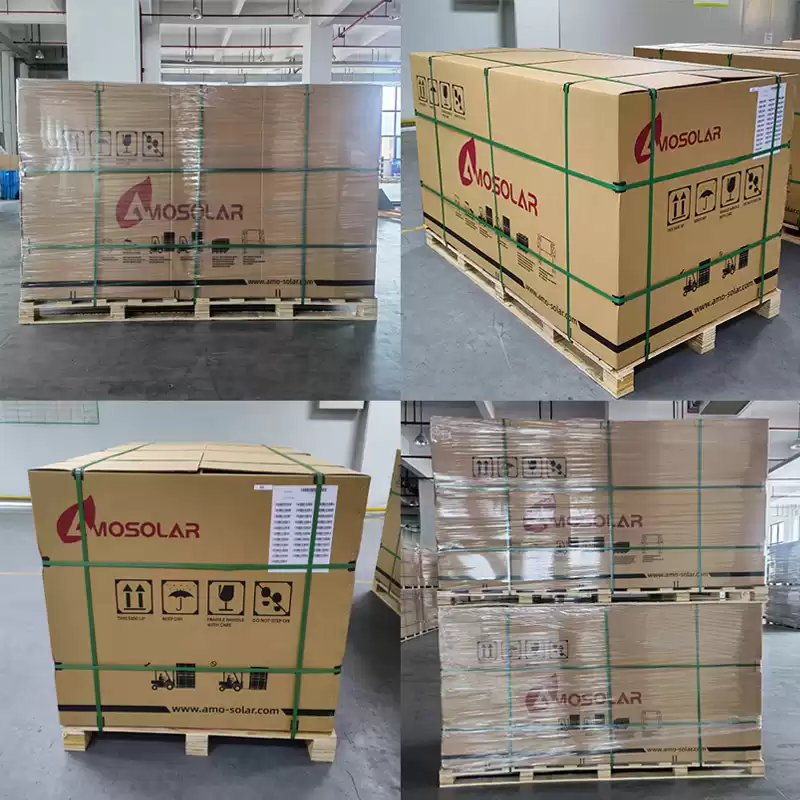

Packaging: 35 pcs / pallet

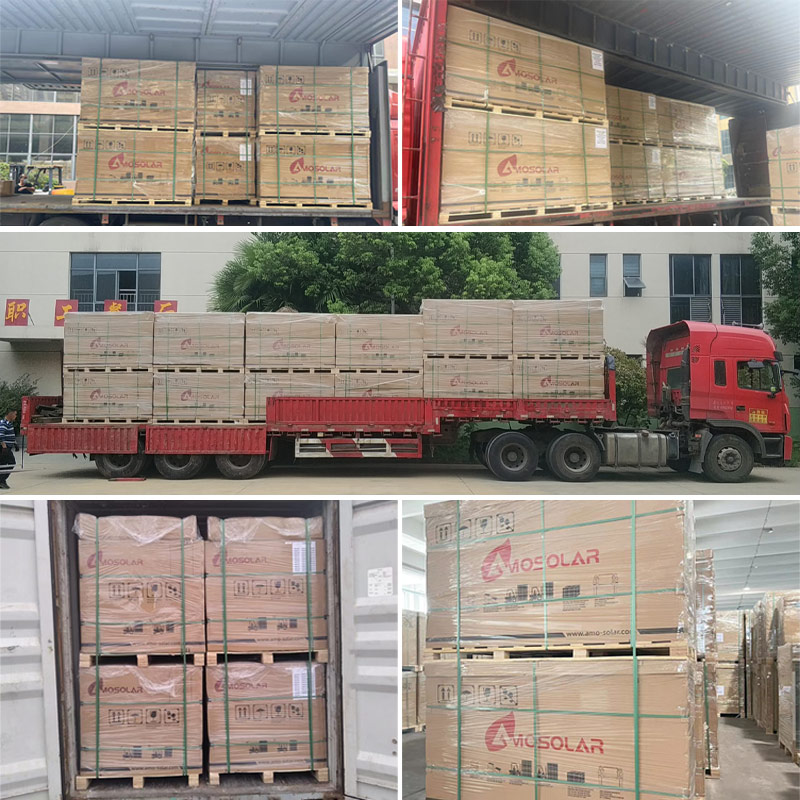

770 pcs / 40HQ container
