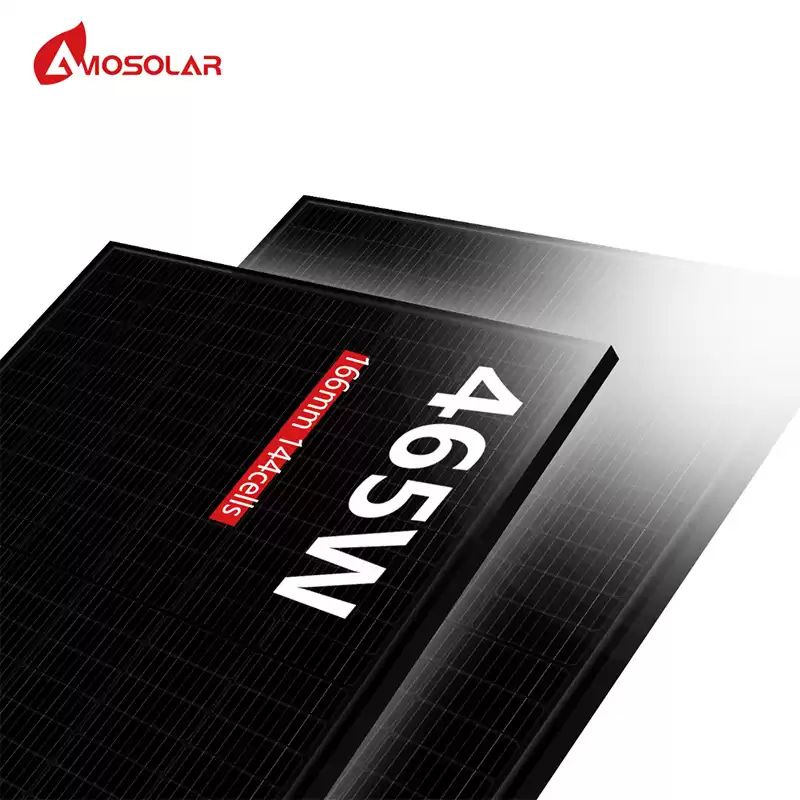

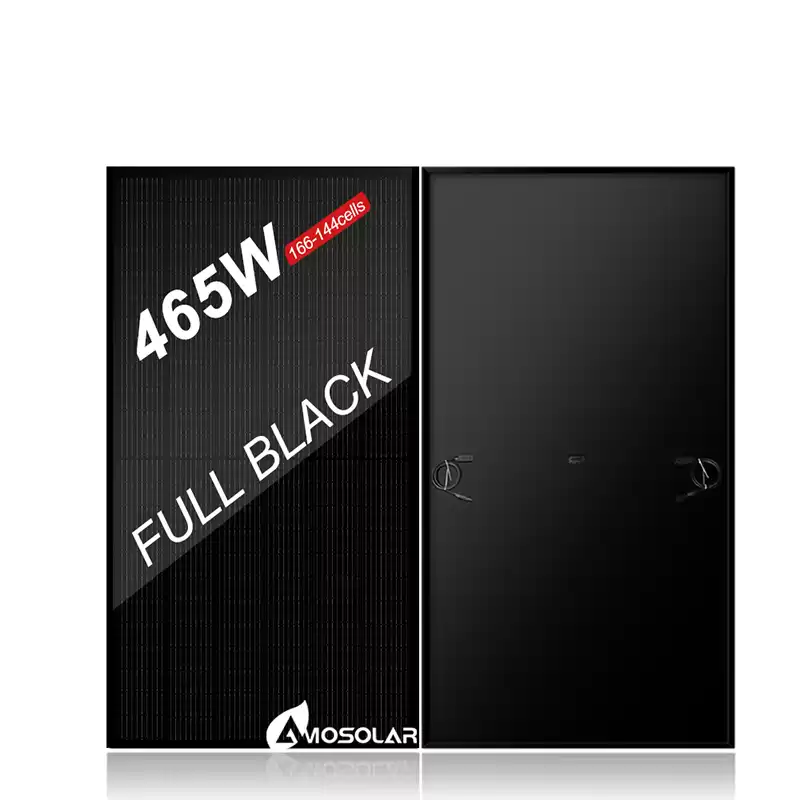

440W-465W All Black Half Cut Mono PV Panel Chinese Manufactory : 166mm half cut solar cells with multi-busbar PERC technology, high efficiency solar panels.
Electrical Performance Parameters (STC Test)
Model
|
AS440BM6-120
|
AS445BM6-120
|
AS450BM6-120
|
AS455BM6-120
|
AS460BM6-120
|
AS465BM6-120
|
|
Rated Maximum Power at STC
|
440W
|
445W
|
450W
|
455W
|
460W
|
465W
|
|
Open Circuit Voltage (Voc)
|
49.40
|
49.56
|
49.70
|
49.85
|
50.11
|
50.15
|
|
Maximum Power Voltage (Vmp)
|
40.90
|
41.21
|
41.52
|
41.82
|
42.13
|
42.43
|
|
Short Circuit Current (Isc)
|
11.28
|
11.32
|
11.36
|
11.41
|
11.45
|
11.49
|
|
Maximum Power Current (Imp)
|
10.76
|
10.80
|
10.84
|
10.88
|
10.92
|
10.96
|
|
PV Module Efficiency (%)
|
20.13
|
20.36
|
20.58
|
20.81
|
21.04
|
21.27
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|

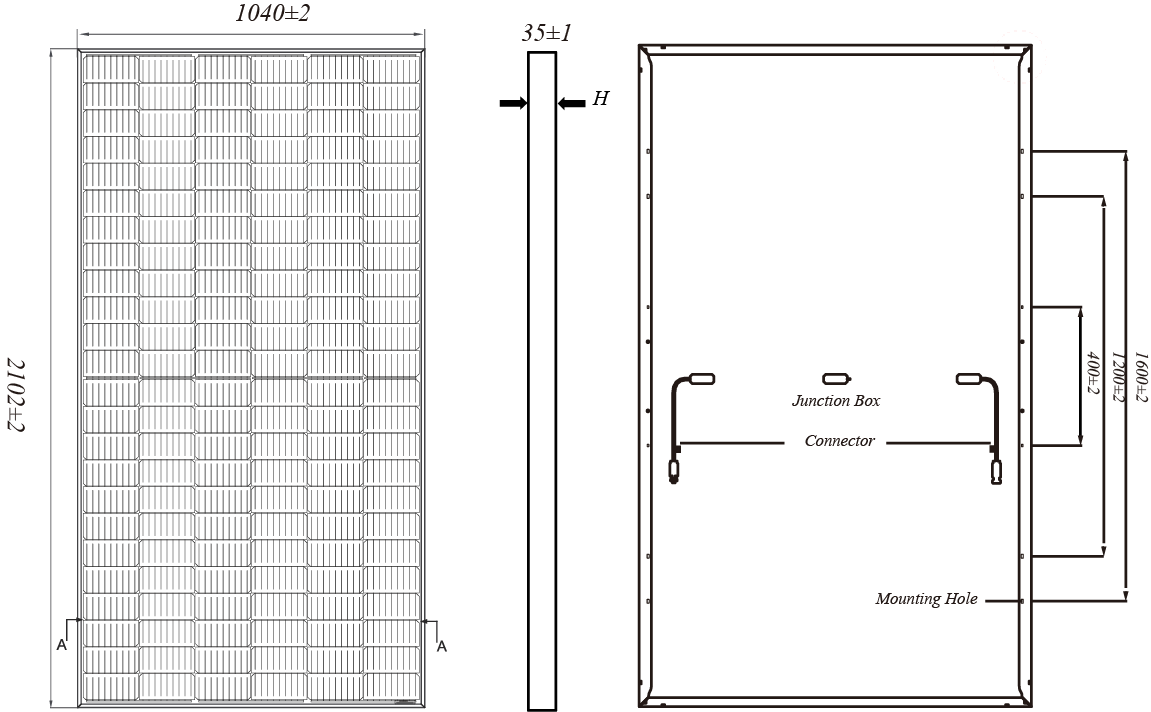

Mechanical Parameters
Layout : 144( 6 × 24 ）
Junction Box : Split junction box, IP67, 3 diodes
Weight: 23.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)
PV Size: 2094×1038×35mm

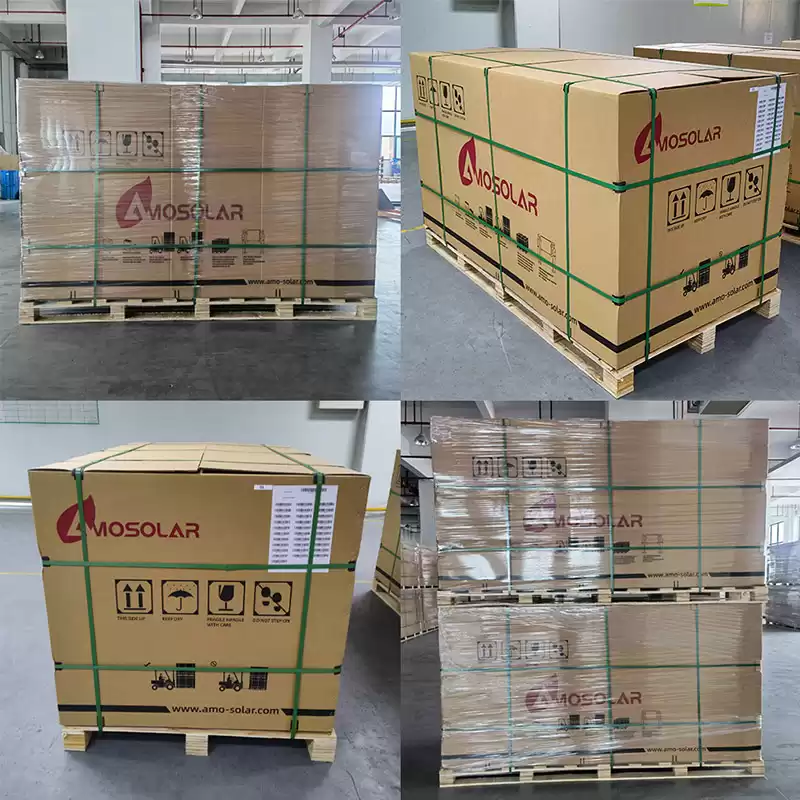

Packaging: 31 pcs / pallet
726 pcs / 40HQ container
