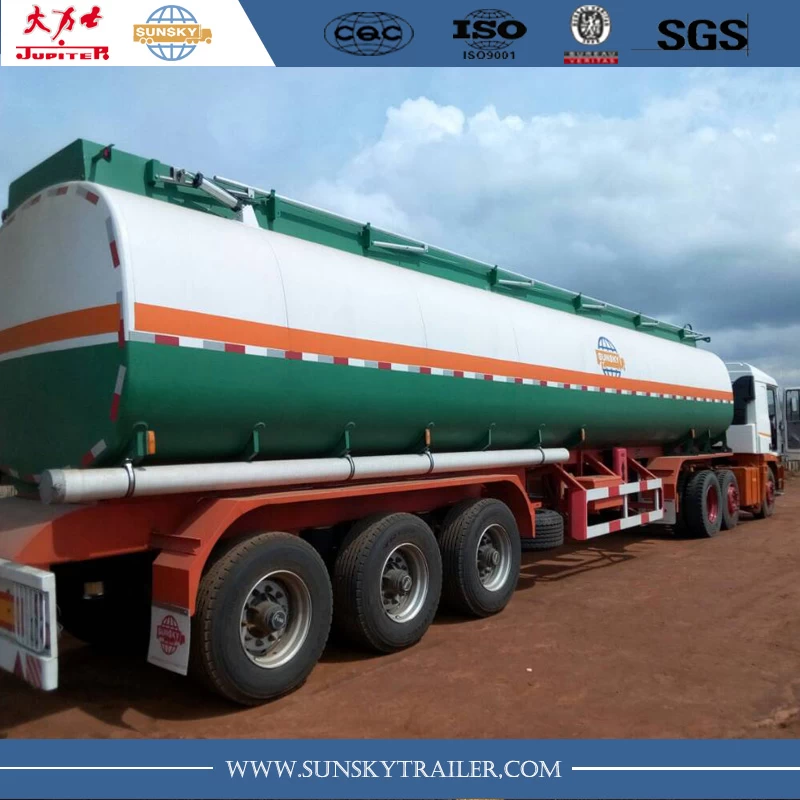

Product Item: 45,000L 3 Axle Fuel Tanker Semi-Trailer from China
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification: 45000 liters fuel tanker traier with airbag suspension
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
45,000L 3-axle Tank Semi-trailer
|
|
Feature:
|
|
Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid
|
|
Dimension(L*W*H):
|
|
12300*2460*3600mm(45,000L)
|
|
Model
|
|
SS9400GRY
|
|
Material:
|
|
Carbon Steel
|
|
|
|
|
|
Compartment:
|
|
3
|
|
Capacity(kgs):
|
|
45,000L
|
|
Tare weight(kgs):
|
|
10,000kgs
|
|
|
|
|
|
Kingpin
|
|
JOST brand bolt-in 2”
|
|
Landing gear
|
|
JOST brand two-speed manual operation 19”
|
|
Tire size
|
|
Super single tires 38565R22.5 (7sets)
|
|
Rim size
|
|
11.75*22.5(7sets)
|
|
Axle
|
|
Fuwa brand 13 tons
|
|
Leafs spring
|
|
Airbag suspension
|
|
Brake system
|
|
One unit WABCO RE 4 relay valve; four units T3030 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
|
|
Manhole:
|
|
Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
|
|
Discharge Valve
|
|
Aluminum alloy discharge valve with cover
|
|
Foot Valve
|
|
Pneumatic control DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
|
1set Pneumatic Control combined switch
1unit emergency switch
|
|
Discharge Hose
|
|
2 units 3”×6M factory PVC hose with quick coupling on both ends
|
|
Vapor Recovery & Overfill system
|
|
Optional
|
|
Fire Extinguisher Carrier
|
|
2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
|
|
Electric system:
|
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Prime & Topcoat painting
|
|
S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
|
|
We can build the trailers according to customer’s design and requirement
|
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Drawing: 3 axle fuel tanker trailer
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
