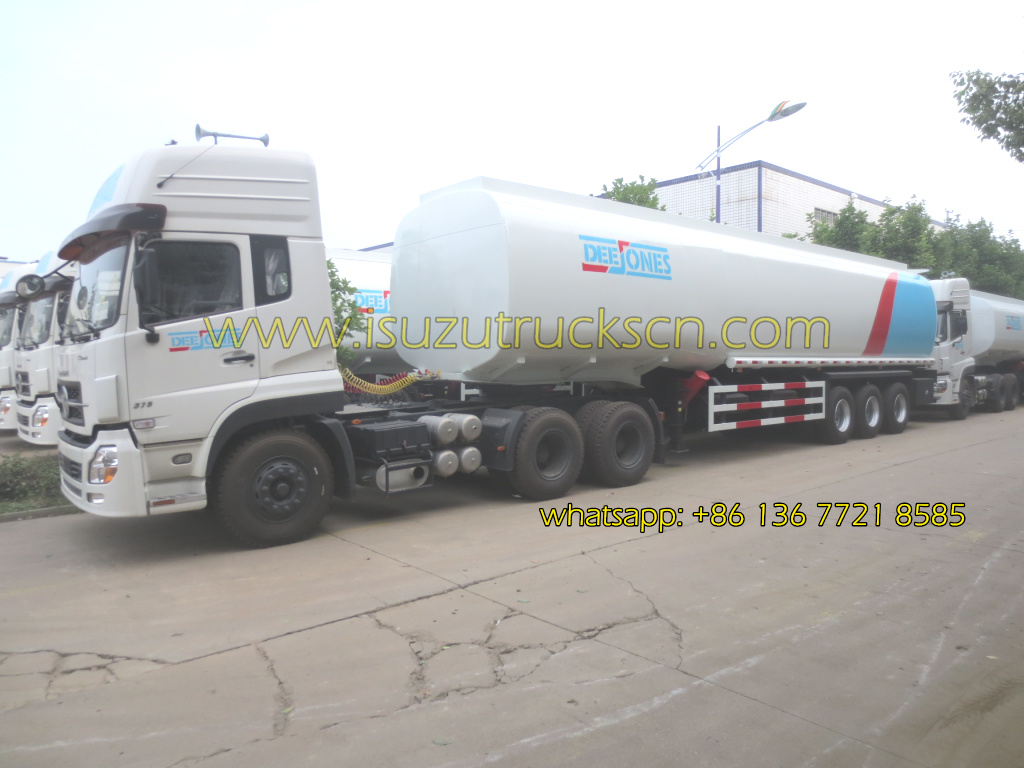

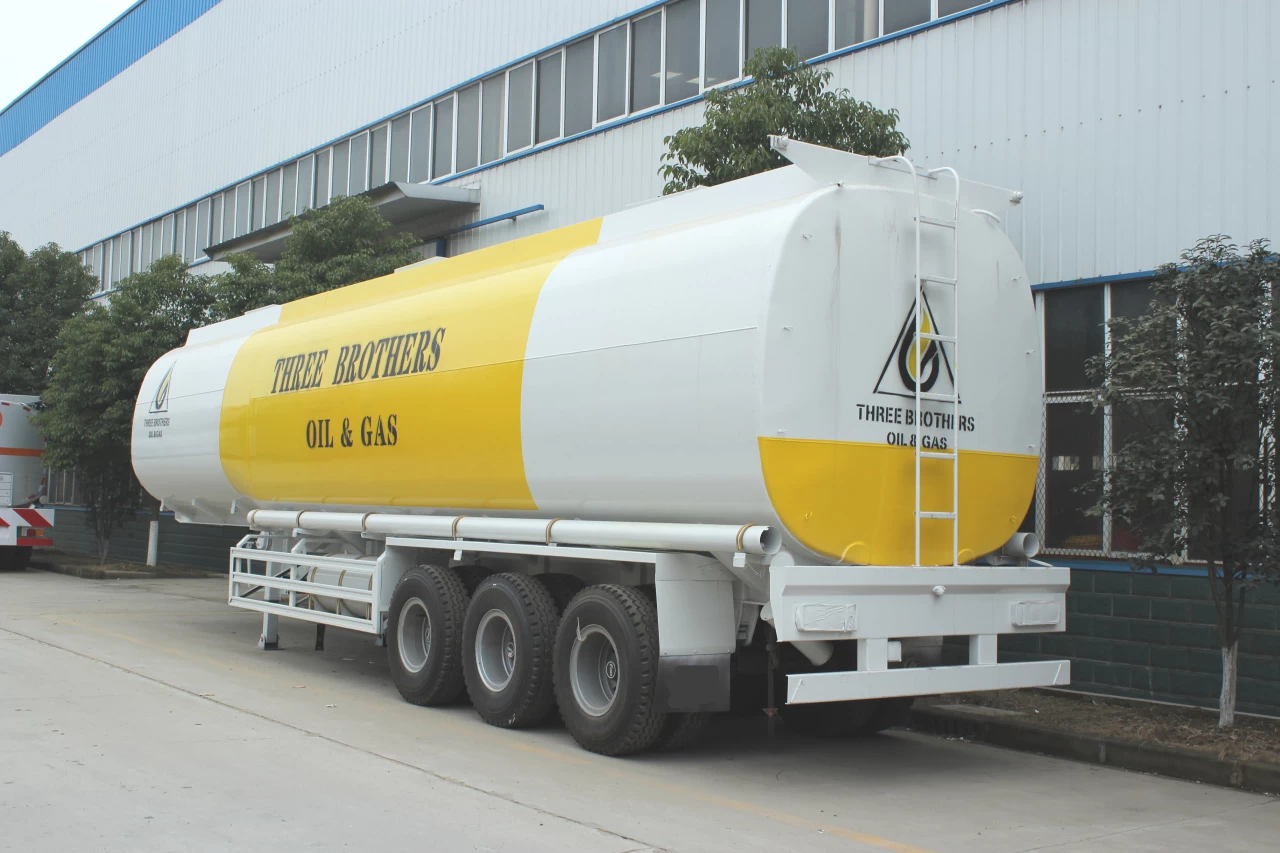

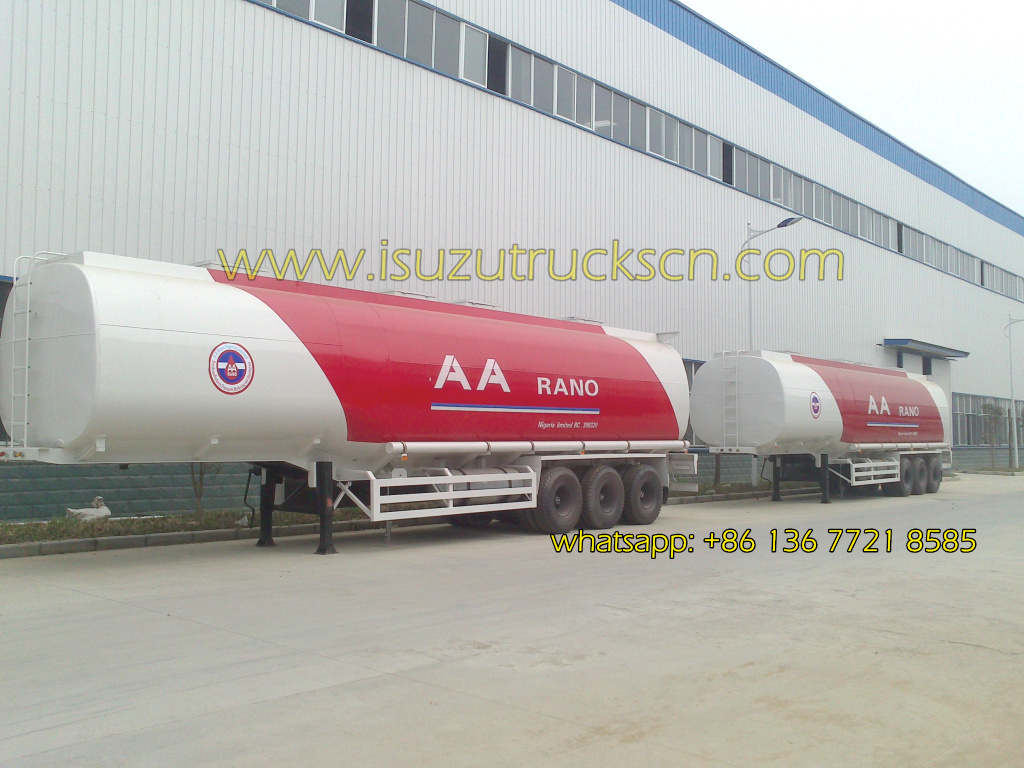

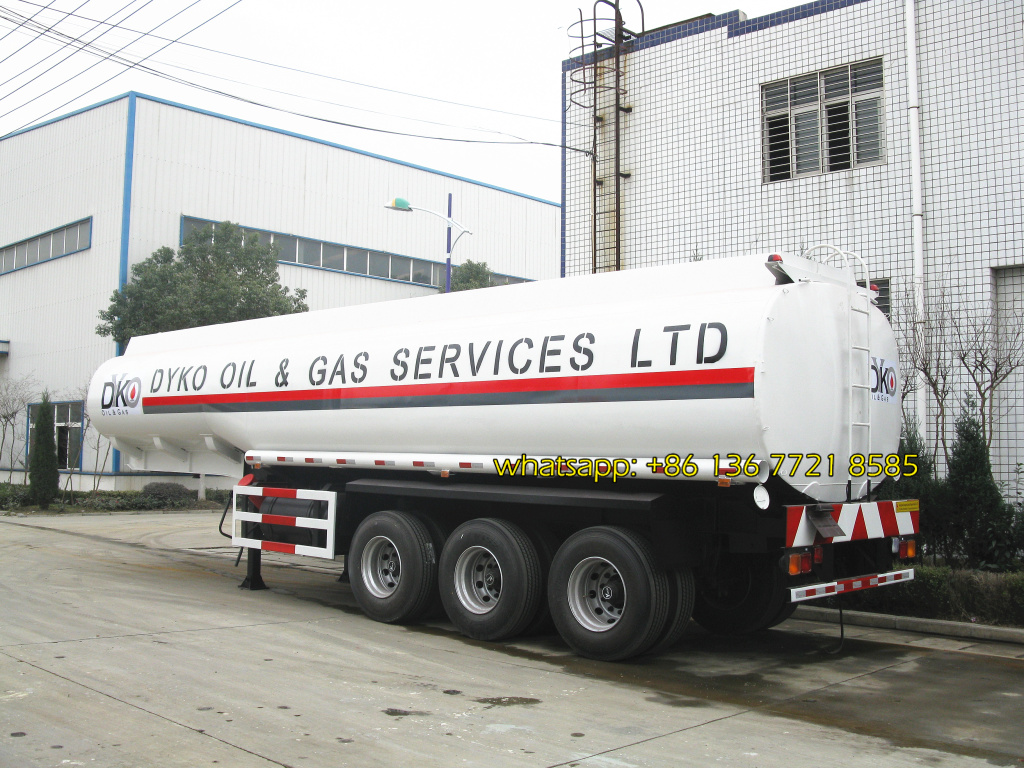

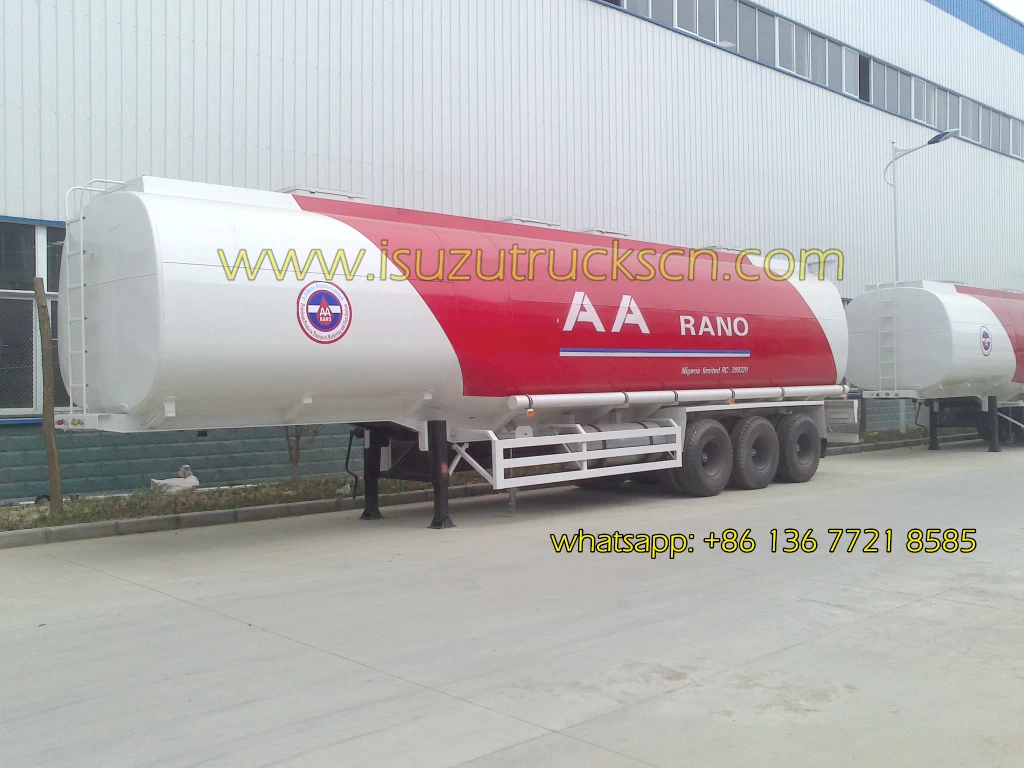

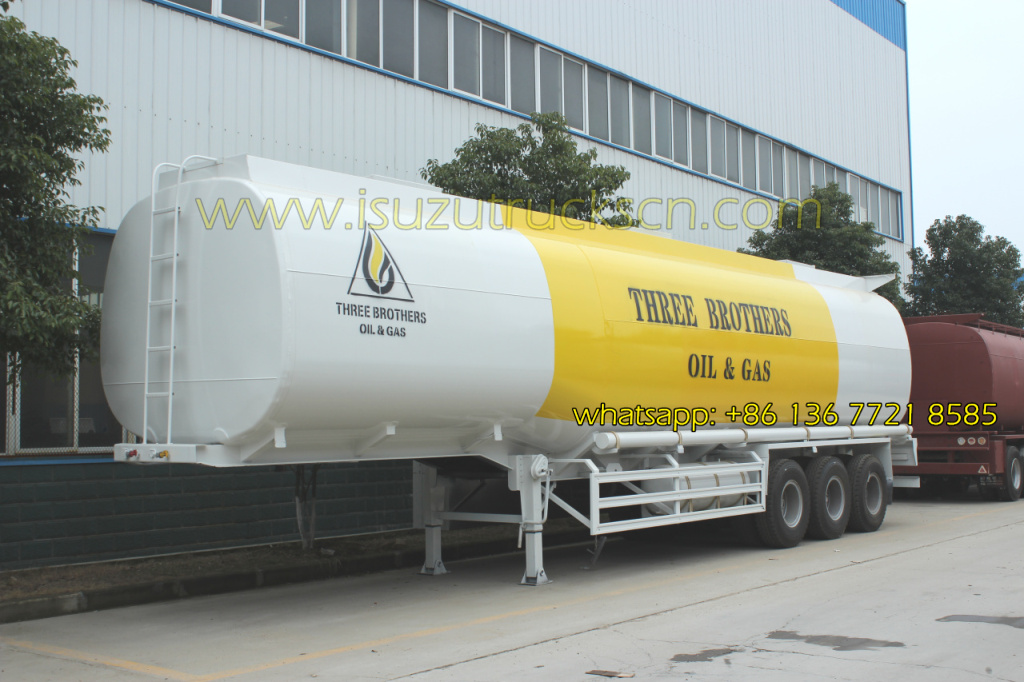

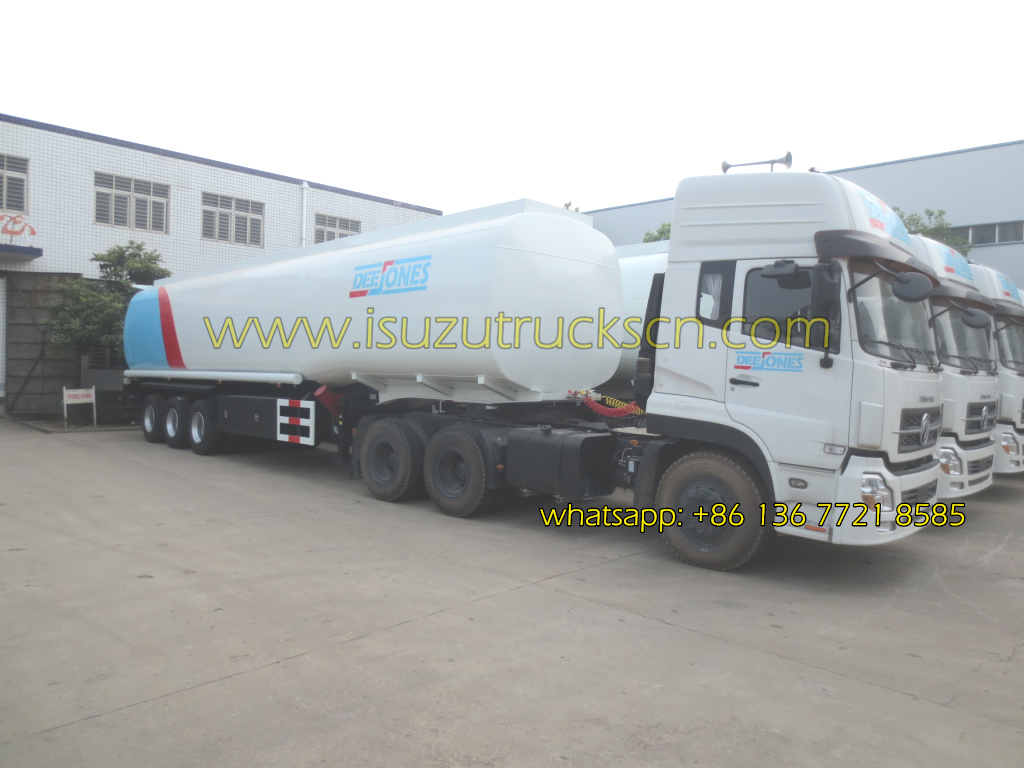

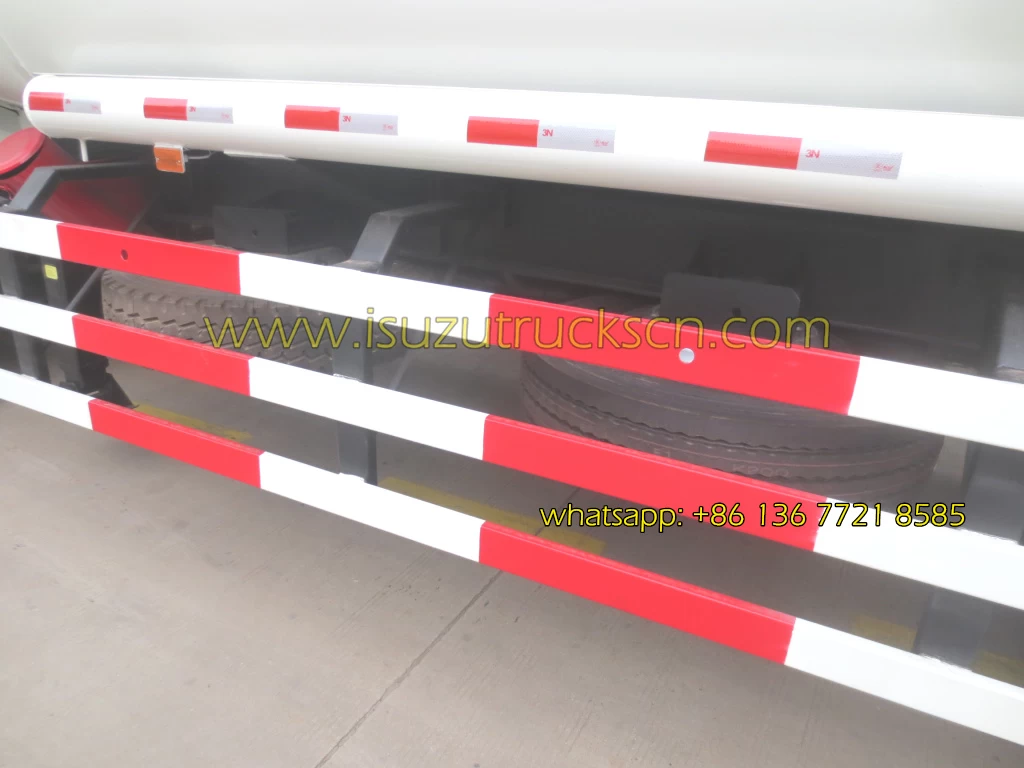

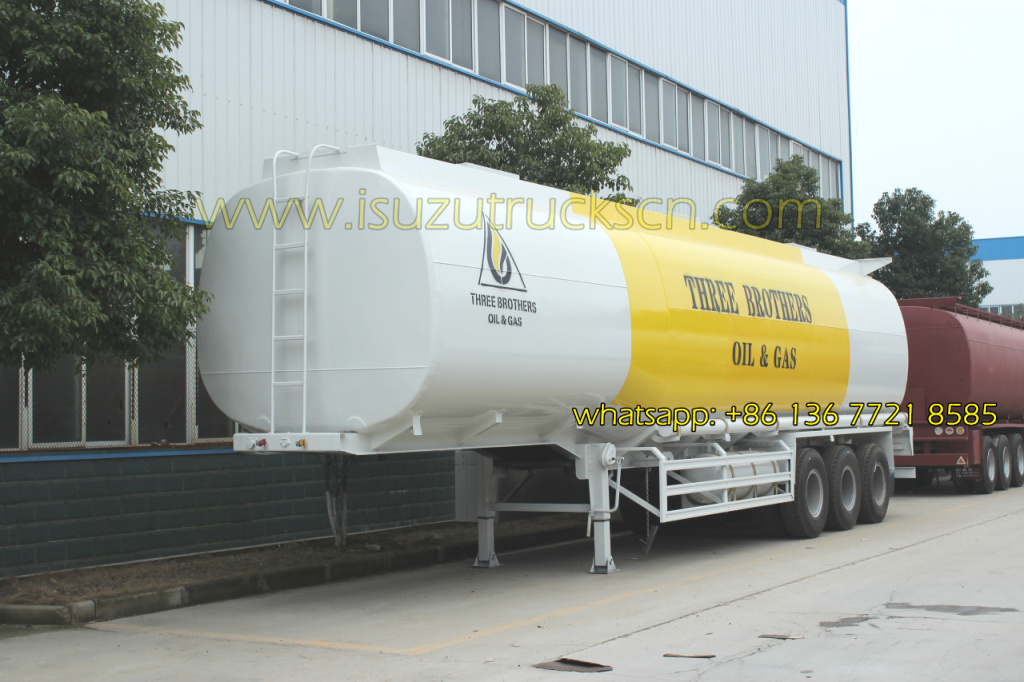

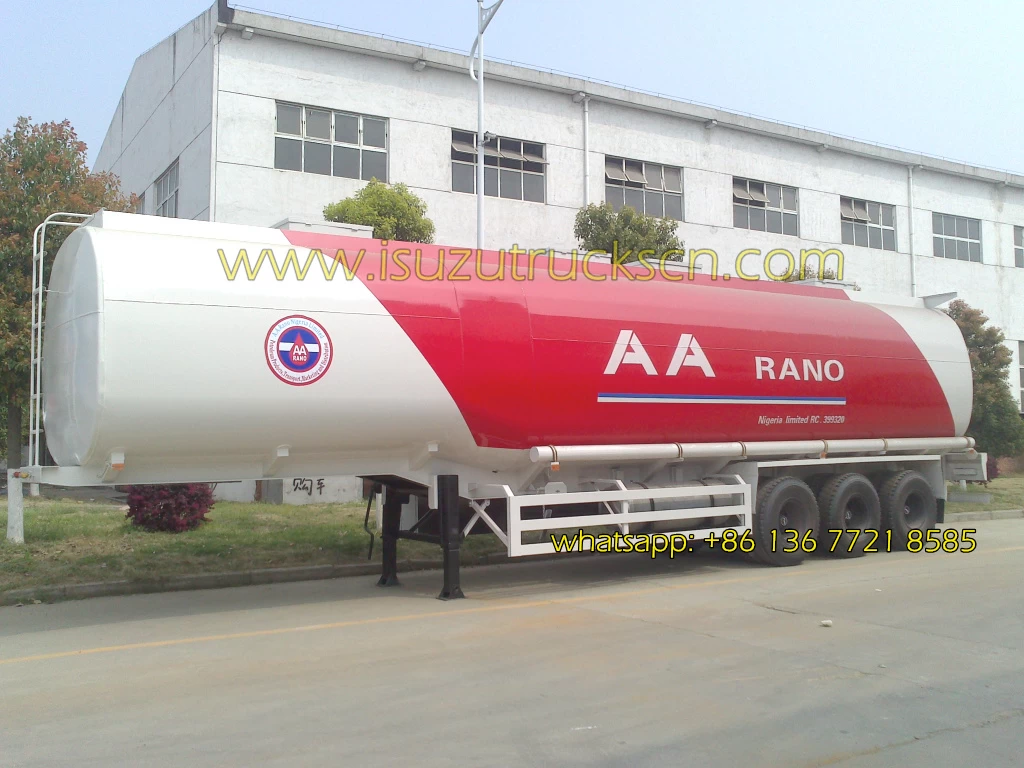

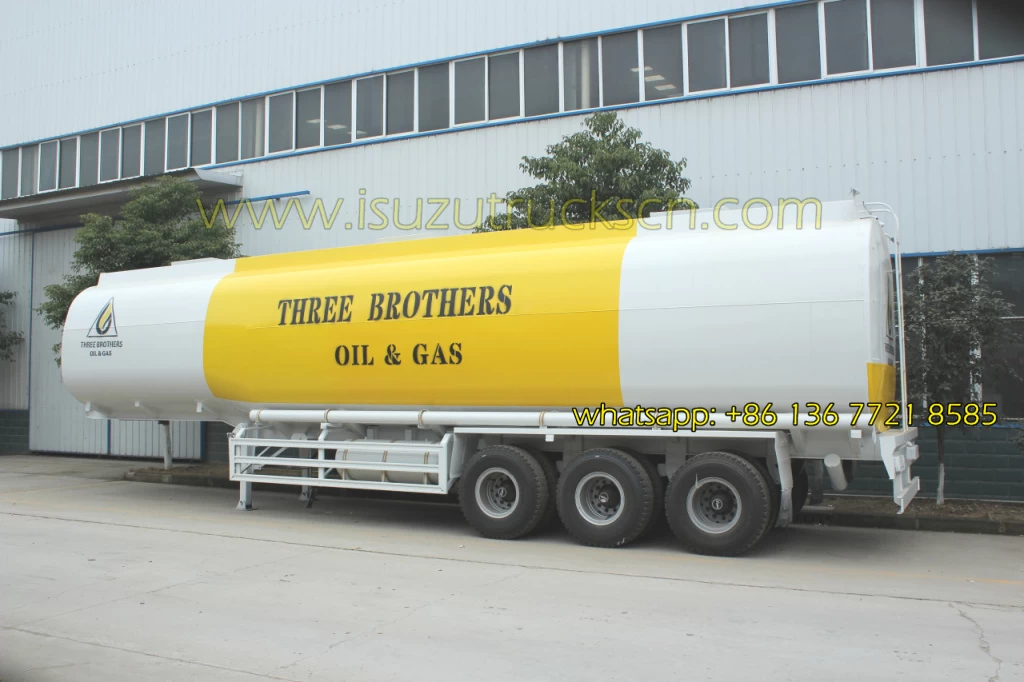

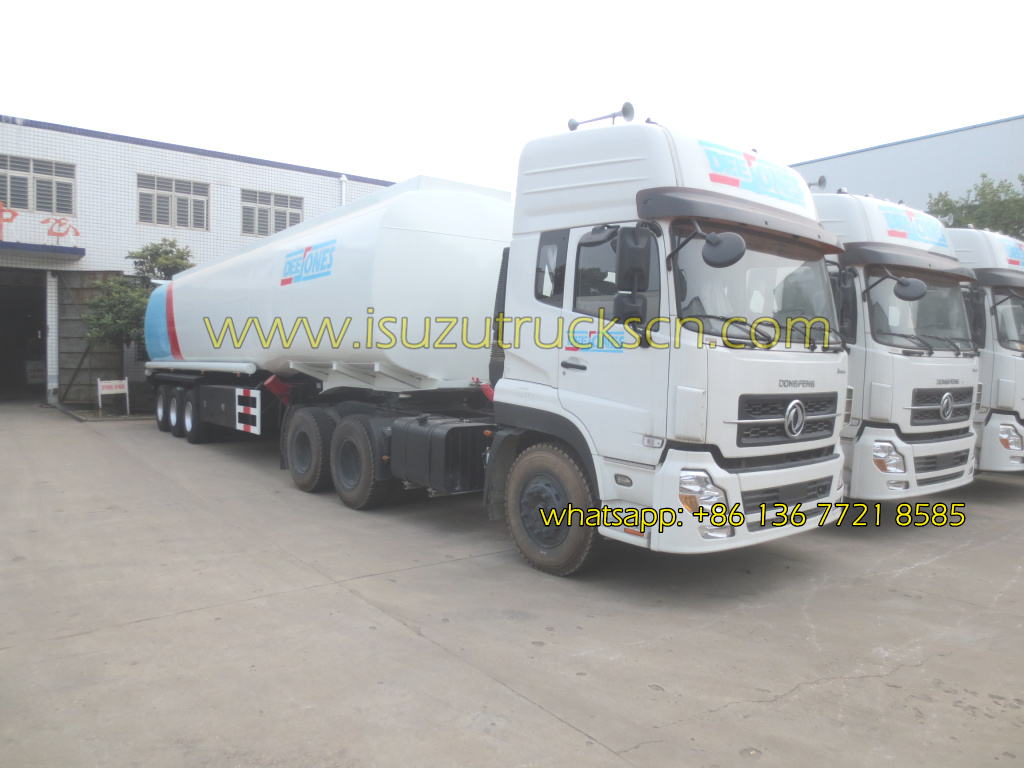

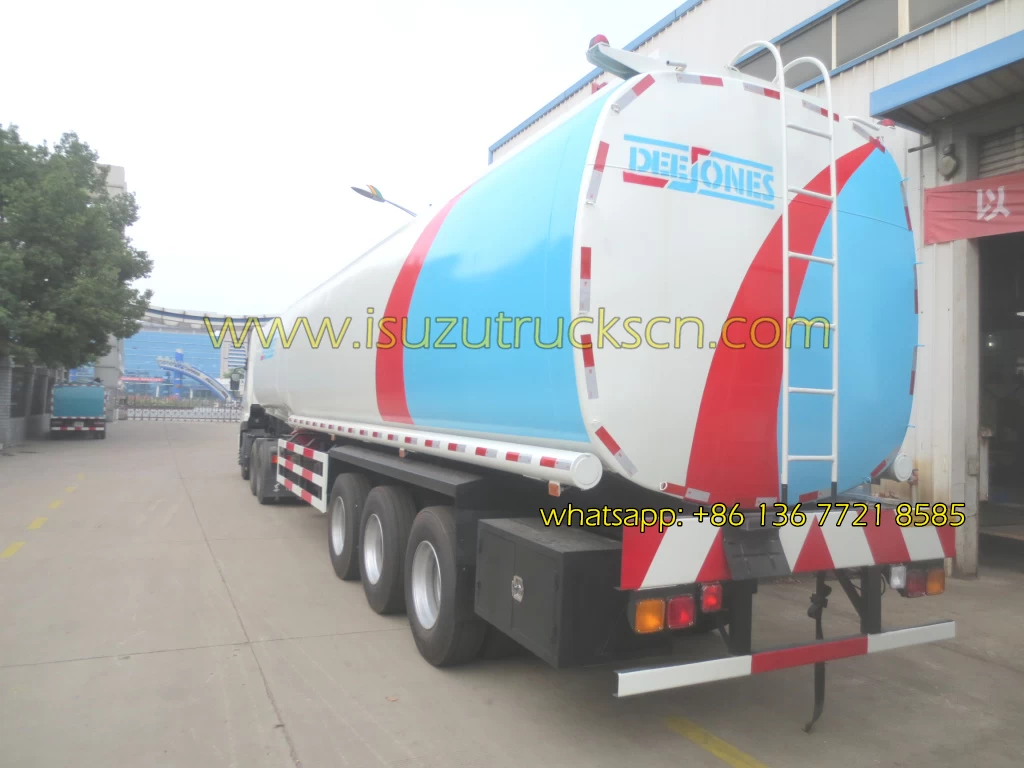

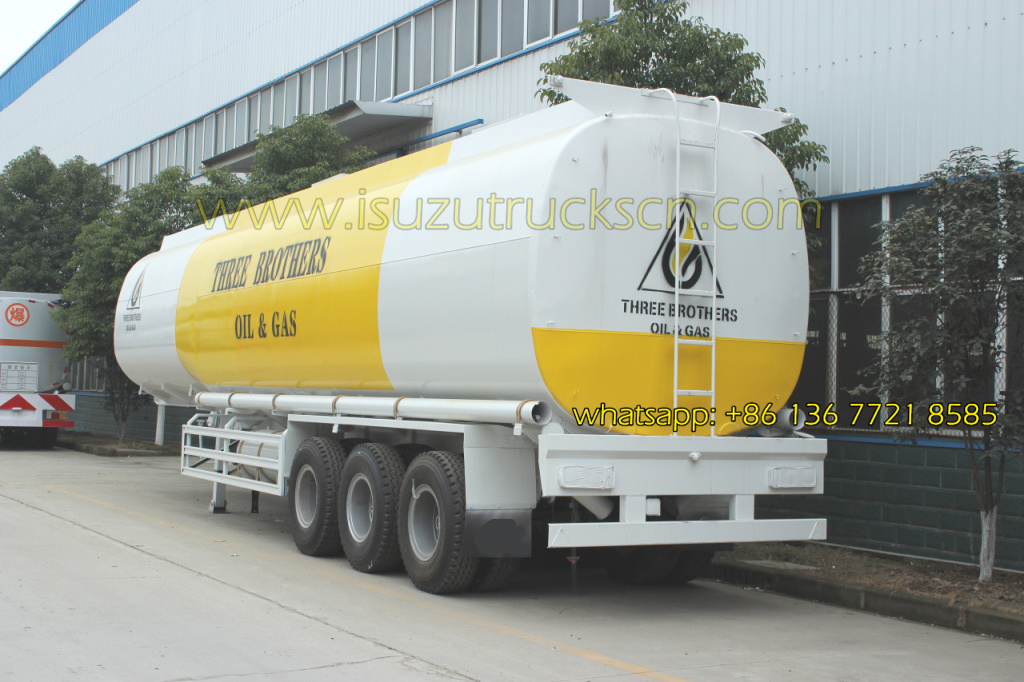

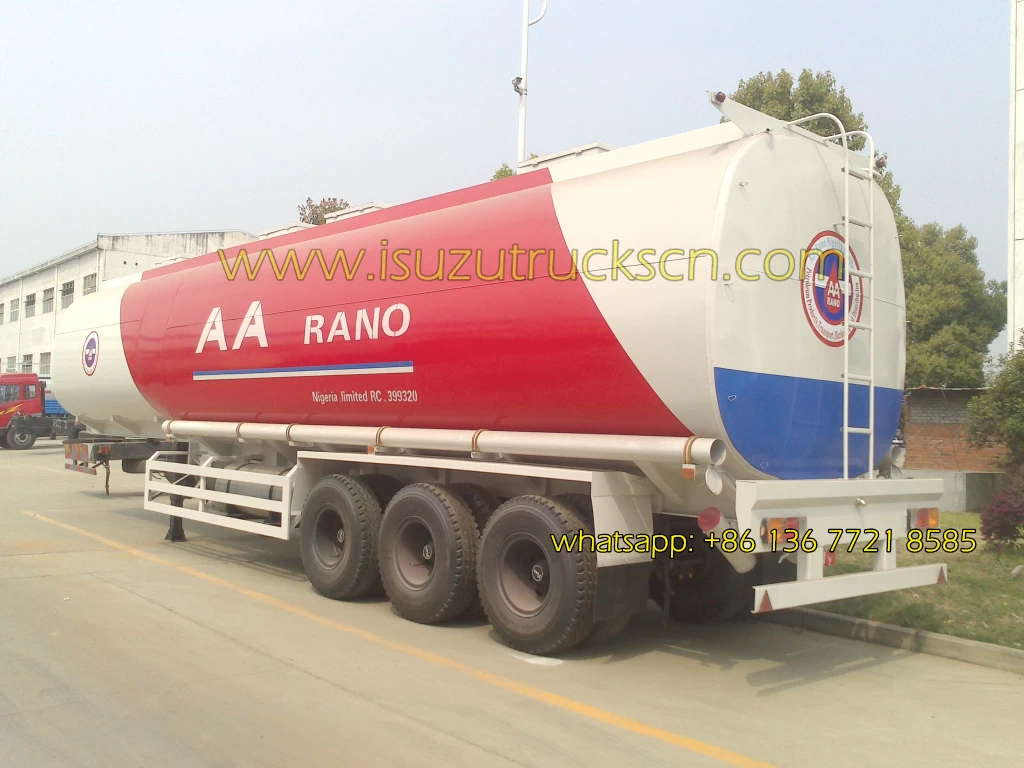

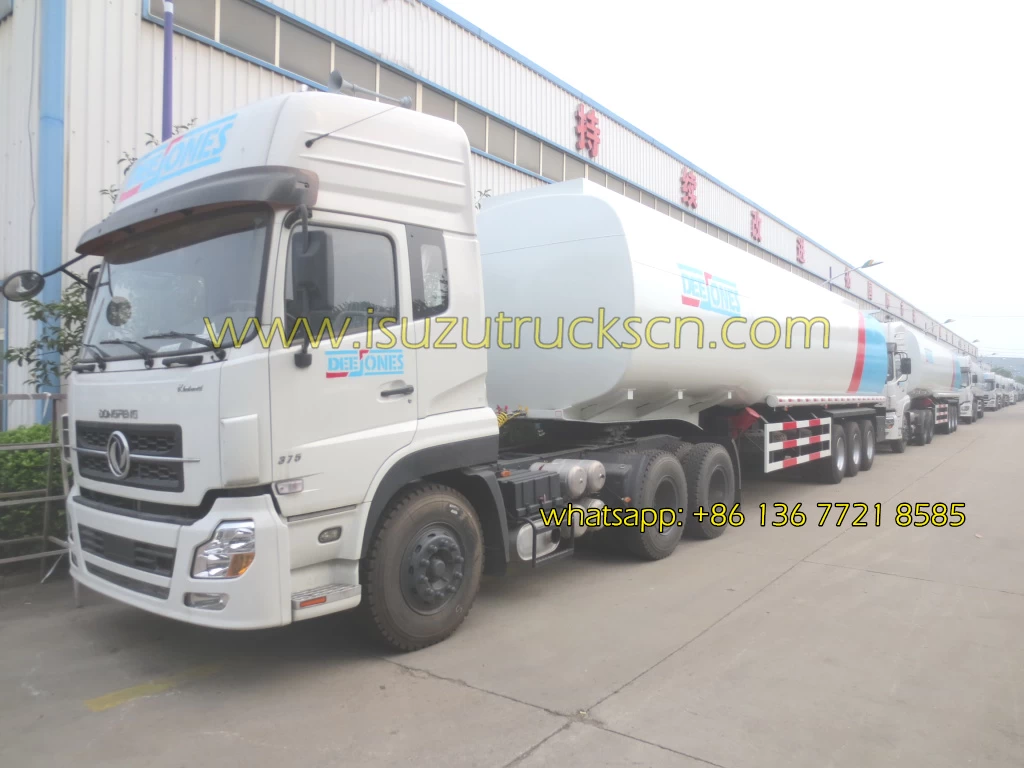

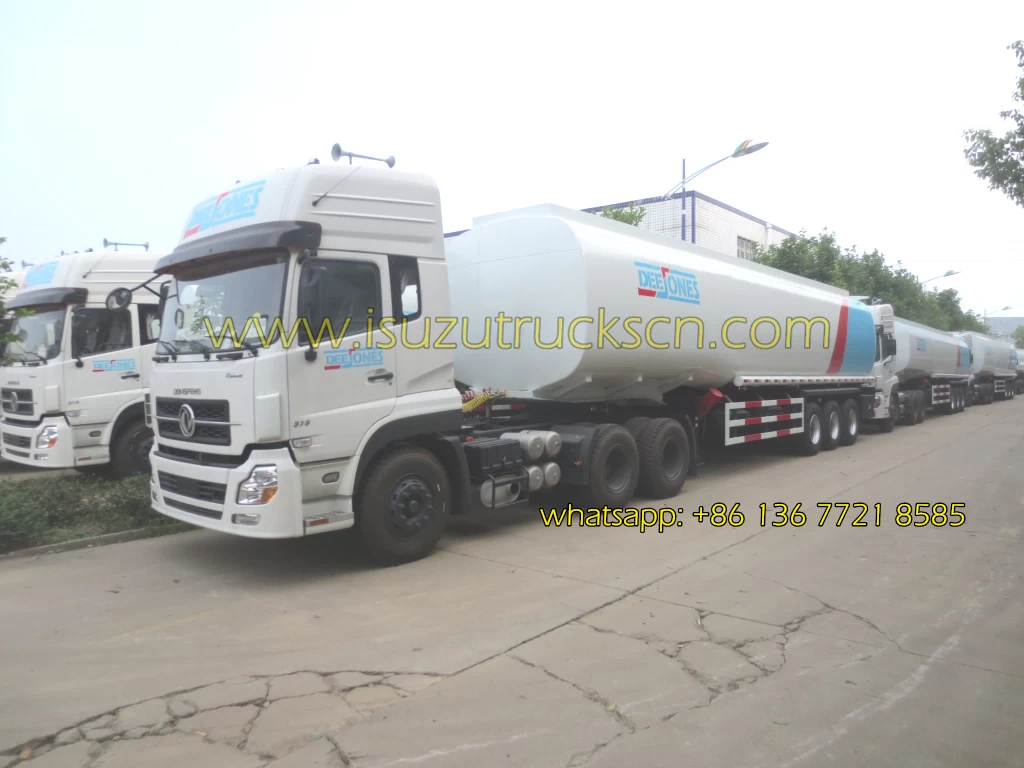

45,000L gasoline transport tank trailer
PT9404GRYB liquid tanker semi trailer has the standard tank volume of 45m3 and wheelbase of 5300mm+1310mm+1310mm. It is a truck trailer produced from
carbon steel A235. Other raw materials such as stainless steel or aluminum
alloy can be applied as requested.
The liquid tanker semi trailer adopts single tyre structure, 3 FUWA13T
axles and JOST90mm or 50mm towing pin. It is ideal for the use in the areas
with good road conditions. According to the clients' application requirements,
we can add bottom valve, bottom loading system, or other clients' needed

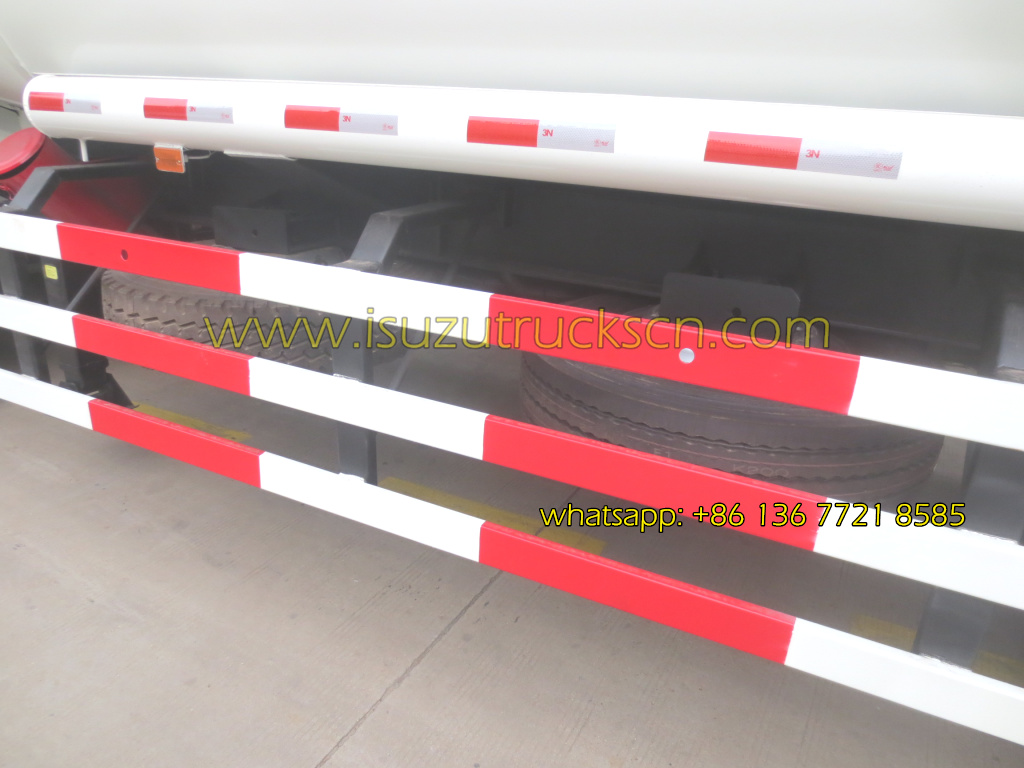

configurations. The tank trailer is ideally suited to transport a wide variety
of chemical liquids.

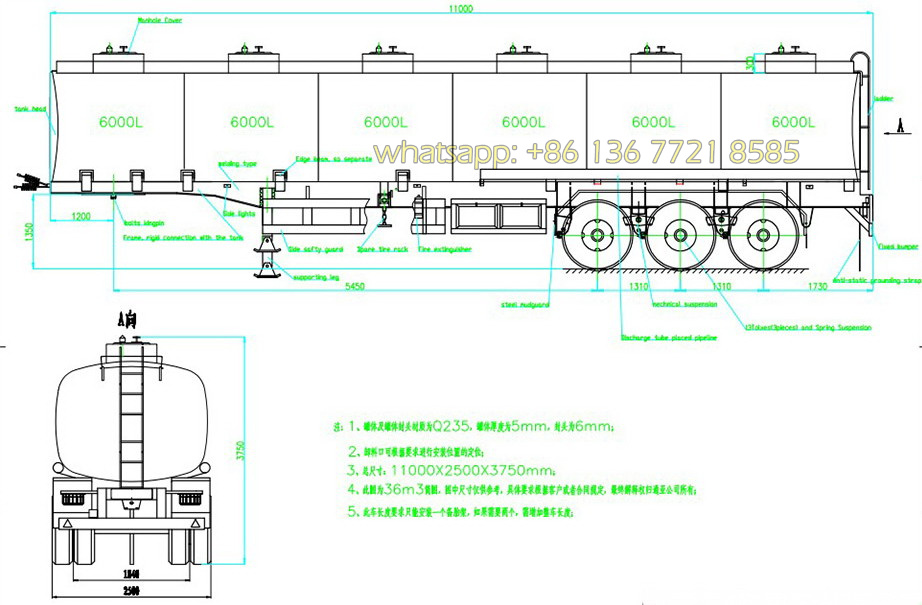

Basic drawing of 35,000L Fuel Tank Trailer
Parameters
|
Overall Dimensions
|
Total length (mm)
|
10900
|
Mass Parameter
|
Max. total mass (Kg)
|
40000
|
|
Total width (mm)
|
2500
|
|
Total height (mm)
|
3850
|
Rated load (Kg)
|
32200
|
|
Wheelbase (mm)
|
5300+1310+1310
|
|
Tread (mm)
|
2040
|
Kerb Mass (Kg)
|
7800
|
|
Ground clearance of towing pin bottom plate (mm)
|
1250
|
|
Through-put Capacity
|
Front turning radius (mm)
|
1700
|
Rear overhang (mm)
|
1330
|
|
Clearance radius (mm)
|
2400
|
Angle of departure (º)
|
24
|
|
Min. turning diameter (m)
|
24
|
Min. ground clearance (mm)
|
360
|
|
Main Configuration Parameters
|
Item
|
Standard configuration
|
Optional
|
|
Axle
|
FUWA 13T, 3 sets
|
FUWA 16T
|
|
Towing pin
|
JOST 90 #
|
50 #
|
|

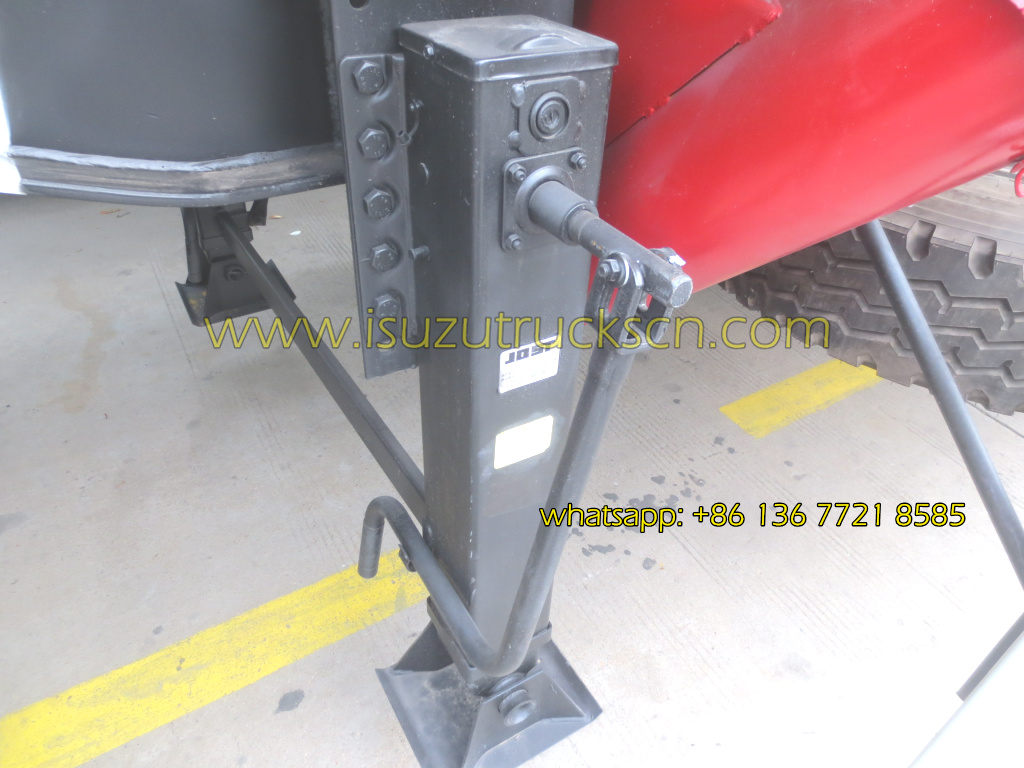

Support leg
|
FUWA brand, linkage legs
|
JOST
|
|
Suspension
|
Baohua brand triple suspension
|
Air suspension
|
|
Leaf spring
|
4pcs
|
4pcs, air suspension
|
|

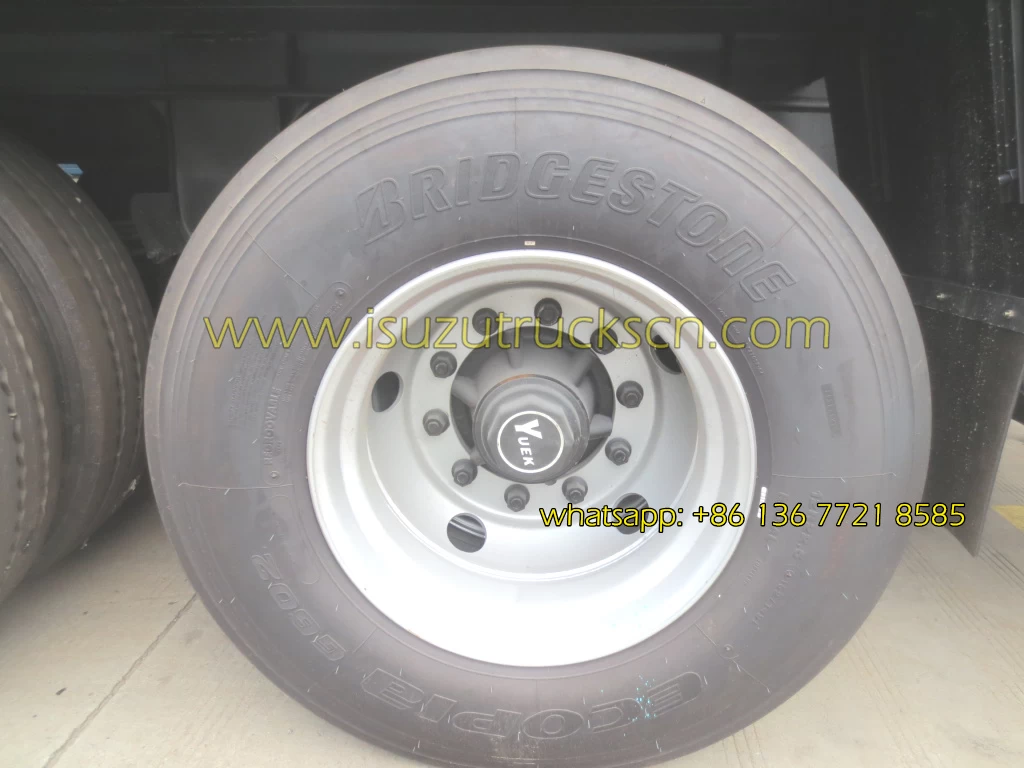

Rim
|
Rishang ring wheel 22.5 ×13.00
|
Aluminum wheel
|
|
Tyre
|
Double Coin 425/65R22.5 vacuum tyre, 6 sets
|
|
|
Braking system
|
Dual circuit air brake, service brake, parking brake, emergency brake
(air-cut brake)
|
|
|
Electric system
|
24V, minus earth (connect with tractor)
|
|
|
ABS
|
Homemade brand 4S/2M
|
Xi'anzhengchang,Hande
|
|
Tank Body Parameters
|
Item
|
Standard configuration
|
Optional
|
|
Volume (m3)
|
45
|
|
|
Size (mm)
|
10550×2496×2246
|
|
|
Tank material
|
Carbon steel Q235
|
Stainless steel 304
|
|
Discharge ball valve
|
Aluminum alloy DN80
|
Stainless steel DN80, DN100
|
|
Bottom valve
|
None
|
Stainless steel or aluminum alloy DN100
|
|

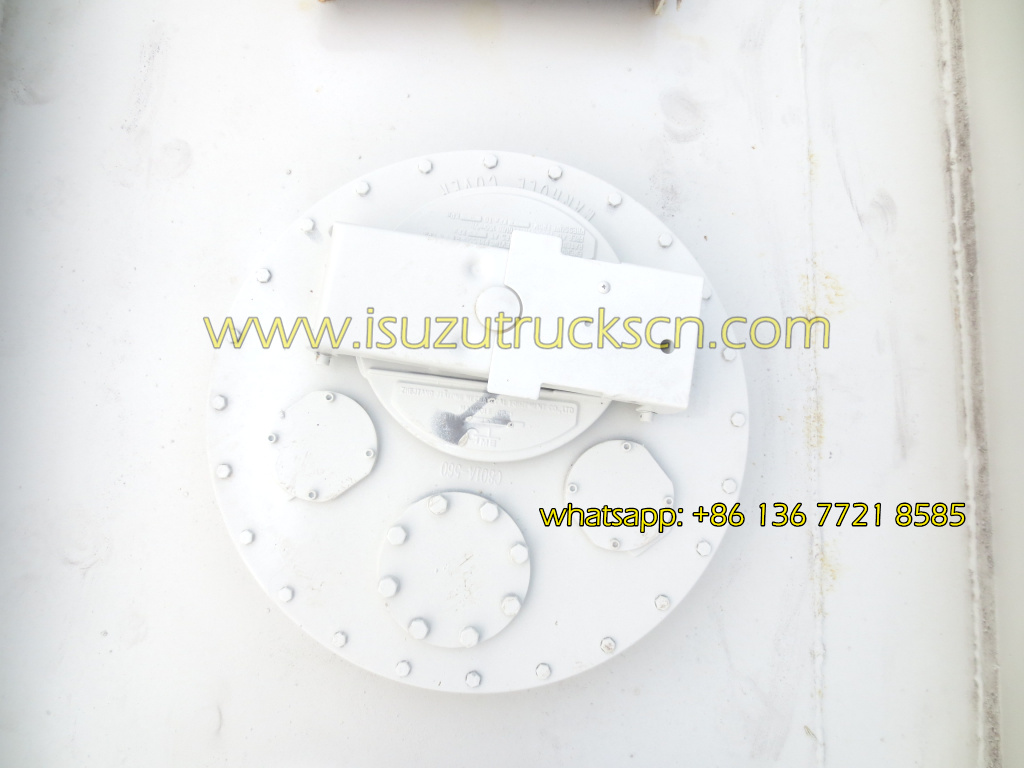

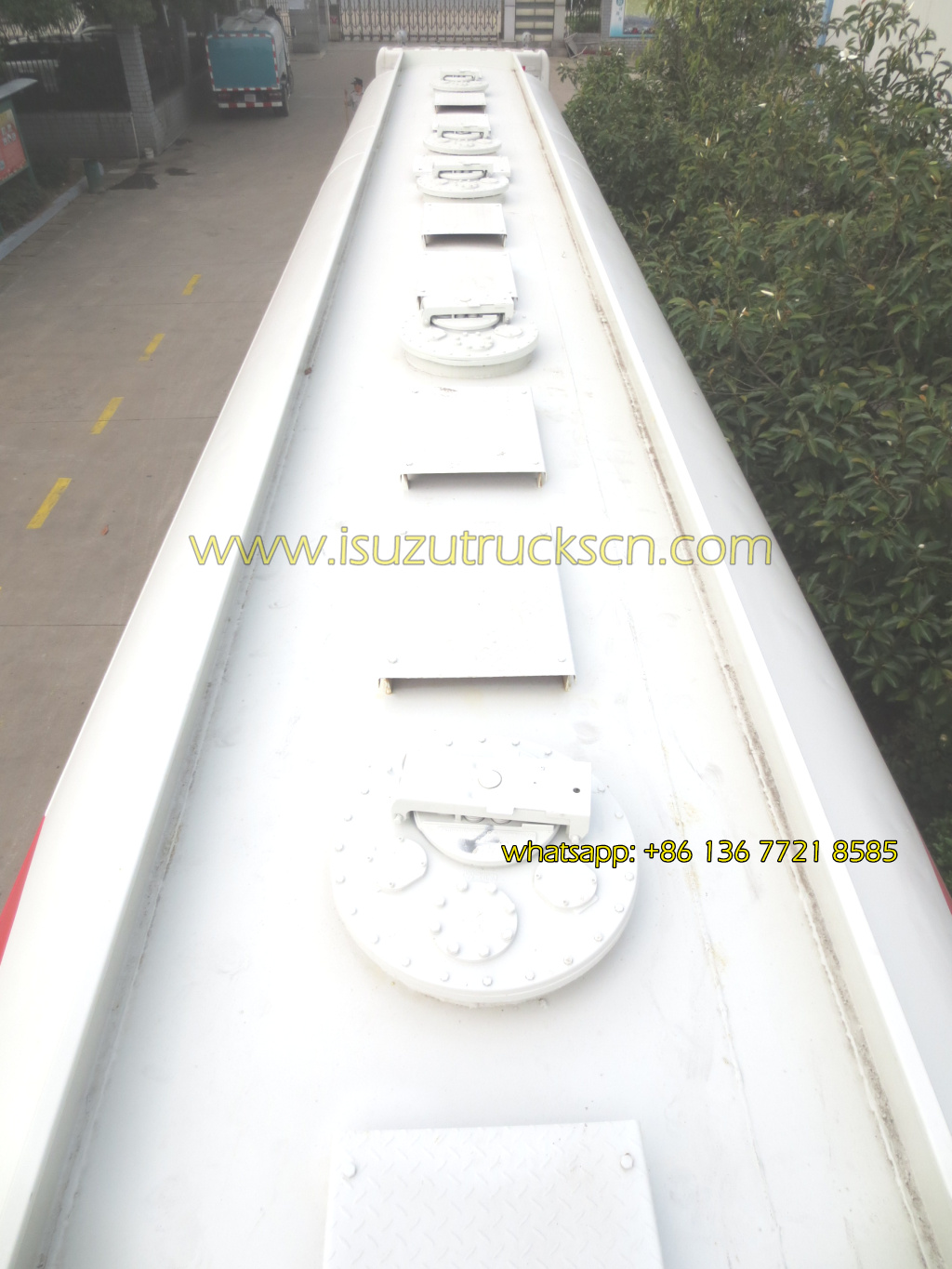

Manhole
|
Amount: 2 sets; Material: Carbon steel; Diameter: φ500
|
Stainless steel, aluminum alloy
|
|
Discharge rubber hose
|
Amount: 2 sets; Length: 4m; ball valve accord with drift diameter
|
|
