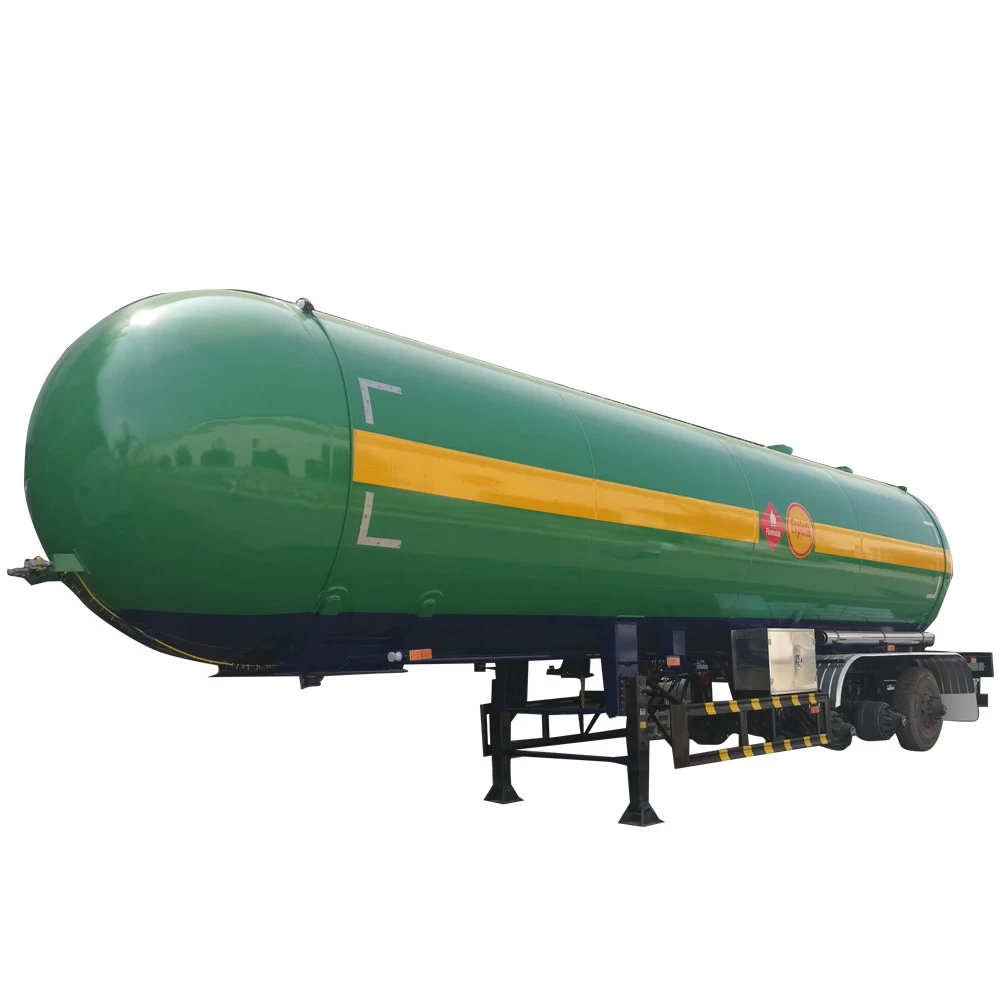

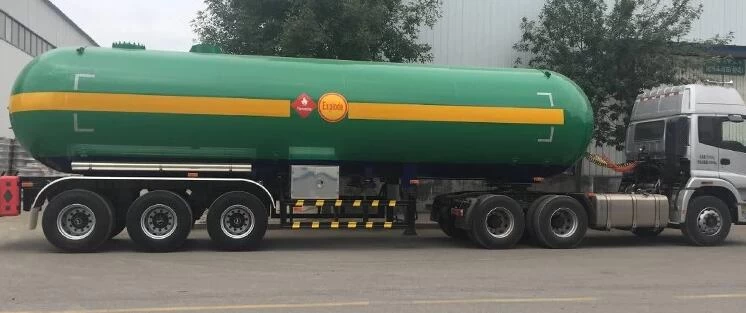

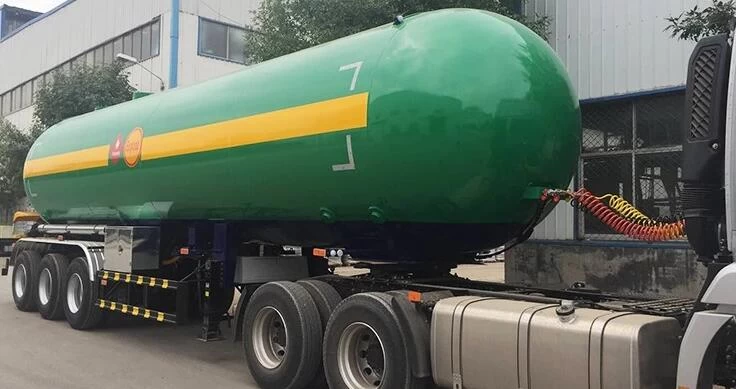

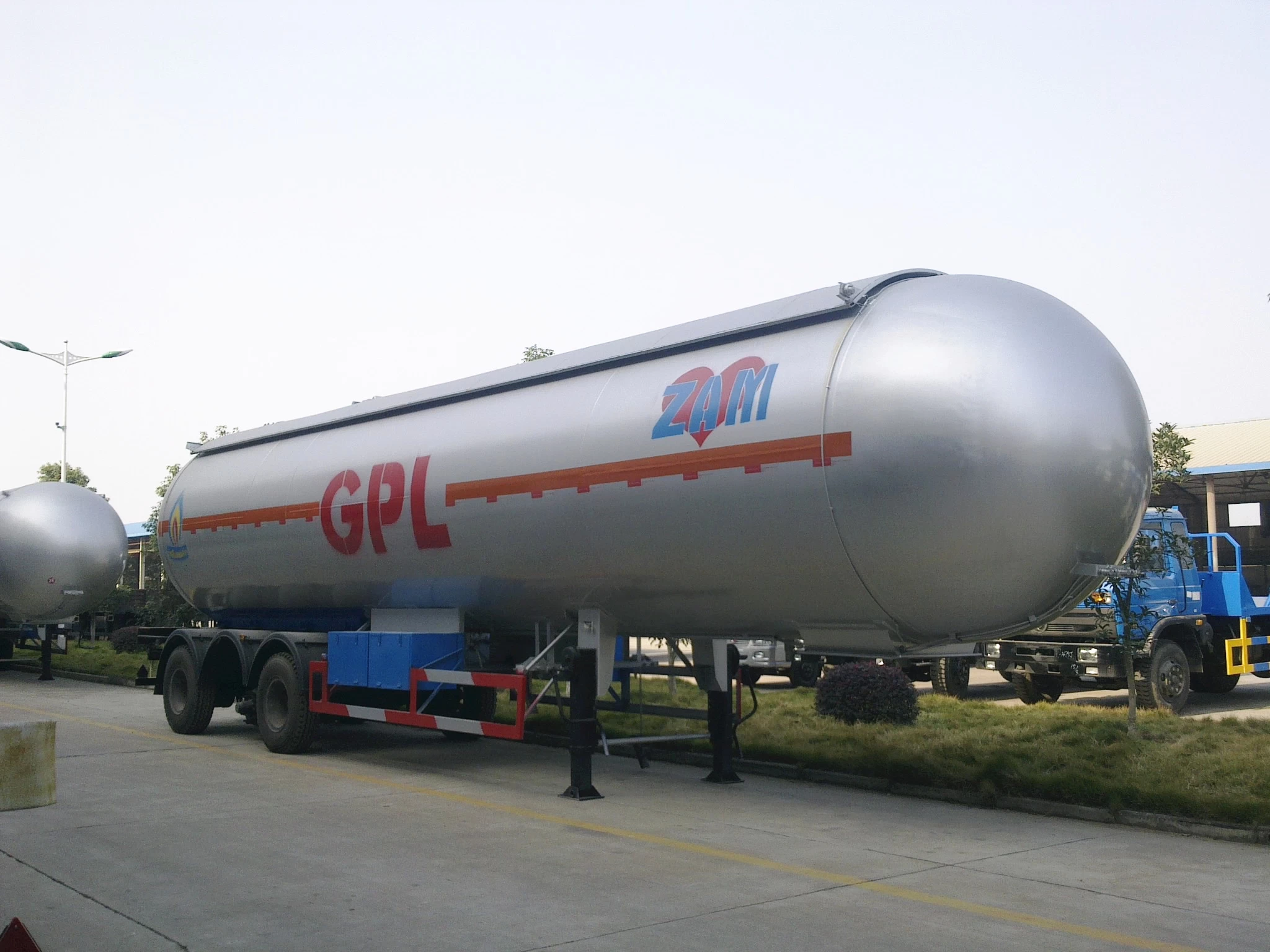

New Design Tri-axles Propane 45000 Litres Lpg Tanker Semi Trailer Hot Sale

LPG Tank trailer or tanker Trailer (United States usage) or tanker (United Kingdom usage), is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.


45000L 3 axles Liquefied Petroleum Gas Lorry Tank Semi Trailer   for Liquid Ammonia 9453GYQ
overall outside dimensio(mm) Length 11640
Width 2490
Height (unload) 3880
Outside   dimension of tank body(mm) Length 11250
Dia Φ 2371
Height
capacity(L) 45000
GVW(kg) 40000
vehicle total weight(kg) 16700
rated payload(kg) 23300
Wheel base(mm) 5290+1350+1350
Tread(mm) Tread   at front
Tread at rear 1840/1840/1840
Front/Rear Overhang(mm) /1950
Approach/Departure angle(°) /15
Rated payload of Vehicle saddle 16000
Axle BPW   12T*3
Axle Capacity kgs 8000/8000/8000
Tyres 11R22.5*12
Tank Material  Q370R
Transport Material :  Liquid   Ammonia
Insulated Cover
Suspension Spring   Leaf
Leaf Spring /8/8/8
remark:
Storage Tank volume:44.8 m3,Liquid Ammonia:520 kg/m3, Equip with 6*4 or 6*2   Tractor , WABCO Brake System and ABS, Clerance: 540
    OPTIONAL : Spring Air SUSPENSION AND SUPER   SINGLE TYRE
Tank facility
Design pressure
1.72MPa
     (see technical proposals)
MAWP
1.72 MPa
    (see technical proposals)
Capacity
Code   & Material Q370R
Heads
Spherical heads at both ends
Filling & Discharge   System  Control   method  Mechanical
Liquid discharge  Single   liquid discharge system  Side   of the trailer
Valve box Single   valve boxes  Side   of the trailer
Vales Brand  Model  Qty   (per Semitrailer)
Emergency Valve (Liquid Phase) Rego A3213D300 2
Emergency Valve(Gas Phase) Rego A3212R175 1
PRV  Rego A   8436G 2
Vent Valve Rego TSS3169 4
Liquid Adaptor Rego 5769K    (3”, 3-1/4ACME) 2
Gas Adaptor Rego 5767H   (2”, 2-1/4ACME) 1
Liquid Adapter Cap Rego 3194-90   (3-1/4ACME) 2
Gas Adapter Cap Rego 3184-90   (2-1/4ACME) 1
Pressure Gauge Rego A   8400 1
Angle Valve Fisher J415 1
Thermometer WIKA
1
Liquid Level Gauge Rego 9094TSM60 1
Ball valves (Liquid Phase) Modentic   valve MD-51FS-300   DN 80 2
Ball valves (Gas Phase) Modentic   valve MD-51FS-300   DN 50 1
Max Volume 61,900   Liter
     Filling Weight 30,000 Kg
     European ADR Standard /ASME   STANDARD

    Liquefied petroleum gas or liquid petroleum gas   (LPG or LP gas), also referred to as simply propane or butane, are flammable   mixtures of hydrocarbon gases used as fuel in heating appliances, cooking   equipment, and vehicles. As it burns release less CO2 per unit of energy than   does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to   26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3),   so it become popular as a Clean energy in these years.

    G.E.T Vehicles provides light weight and high-volume Medium-pressure   Gas(LPG) tank semi-trailer with 3 axles and more to customers. With   61900-liter max volume, 30,000 filling weight, European ADR standard and ASME   STANDARD, it is an optimal transporter for ENERGY logistic industry.

    Series of products: vehicles for transportation of LPG, propane, propylene,   liquid ammonia, etc.

    Thermal-insulating mode:Super vacuum multi-layer insulation
    Capacity:5M3-36M3
    Working Pressure:0.3MPa-1.6MPa
    Medium:LOX、LIN、LAr、LCO2、LC2 H 4、LH2  etc
    Features:For   material, we raise products efficiency with use of new material-the high   strength stainless steel. We realize the maximum capacity among similar   products, lower self-weight of vehicle as well as lower operation cost.
OEM Parts Configuration:

    King Pin: 3.5” /2”  JOST.
    Landing Gear: 2 speed road side winding with sand shoe,Type: JOST   C200T.
    Suspension:Mechanical  with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension
    Axles: square axle with 12 tons capacity. Supplier & type: BPW/   FUWA/SAF/L1.
    Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand ,   Made in China.
    Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS:   ABS.
    Electrical System: Complete 24V installation with modular wiring harness. 7   pole plug placed at front in accordance to ISO, norms NO.1185.
    Side Lights: reflectors (orange);
    Rear Lights: direction indicators (orange) /brakes (red)/rear warning   (white).
Others:
    Spare Tire    Carrier: Equipped two sets per chassis   without spare tire.
    Side Guard:   Steel.
    Tool Box: Equipped   one set.
    Painting: Color by   customer’s requirement.
    Marking: By   customer’s requirement.
    Options: Oil   Tanker: 300L carbon steel.
