Features

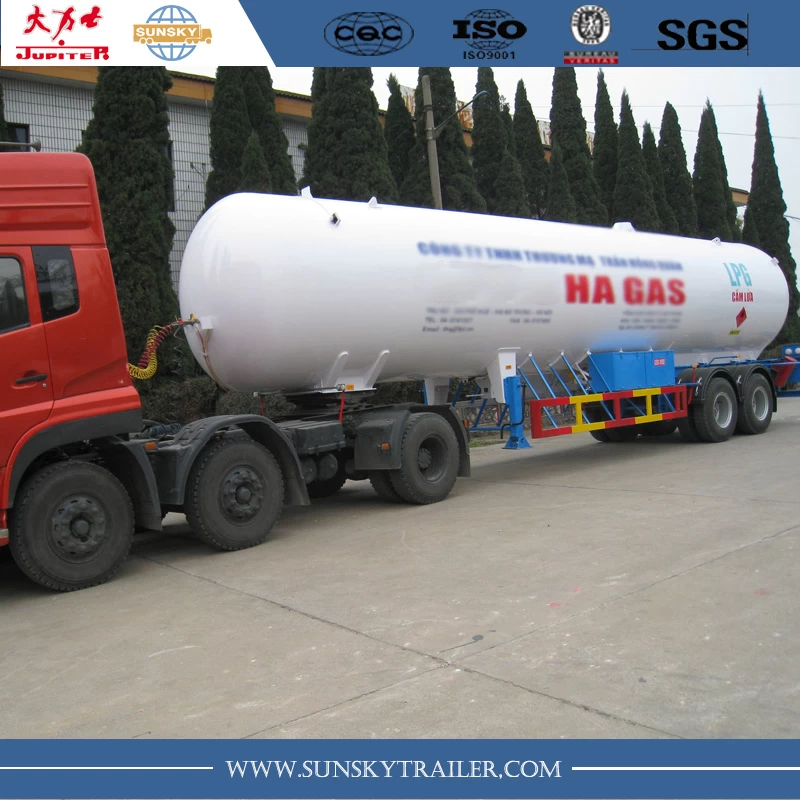

45 CBM 2 axles LPG Tanker Trailer with ASME CONNECTION STANDARD
SUNSKY LPG tanker exported to Philippines，Vietnam，Pakistan etc.As one of the most important energy，liquid petroleum gas more and more important for the development of countries，and be widely used in our daily life.With the growing demand of LPG in Philippines，Vietnam，Pakistan etc.
The transportation and storage of LPG become profitable. SUNSKY LPG tanker semi-trailer with ASME certificated can be your reliable for your transportation of gas energy.LPG container，LPG storage tanker also available for our customers.
1.European design in LPG tanker, more than 10 years experience in semi-trailer make a good property.
2.Exported to more than 32 countries，solve the requirement of transport trailer,and received good comment from customers and dealers.
3.Standard design in LPG tank, more high use value and cheap price，also can design according to your requirement.
4.Solve all kinds of requirement in tank trailer,like fuel tank,water tank,bulk tank etc.
Specification
|
45 CBM LPG 2 axles Tanker Semi Trailer
|
|
Brand Name
|
SUNSKY
|
|
Place of Origin
|
China
|
|
Color
|
Any color will be available
|
|
Payload
|
19600 kg
|
|
Tare Weight
|
15200 kg
|
|
Wheel Base
|
7970+1310+1310 (mm)
|
|
Rim & Tyres
|
Alcoa Wheel and Michelin tires 4 PCS
|
|
Axle Brand
|
13T
|
|
No. Of the Axles
|
2
|
|
Axle-load
|
24000 kg
|
|
Pieces of leaf-spring
|
10/10
|
|
Suspension
|
Heavy duty leaf spring suspension
|
|
Departure Angle
|
22
|
|
Front/Rear Overhang
|
1205 mm
|
|
Dimensions
|
12965×2500X3990 (mm)
|
|
Tanker size
|
12715mmx2499mm
|
|
Main Beam
|
Automatic submerged arc welded
Main beams Q370R through cross beams Q235
Body material Q235B manganese plates,
automatic submerged arc welded
|
|
Brake System
|
Automatic air brakes
Double pipe line air brake, front two axle is 30 air
chamber,
rear axle is 30/30 air chamber.
|
|
Accessory
|
One tooling boxes ,
Two spare tire carrier, Two fire extinguisher
|
|
Tanker side thickness
|
12 mm
|
|
Electrical System
|
24V, 7core socket, lights according to European standards.
|
|
Tool Box
|
1 box of standard tools
|
|
material
|
Q370R
|
|
Standard
Configurations
|
Safety valve cover, single-fluid two-valve boxes, legs,
traction pins, liquid level gauge, pressure gauge,
thermometer,
emergency cut off valves, fire extinguishers, fire star
cover,
anti-static grounding tape, fence, tire fenders
|
|
Others
|
Filling medium: liquefied petroleum gas (propane);
design pressure 1.71Mpa,
design temperature 50°C,
Filling factor: 0.42t/m3,
corrosion margin: 1mm
|
|
Standard
|
AD-MERKBLÄTTER 2000 (ADM) Steel Pressure Vessels,
Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker
safety inspection
|
Details
