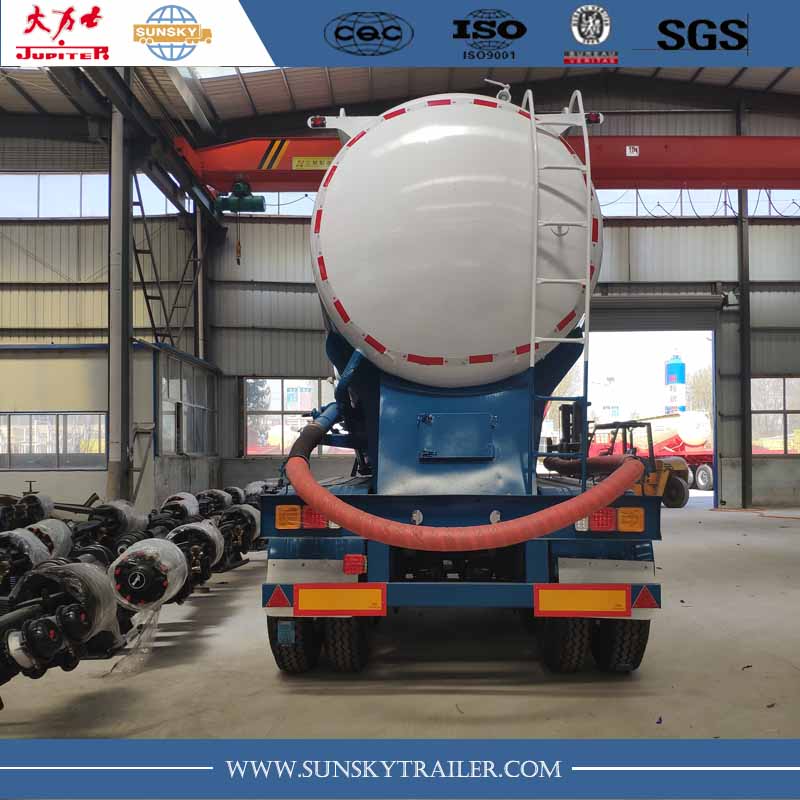

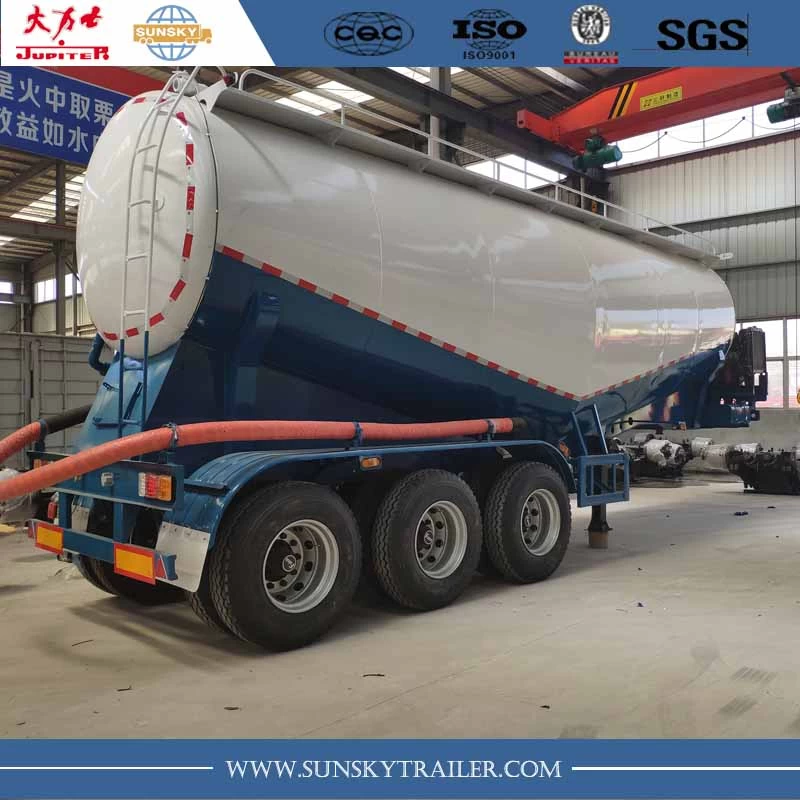

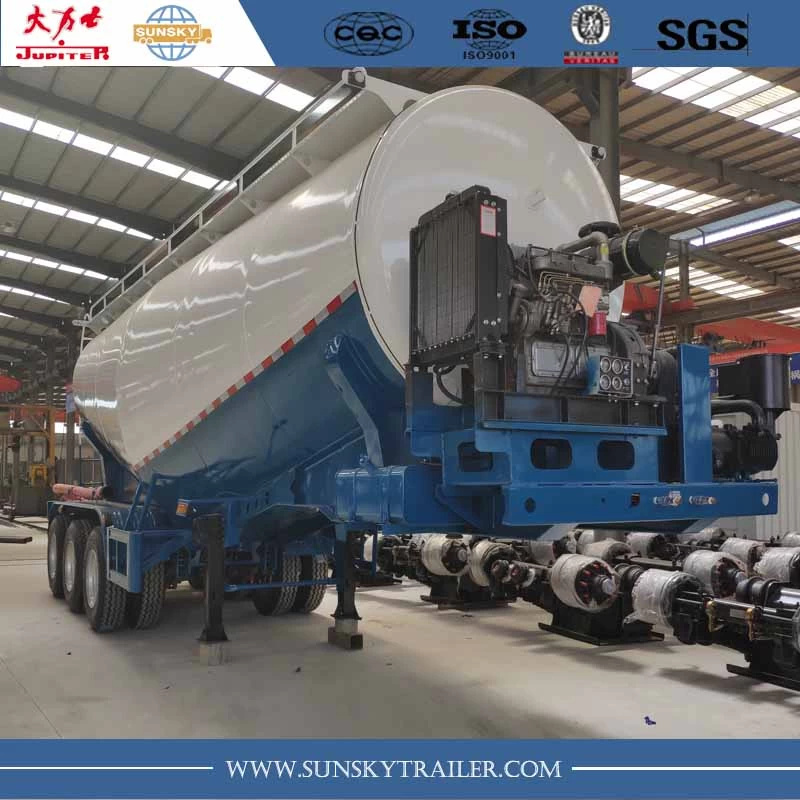

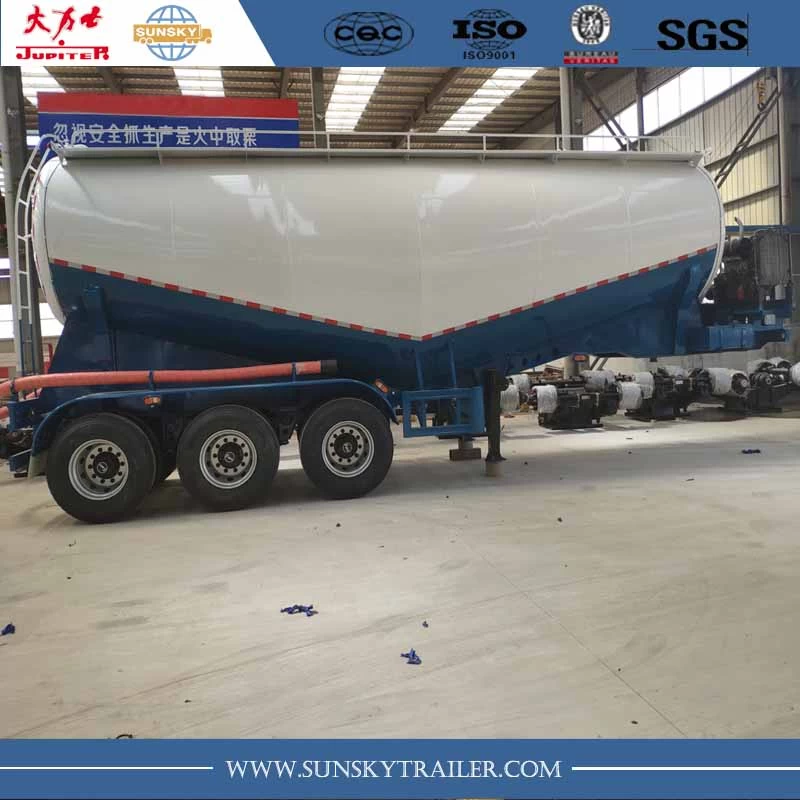

ITEM: 45 CBM Bulk Cement Trailer For Cement Factory
Features
1) Tank body of bulk cement tanker trailers are made of high strength wear-resistant steel, have lightweight and more durable.
2) The bulk cement trailer use no guide plate structure design,have a light weight and low residue.
3) The design and reasonable parameter matching of the canvas belt type fluidized bed makes the residual rate lower, the unloading rate is quicker, saves the cost and improves the efficiency.
4) The Bulk Cement Trailer use special welding machine to weld the tank body from one side but form smooth, sturdy and uniform welds on both sides.Use advanced welding technology and experienced welder to make sure the high safety and no air leak.
Specification
|
Style
|
45 CBM 3 Axles Bulk Cement Tanker Trailer
|
|
Dimension(L*W*H)
|
11800*2500*3800 (mm)
|
|
Max. payload
|
55000 (kgs))
|
|
Volume
|
45CBM
|
|
Tare weight
|
10200 (kgs)
|
|
Kingpin
|
JOST brand 3.5β bolt-in
|
|
Landing gear
|
JOST brand 19β
|
|
Tire size
|
12R22.5 (13sets)
|
|
Rim size
|
9.00*22.5 (13sets)
|
|
Axle
|
Fuwa brand ,3 axles,13 tons
|
|
Susupension
|
Spring suspension with 10 pcs of leafs spring
|
|
Brake system
|
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Diesel Engine:
|
Shandong WeiChai 4100(44KW)(2000r/min)
|
|
Air compression:
|
SuZhou WBF-12/2 (12M3/min) (0.2MPA)
|
|
Painting
|
Zinc-rich & Polyurethane painting
|
Specification listed for reference only.We can design and produce trailer as your budget.

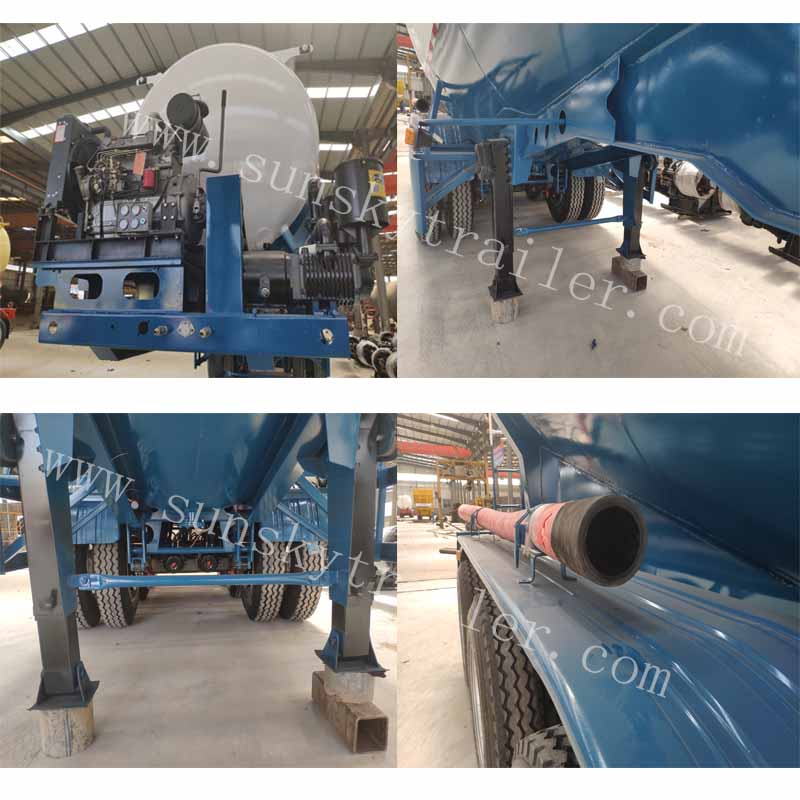

Product Detail
Quality guarantee of bulk cement tanker
1.More than 30 years experience in manufacturing semi-trailers since 1984.
2. One year warranty on the chassis of semi-trailer.
3. Spare parts service.
4. The best brand-Wabco brand of braking system to ensure the brake performance and keep the driver safe
5. Heavy duty design especially for the bad road condition in Africa.
