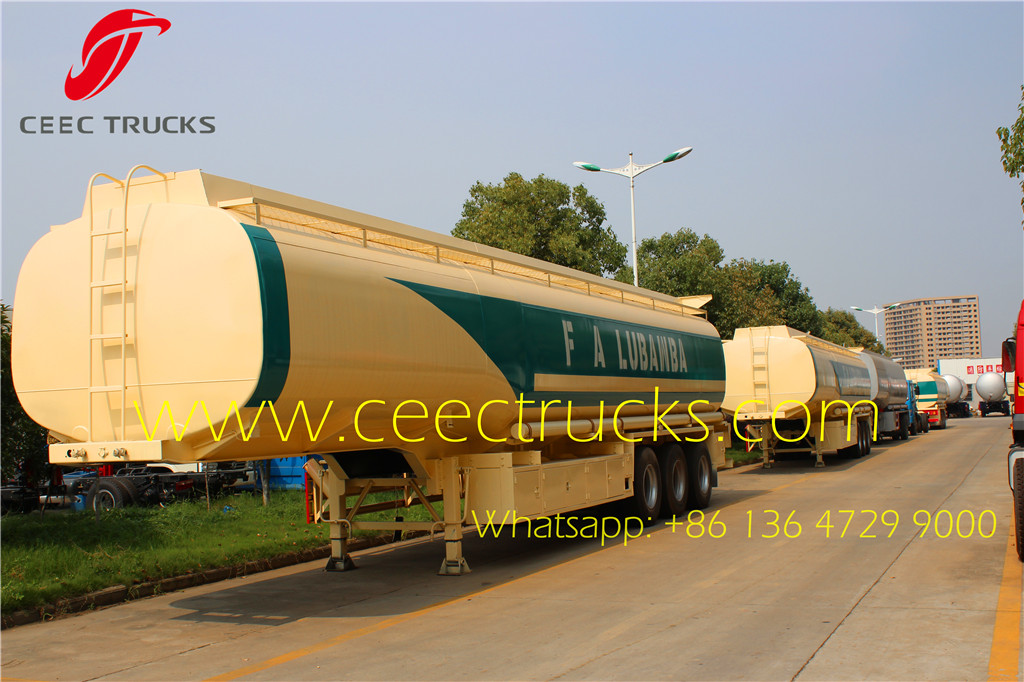

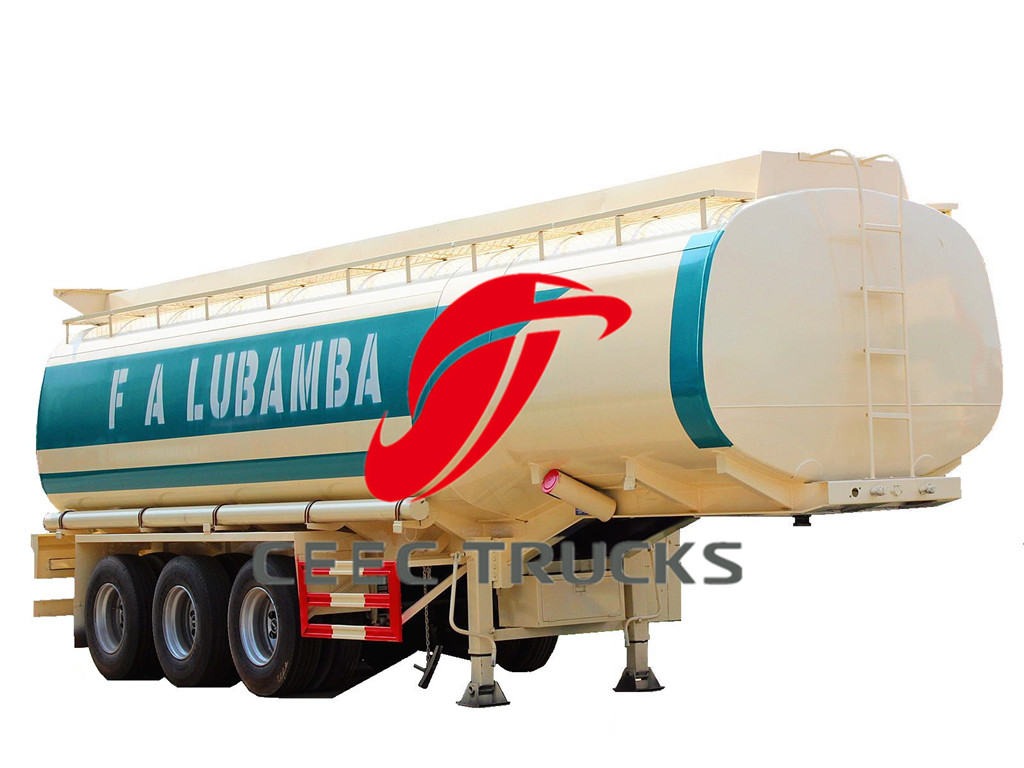

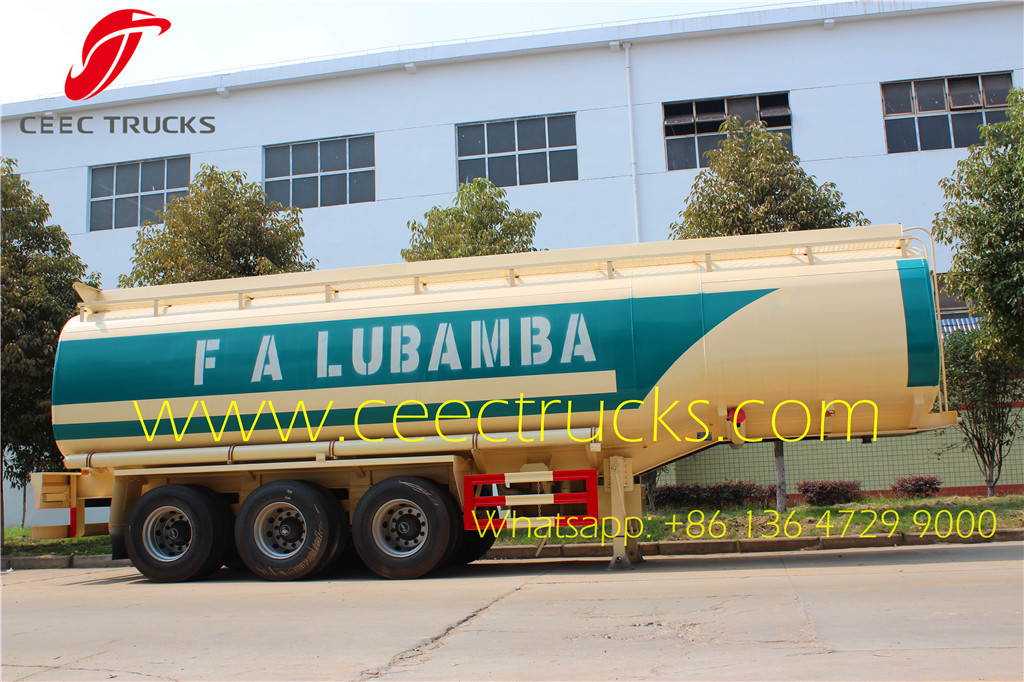

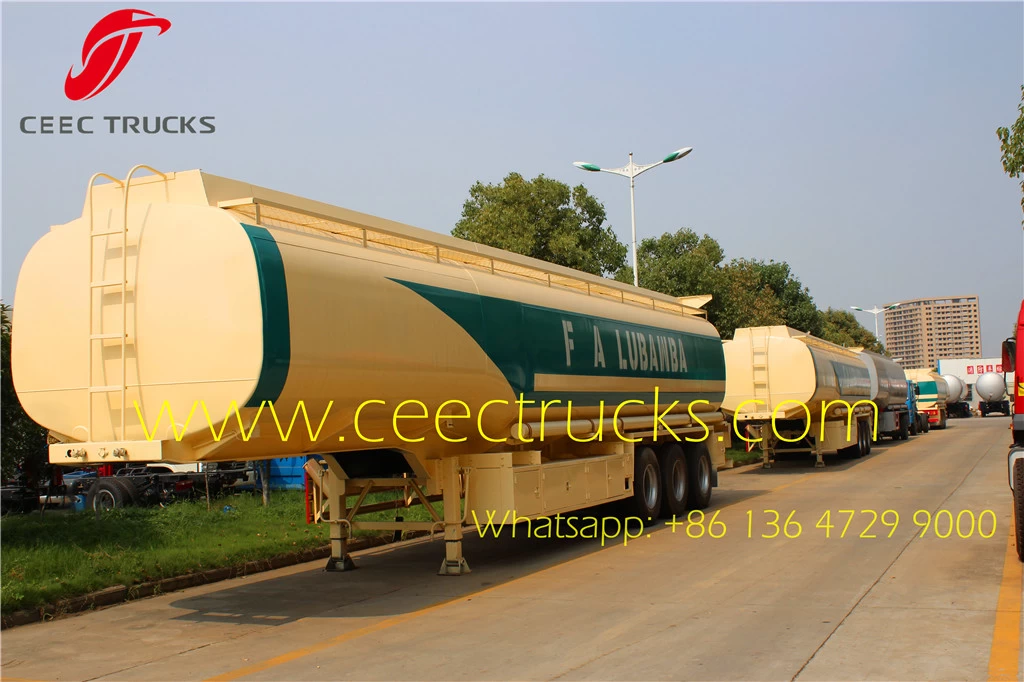

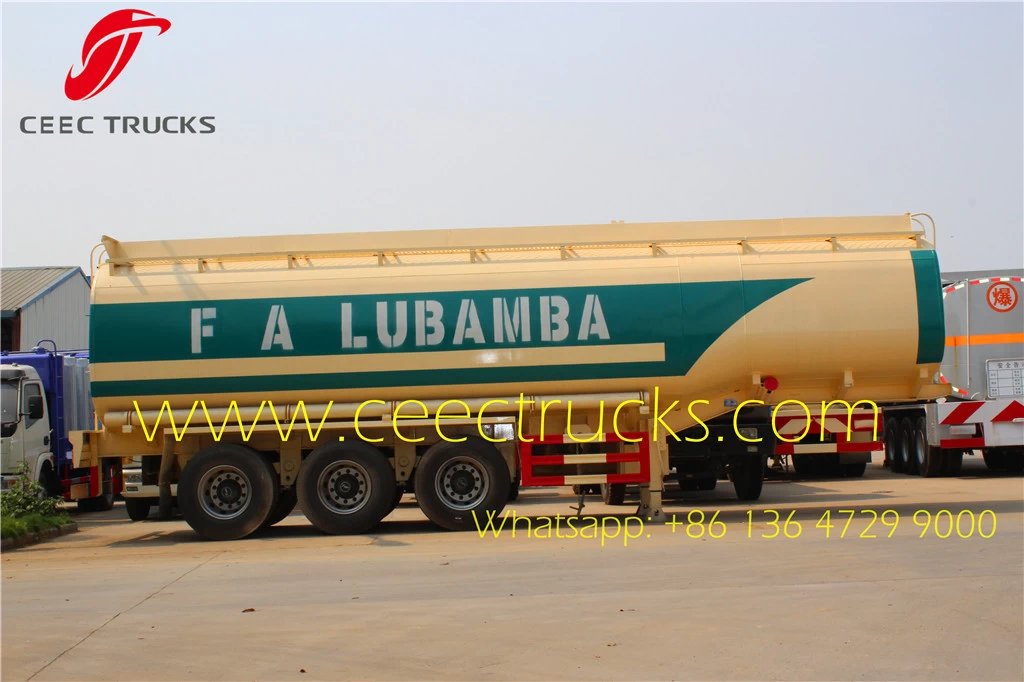

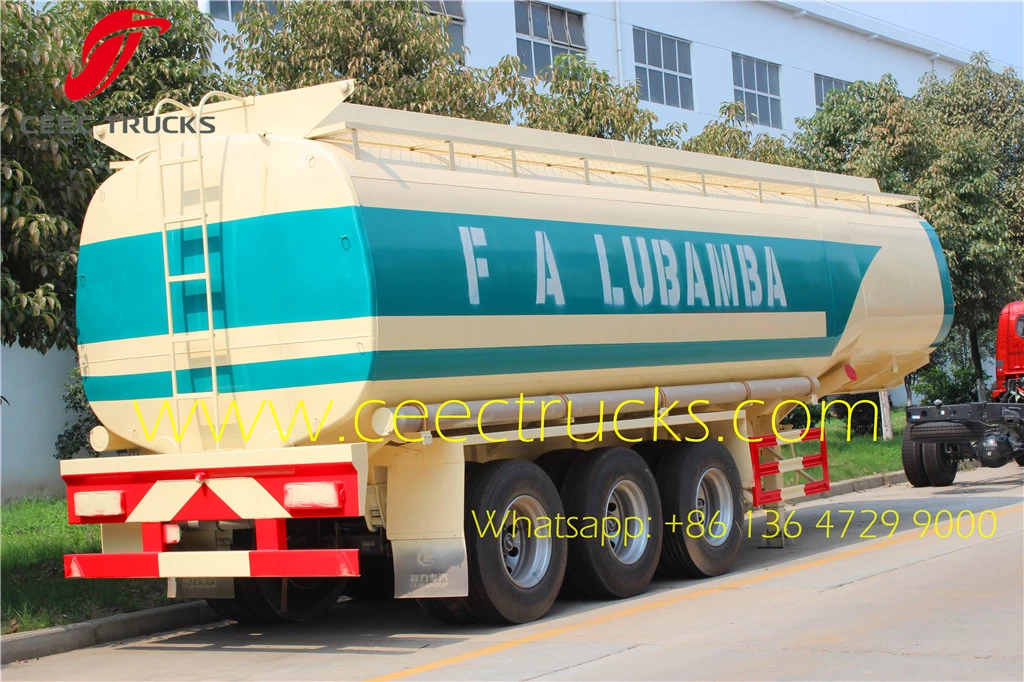

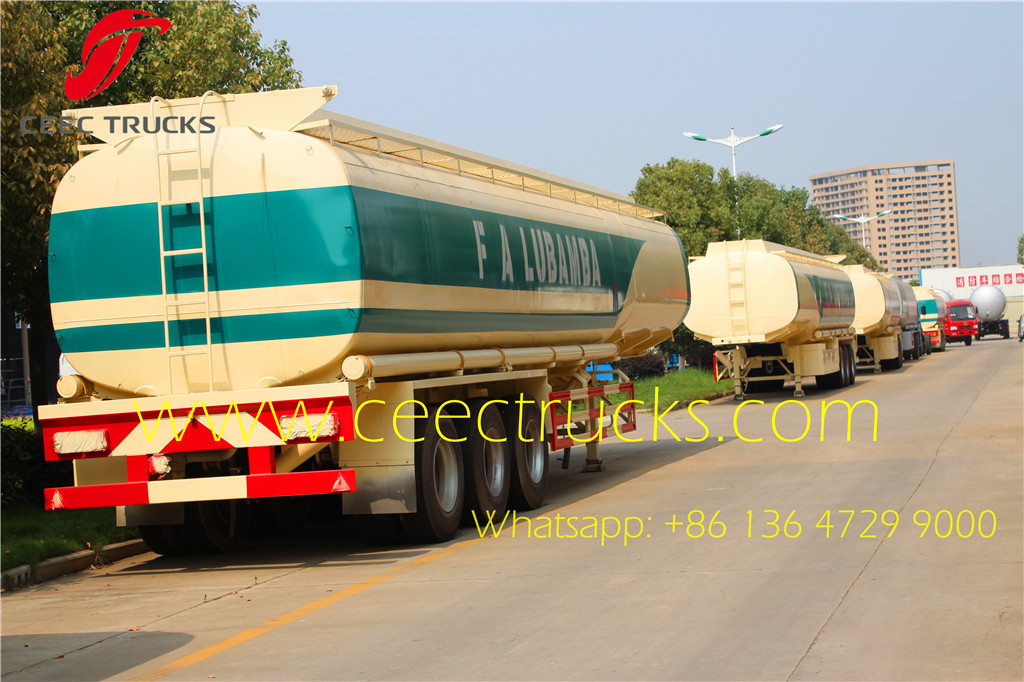

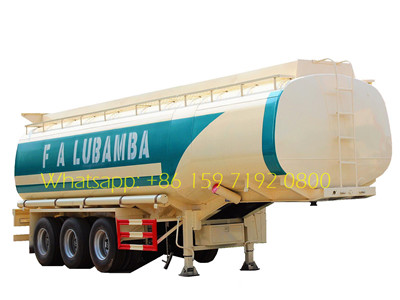

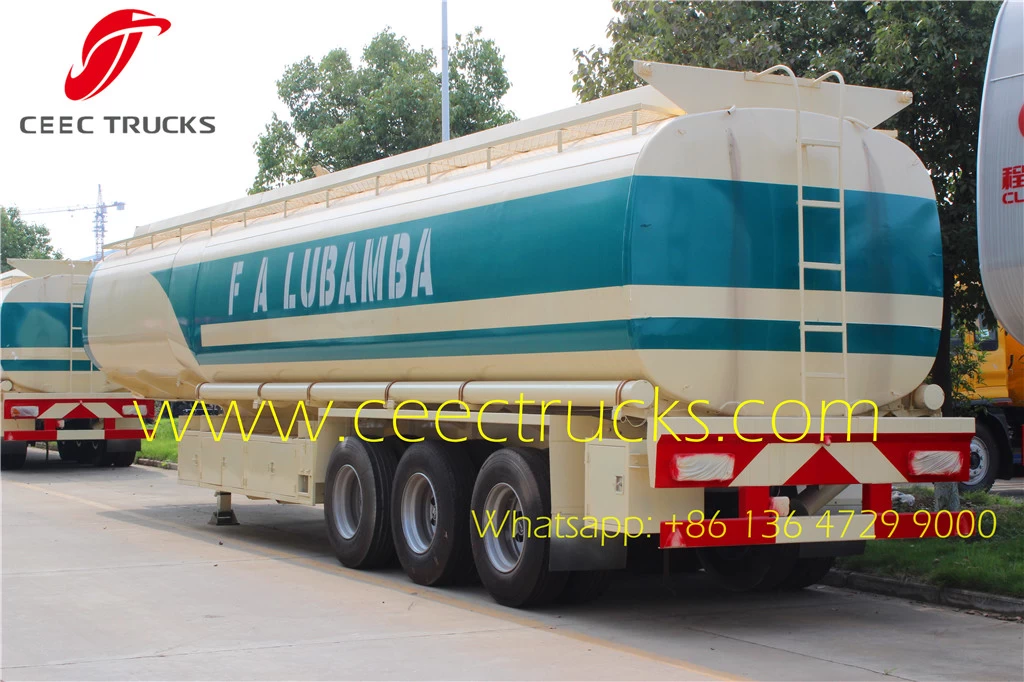

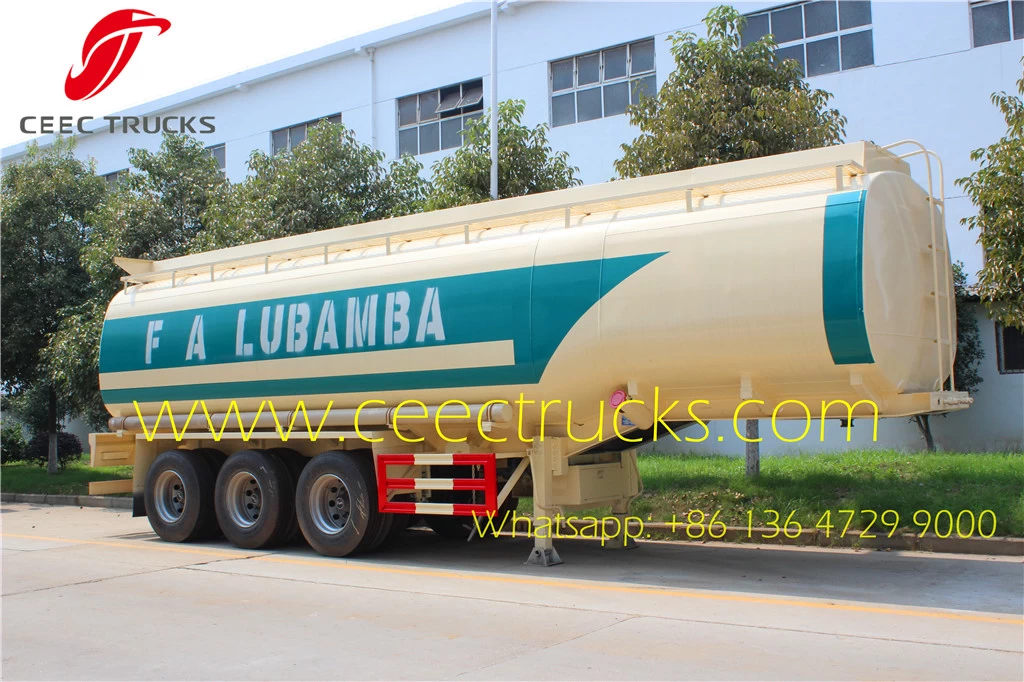

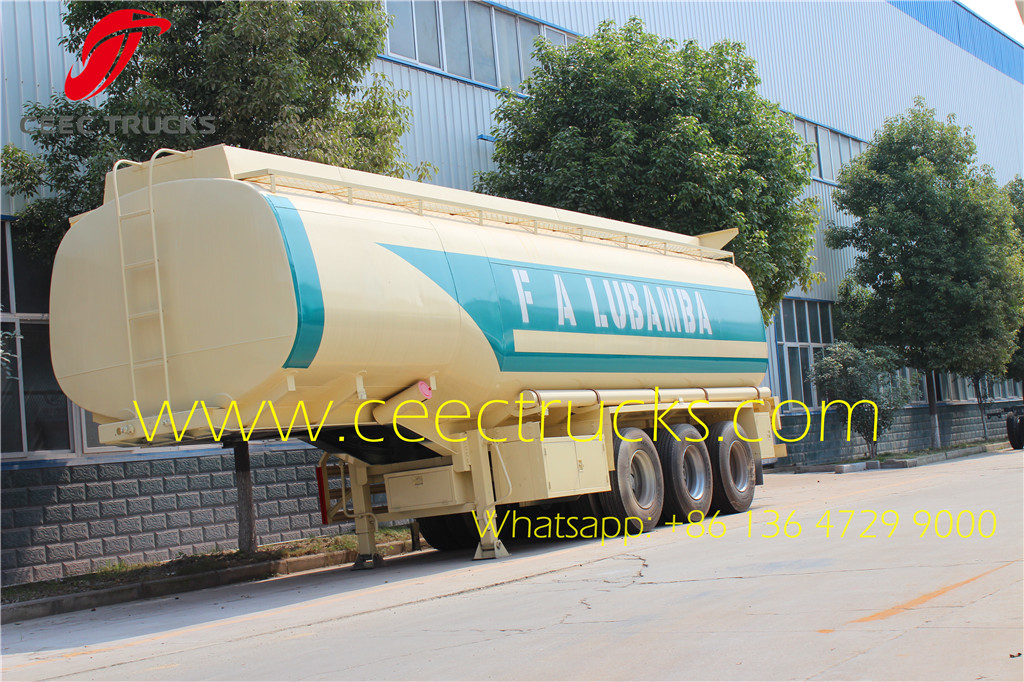

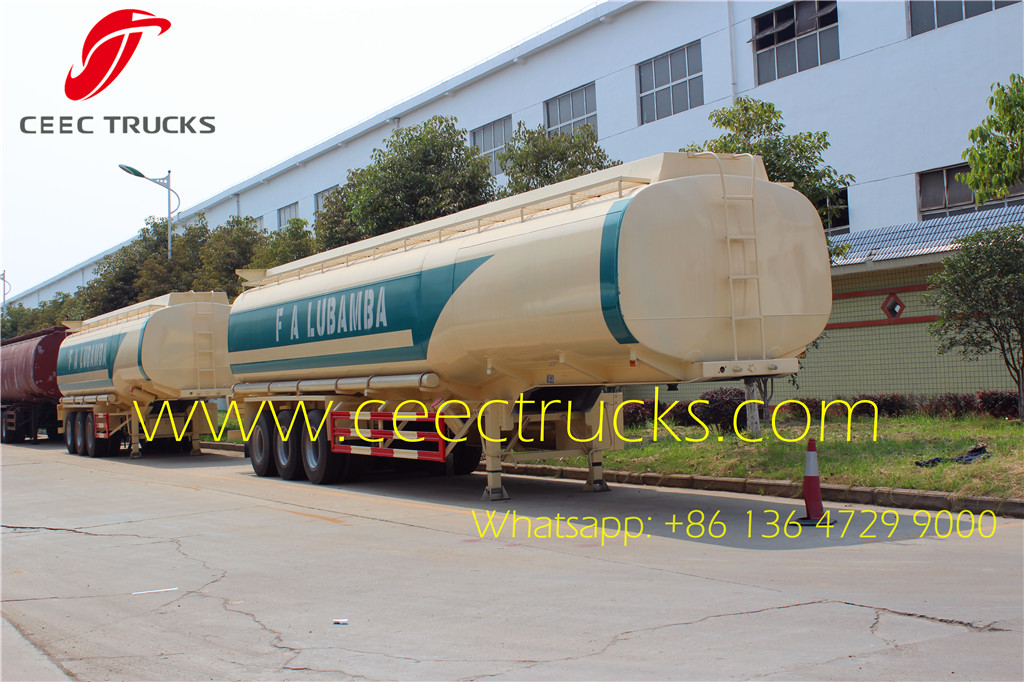

China best fuel tanker semitrailer, also can be called diesel tanker semitrailer, oil tanker semitrailer, gasoline tanker semitrailer, stainless steel tanker trailer, aluminum tanker trailer, etc. which are mainly used to transport all kinds of inflammable liquids, such as diesel, oil, gasoline. The 45 CBM fuel tanker trailer export to Angola F A LUBAMBA, and will be used for crude oil transportation in Oil Field.
Professional 45 CBM Fuel Tank Trailer manufacturer CEEC
As a specialist in the manufacture of fuel tank semi trailer with capacity range from 25CBM to 65CBM, we have pioneered the application of plate bender and welder in the manufacture of fuel tanks. Our industry leading design capability allows us to supply your desired tank trailers in the shortest possible time. We are an ISO9001 certified company. Our specially constructed tank transporters have taken up great market share of the African and Russian markets. We can sell Complete Knock-Down kits or Semi Knock-Down kits to our valued oversea clients. Contact us now for more information.
With a loading capacity in the range between 40 and 60m³, our fuel tank semi trailer often comes in various types, the most common being the 2-axle and 3-axle configurations.
45 CBM oil tanker trucks tanker are constructed with Q235 carbon steel, stainless steel, or aluminum. The tank chamber is separated into several sections by upright walls, or partition walls. These walls prevent the formation of petrol wave when the tank trailer is driving on a bumpy road. At the lower end of the wall, through holes are drilled to reduce the impact and enhance the tank strength.
Combination lids are set on the top of the tank. They comprise of two lids, with the self-locking smaller one sits on the larger one. A breather valve is installed on the larger lid to prevent pressure or vacuum build up.
Similar Key Words: 45 CBM fuel tanker trucks suppliler, oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tanker trailer, stainless steel oil tanker trailer, carbon steel trailer tank fuel
| 45 CBM Fuel Tank Semitrailer Tank Body
|
| Shape
|
Round or Square
|
| Dimension
|

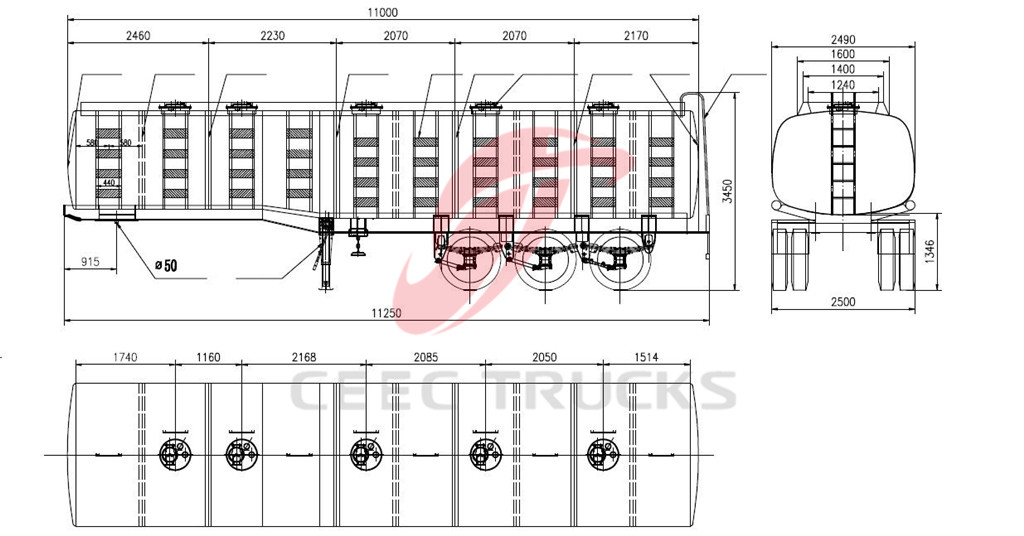

12000mm×2490mm×3990mm ( The exact size depends on the final design.)
|
| Tare weight
|
About 8000kg-12800kg
|
| Total Volume ( m3 )
|
25m³ -60 m³
|
| Tanker Body Material
|
5mm or 6mm/ Q235 carbon steel
|
| End Plate
|
5mm or 6mm /Q235 carbon steel
|
| Manhole Cover
|
Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)
|
| Bottom Valve
|
Aluminum API Pneumatic Bottom Valve
|
| Discharging Valve
|
Diameter is 3 or 4 inch
|
| Compartments
|
Optional
|

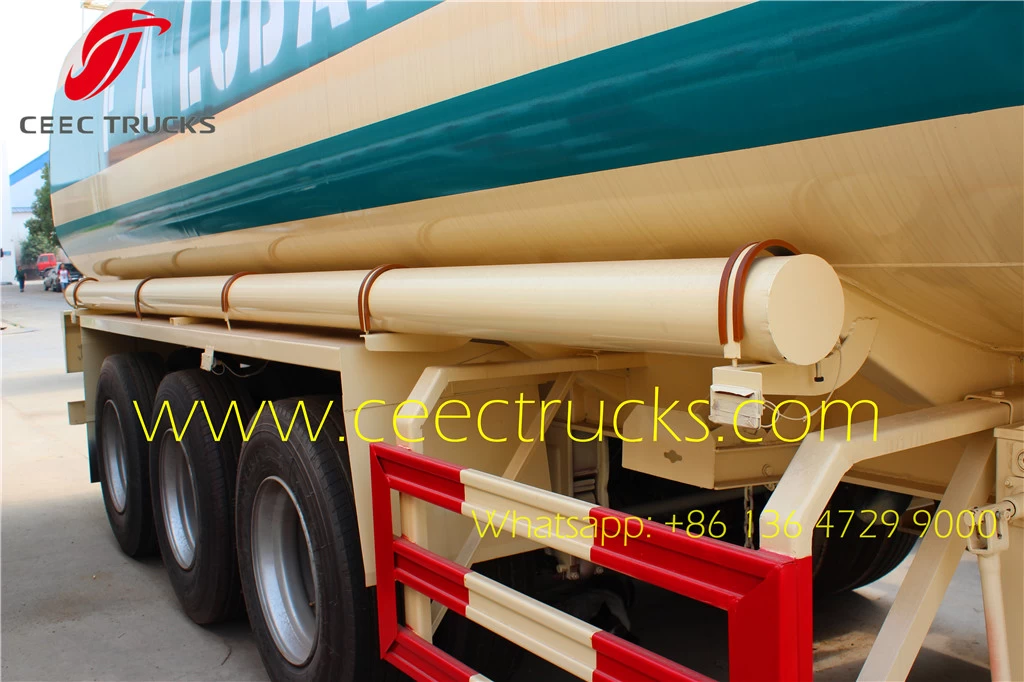

| Discharging Pipe
|
4” rubber hose, 2 pcs , 6m/each
|
| Cat Walk
|
With (Common model or special design)
|
| Chassis
|
| Main Beams
|
Welded design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
|

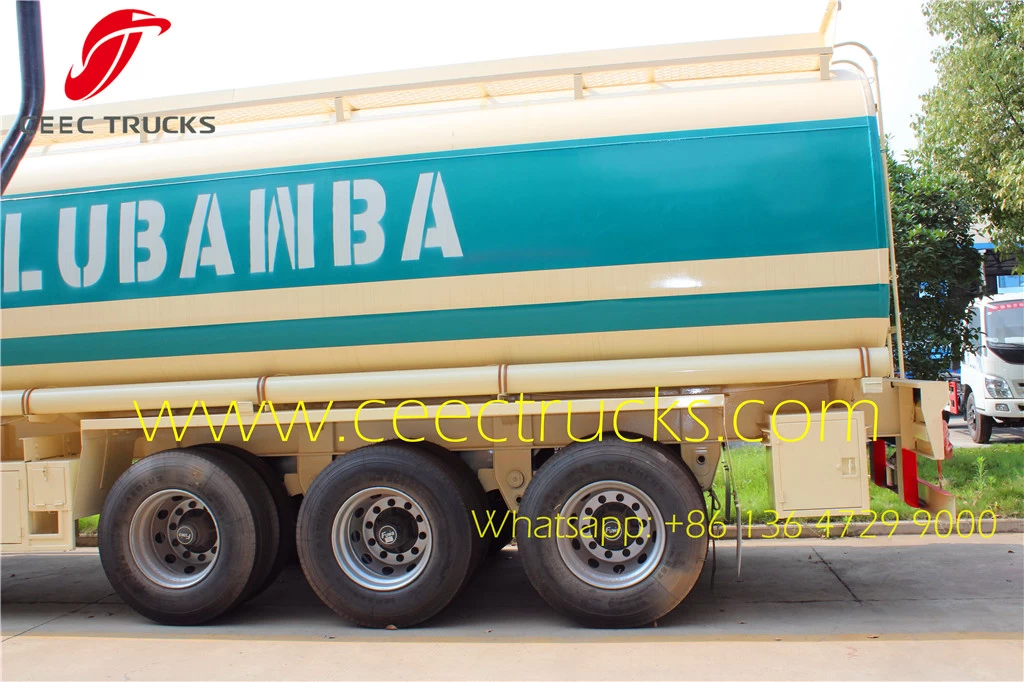

| Axle
|
2 or 3 axles, BPW/FUWA/HUAJING brand
|

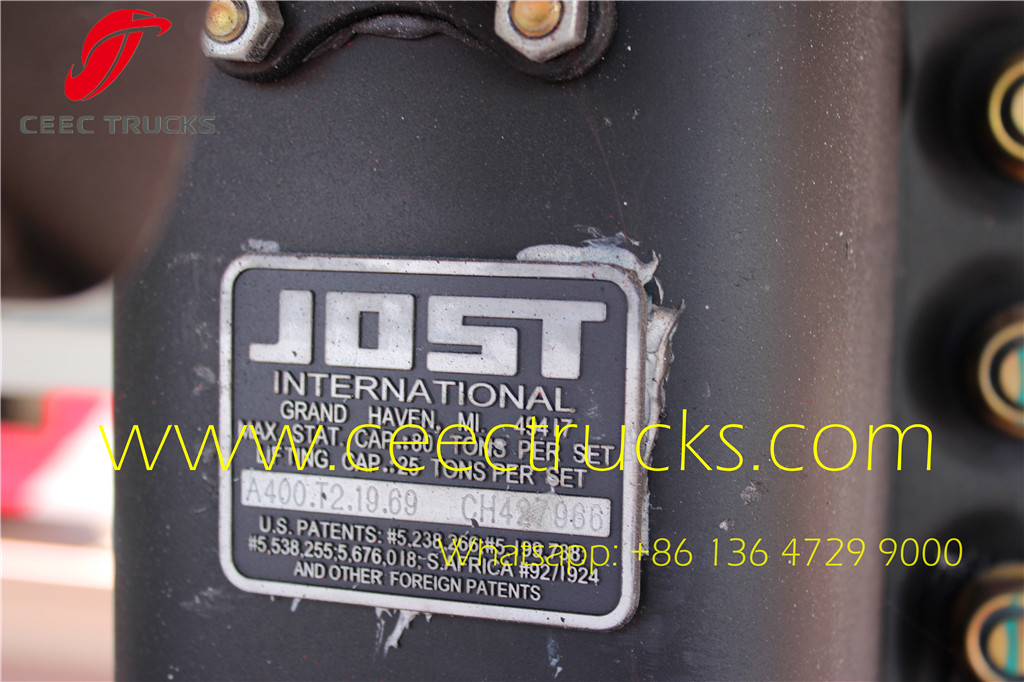

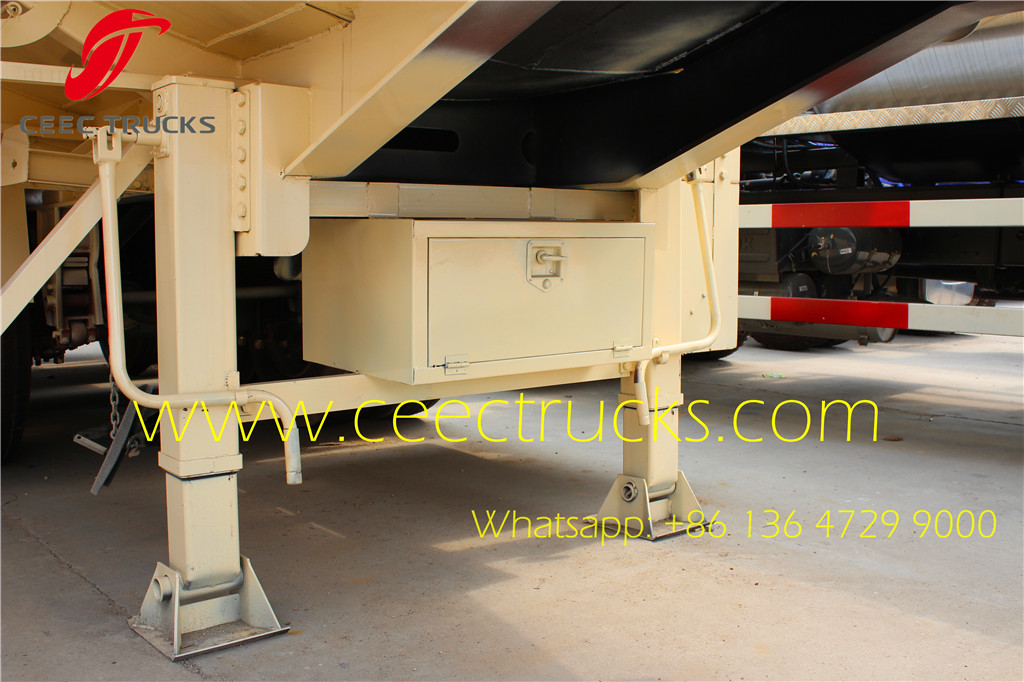

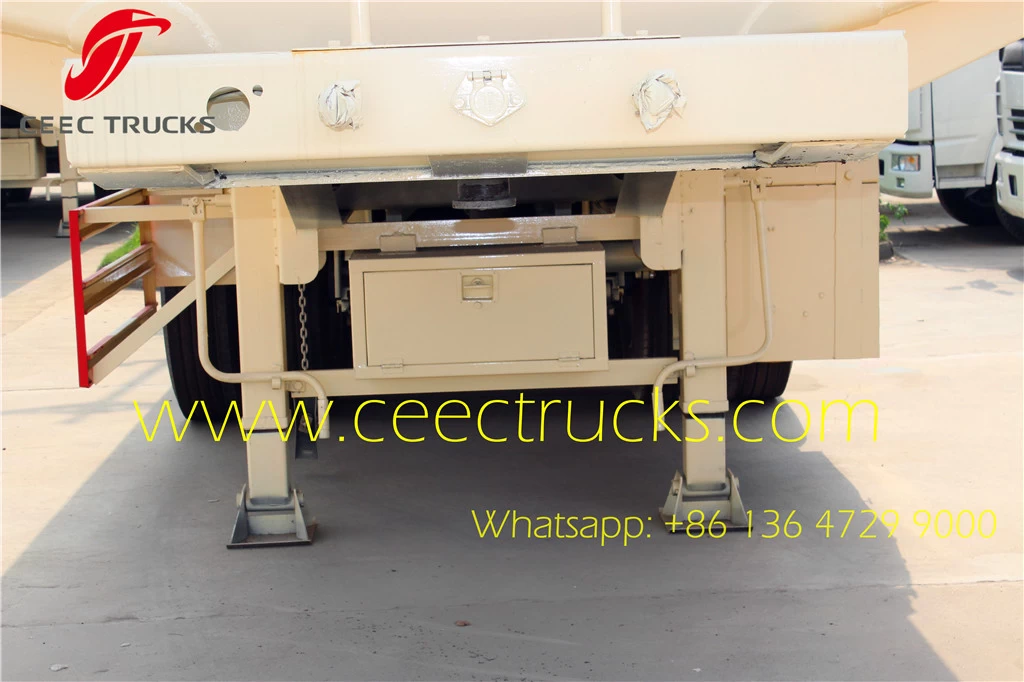

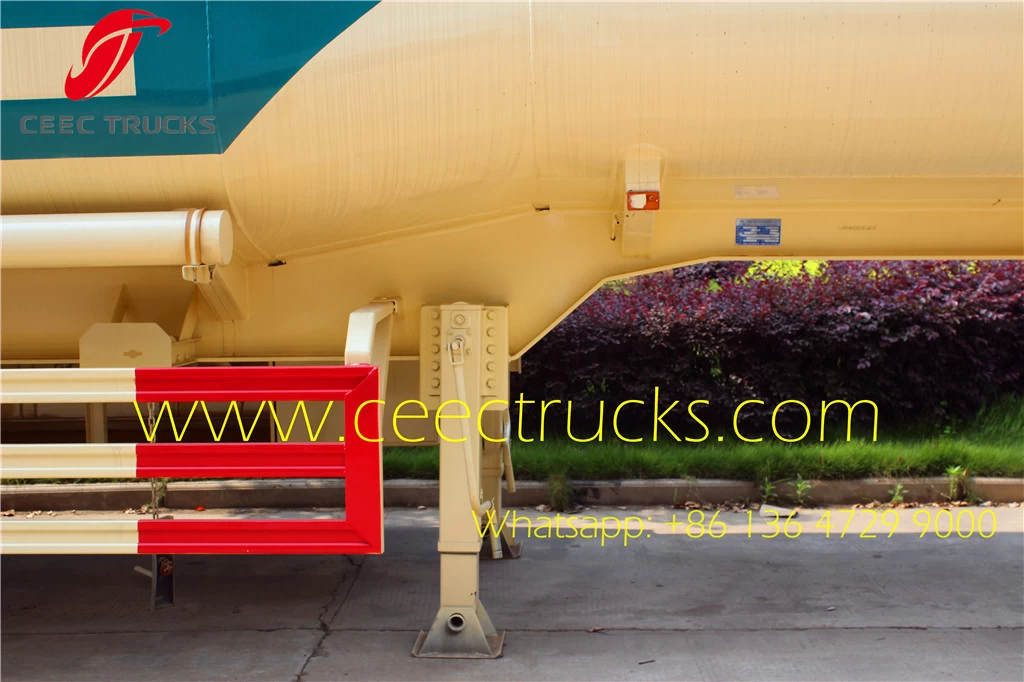

| Landing Gear
|
JOST (D200T ) or CHINA BRAND 28T
|
| King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
| Suspension
|
Mechanical suspension/Germany or America type /air suspension
|
| Leaf Spring
|
90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without
|

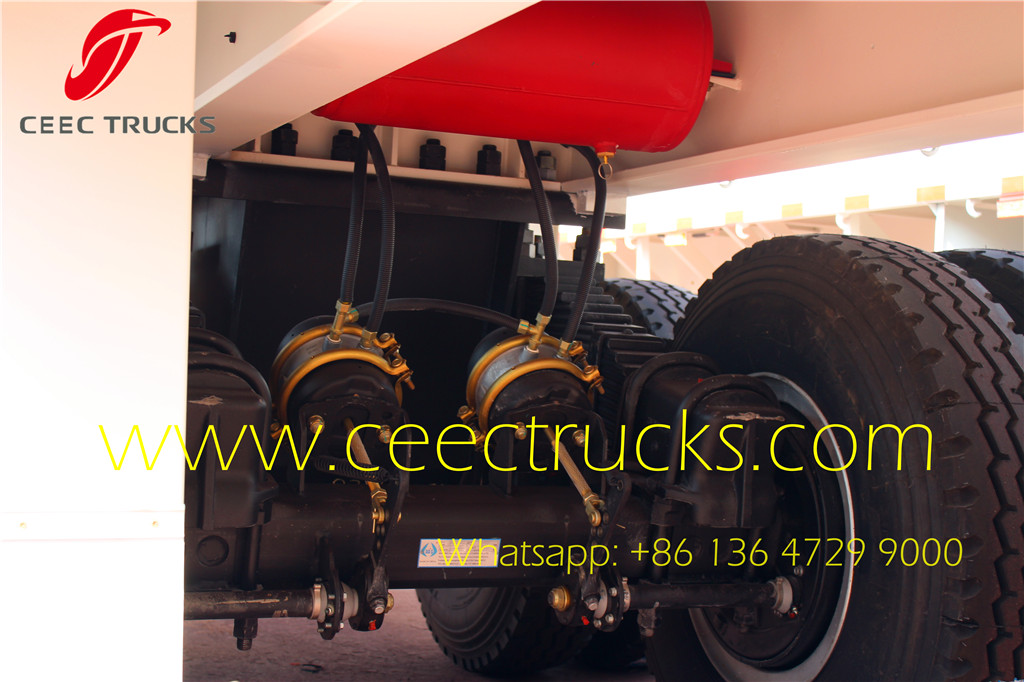

| Pneumatic Braking System
|
WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank
|

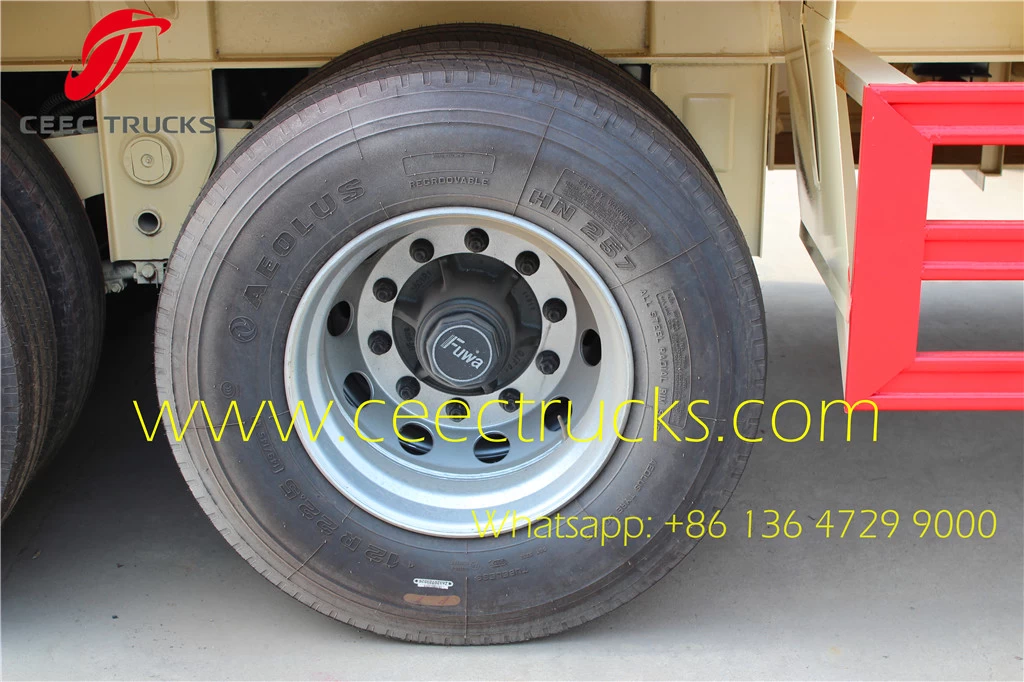

| Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|
| Tire
|
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
| ABS
|
Optional
|
| Painting
|
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
|
| Accessories
|

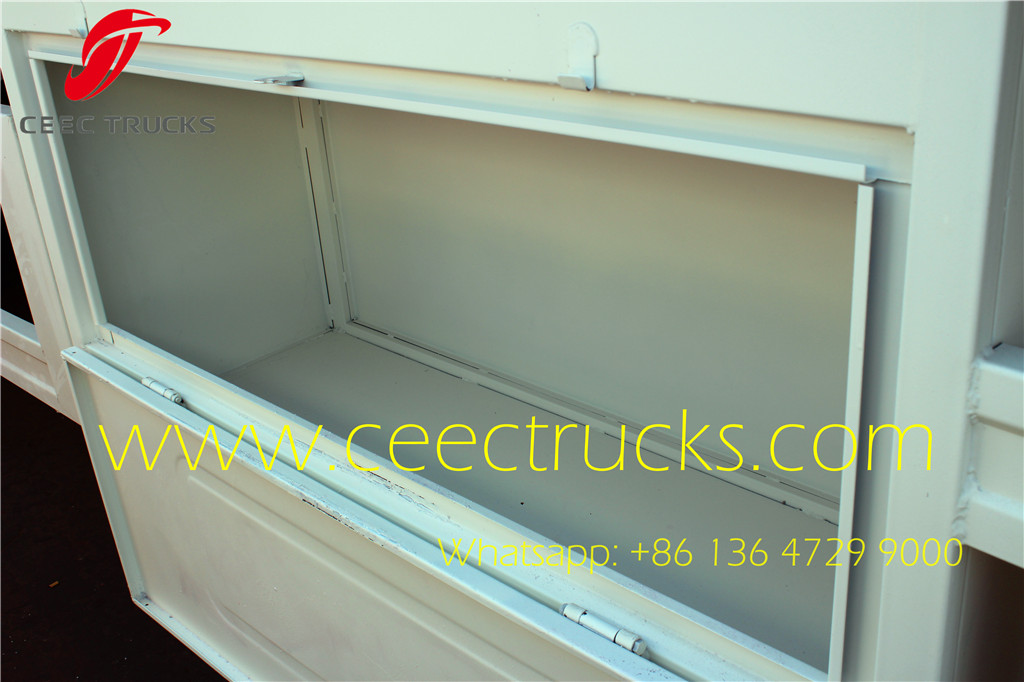

One standard tool box
|
| Shipping Terms
|
By bulk cargo ,RORO or 40HQ Containers
|
