3000W High Power Battery Welder For Stacked Electrode Sheets 10-60 Layers with Tab Welding
Specifications
TOB-USW4500Wultrasonic metal welding machineis Designed for Lithiumbattery tab weldingwith touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.
The 2600w battery welder can weld stacked electrode with 10-30layers aluminum foil or copper foil with Al tab and Nickel tab, If with bigger battery with layer up to 30layers, can choose the TOB-USW-3000W model, and If need to weld up to 60 layers, please choose TOB-USW-4500W model.
|
Model
|
Battery Welding Machine TOB-USW-4500W
|
|
Type
|
Ultrasonic spot welding machine
|
|
Welding ability:
|
|
1 10-60 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding.
Welding point : 4*6, 4*8, 4*10, 4*12 mm customized
|
|
2 10-60 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding.
Welding point : 4*6, 4*8, 4*10, 4*12 mm customized
|
|
3 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding.
Welding point : 4*6, 4*8, 4*10, 4*12mm customized
|
|
4 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld.
Welding point : 4*6, 4*12mm customized
|
|
Frequency
|
24KHZ
|
|
Max output power
|
4500W
|
|
Control mode
|
CPU control
|
|
Air supply
|
≥0.5MPa
|
|
Voltage source
|
110/ 220V 50HZ/60HZ
|
|
Humidity
|
≤48%
|
|
Temperature
|
≤45℃
|
|
Warranty
|
One year limited warranty with lifetime support
|
PRODUCT DISPLAY

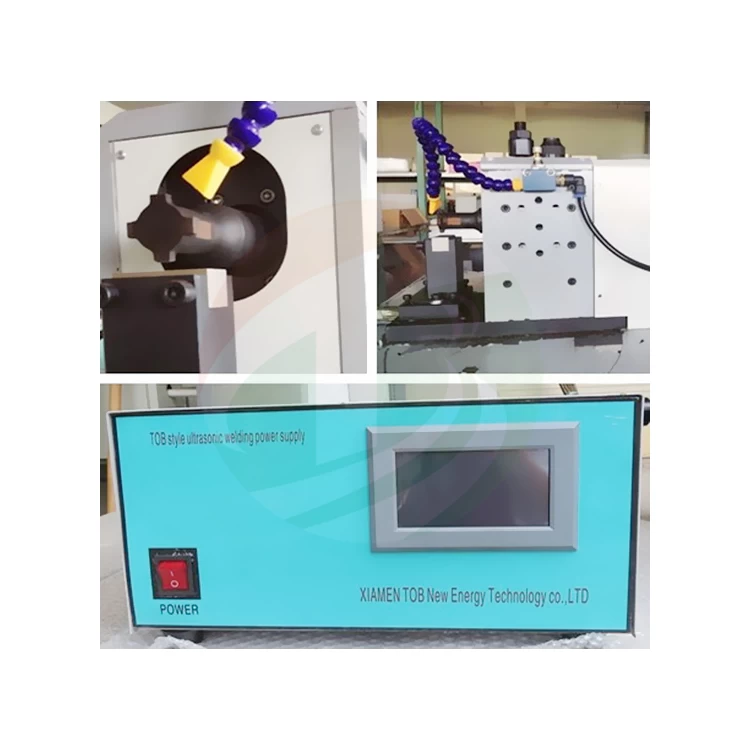

Weld head area can be customized according to customer's requirements
Ni Tab welding with Multi-layers copper foil and Al Tab welding with multi-layers aluminum foil
Touch-screen controller with setting parameters

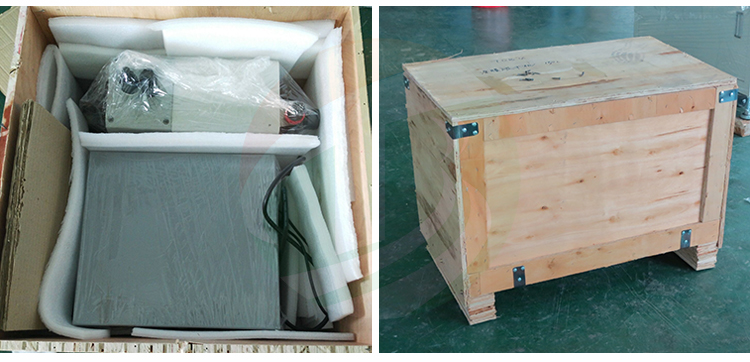

PACKAGE
