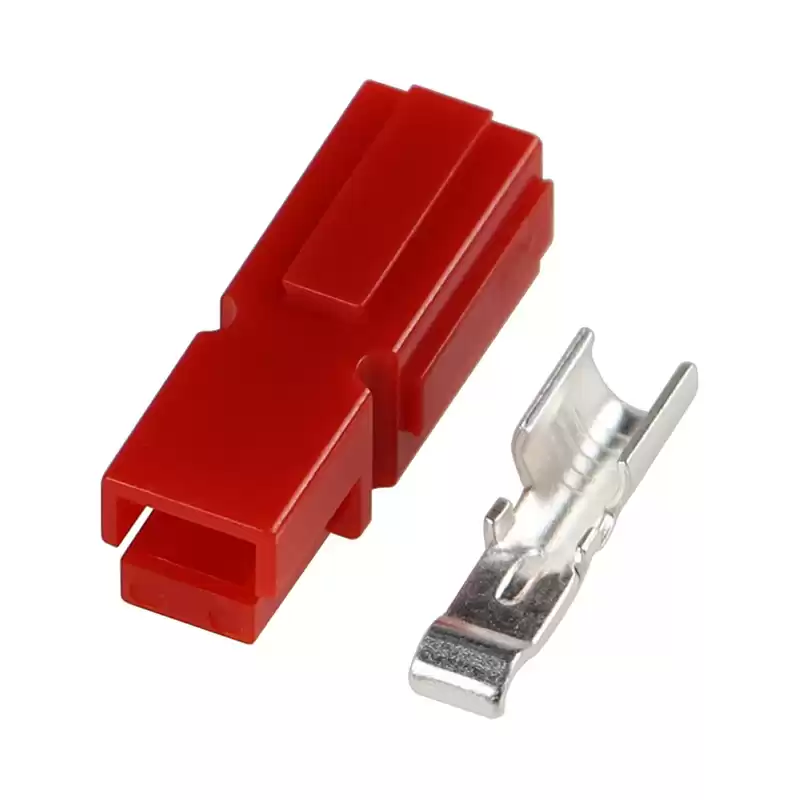

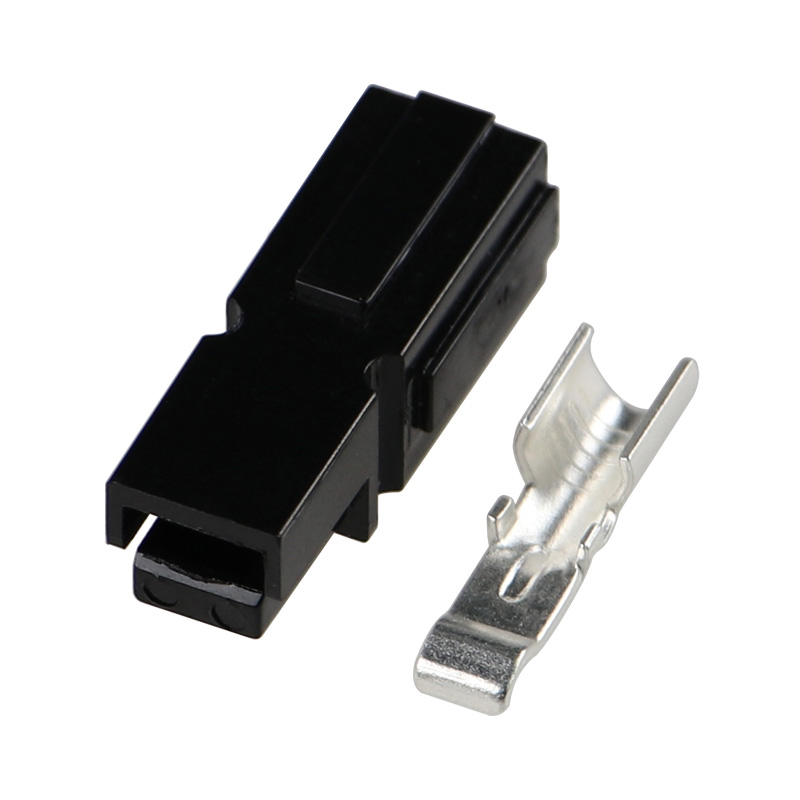

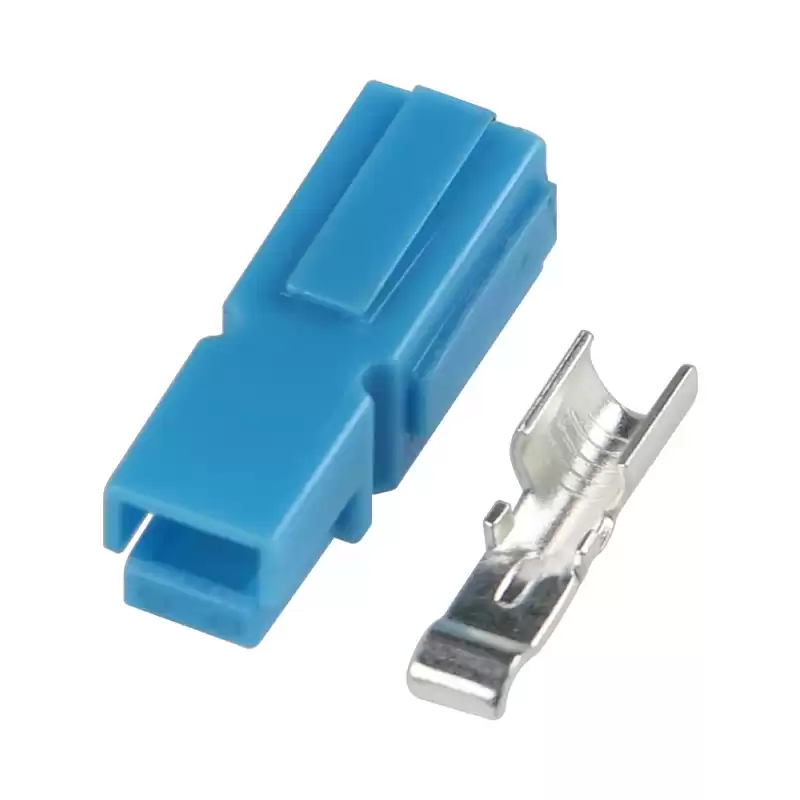

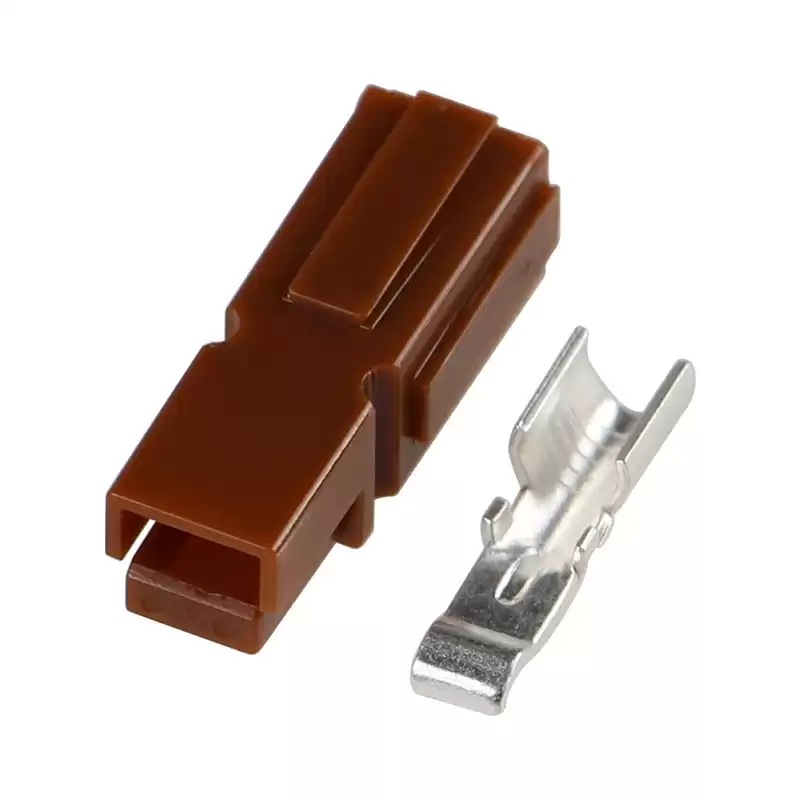

1Pin Single Pole Electrical Power Battery Anderson Connector
1.Product Introduction:
**Contact Terminals:** Silver-plated copper, ensuring excellent conductivity and durability.
**Working Frequency:** High frequency, suitable for various electrical applications.
**Application Range:** Widely applicable in power, outdoor environments, electric vehicles, energy solutions, medical equipment, industrial machinery, and military applications.
**Interface Type:** Contact point, providing a secure and stable connection.
**Manufacturing Process:** Utilizes cold pressing for optimal production standards.
**Customization:** Fully supports customization to suit specific requirements.
**Product Features:** Flame retardant, fire-resistant, and dustproof, ensuring safety and reliability in various environments.

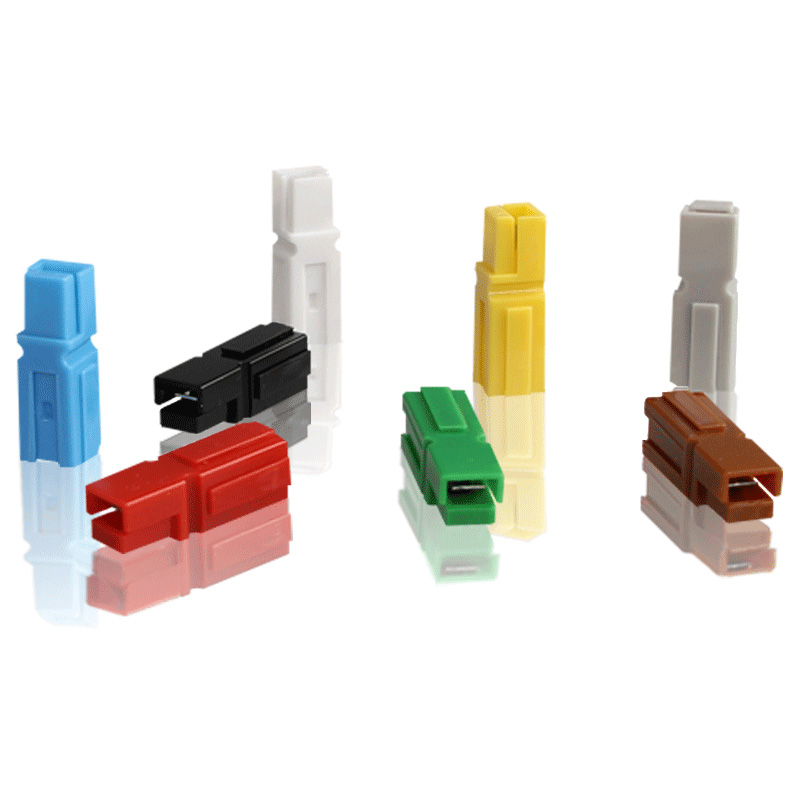

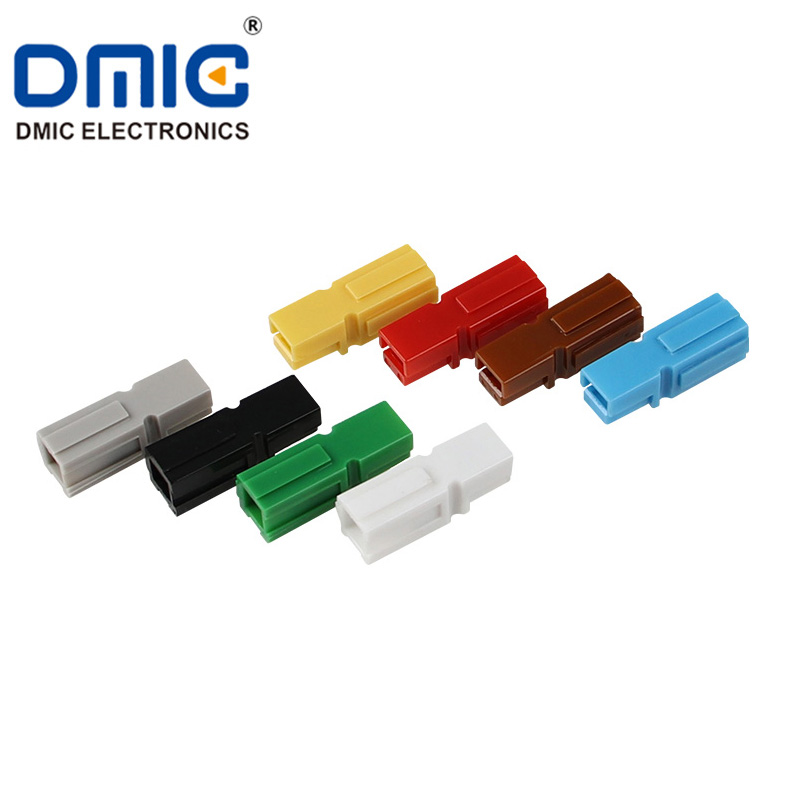

**Color Options:** Available in blue, yellow, green, red, gray, black, brown, and white, allowing for visual customization according to preferences or industry standards.
**OEM Support:** Supports OEM production, enabling tailored solutions to meet specific needs.
The 1Pin Single Pole Electrical Power Battery Anderson Connector is engineered to deliver reliability, safety, and efficiency in a wide array of applications. Its high-quality construction, flame-resistant materials, and adaptability through customization make it a go-to choice for various industries seeking robust electrical connections.
2.Technical Parameters：
| Rated current(Amperes) |
45A |
| Rated voltage(Volts) |
600V |
| Insulation Resistance |
>9900MΩ |
| Without load(Contact/Disconnect Cycles) |
To 10000 |
| Flammability |
UL94 V-0 |
Average. Connection/disconnect(N)
|
30N±8 |
The insertion force of finished products
|
≥3kgf
|
The pullout force of finished products
|
≥4kgf
|
| （AWG）Contact Barrel Wire Size(AWG) |
10~ 18AWG |
| Environment Temperatures(℃) |
-20℃---75℃
|
| Material of terminal |
Red copper |
| Process of production |
Precision punching |
| Fully Ag-plating on surface, it’s Ag-plating thickness |
0.5μm |
| Shrapnel |
Stainless steel |
| Process of production |
Precision punching Plastic Injection |

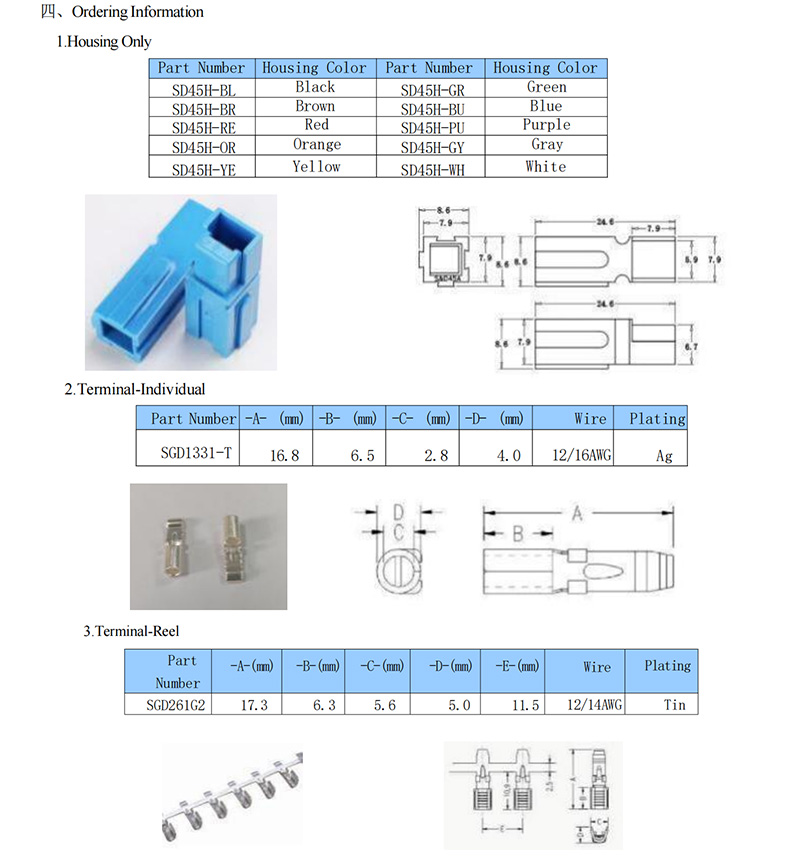

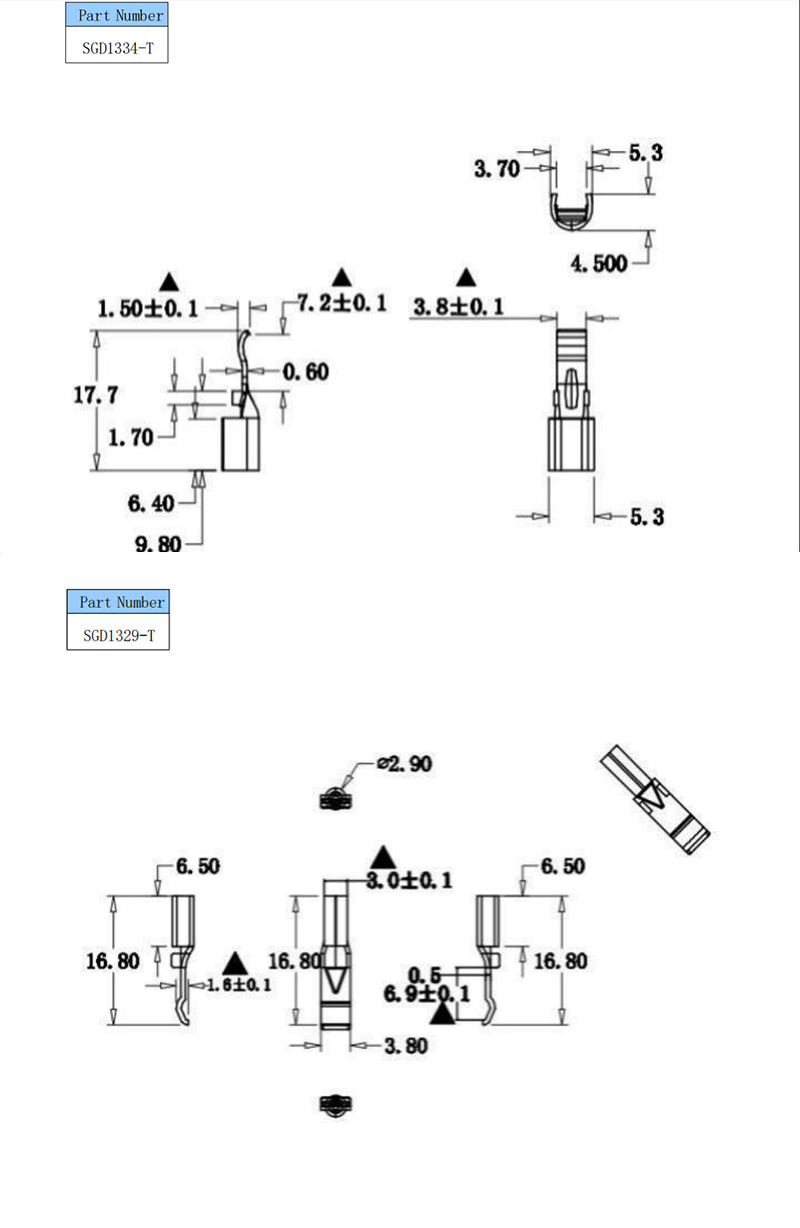

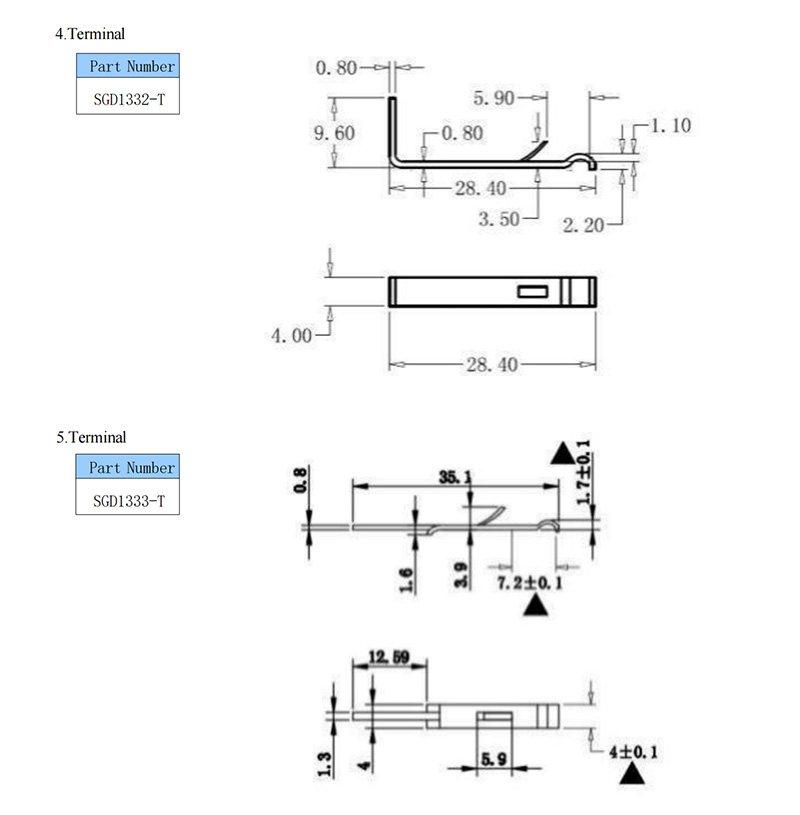

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
