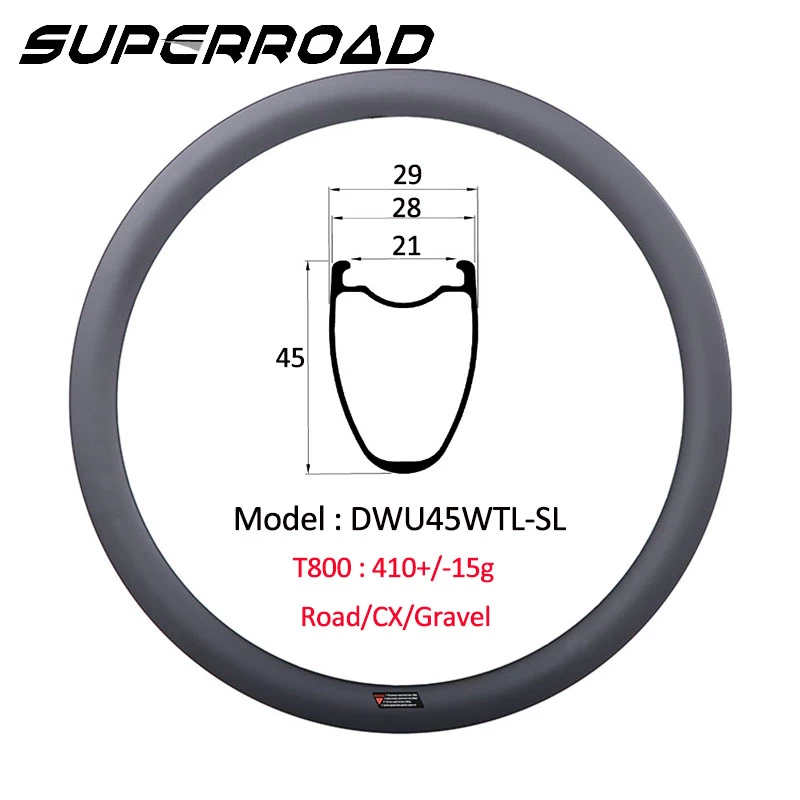

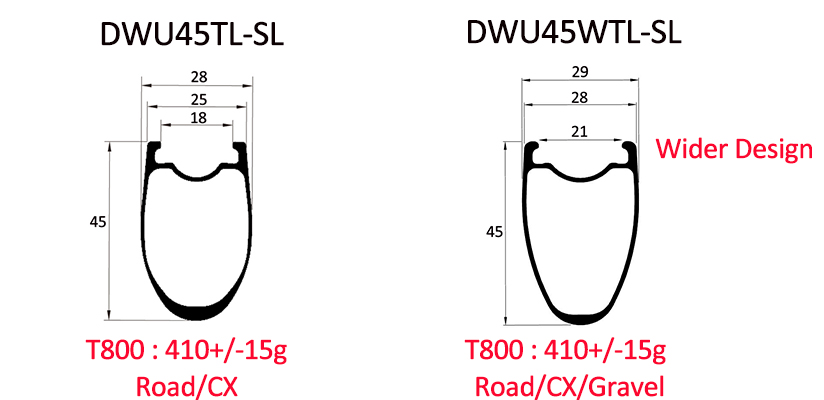

45mm light weight bicycle carbon rims geometric,as below:
|
Model
|
DWU45TL-SL
|
DWU45WTL-SL
|
|
Material
|
Toray T800
|
Toray T800
|
|
Rim Width (Outer/inner)
|
28/18mm
|
29/21mm
|
|
Rim Depth
|
45mm
|
45mm
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
|
Rim Type
|
Tubeless Ready
|
Tubeless Ready
|
|
Use
|
Road/CX
|
Road/CX/Gravel
|
|
Brake System
|
Disc Brake
|
Disc Brake
|
|
ERD
|
553
|
553
|
|
Spoke Holes
|
24/28/32H
|
24/28/32H
|
|
Rim Weight
|
410+/-15g
|
410+/-15g
|
|
Angle
|
+/-5°
|
+/-5°
|
|
Max Spokes Tension
|
130kgf
|
130kgf
|
|
Max Tyre Pressure
|
120 Psi
|
120 Psi
|
|
Max Rider Weight
|
120 Kg
|
110 Kg
|
|
Tyre Size
|
25-42C
|
25-42c
|
|
Decals
|
Customized
|
Customized
|
|
Warranty
|
2 Years
|
2 Years
|

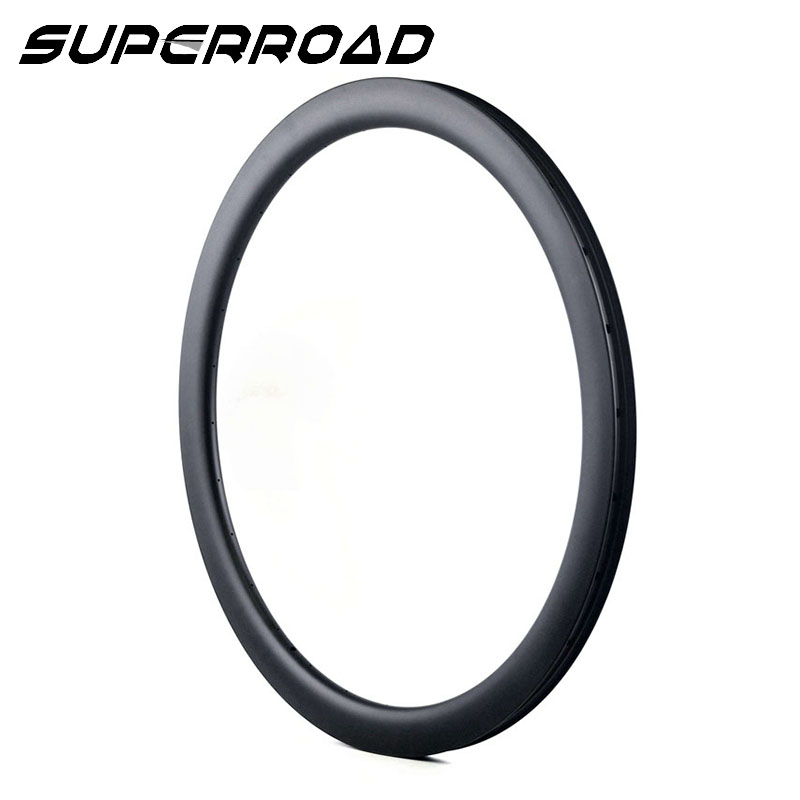

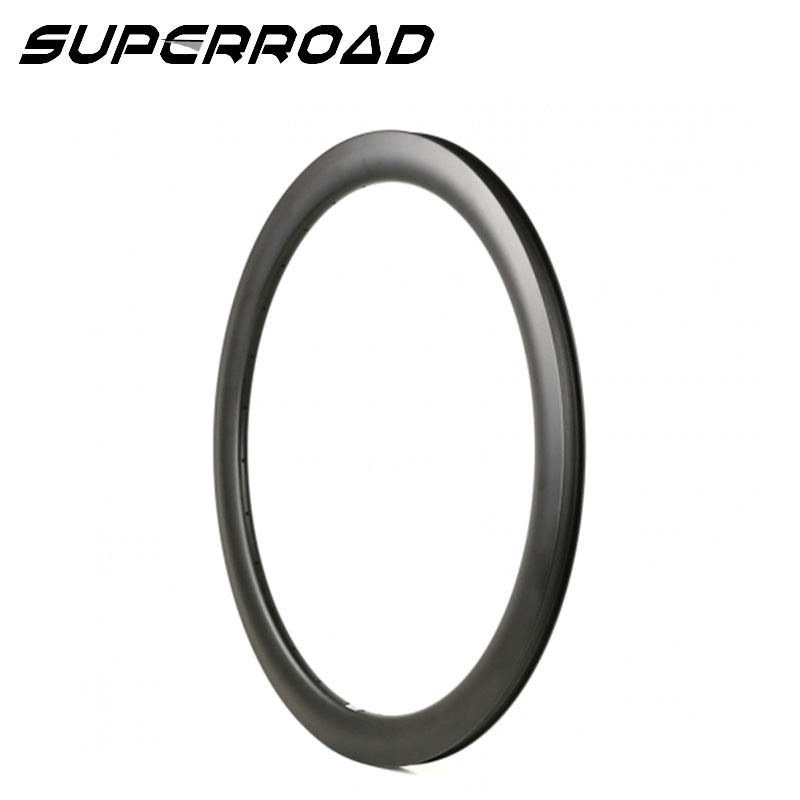

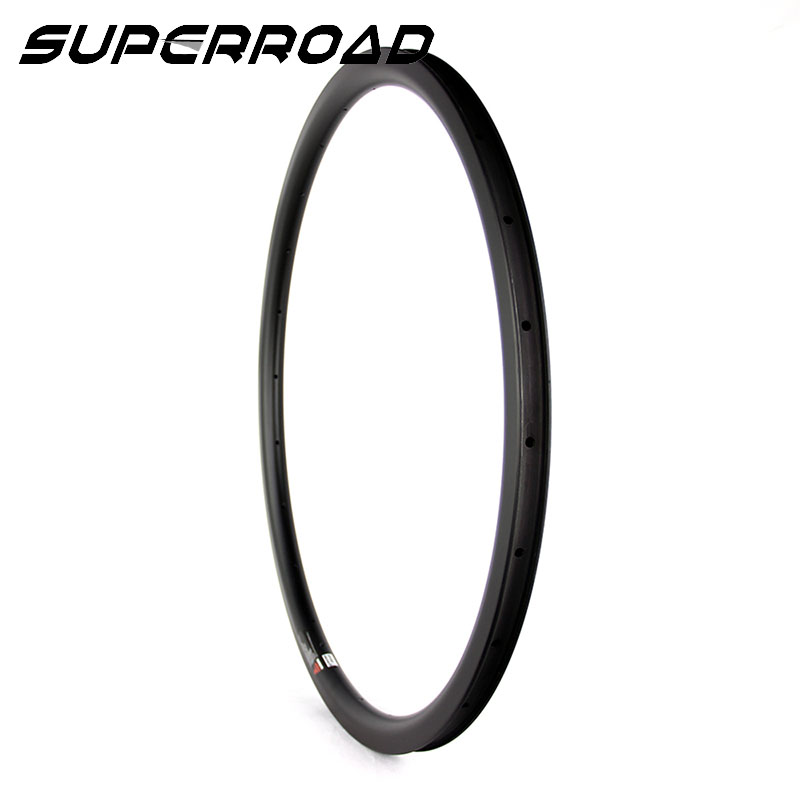

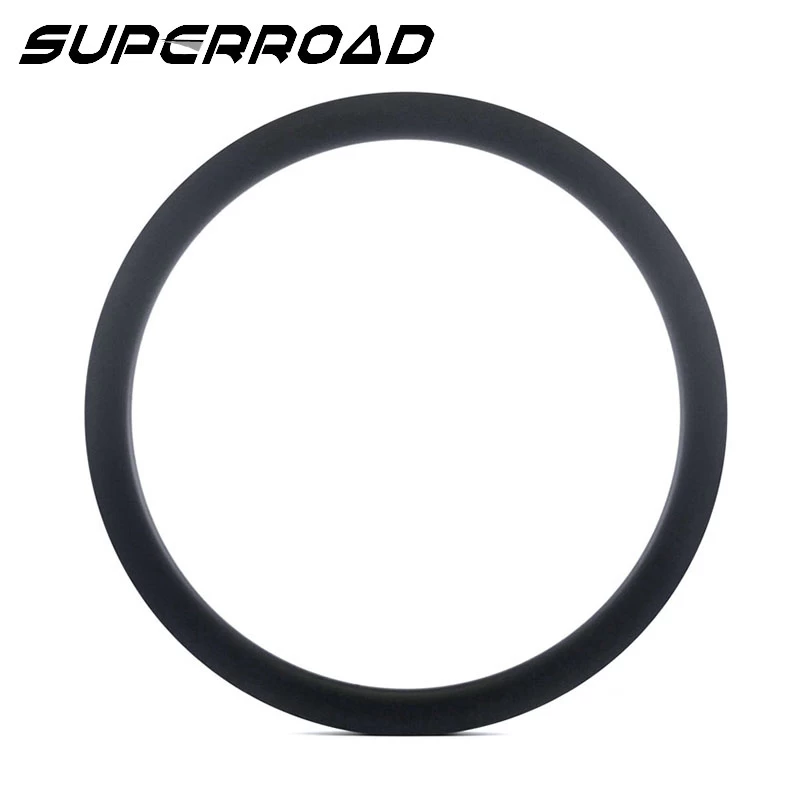

Superroad 2020 new model 45mm tubeless cyclocross rims with light weight design 410g/pcs only.Different for the old 45mm disc brake road bike rims,wider internal width easily to mount wider tyres for cyclo-cross rider.The 45mm 700C tubeless rims , mid-depth design,enjoy the aero benefit during the riding time,reduce resistance when the strongest cross-wind is coming.21mm internal width also easily to choice the wider tyre for gravel bike.If you selecting the new carbon gravel rims for your gravel bike,that would be a better choices.
