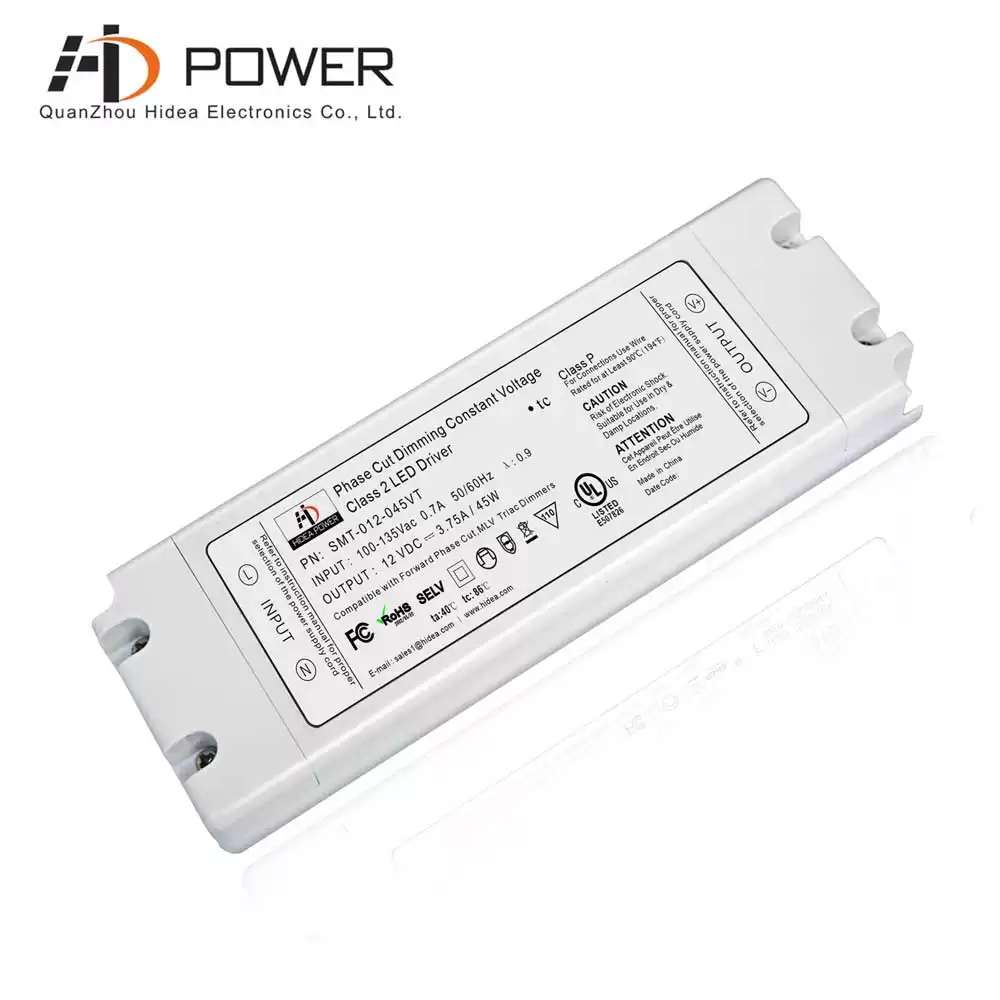

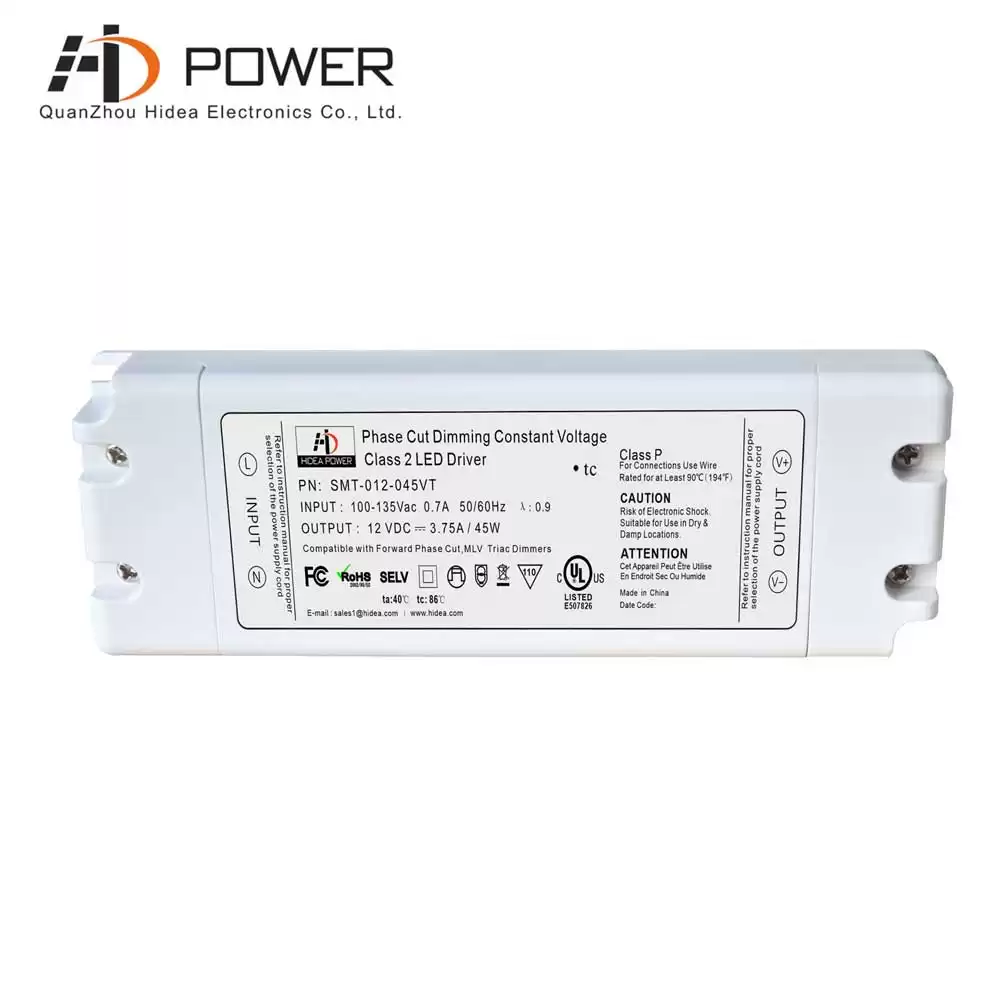

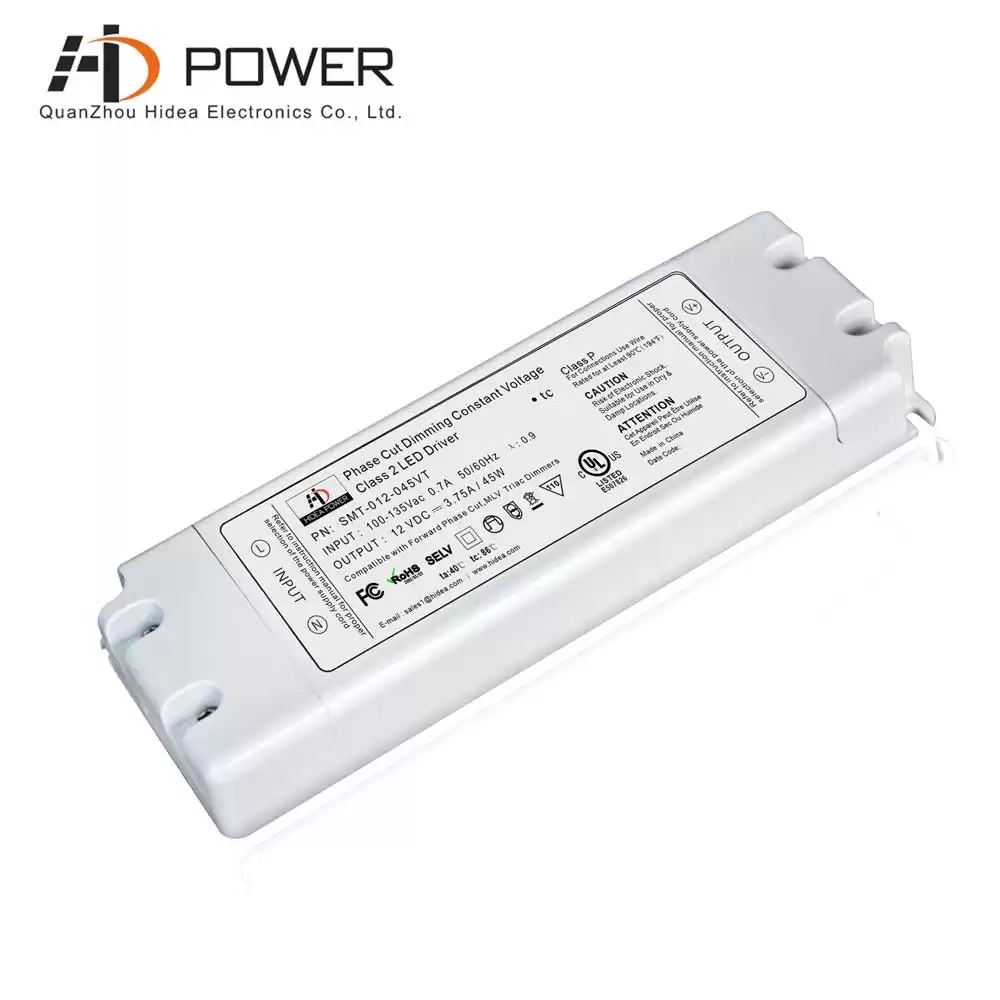

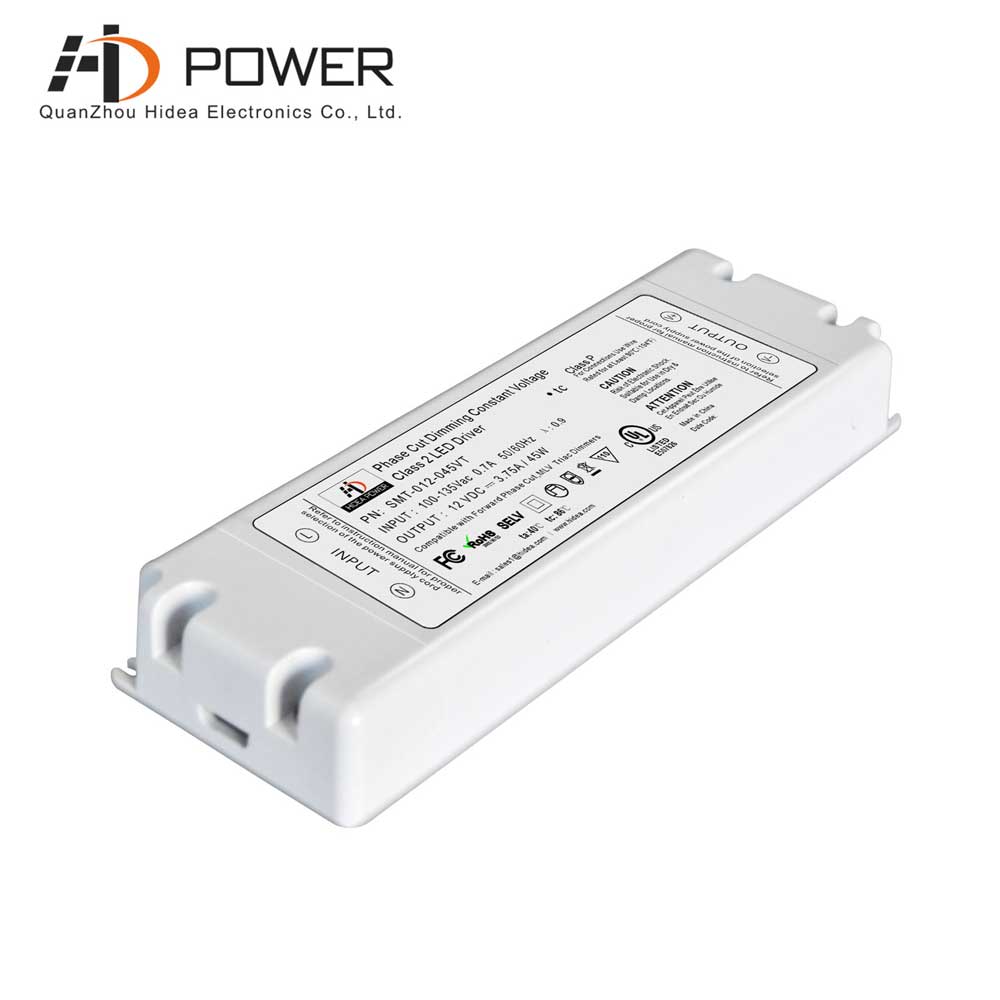

45W 24V constant voltage triac dimmable led lights driver power supply IP20
triac 45W dimmable led power supply has strong compatibility and can work with leading edge and trailing edge TRIAC dimmers to achieve smooth flicker-free dimming.
Specification
|
Model
|
SMT-012-045VT
|
SMT-024-045VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
3.75A
|
1.87A
|
|
Rated power
|
45W
|
|
Input
|
Voltage Range
|
90~135VAC/170-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≥ 0.95 (Full loading)
|
|
Efficiency(Typ.)
|
82%
|
84%
|
|
AC Current(Typ.)
|
0.61A
|
0.6A
|
|
Leakage current
|
﹤0.70mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
0.55Kg
|
|
Size
|
180*60*35mm(L*W*H)
|
|
packing
|
350*195*180mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 60-100%.
|
Compatible Light Type
This 45w triac dimmable LED driver can apply not only in North American martket, but also in EU and AU market. It can work well with K-LUMINA LED pack light.
Related Products
|

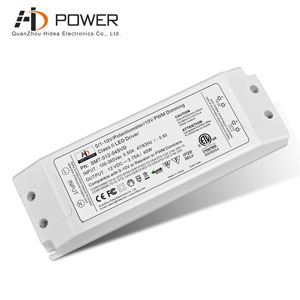

 This 45W plastic case design 0 10v dimmable led driver is ETL certified, the input voltage is between 100-265vac, suitable for indoor lighting project installation, 5-year warranty
