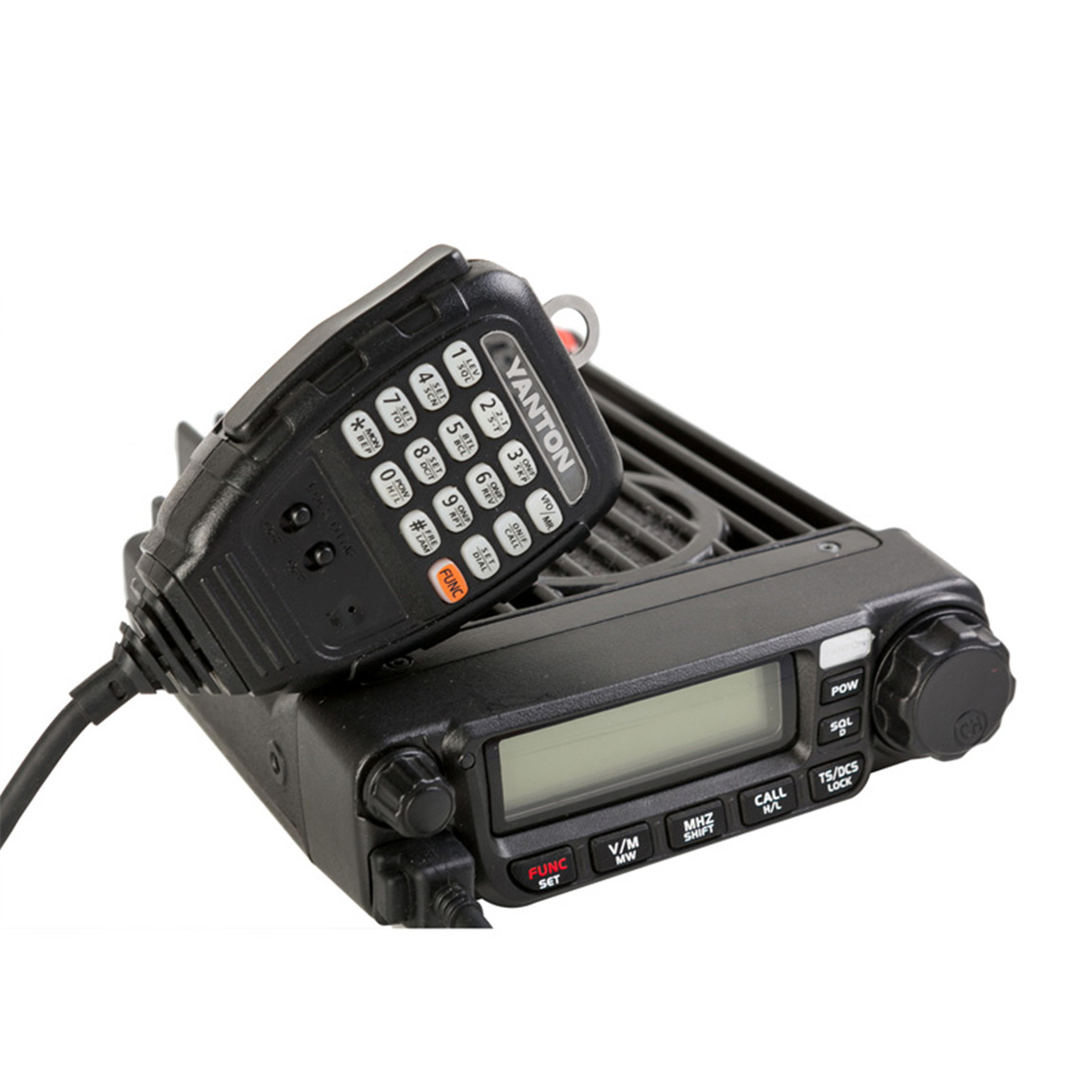

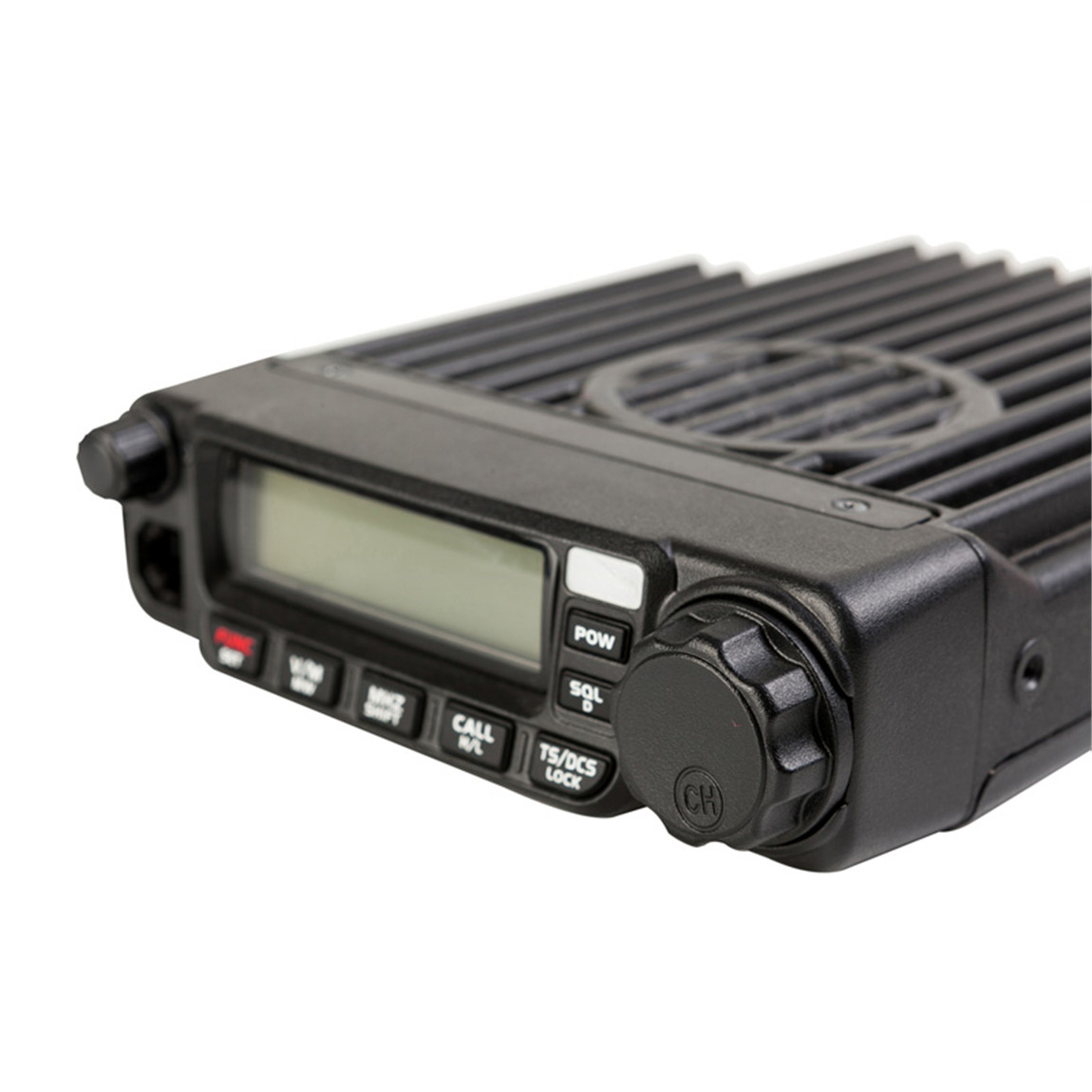

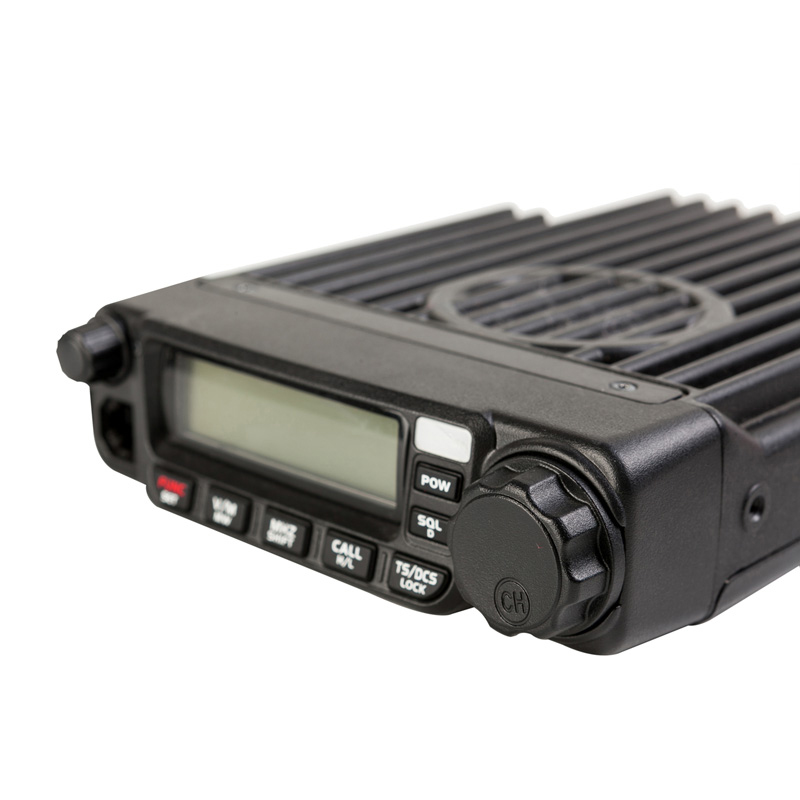

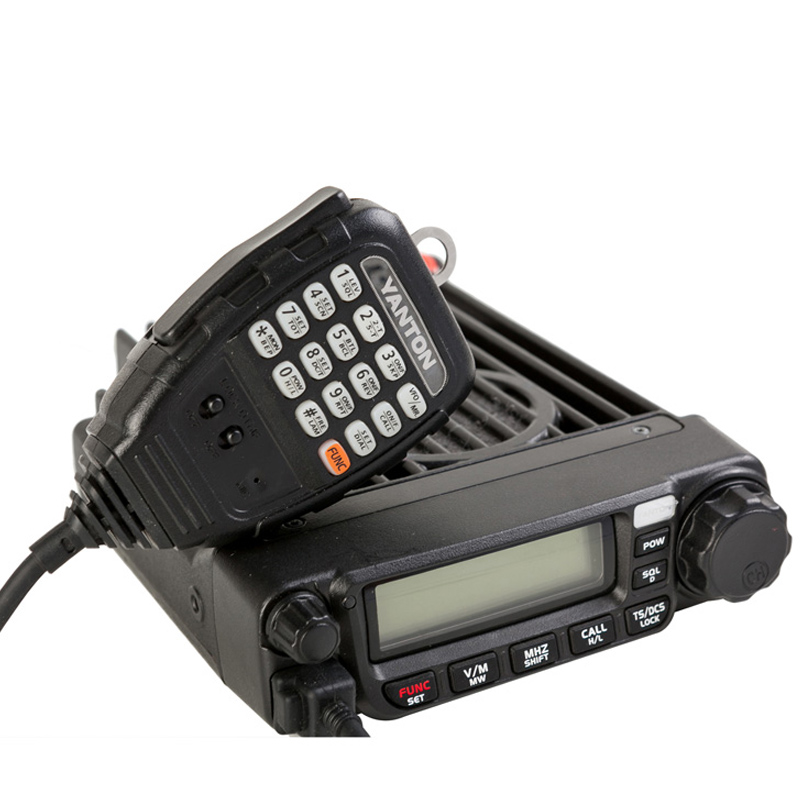

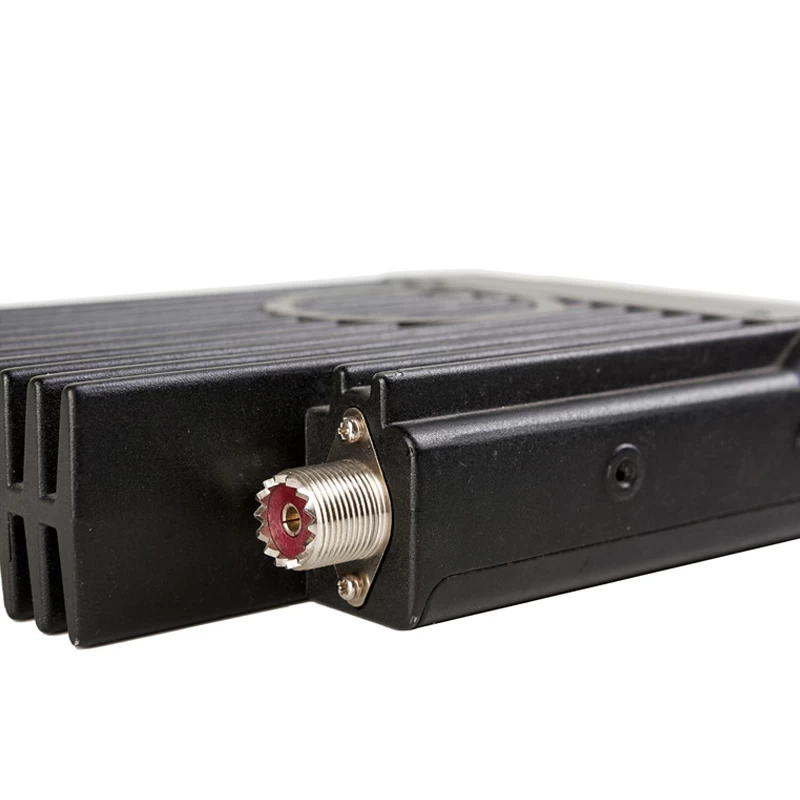

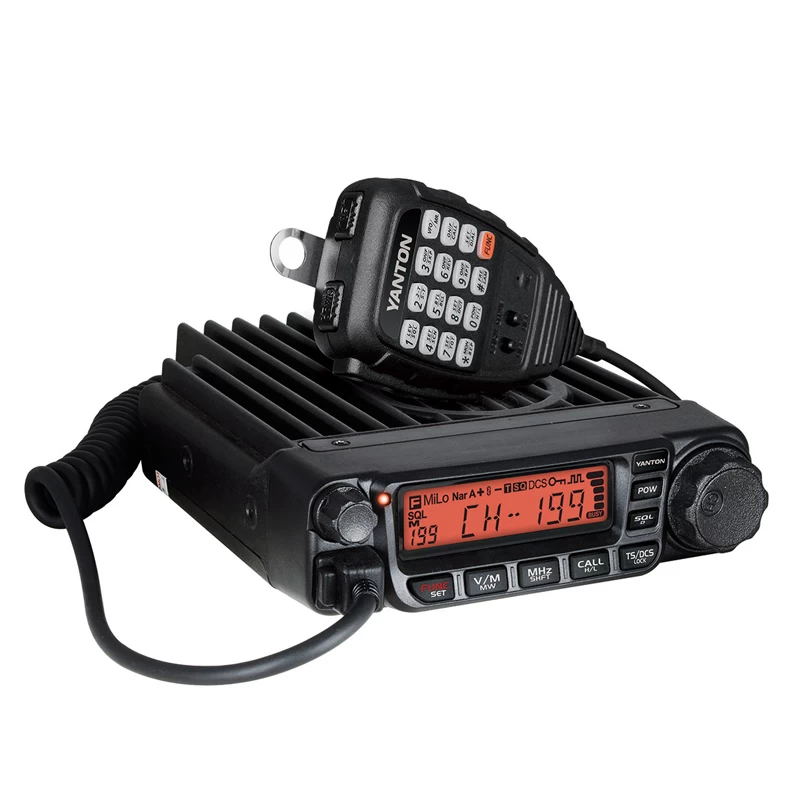

45Watt Walkie Talkies Wireless VHF UHF Mobile Car Radio
45Watt UHF VHF Mobile Vehicle Radio,The high-performance, simple-to-use TM-8600 mobile radio are created to give you the immediate, reliable communication you need to keep mobile teams working efficiently.
Quick Details
1.CTCSS/DCS setting & scanning
2.1750Hz Tone
3.High/Mid/Low power selectable
4.Voice compander
5.ANI ID
6.DTMF/2 tone/5 tone
7.Remote kill/ stun/ activate/ revive
8.Emergenvy alarm
9.Wide/Narrow band setting
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174/245-246/400-490MHz
|
|
Operating
Temperature
|
2.5ppm
|
|
Operating
Temperature
|
－20℃~+60℃
|
|
Operating
Voltage
|
13.8VDC±15%
|
|
Memory
Channel
|
199channel
|
|
Dimension(HxWxD)
|
145mmX190mmX47mm
|
|
Weight(with
bracket)
|
1200g
|
|
TRANSMIT PART
|
|
RF
power
|
45W/25W/10W(UHF)
60W/25W/10W(VHF)
|
|
Frequency
modulation
|
11kΦF3E/16kΦ F3E
|
|
Modulation
distortion
|
＜5%
|
|
FM
noise
|
≥36dB@KHz
≥40KHz@25KHz
|
|
Adjacent
Channel
Power
Audio Response
Audio Distortion
|
≥60dB@12.5KHz
≥70KHz@25KHz
＋1－＋3dB
＜5%
|
|
RECEIVER PART
|
|
Reference
sensitivity
|
0.25v/0.35v
|
|
Adjacent
channel
selectivity
|
60dB@12.5KHz
70dB@25KHz
|
|
Inter-modulation
Rejection
|
≥60dB/≥65dB
|
|
Spurious
Response
Rejection
|
≥70dB
|
|
Rated
Audio Response
Rated audio
distortion
|
＋1－＋3dB
＜5%
|
|
FM
Hum &Noise
|
≥40dB@25KHz
≥45KHz@12.5KHz
|
45Watt UHF VHF Mobile Vehicle Radio
Service
Package:Each package in gift box; 20PCS in strong carton
Payment:Paypal, Western Union, T/T, LC
Lead time:Sample: 1-3 working days
Wholesales order:500PCS within in 5-7 days
OEM order:7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express:door to door service DHL,UPS, FEDEX, TNT and so on.
By air:To destination airport, need to assist clear customs, without door to door service.
By sea:To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
