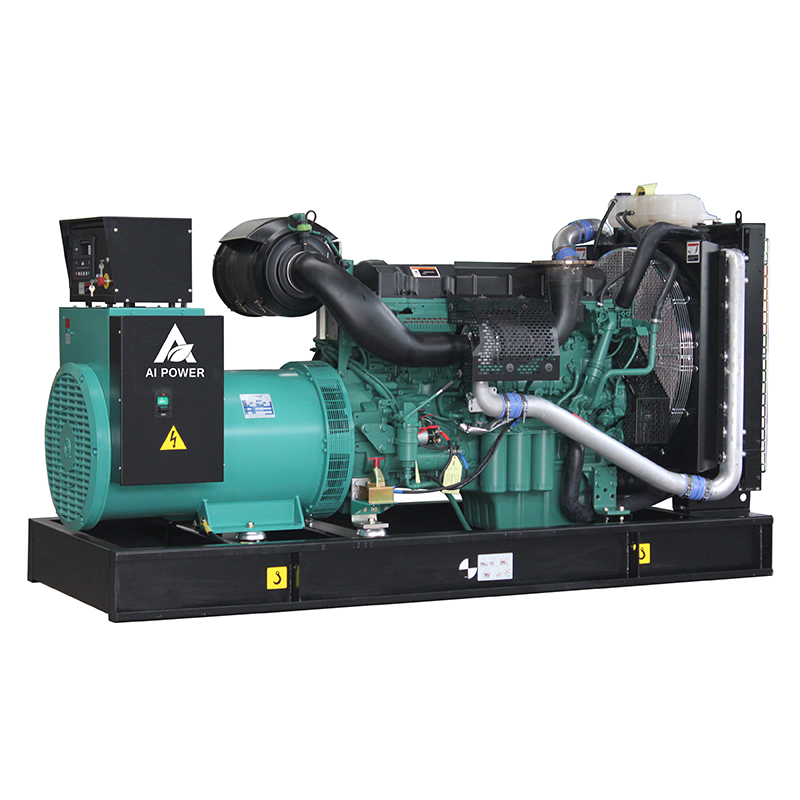

470kw 588kva Diesel Volvo Diesel Generator Set Output TWD1643GE

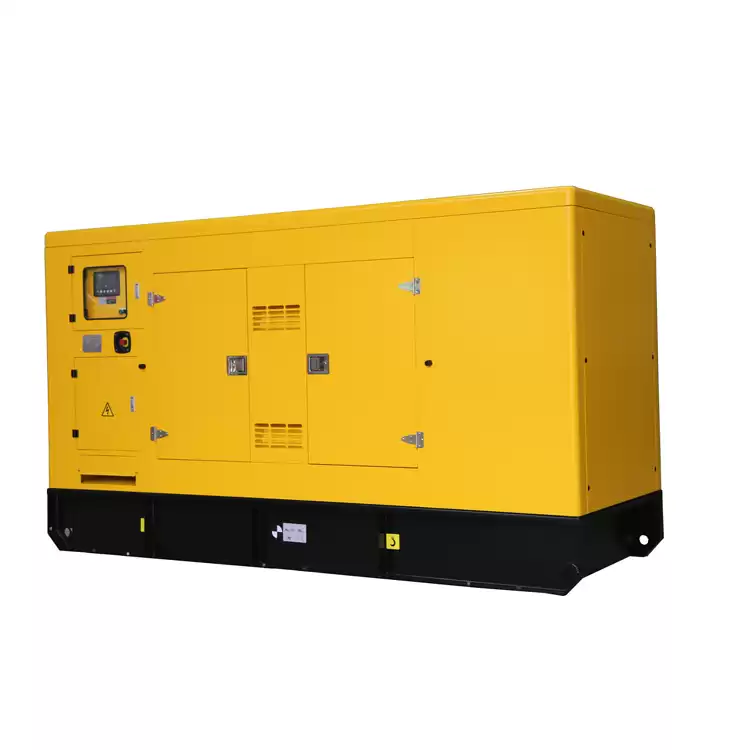

588kva Volvo Penta Diesel Generator TWD1643GE 470kw Prime Power Silent Open Trailer

Rating guidelines

PRIME POWER rating corresponds to ISO Standard Power for continuous operation. It is applicable for supplying electrical power at variable load for an unlimited number of hours instead of commercially purchased power. A10 % overload capability for governing purpose is available for this rating.

STAND-BY POWER rating corresponds to ISO Standard Fuel Stop Power. It is applicable for supplying standby electrical power at variable load in areas with well established electrical networks in the event of normal utility power failure. No overload capability is available for this rating. Average power output over 24 h of operation shall not exceed 70% of emergency stand-by power. Engine operation up to 200 h of operation per year.

1 kW = 1 hp x 1.36

1 hp = 1 kW x 0.7355

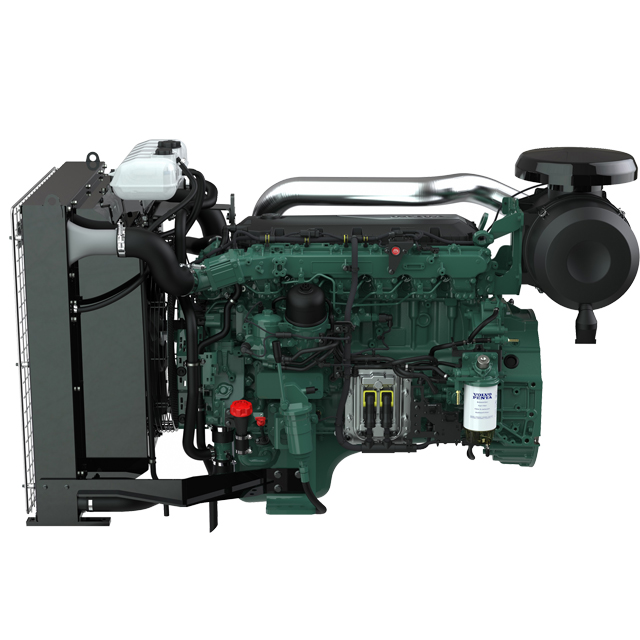

Engine Data	Engine model		Volvo Penta TAD1642GE
	Air intake system		Turbocharged, water-air cooling
	Fuel system		Elec. Injection, Elec. fuel system
	Cylinders		6 inline
	Bore and stroke		144x165(mm)
	Compression ratio		16.5:1
	Displacement		16.12L
	Rotation speeed		1500 rpm
	Standby power		654kw
	Governor		EMS2

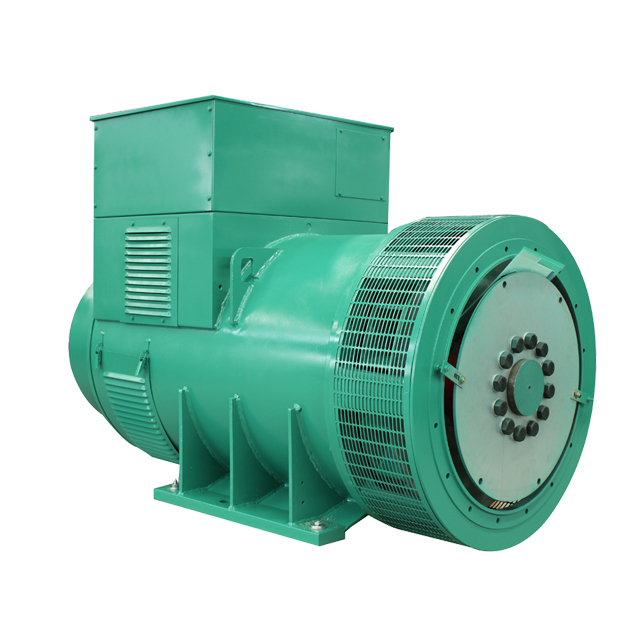

Alternator data	Alternator model		Stamford/Marathon/Leroy Somer etc.
	Number of phase		3
	Connecting type		3 phase 4 wires, Y type connecting
	Number of bearing		1
	Power factor		0.8
	Protection grade		IP23
	Excitor type		Brushless, self-exciting
	Power capacity		700kva

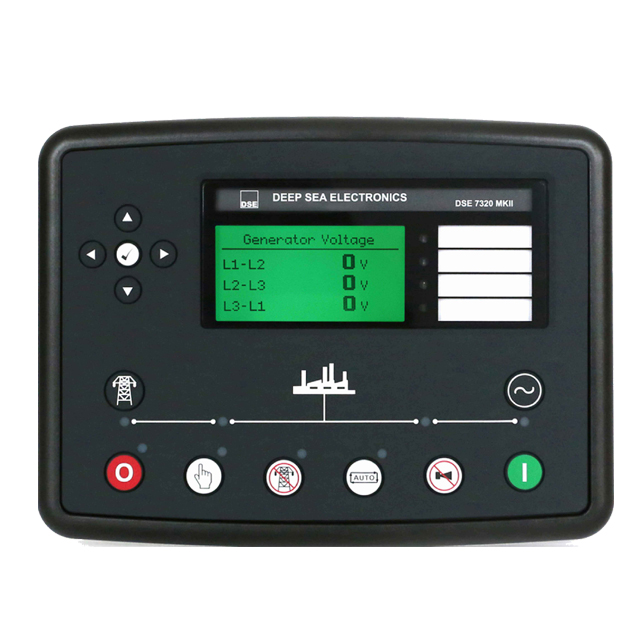

Controller data	Controller brands: Deepsea, Smartgen, ComAp, PCC, Datacom, etc.
	4-line back-lit LCD text display
	Multiple display languages
	Data logging facility, Internal PLC editor
	Fully configurable via PC using USB communications
	3-phase generator sensing and protection, overload alarm
	Protection: over-speed, low-speed, over-current, low-oil, low-fuel, high-temp, etc.

PRODUCT CONFIGURATION

Diesel engines

Alternators

Controllers

Diesel engines we can supply are including Cummins, Perkins, Volvo, MTU, Mitsubishi, Doosan, Baudouin, Deutz and China Yuchai, Weichai, SDEC, Yangdong, etc.

Alternators we can supply are including Stamford, Marathon, Leroy Somer, ABB, Mecc Alte, Engga, Jinte, etc. We also can provide OEM and ODM for alternators.

Controllers we can supply are including Deepsea, PCC, ComAp, Smartgen, Datakom, etc. Automatical or manual control, ATS, AMF, Synchronizing, Remote monitor system are optional.

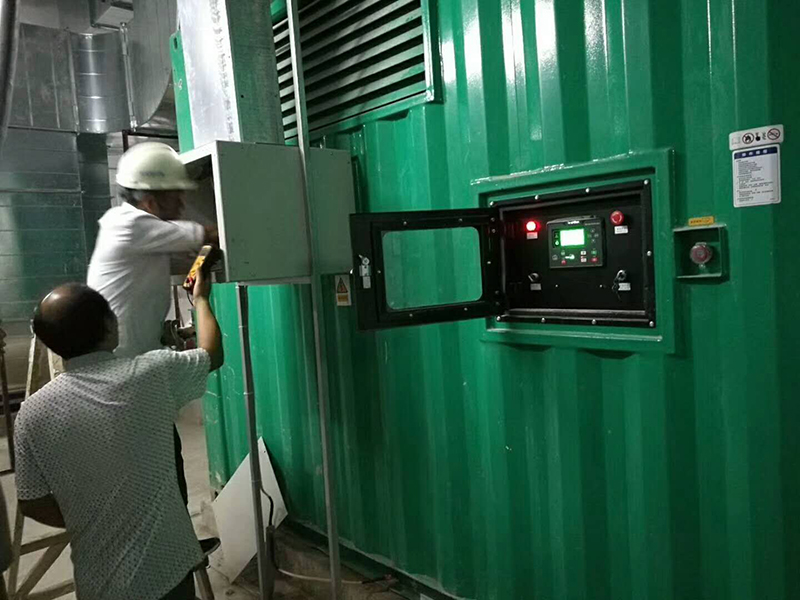

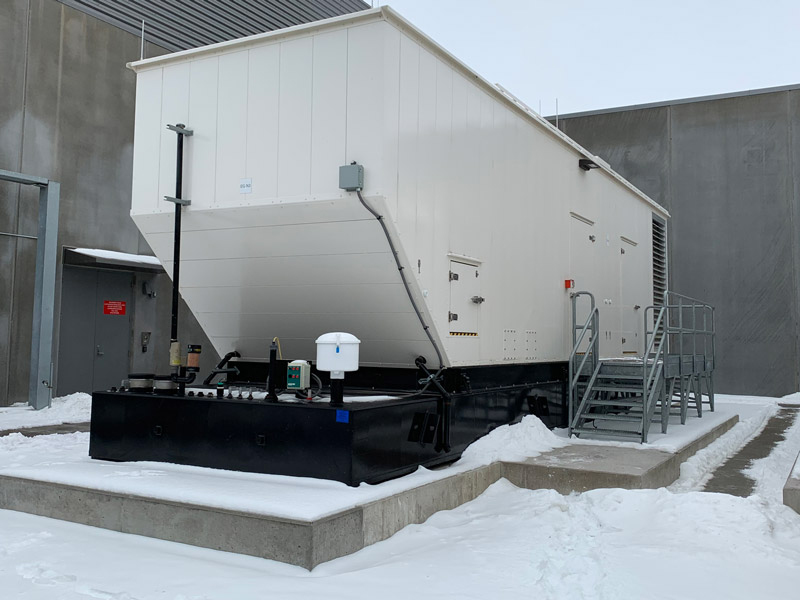

Successful Project

Project in Philippines

Project in Kenya

Project in Russia
