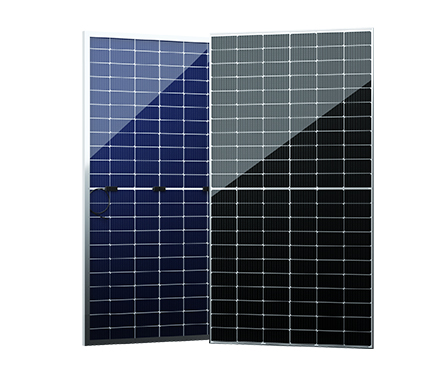

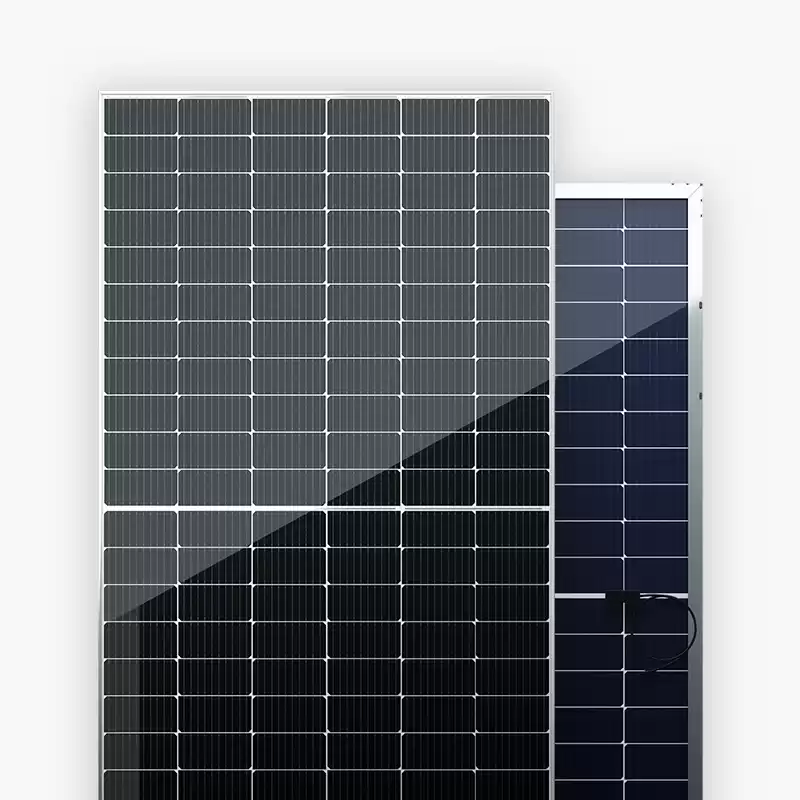

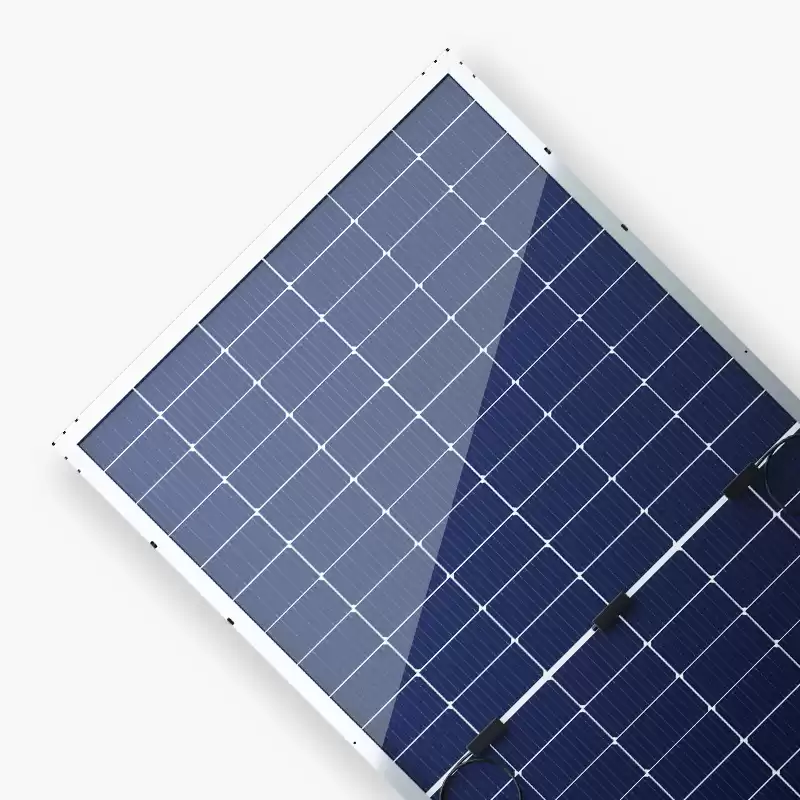

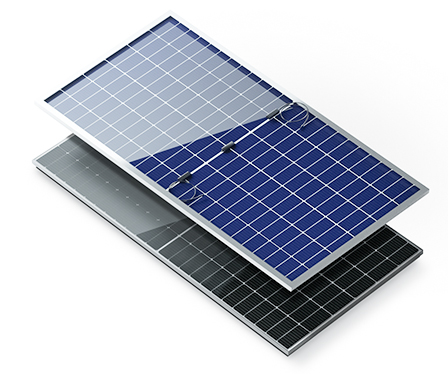

BiMAX5 Solar Panel
Bifacial double glass solar panel captures front light and the light reflected from background. BiMAX5 can generate more energy than standard monofacial module. Depending on the ratio of albedo value to bifacial power generation efficiency, BiMAX5 can reach 20-40% more than monofacial.
BiMAX5 Outstanding Characteristics
BiMAX5 with 182mm MBB PERC technology solar cell, power up to 490W, lower BOS cost, reduce 4.5% LOCE, up to 50% lower degradation, better shading tolerance, lower resistance of half-cut cells ensures higher power, frame design enables compatibility with standard installation methods, safe and easy to transport, handle, and install like normal framed modules.12 years warranty on workmanship, 30 years linear power output warranty.
Half-cut Cell Technology
By reducing heat and working temperature, half cut cell can increase the power generation per watt. As the half cut cell reduced the internal losses, the operating temperature of solar panel and junction box can be reduced, which greatly reduces hot spots possibility and solar panel damage risk.
Based on the special parallel structure, the half-cut modules are arranged longitudinally, thereby reducing the power loss caused by shading.
BiMAX5 Solar Panel Certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
BiMAX5 Solar Panel Features:
-
Bifacial technology enables additional energy harvesting from rear side (up to 25%)
-
Glass/glass lamination ensures 30 year product lifetime, with annual power degradation < 0.45%,
-
1500V compatible to reduce BOS cost
-
Solid PID resistance ensured by solar cell process optimization and careful module BOM selection Reduced resistive loss with lower operating current
-
Higher energy yield with lower operating temperature
-
Reduced hot spot risk with optimized electrical design and lower operating current
