475 Bite Type Wall Panel Corrugated Steel Roofing Sheets

Wiskind 475 corrugated steel roofing sheets 360° occlusion.

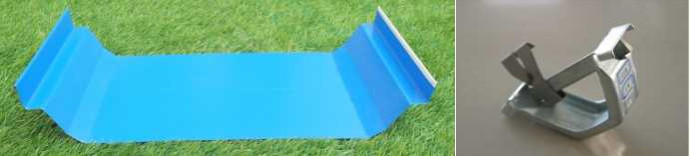

For large-span roofing, concealed, with special brackets, with good drainage performance.



475 Bite Type Roof Panel Corrugated Steel Roofing Sheets

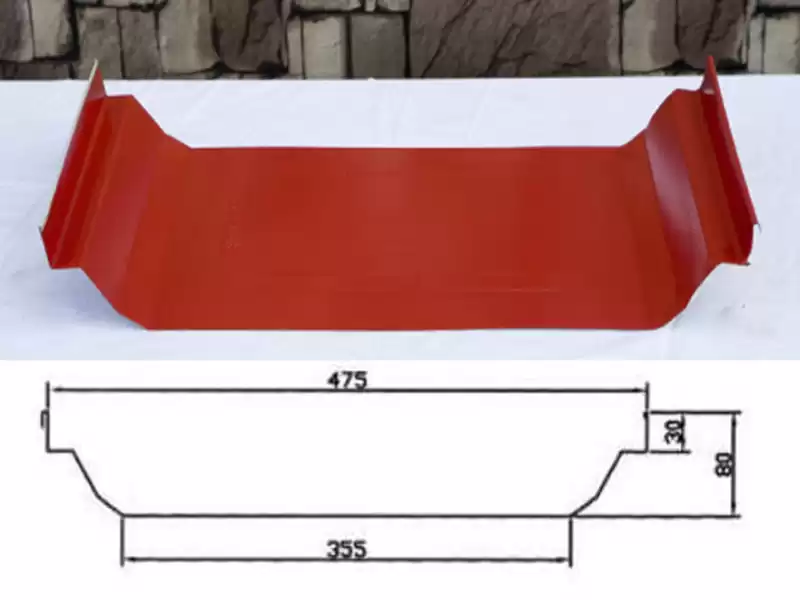

Product Parameters:

Product Name

475 Bite Type Big Roof Panel Corrugated Steel Roofing Sheets

Profiled Steel Sheets Type

YX82-475(U-475)

Effective Width

475mm

Feeding Width

600mm

Crest Height

30mm

Panel Thickness

0.5-0.6mm

Section Inertia

39.3-47.24cm⁴/m

Section Resistance

22.62-27.21cm³/m



Product Advantages:

1.360° occlusion---Upright lock seam 475 roofing system.

2.360° vertical fastening seam, excellent waterproof and airtight.

3.No screw penetration on the surface of the system.

4.The unique sliding-sliding bracket makes the system have perfect thermal expansion and contraction compensation function.

5.Processed equipment cabinets to ensure accurate on-site suppression of large projects.
