The fuel tank semi trailer is commonly used to transfer diesel fuel, petrol, crude oil, edible oil, palm oil, and liquid asphalt.
As a specialist in the manufacture of fuel tank semi trailer, we have pioneered the application of plate bender and welder in the manufacture of fuel tanks trailer. Our industry leading design capability allows us to supply your desired oil tanker trailers in the shortest possible time. With a loading capacity in the range between 30 and 60m³, our fuel tank semi trailer often comes in various types, the most common being the 2-axle and 3-axle configurations.

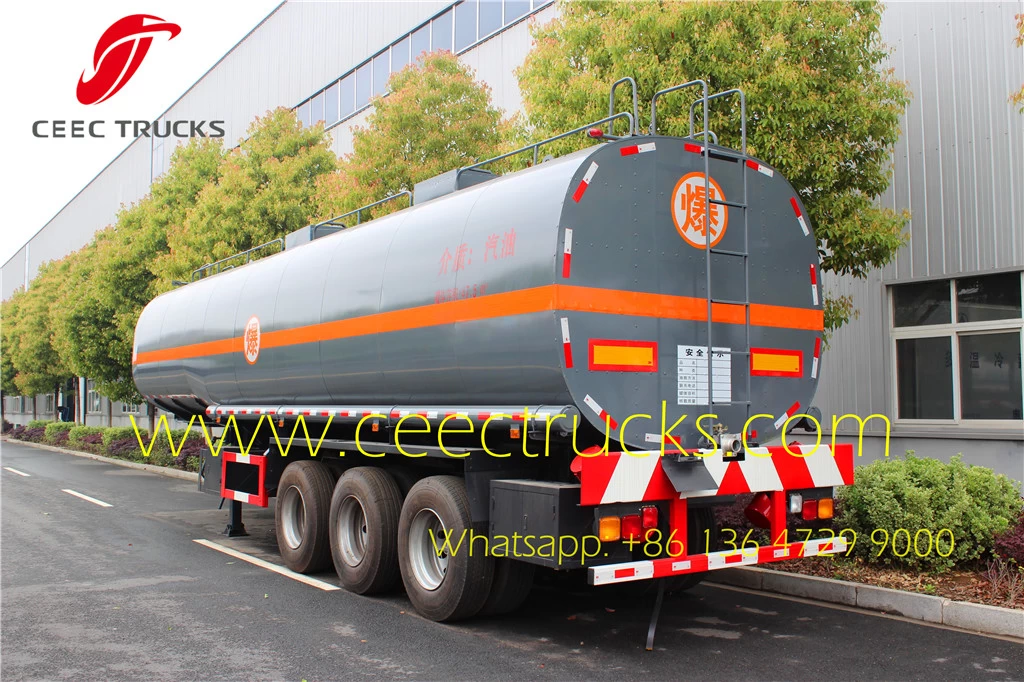

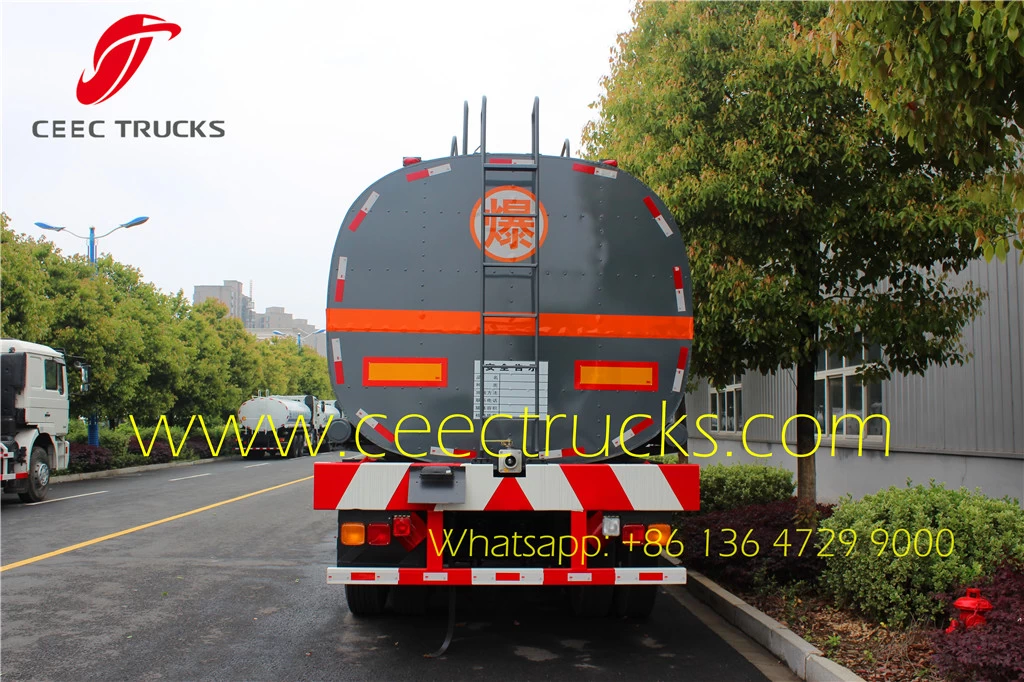

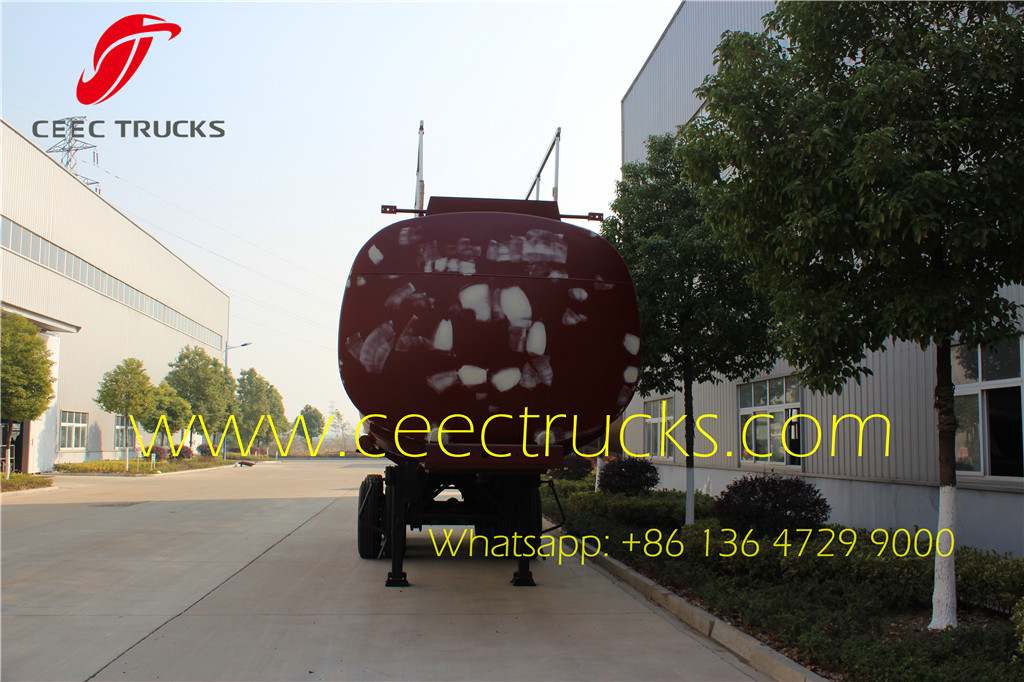

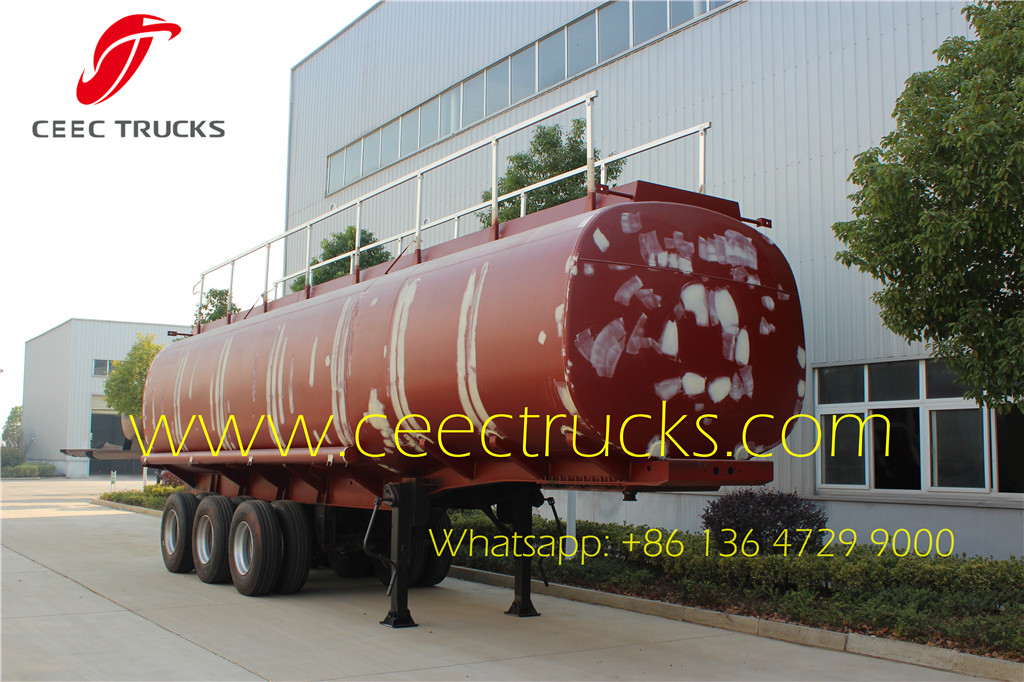

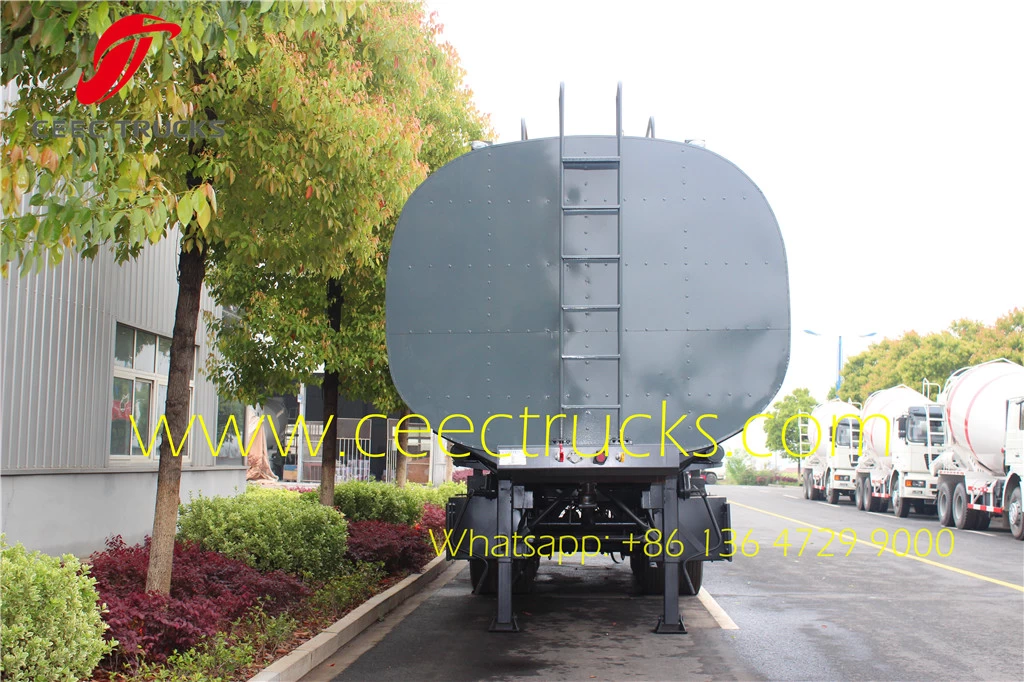

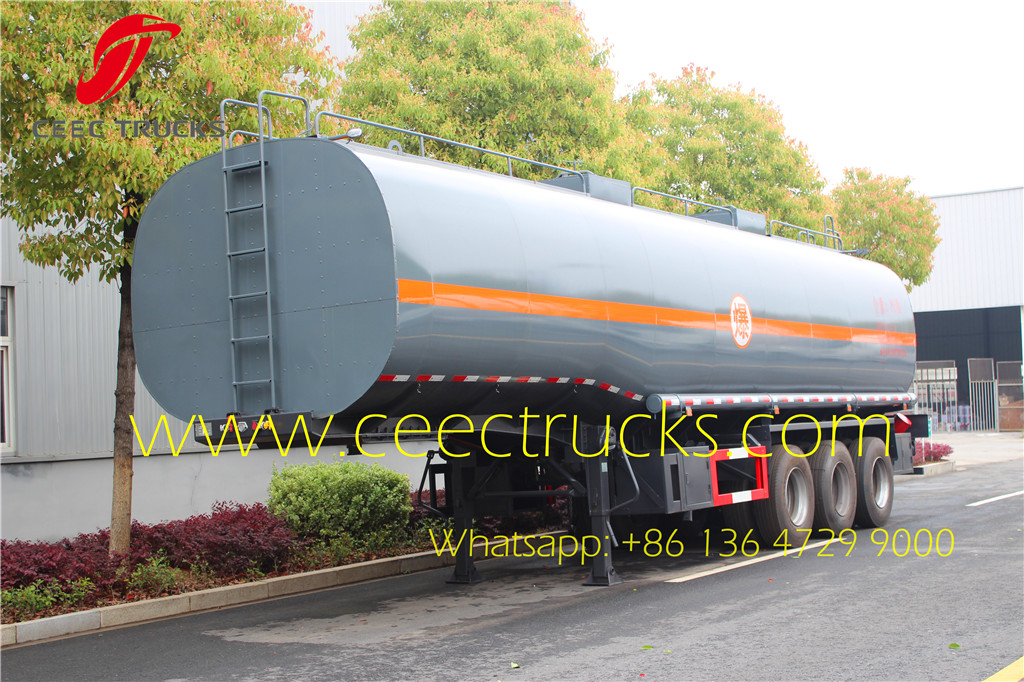

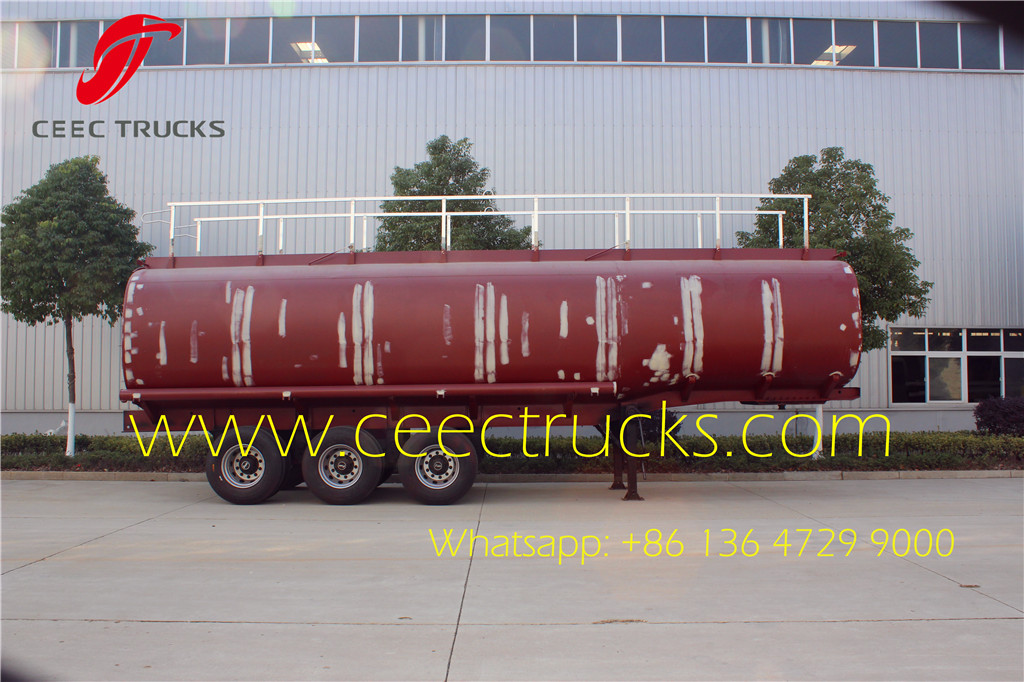

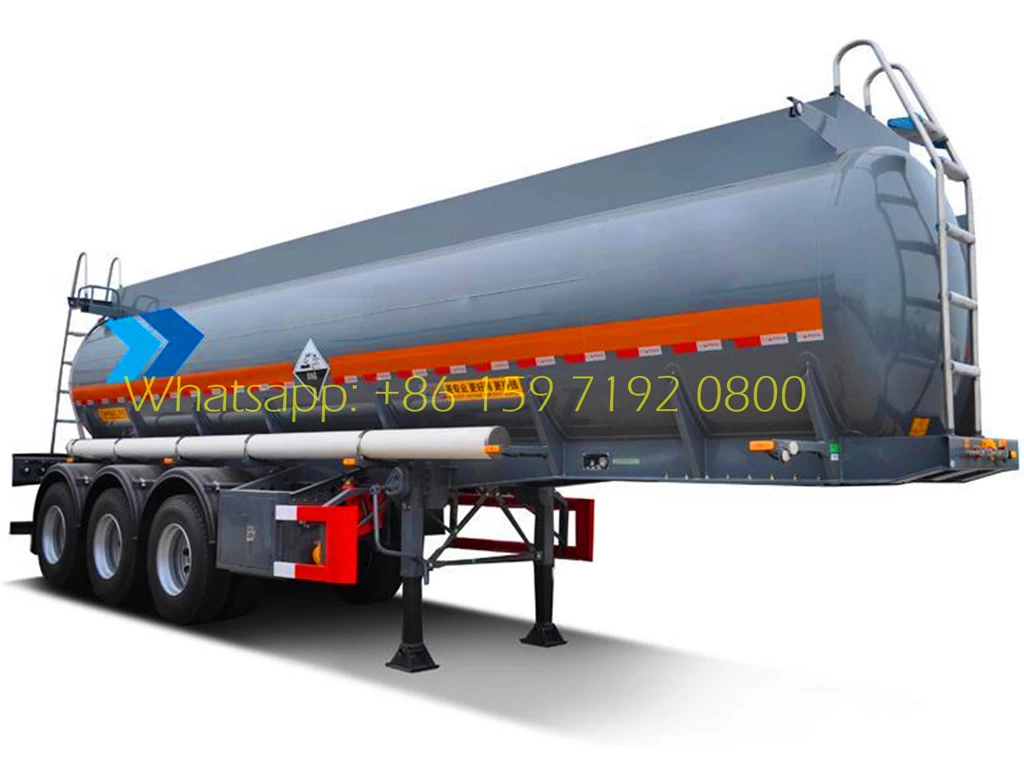

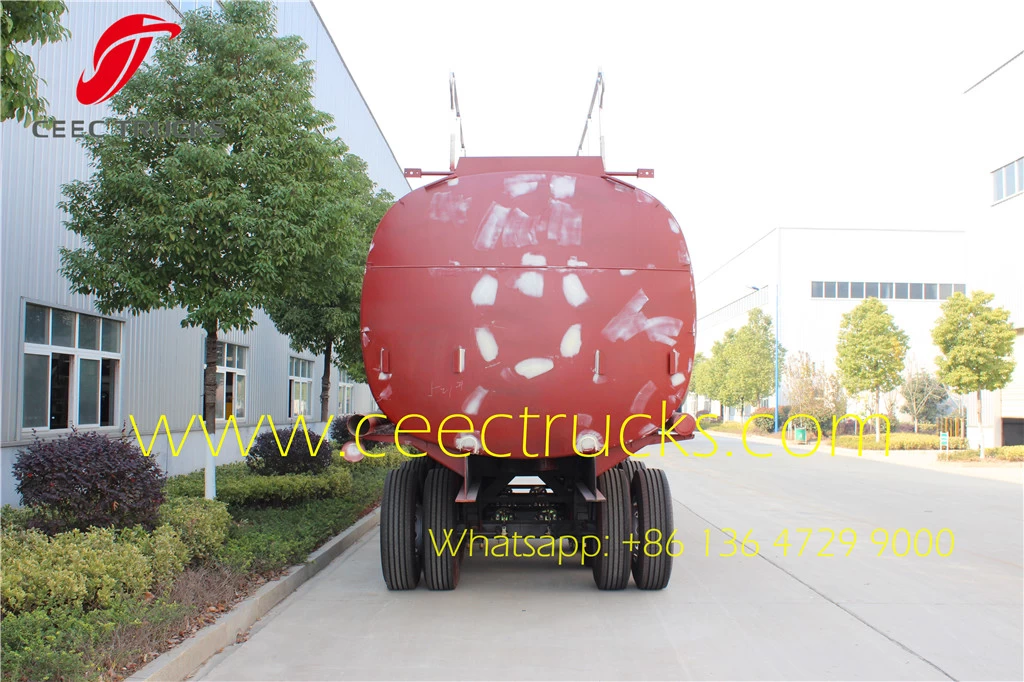

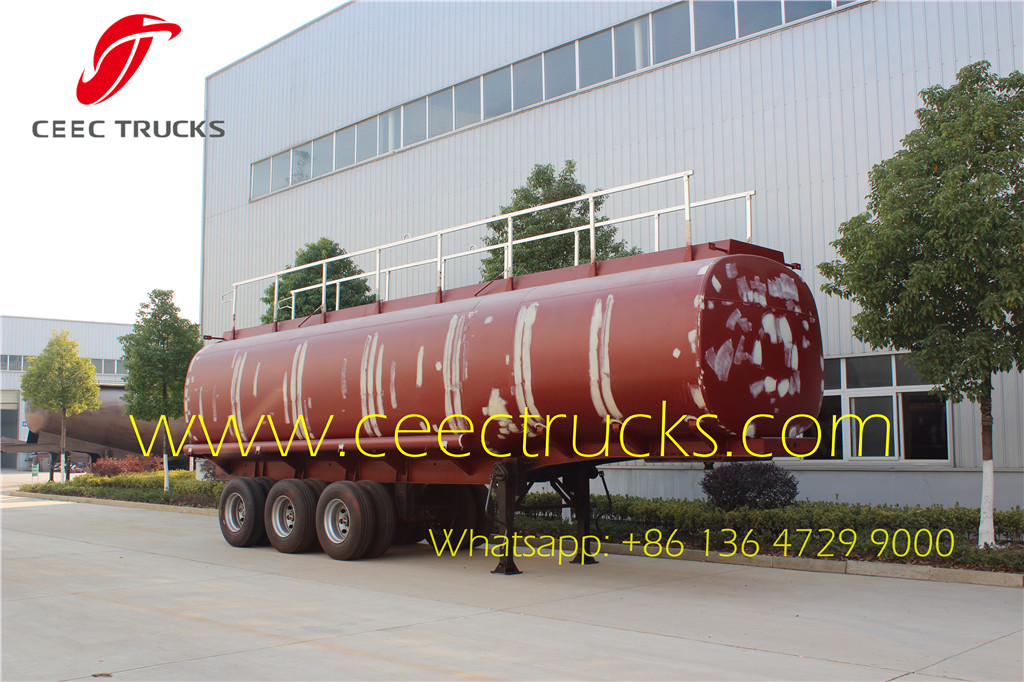

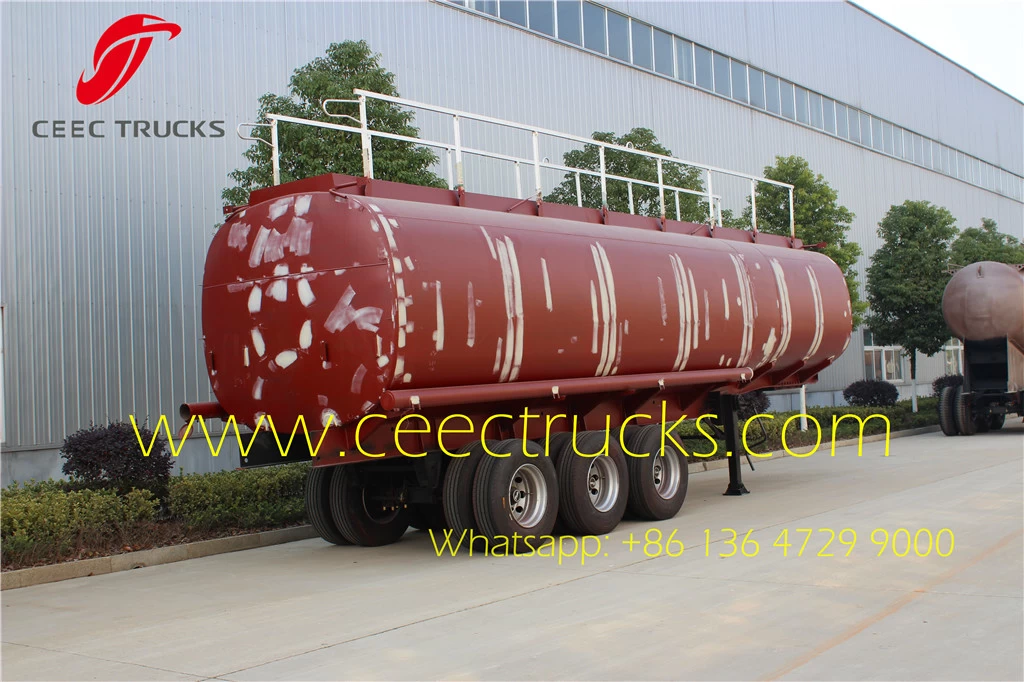

48 CBM fuel tanker semitrailer manufacturer supply
Function:
Oil tanker trailer (also called oil tanksemi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fueltrailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tankertrailer, stainless steel oil tanker trailer, carbon steel trailer tank fuel) is used to transport oil, diesel, gasoline, kerosene,etc.
2016 produced 48 CBM Oil tank semitrailers can be divided into many compartments to load and transport differenttypes of fuels, lubricant, crude oil, alcohol……
Features:
---- High quality tank material has options of carbonsteel, stainless steel, aluminum alloy.
---- JOST kingpin, JOST / FUWA landing gears
---- Axles are of top Chinese brand FUWA or German brand BPW
---- Main fuel components available of international brands (ADR standard) -Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)....
---- Bottom loading system including vapor recovery and overfill detectionsystem can be equipped.
Specification:
Similar Key Words: 48,000litres
tanker semitrailer, 48,000litres tank semi-trailer, fuel
semi-trailer, Carbon steel diesel semitrailer, fuel trailer tanker, fuel tanker trailer,
fuel tankers, fueltank trailer, oil trailer, semi tanker trailer
| 48 CBM Fuel tanker Semitrailer Tank Body
|
| Shape
|
Round or Square
|
| Dimension
|
12000mm×2490mm×3990mm ( The exact size depends on the final design.)
|
| Tare weight
|
About 8000kg-12800kg
|
| Total Volume ( m3 )
|
40 m³
|
| Tanker Body Material
|
5mm or 6mm/ Q235 carbon steel
|
| End Plate
|
5mm or 6mm /Q235 carbon steel
|
| Manhole Cover
|
Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)
|
| Bottom Valve
|
Aluminum API Pneumatic Bottom Valve
|

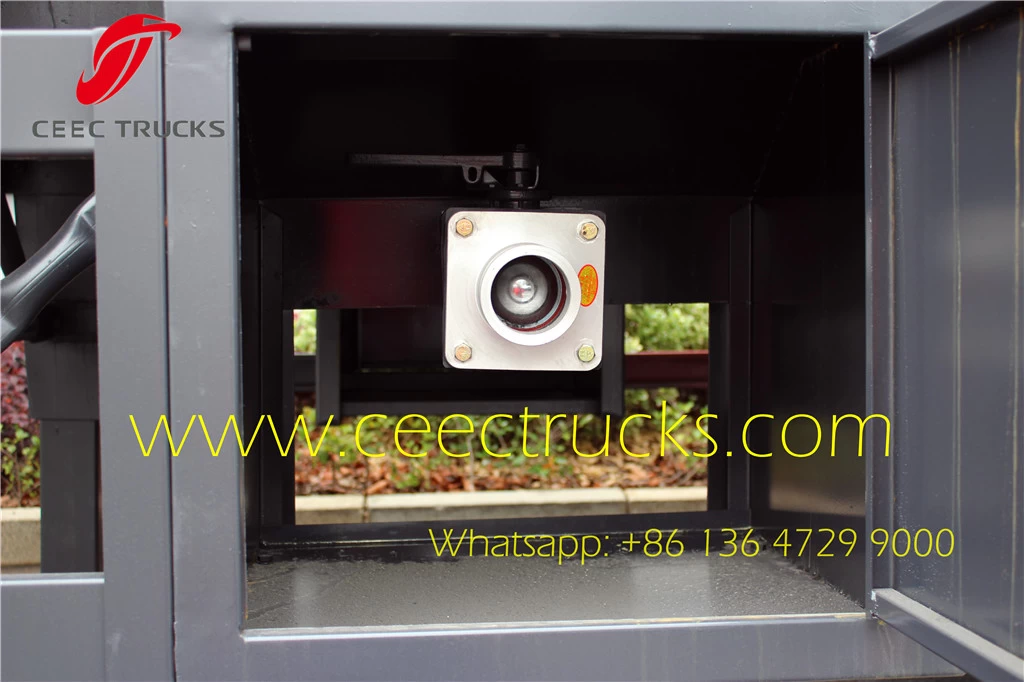

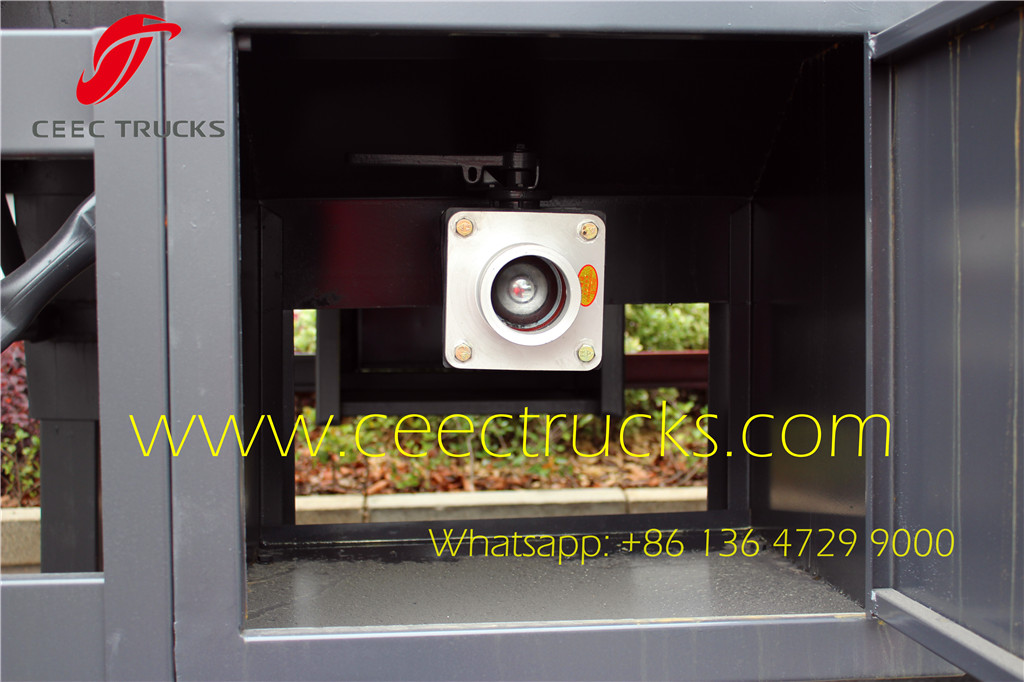

| Discharging Valve
|
Diameter is 3 or 4 inch
|
| Compartments
|
Optional
|
| Discharging Pipe
|
4” rubber hose, 2 pcs , 6m/each
|

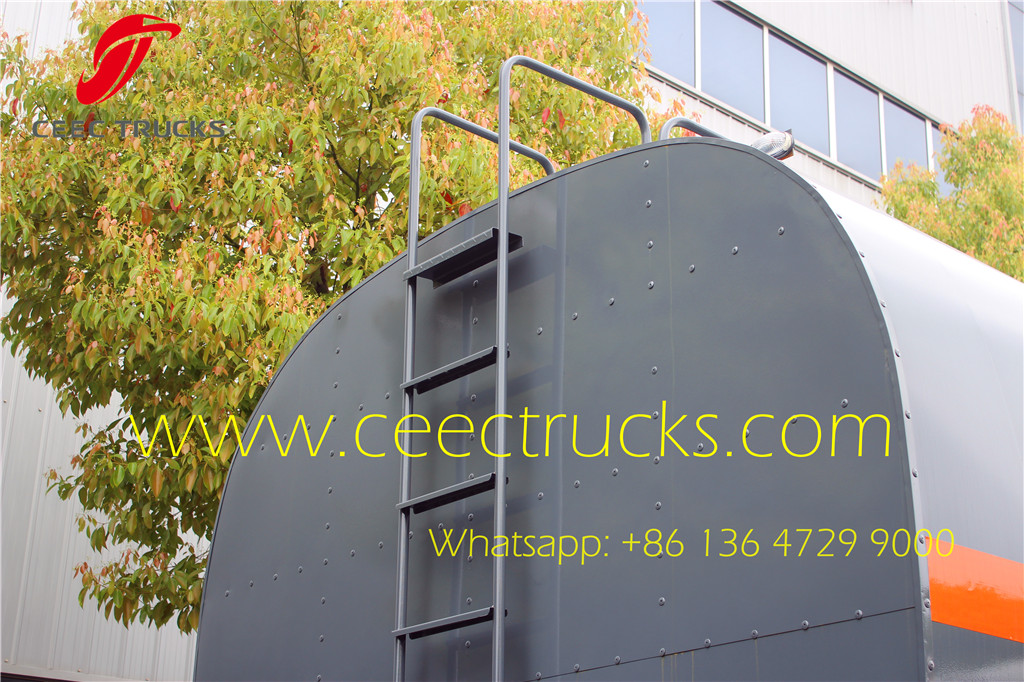

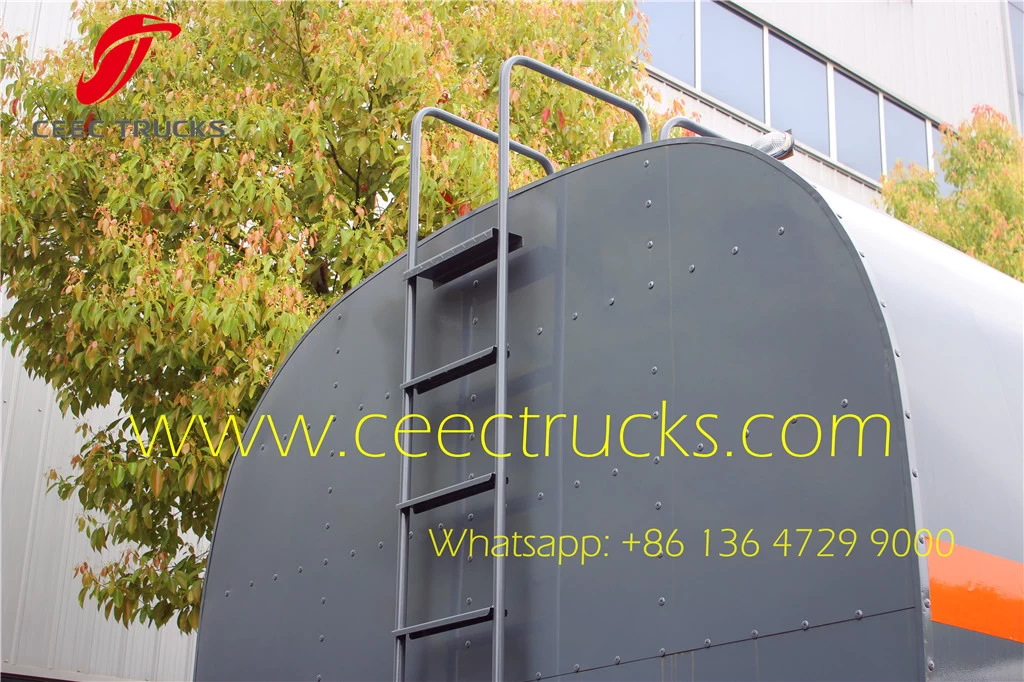

| Cat Walk
|
With (Common model or special design)
|
| Chassis
|
| Main Beams
|

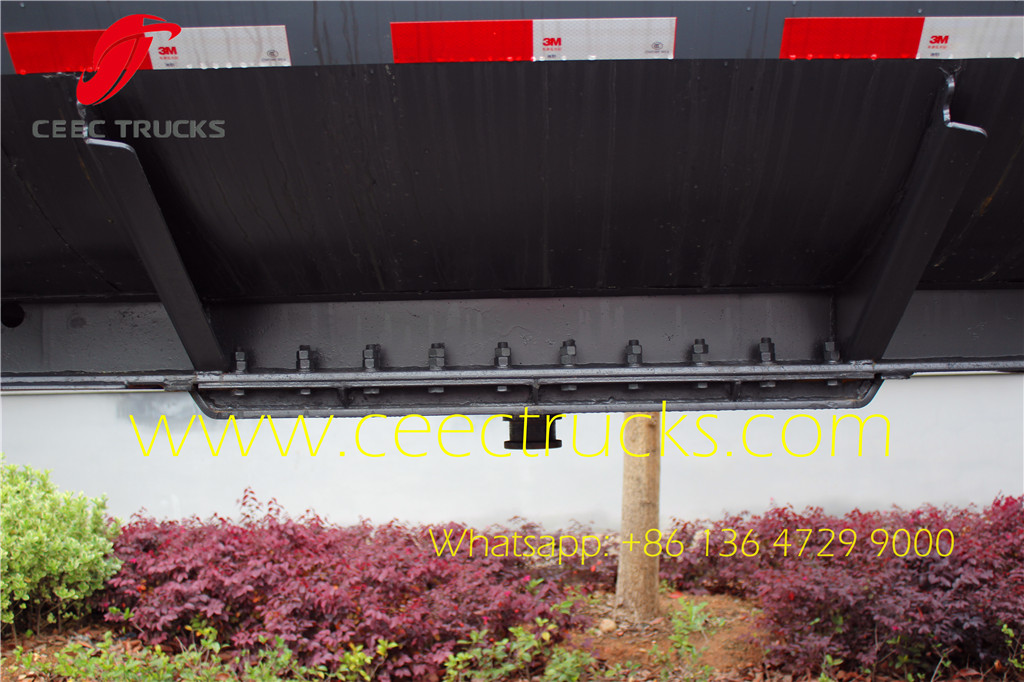

Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material
|

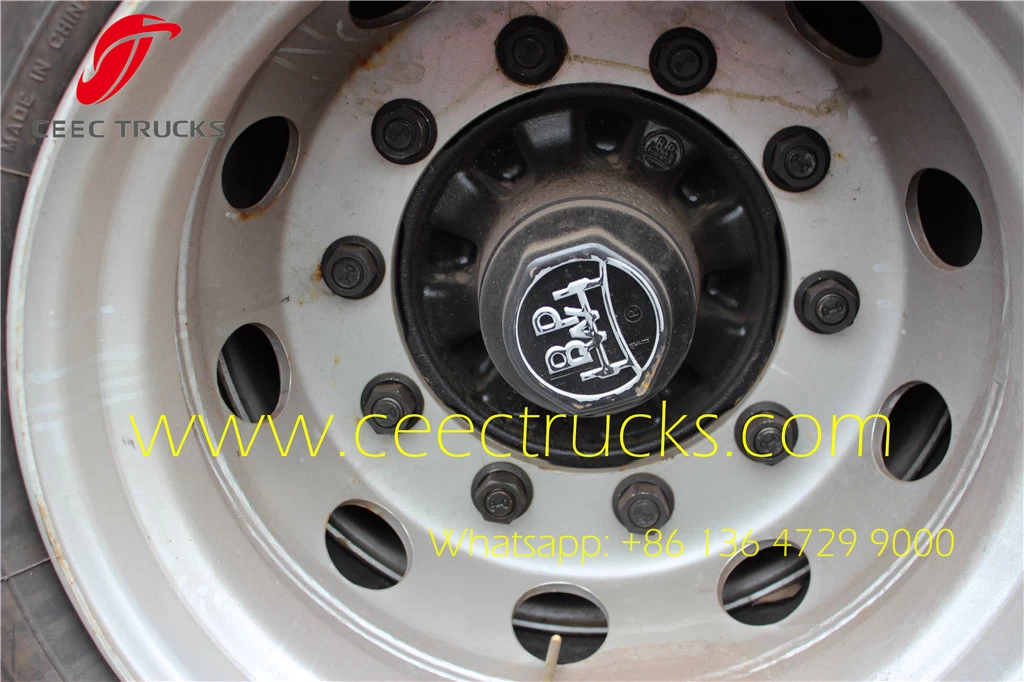

| Axle
|

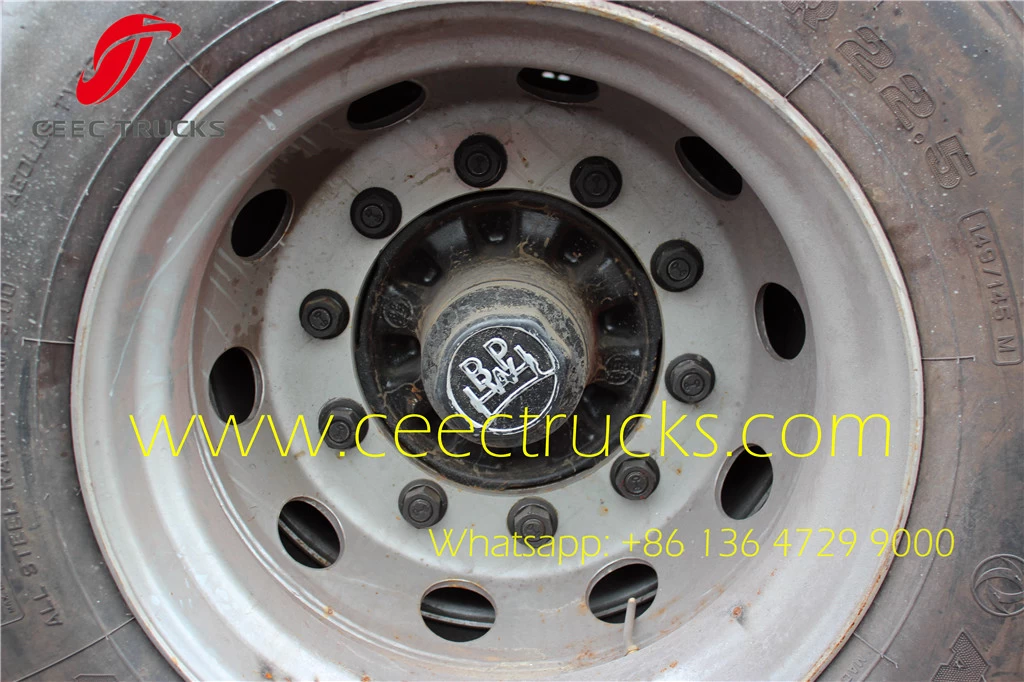

2 or 3 axles, BPW/FUWA/HUAJING brand
|

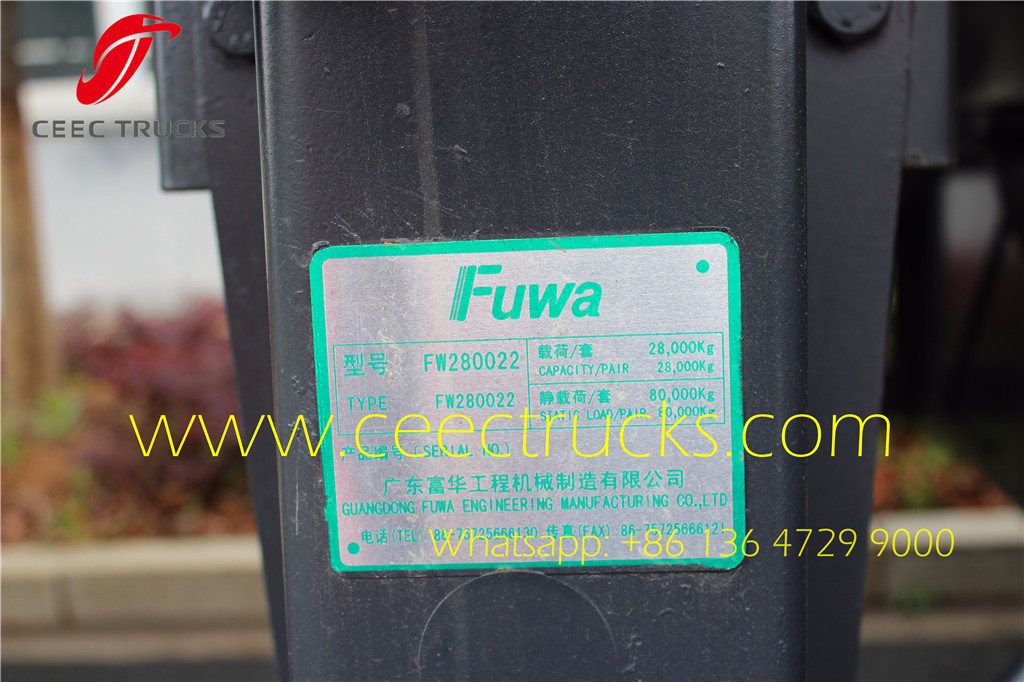

| Landing Gear
|
JOST (D200T ) or CHINA BRAND 28T
|
| King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
| Suspension
|
Mechanical suspension/Germany or America type /air suspension
|
| Leaf Spring
|
90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without
|
| Pneumatic Braking System
|
WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank
|
| Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|

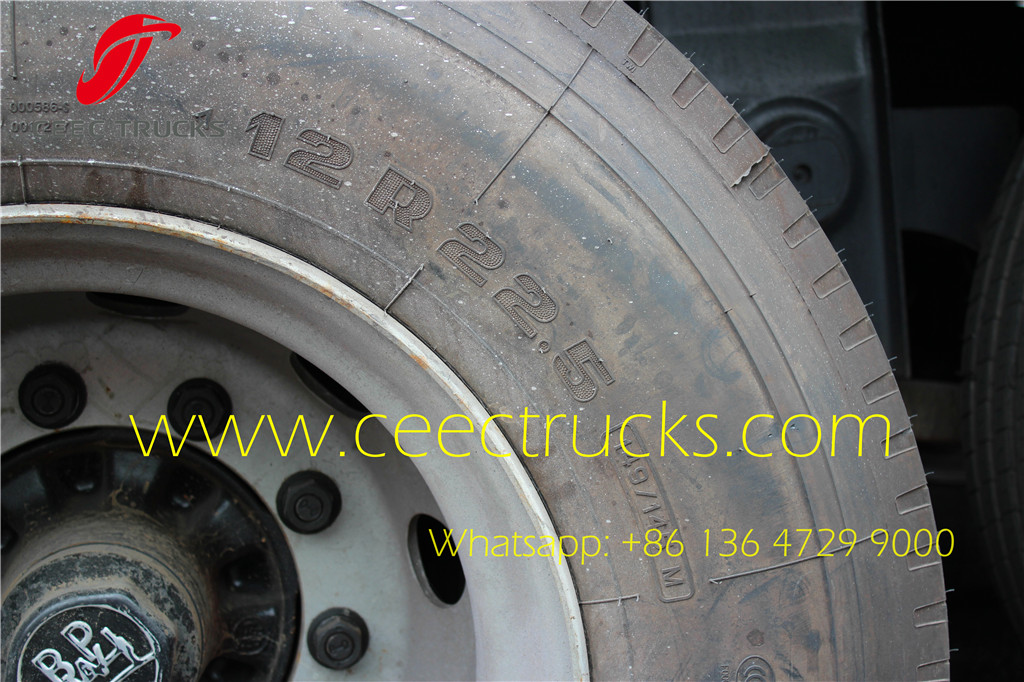

| Tire
|
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
| ABS
|
Optional
|
| Painting
|
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
|
| Accessories
|
One standard tool box
|
| Shipping Terms
|
By bulk cargo ,RORO or 40HQ Containers
|
