The fuel tank semi trailer is commonly used to transfer diesel fuel, petrol, crude oil, edible oil, palm oil, and liquid asphalt.
As a specialist in the manufacture of fuel tank semi trailer, we have pioneered the application of plate bender and welder in the manufacture of fuel tanks trailer. Our industry leading design capability allows us to supply your desired oil tanker trailers in the shortest possible time. With a loading capacity in the range between 30 and 60m³, our fuel tank semi trailer often comes in various types, the most common being the 2-axle and 3-axle configurations.

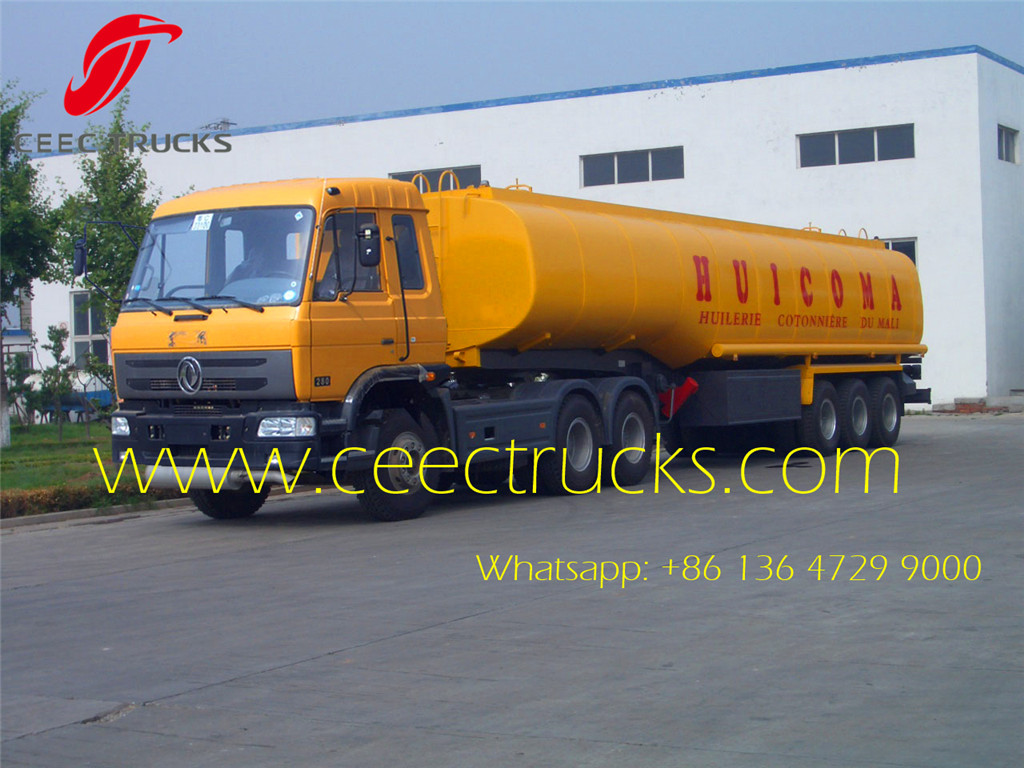

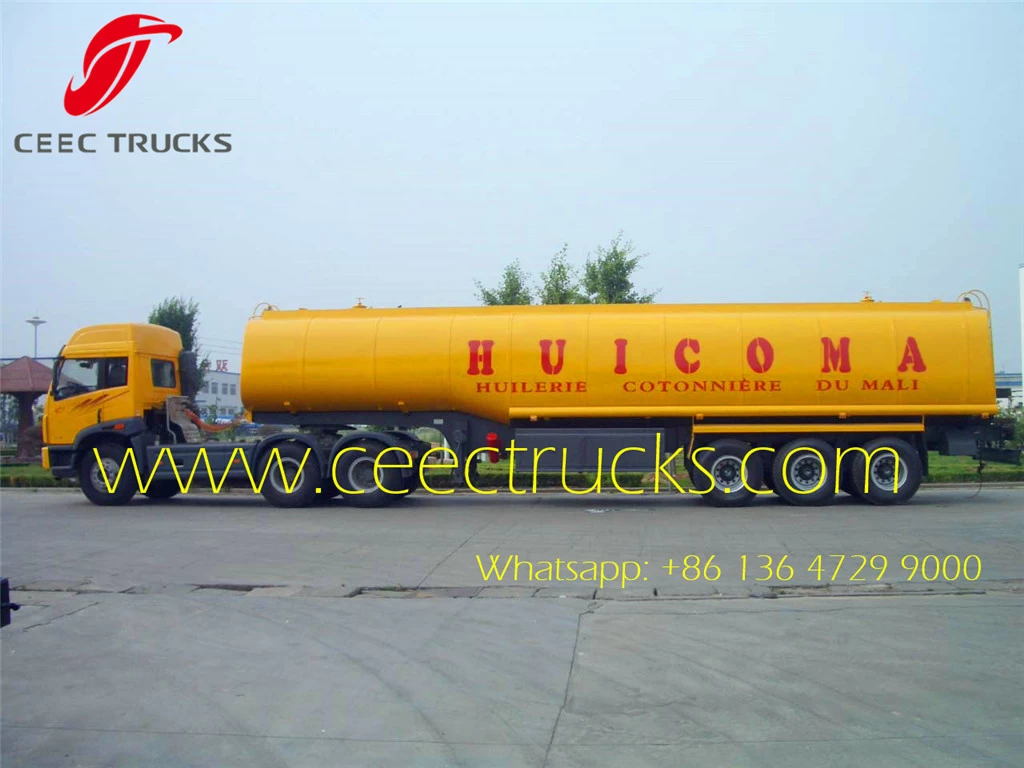

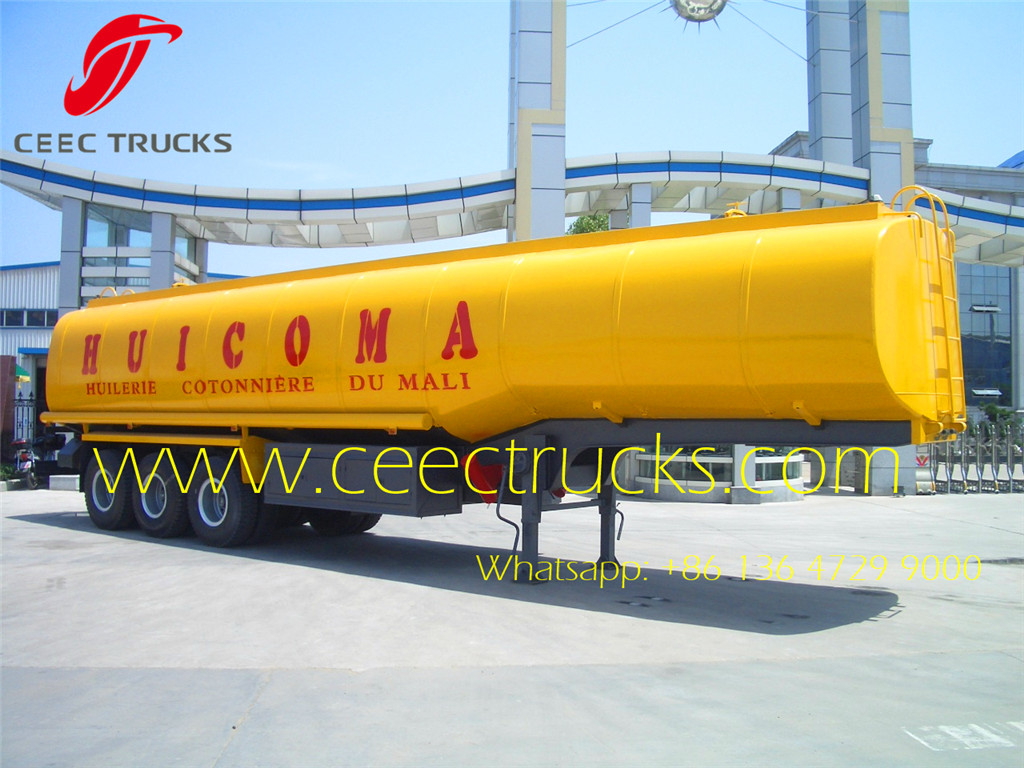

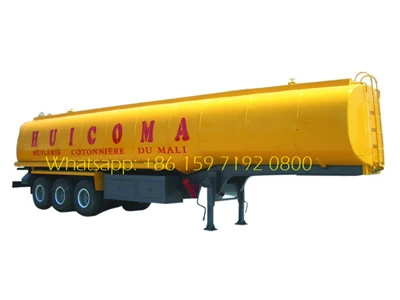

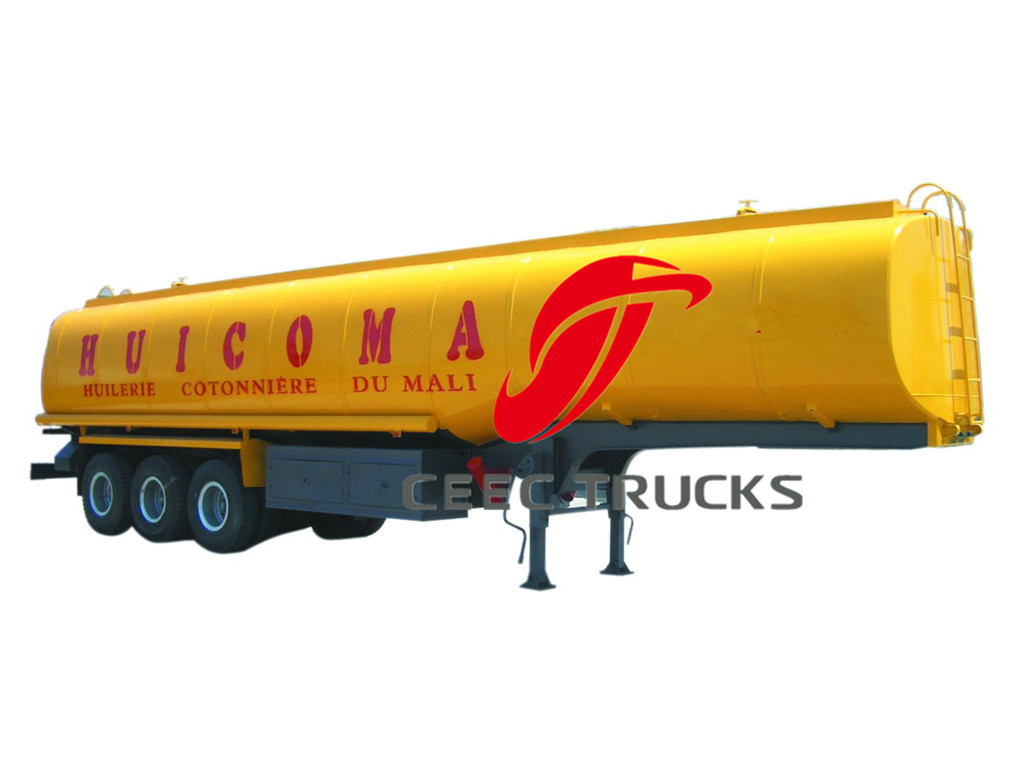

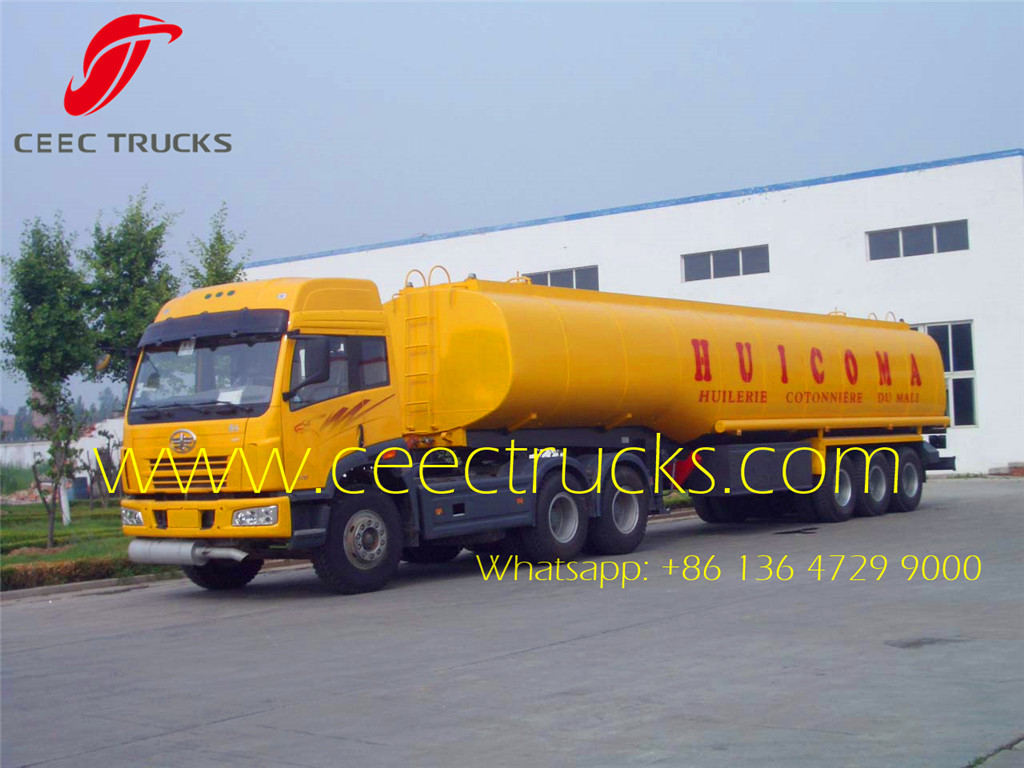

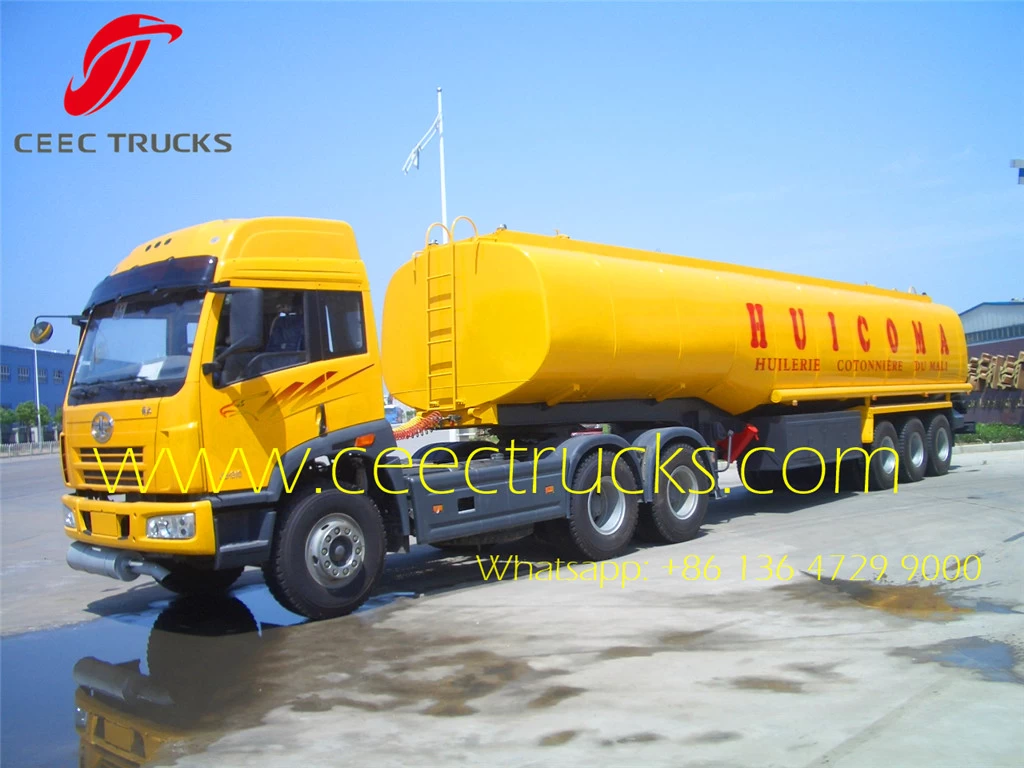

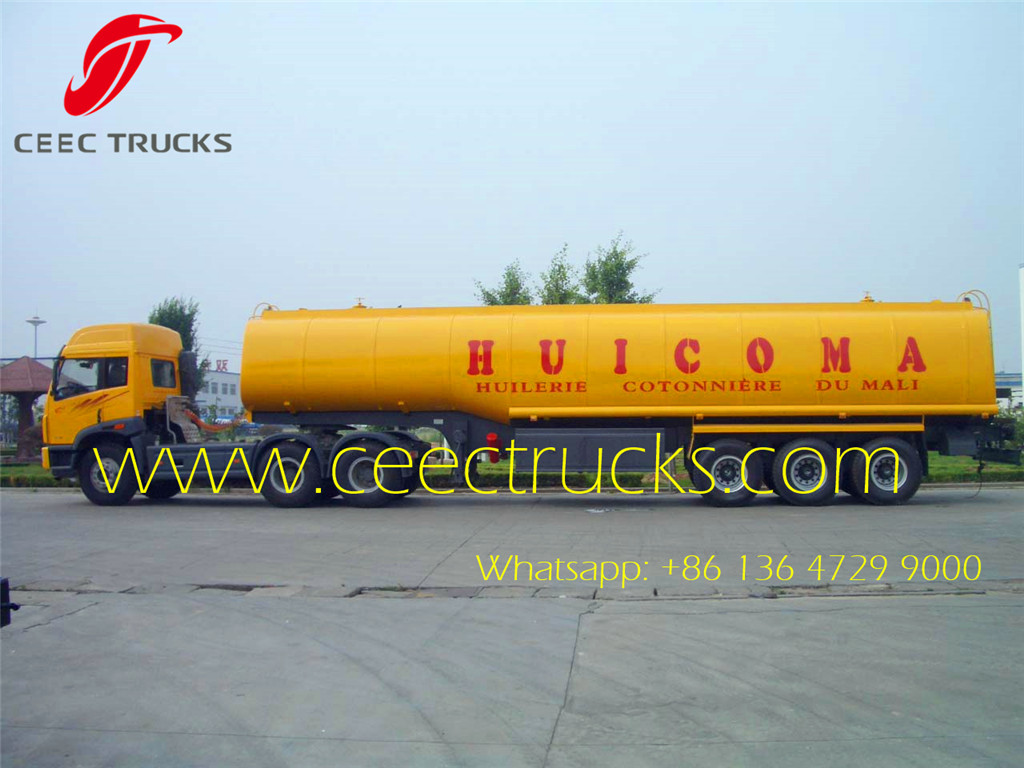

Maximum 50 CBM oil tanker semitrailer for Angola
Angola client choose CEEC TRUCKS as best 2 axle and 3 axle fuel tanker semitrailer for below reasons:
★ The tank is grounded to discharge static electricity produced by the rubber tire, which might cause fire during fuel transfer operation. Upon your request, we can add a power take-off system to the tank that is powered by gearbox, which controls the tank to either sucks in or discharge fuel.
★ The tank of our semi trailer also comes with two hoses and quick couplers. Its suction head is 6 meters. Two fire extinguishers and other specialized tools are also sure to come in handy during emergency. The whole tank semi trailer is comprised of two parts, the tank assembly and tank support.
★ In addition, the 40CBM ~ 50CBM tank semi trailer can be equipped with various kinds of valves, discharge ports, and tank lids, such as in square or round shapes. Choices of these parts can be made all according to your likings.
★ Simply tell us the variety of materials to be transported, particle size, density, and desired tank capacity and weight, and we will design accordingly a suitable semi trailer model available with various chassis, tanks, and fuel feeders.
CEEC TRUCKS as best semitrailers manufactures, Africa countries including kenya, Congo, Algeria, Nigeria, Tanzania, Cameroon, etc. also Asia countries Afganistan, Dubai, etc. choose 2 axle / 3 axle fuel tank semi trailers are widely used for fuel / diesel / gasoline transportation.
Similar Key Words: 48 CBM fuel tanker trucks suppliler, oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tanker trailer, stainless steel oil tanker trailer, 50 CBM carbon steel trailer tank fuel

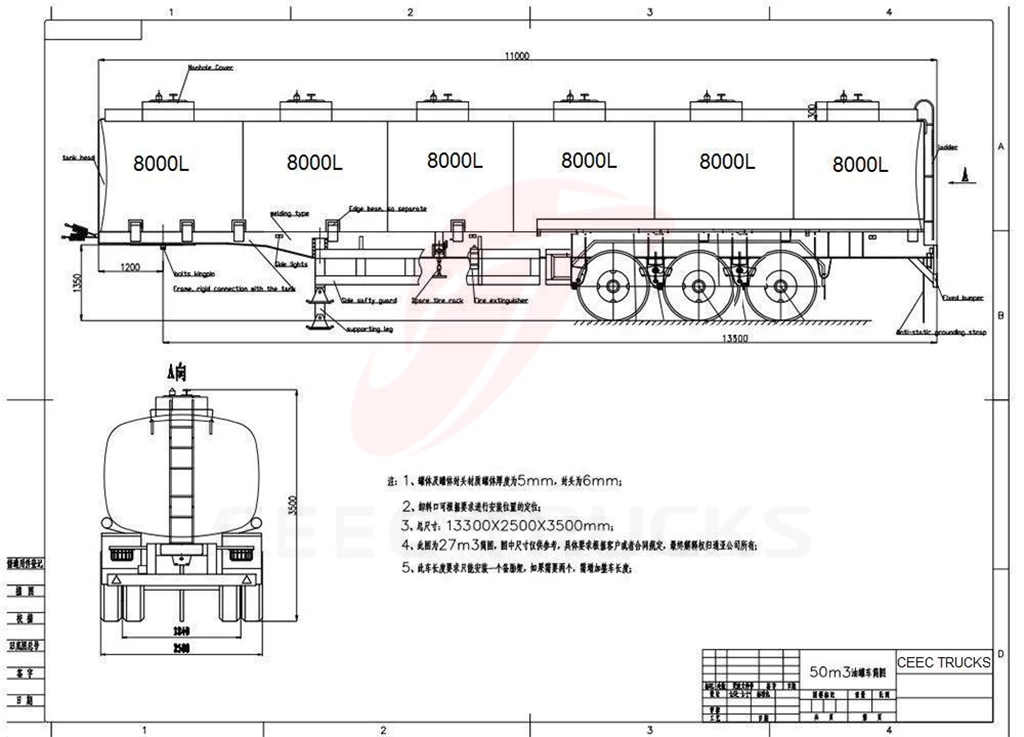

| 50 CBM Fuel Semitrailer Tank Body
|
| Shape
|
Round or Square
|
| Dimension
|
12000mm×2490mm×3990mm ( The exact size depends on the final design.)
|
| Tare weight
|
About 8000kg-12800kg
|
| Total Volume ( m3 )
|
50 m³
|
| Tanker Body Material
|
5mm or 6mm/ Q235 carbon steel
|
| End Plate
|
5mm or 6mm /Q235 carbon steel
|

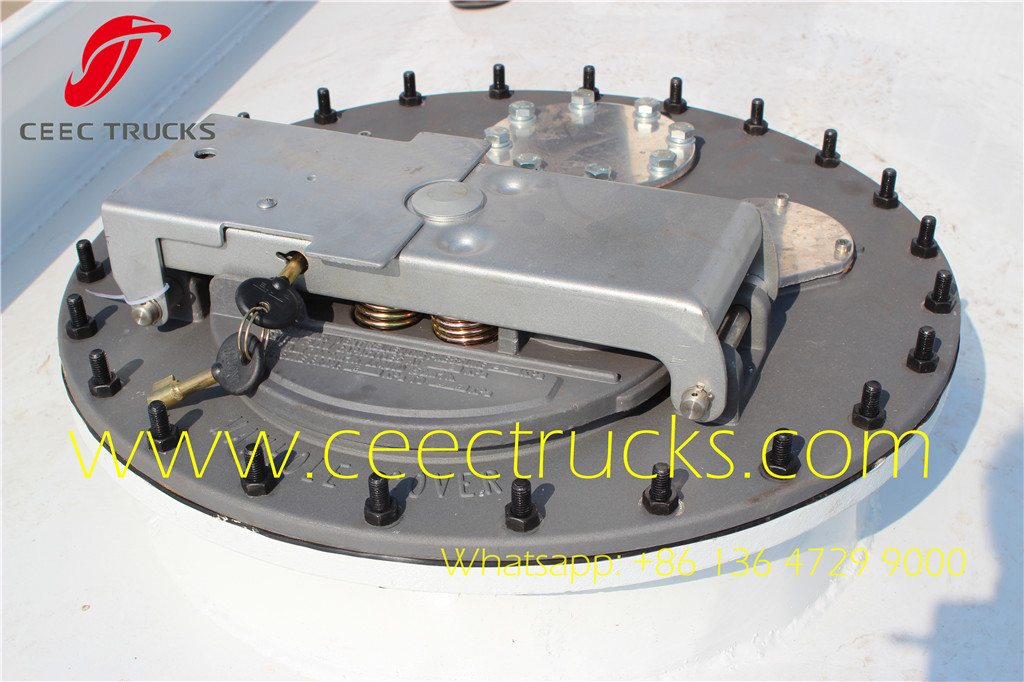

| Manhole Cover
|
Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)
|
| Bottom Valve
|
Aluminum API Pneumatic Bottom Valve
|
| Discharging Valve
|
Diameter is 3 or 4 inch
|
| Compartments
|
Optional
|
| Discharging Pipe
|
4” rubber hose, 2 pcs , 6m/each
|
| Cat Walk
|
With (Common model or special design)
|
| Chassis
|
| Main Beams
|
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material
|
| Axle
|
2 or 3 axles, BPW/FUWA/HUAJING brand
|
| Landing Gear
|
JOST (D200T ) or CHINA BRAND 28T
|
| King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
| Suspension
|
Mechanical suspension/Germany or America type /air suspension
|
| Leaf Spring
|
90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without
|
| Pneumatic Braking System
|
WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank
|
| Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|
| Tire
|
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
| ABS
|
Optional
|
| Painting
|
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
|
| Accessories
|
One standard tool box
|
| Shipping Terms
|
By bulk cargo ,RORO or 40HQ Containers
|
