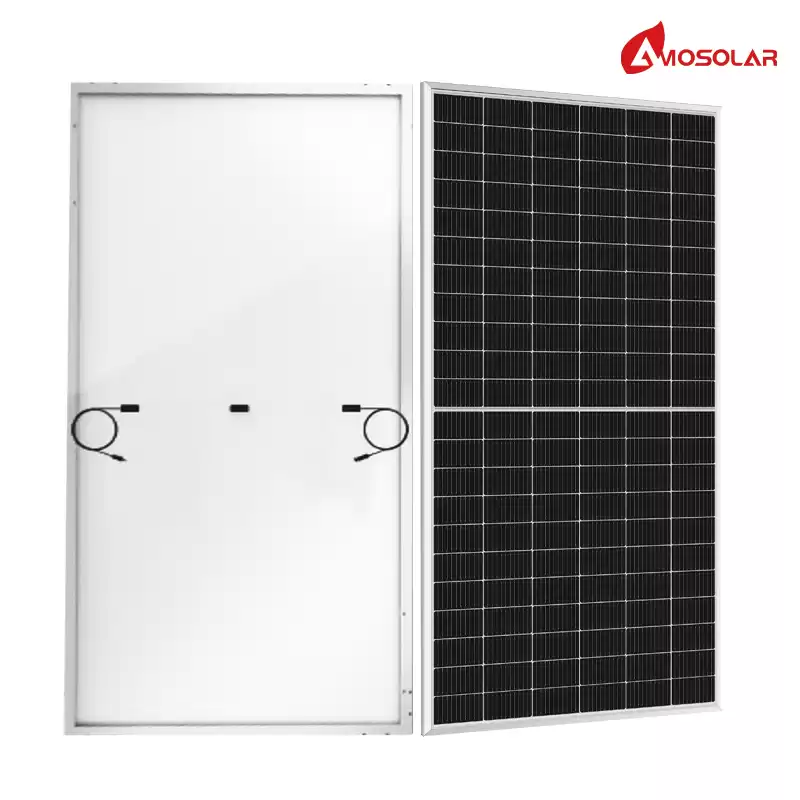

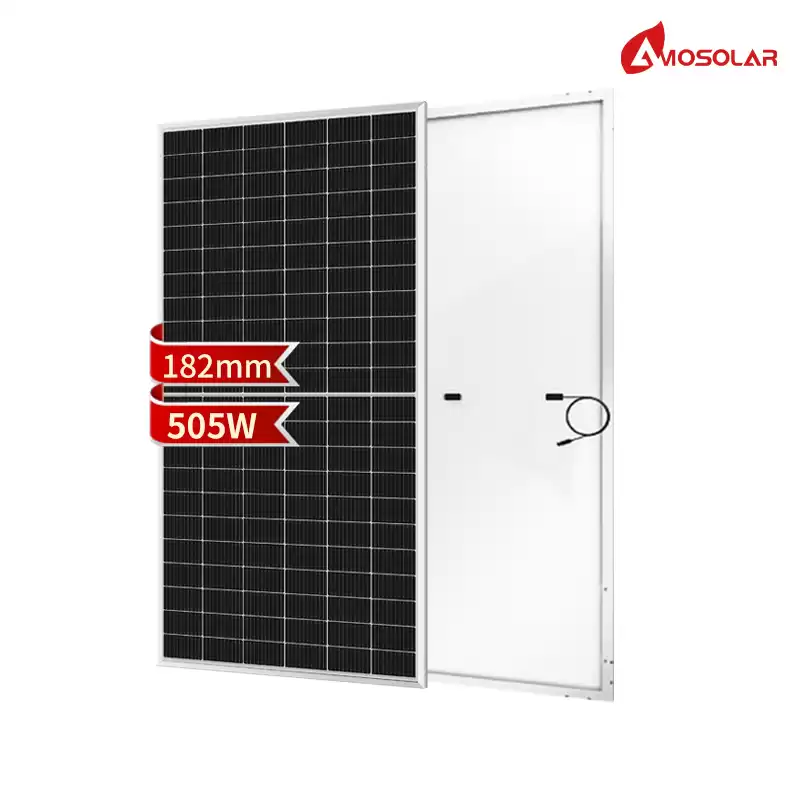

480W-505W Half Cells Mono Solar Panel China Factory : High Quality PV Module with latest PERC technology, 182mm half-cell solar panels with popular models.
Electrical Performance Parameters (STC Test)
Model
|
AS480M10-132
|
AS485M10-132
|
AS490M10-132
|
AS495M10-132
|
AS500M10-132
|
AS505M10-132
|
|
Rated Maximum Power at STC
|
480W
|
485W
|
490W
|
495W
|
500W
|
505W
|
|
Open Circuit Voltage (Voc)
|
45.07
|
45.22
|
45.37
|
45.52
|
45.67
|
45.82
|
|
Maximum Power Voltage (Vmp)
|
37.36
|
37.81
|
37.97
|
38.13
|
38.29
|
38.45
|
|
Short Circuit Current (Isc)
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
|
Maximum Power Current (Imp)
|
12.75
|
12.83
|
12.90
|
12.98
|
13.06
|
13.13
|
|
PV Module Efficiency (%)
|
20.21
|
20.42
|
20.64
|
20.85
|
21.06
|
21.30
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 132( 6 × 22 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 26.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

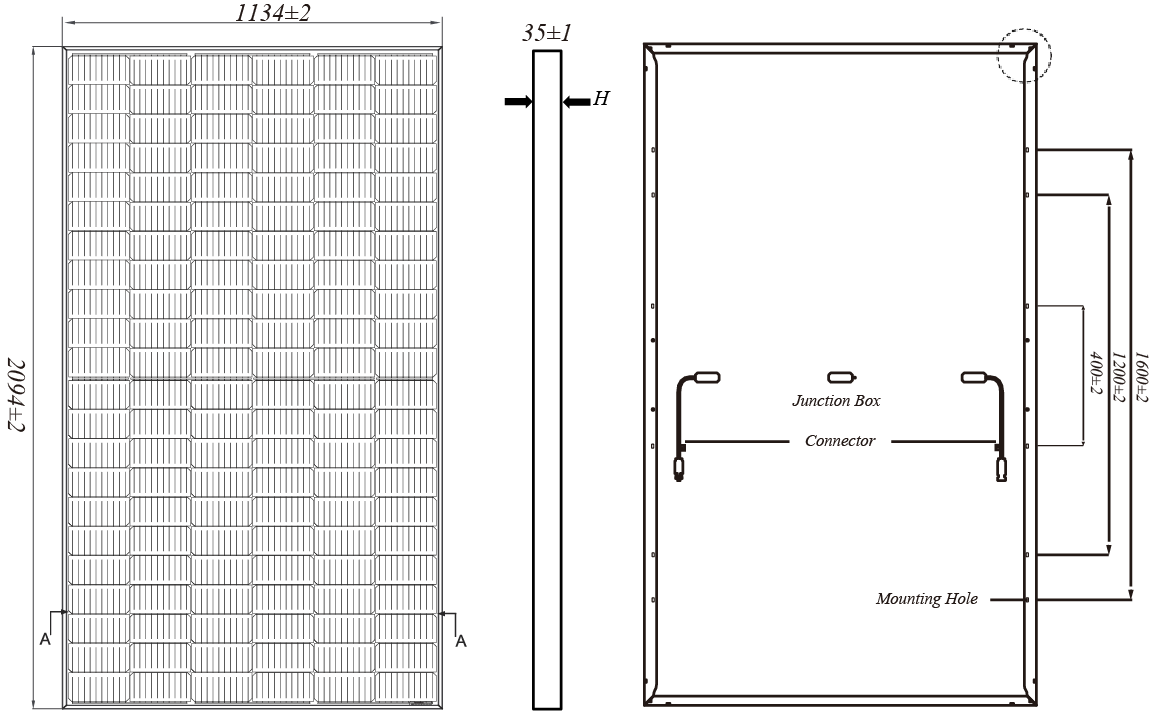

PV Size: 2094×1134×35mm
Packaging: 31 pcs / pallet
682 pcs / 40HQ container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
