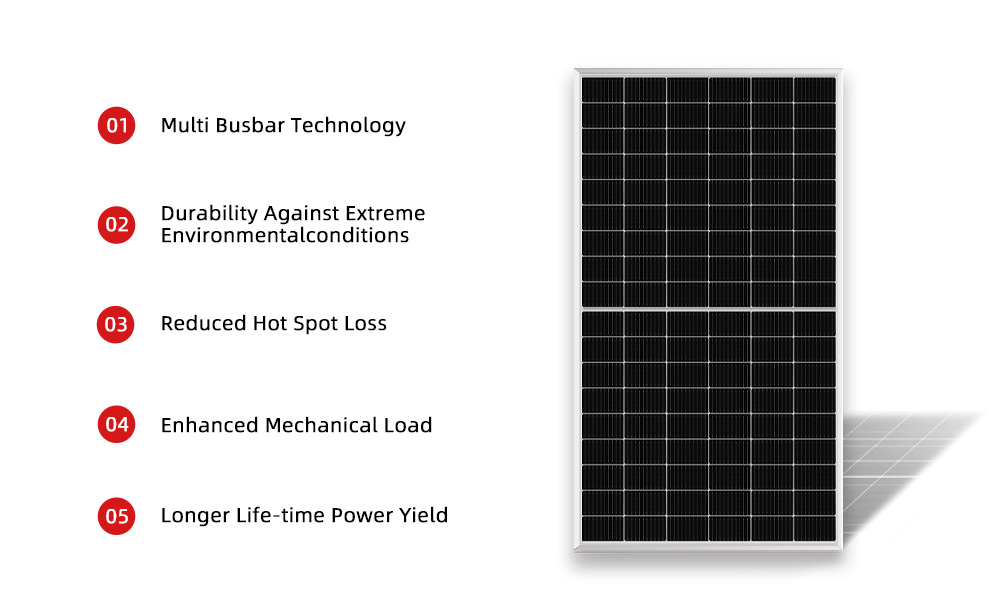

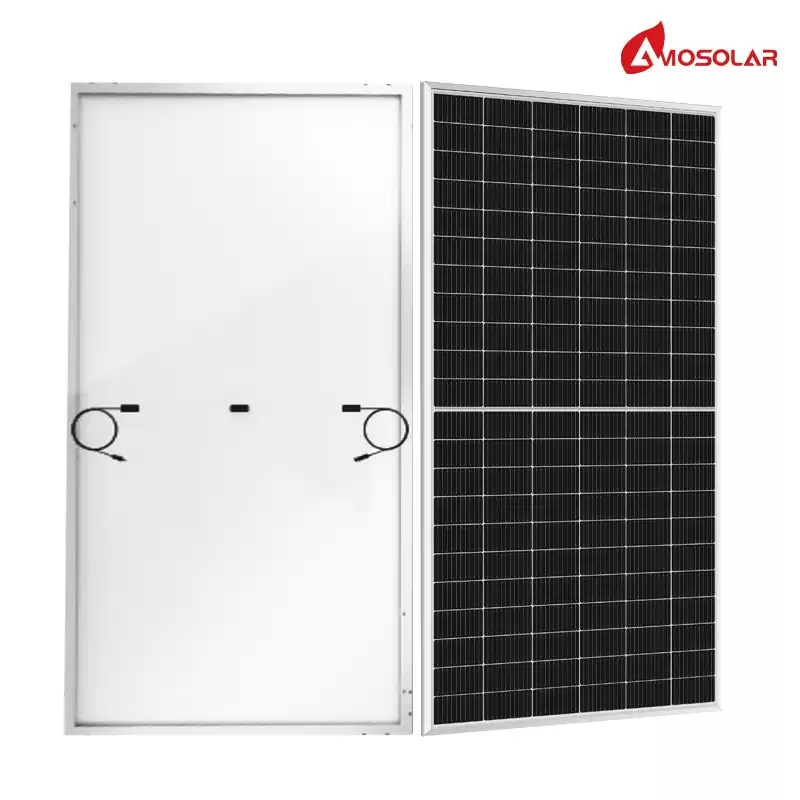

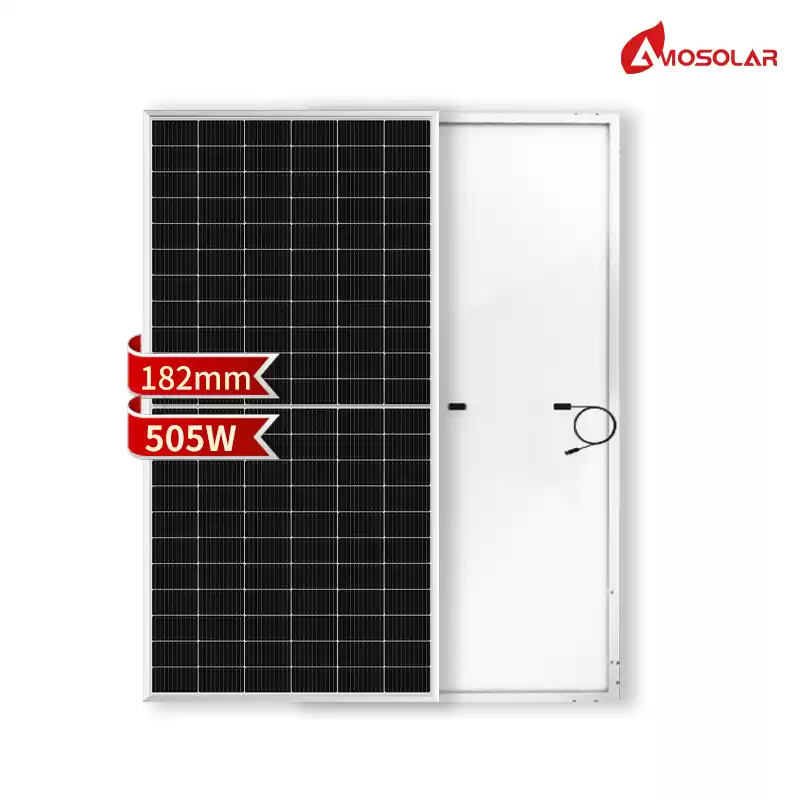

480W-505W Half Cut Mono PV Panel Chinese Manufactory : With latest multi-busbar PERC technology, 182mm half-cell solar panels with bigger power, higher efficiency, longer life, better performance.

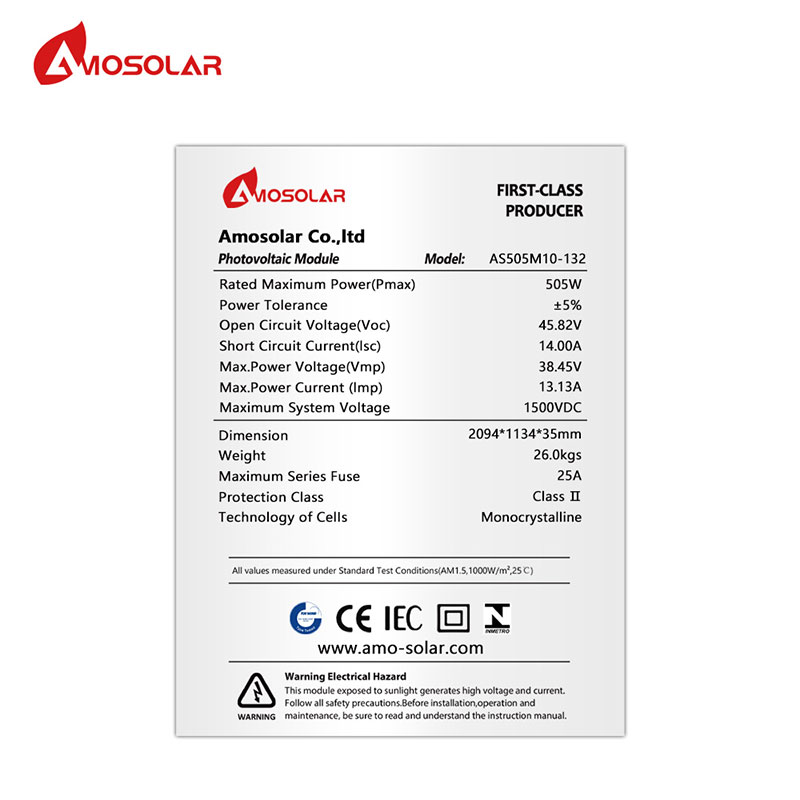

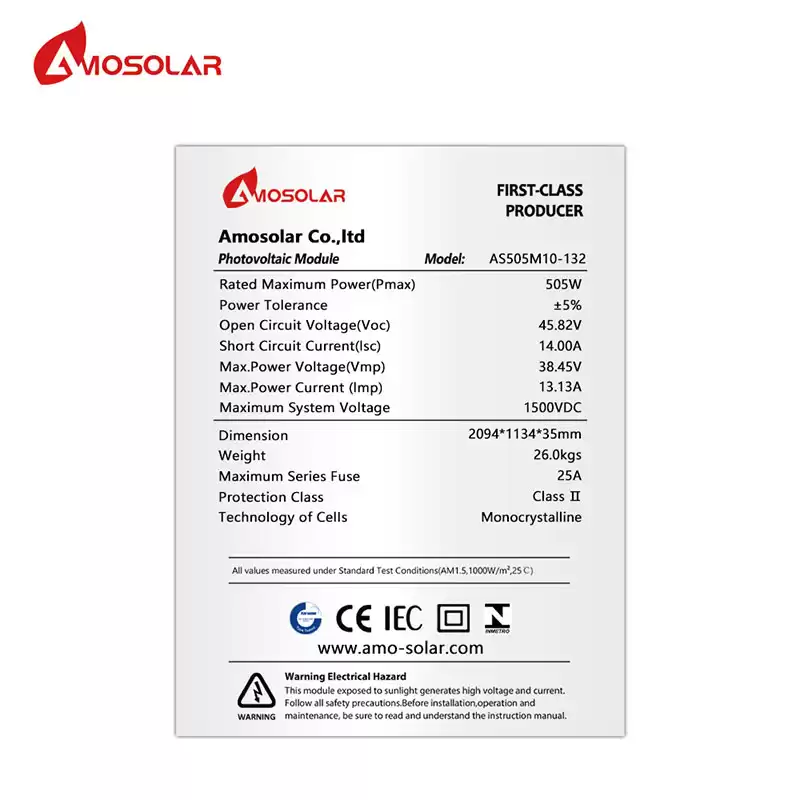

Electrical Performance Parameters (STC Test)
Model
|
AS480M10-132
|
AS485M10-132
|
AS490M10-132
|
AS495M10-132
|
AS500M10-132
|
AS505M10-132
|
|
Rated Maximum Power at STC
|
480W
|
485W
|
490W
|
495W
|
500W
|
505W
|
|
Open Circuit Voltage (Voc)
|
45.07
|
45.22
|
45.37
|
45.52
|
45.67
|
45.82
|
|
Maximum Power Voltage (Vmp)
|
37.36
|
37.81
|
37.97
|
38.13
|
38.29
|
38.45
|
|
Short Circuit Current (Isc)
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
|
Maximum Power Current (Imp)
|
12.75
|
12.83
|
12.90
|
12.98
|
13.06
|
13.13
|
|
PV Module Efficiency (%)
|
20.21
|
20.42
|
20.64
|
20.85
|
21.06
|
21.30
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 132( 6 × 22 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 26.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

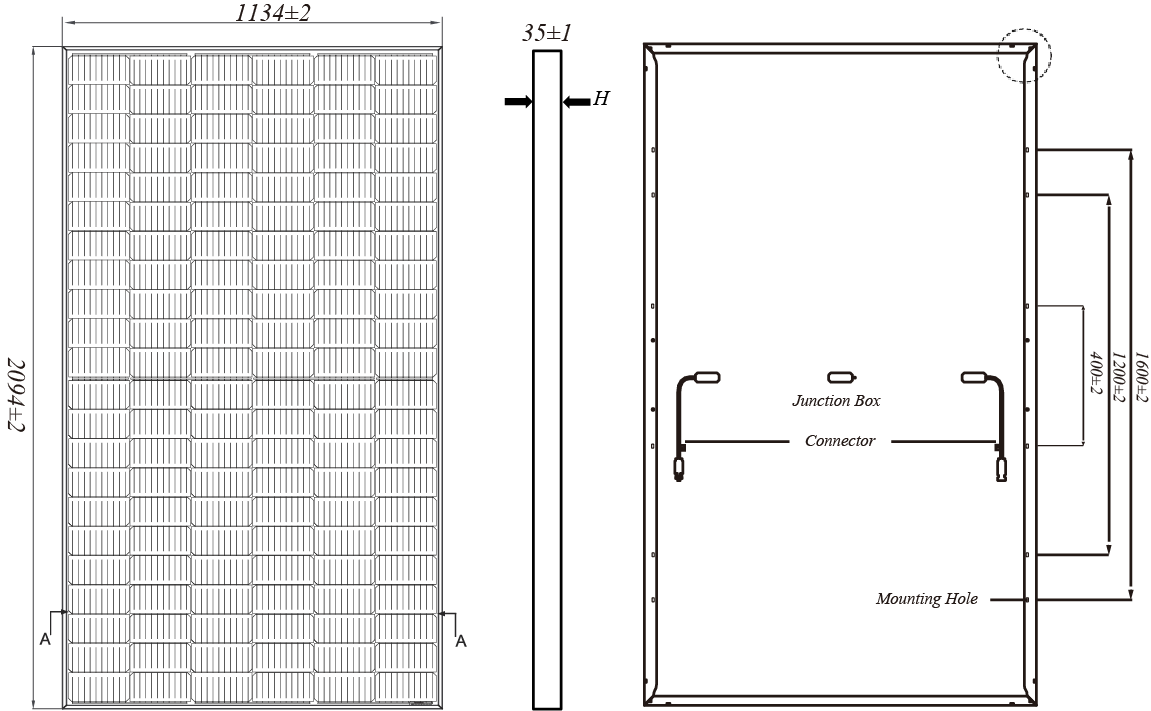

PV Size: 2094×1134×35mm

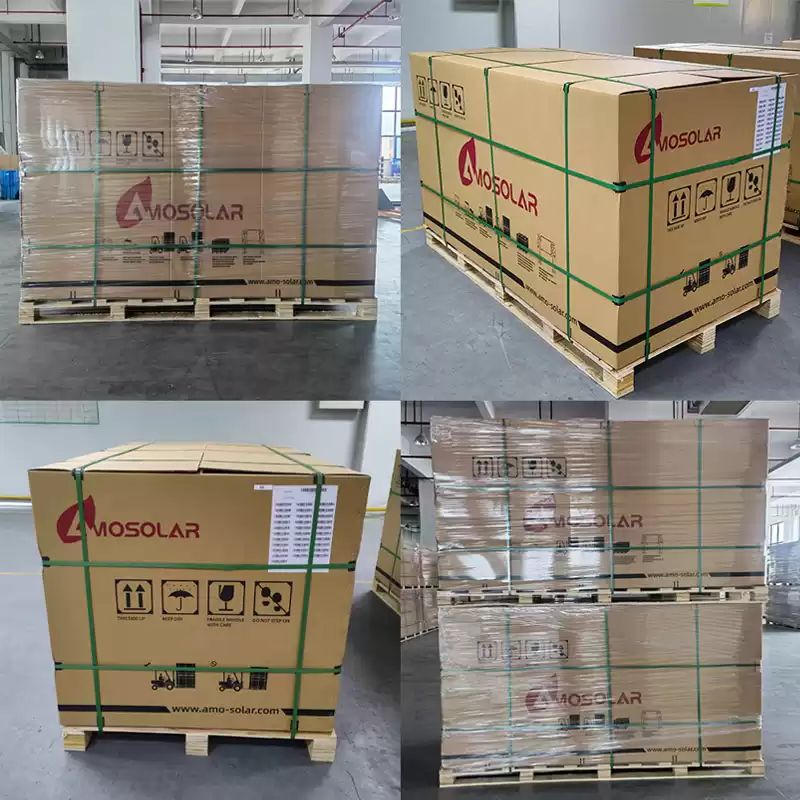

Packaging: 31 pcs / pallet
682 pcs / 40HQ container
