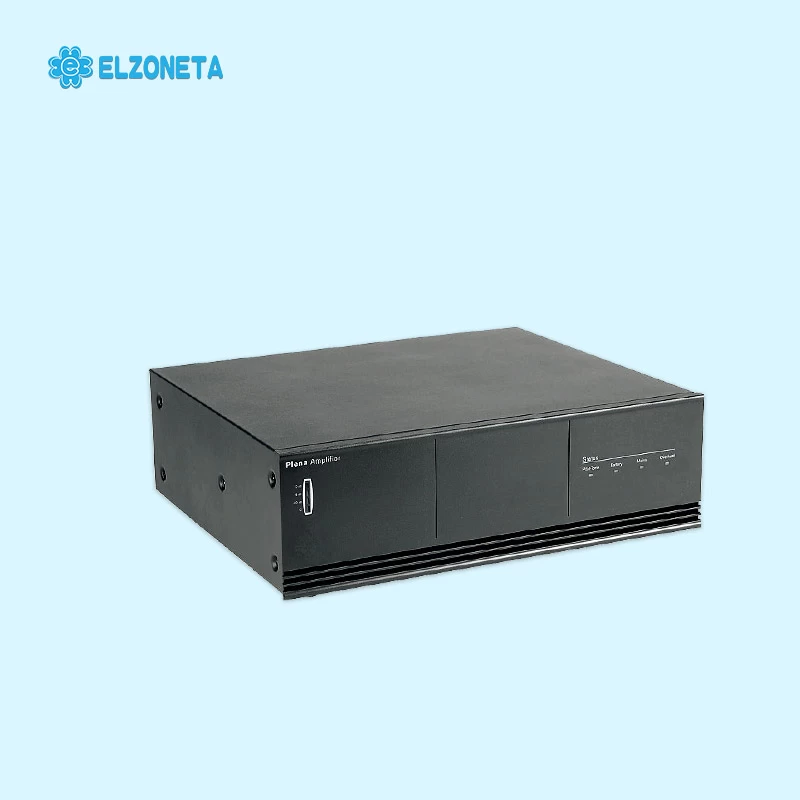

EC-PVS-PA480W 480W Power Amplifier
Features
1.480 W power amplifier in a 3U high 19” housing
2.EN 54 16 certified
3.70 V / 100 V and 8 ohm outputs
4.Dual inputs with priority switching
5.100 V input for slave operation on 100 V speaker line
Specification
|
Mains power supply
|
|
|
Voltage
|
230 VAC, ±10%, 50/60 Hz
|
|
Inrush current
|
19 A
|
|
Max power consumption
|
2200 VA
|
|
Battery power supply
|
|
|
Voltage
|
24 VDC +15% / -15%
|
|
Current max
|
30 A
|
|
Performance
|
|
|
Output power (rms/maximum)
|
480 W / 720 W
|
|
Power reduction on backup power
|
-1 dB
|
|
Frequency response
|
50 Hz to 20 kHz (+1/‑3 dB
@ ‑10 dB ref. rated output)
|
|
Distortion
|
<1% @ rated output
power, 1 kHz
|
|
S/N (flat at max volume)
|
>90 dB
|
|
Line inputs
|
2 x
|
|
Connector
|
3‑pin XLR, balanced
|
|
Sensitivity
|
1 V
|
|
Impedance
|
20 kohm
|
|
CMRR
|
>25 dB (50 Hz to
20 kHz)
|
|
Gain
|
40 dB
|
|
100 V input
|
|
|
Connector
|
Screw, unbalanced
|
|
Sensitivity
|
100 V
|
|
Impedance
|
330 kohm
|
|
Line loop-through output
|
2 x
|
|
Connector
|
3‑pin XLR
|
|
Nominal level
|
1 V
|
|
Impedance
|
Direct connection to line input
|
|
Loudspeaker outputs
|
3 x
|
|
Connector
|
Screw, floating
|
|
Direct output
|
100 V, 70 V, 8 ohm
|
|
Priority only (from input 1)
|
100 V or 70 V internally
selectable
|
|
Music (non-priority) only
|
100 V or 70 V internally
selectable
|
|
|
|
Mains operation
|
|
|
Max power
|
990 W
|
|
-3dB
|
715 W
|
|
-6dB
|
510 W
|
|
Pilot tone*
|
110 W
|
|
Idle
|
25 W
|
|
24 VDC operation
|
|
|
Max power
|
32 A (770 W)
|
|
-3 dB
|
26 A (625 W)
|
|
-6 dB
|
18 A (430 W)
|
|
Pilot tone*
|
3.8 A (91 W)
|
|
Idle
|
0.7 A (17 W)
|
|
|
|
Dimensions (H x W x D)
|
145 x 430 x 370 mm (19"
wide, 3U high, with feet)
|
|
Weight
|
Approx. 25 kg
|
|
Mounting
|
Standalone, 19”rack
|
|
Color
|
Charcoal
|
|
|
|
Operating temperature
|
-10 ºC to +55 ºC
(14 ºF to +131 ºF)
|
|
Storage and transport temperature
|
-40 ºC to +70 ºC
(-40 ºF to +158 ºF)
|
|
Relative humidity
|
<95%
|
|
Acoustic noise level of fan
|
<48 dB SPL @ 1 m (max output)
|
