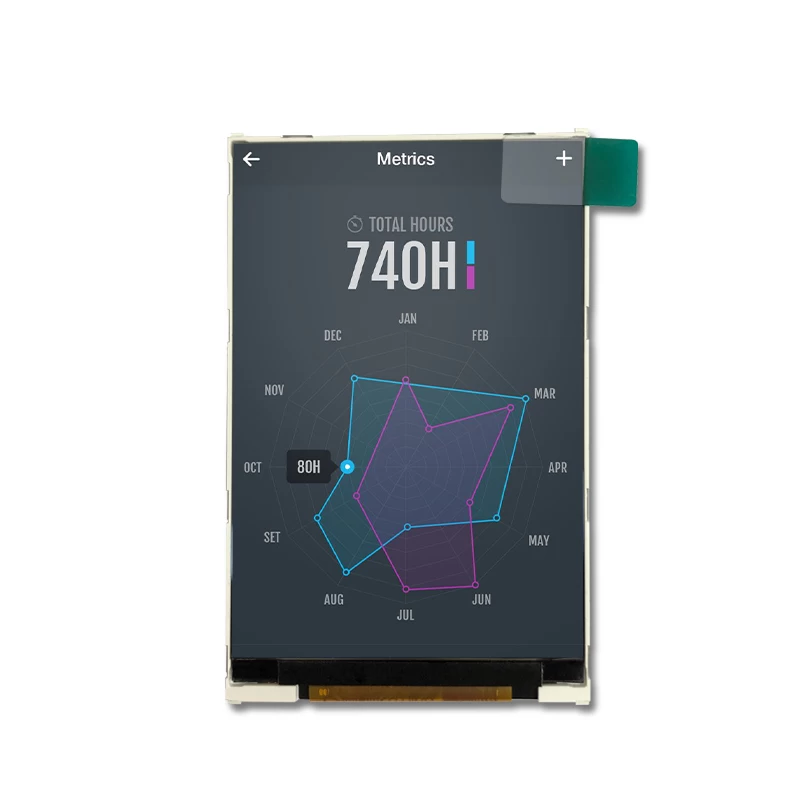

480x800 resolution 4.3 inch IPS TFT LCD module with MIPI interface
TST043WVBI-69
Specification | ||
Part No. | ||
Outline Dimension(mm) |
60.9x104.5x1.9
|
|
Resolution(dots) | 480*RGB*800 | |
Operating temperature(°C) | -20-70 | |
Storage temperature(°C) | -30-80 | |
Number of Pixel(pixels) | 480RGB(H)xRGBx272(V) | |
Touch panel |
without |
|
Driver |
ILI9806E |
|
Pixel arrangement | RGB Vertical stripe | |
Display mode | 4.3 inch IPS TFT | |
Brightness | 260 nits | |
View direction |
ALL |
|
Weight(g) | TBD | |
Power Consumption(w) | Panel | 0.226(Typ.) |
B/L system | 1.674(Typ.) | |
Interface |
MIPI |
|
Module lifetime(Hours) | 50,000-100,000 |
