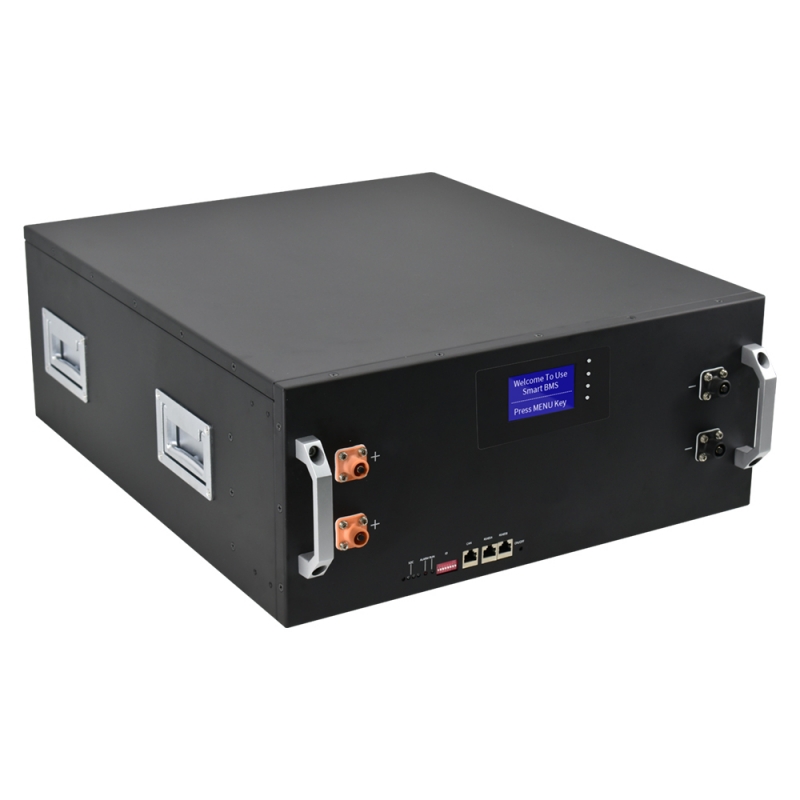

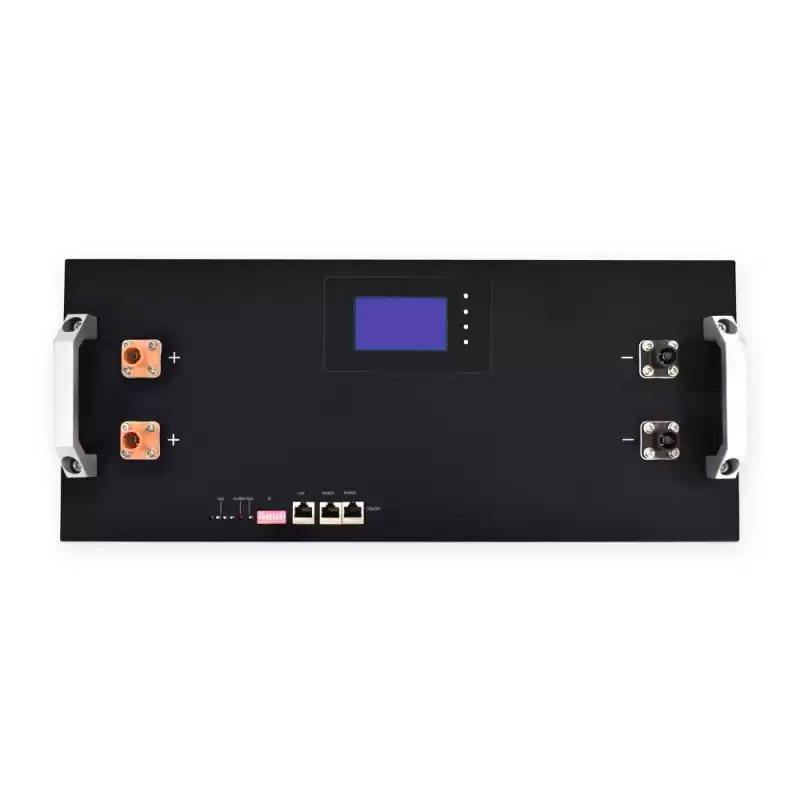

Product Overview

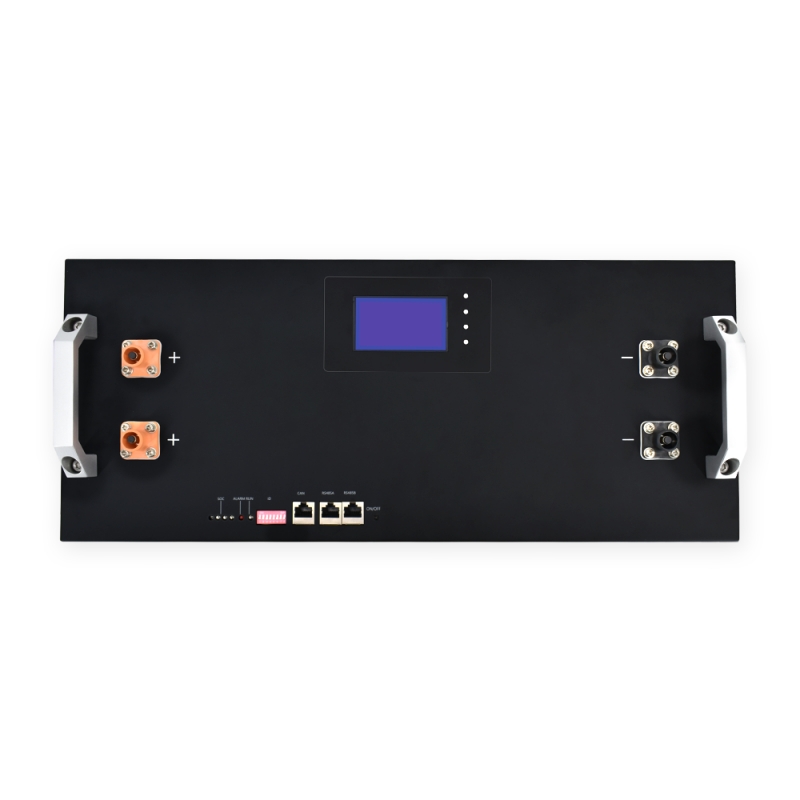

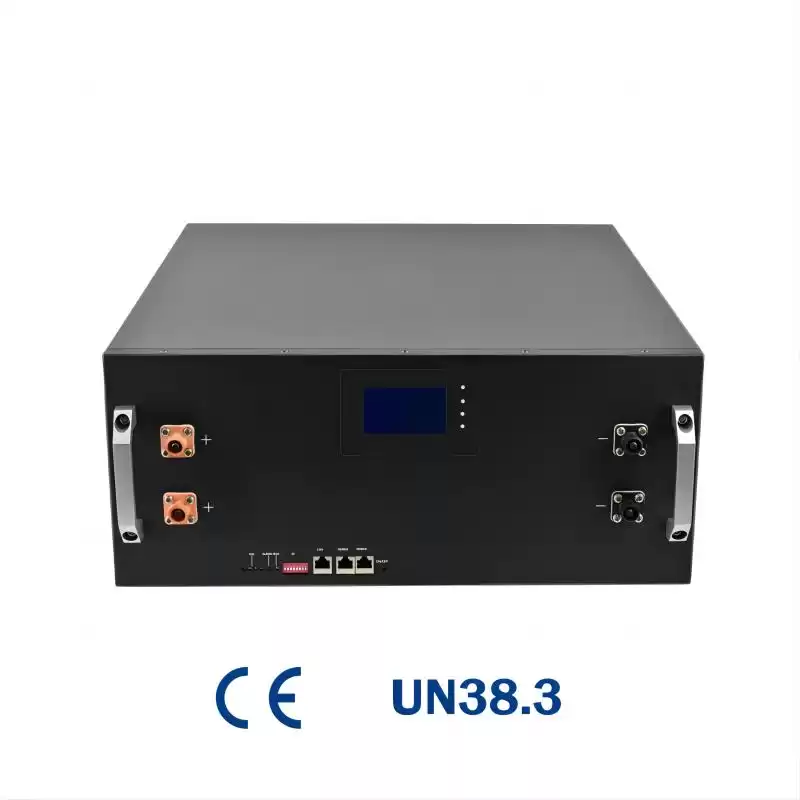

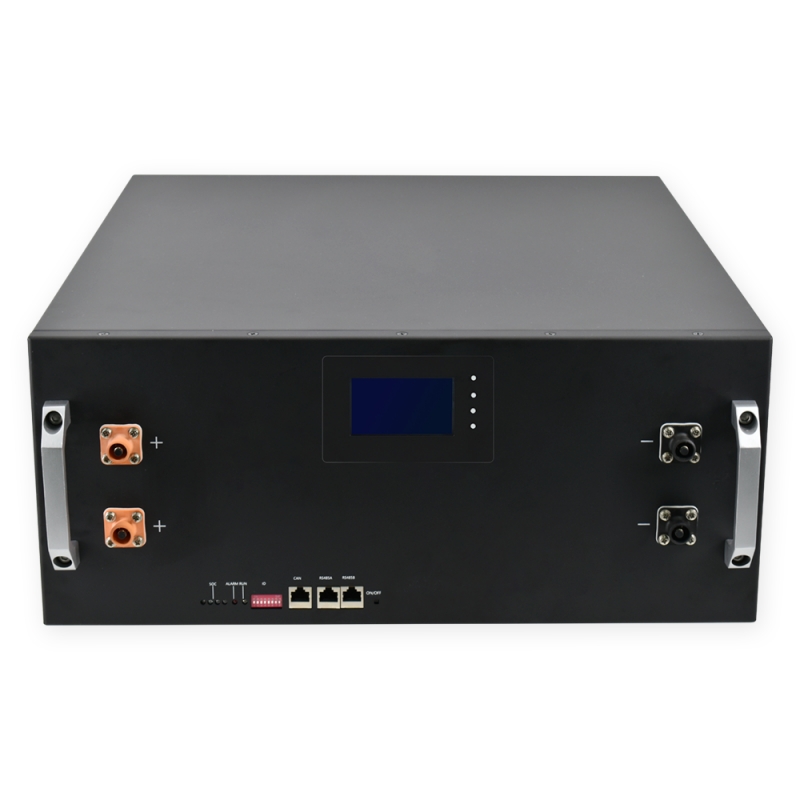

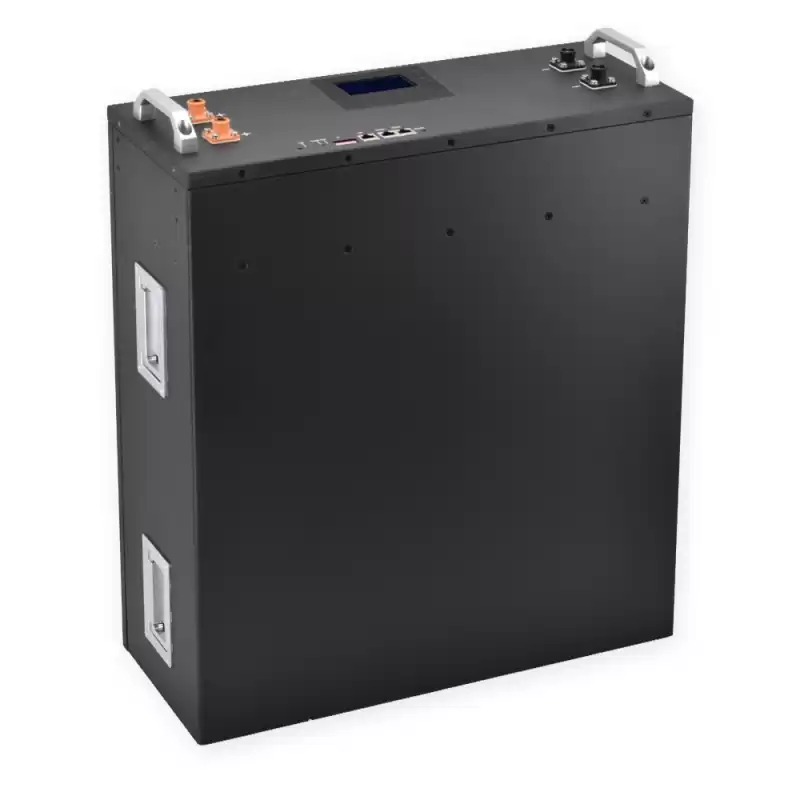

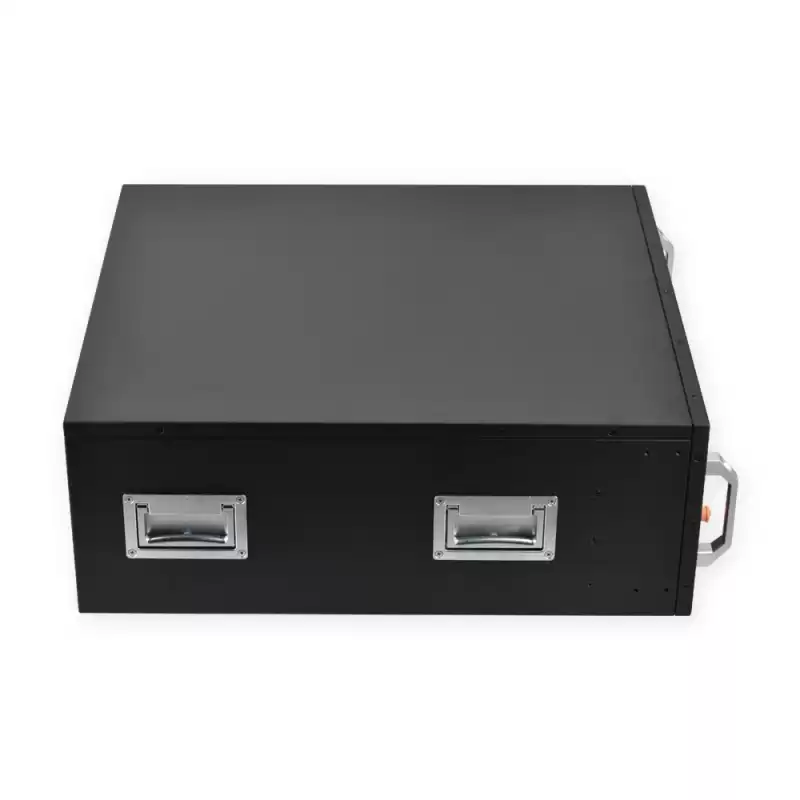

Rack mount energy storage battery and home energy storage battery can be equipped with LCD screen, convenient setting button to monitor the battery status in APP on your smartphone. It comes with the manual of related network cable accessories for your easy installation and use.we support OEM & ODM, welcome to consult and cooperate.
Technical Parameter Table
| Capacity |
48V50AH |
48V100AH |
48V200AH |
| Function |
Over-discharge, Overcharge, Shortcircuit Protection & Equalizati on Function |
| Nominal Volt |
48V/51.2V |
| Nominal Capacity |
2400WH/2560WH |
4800WH/5120WH |
9600W H/10240WH |
| Recommend Cutoff volt |
40.5V/43.2V |
| Recommend Charging vol t |
54V/57.6V |
Max. Constant Charging
Current |
50A/100A/150A/200A etc. Customized to your needs |
| Max.Discharging Current |
| Working Temperature |
-20℃~60℃(Recommend10℃~40℃) |
| Storage Temperature |
-10℃~50℃(Recommend10℃~35℃) |
| Cycle Life |
6000 Cycles(@50%DOD) |
| Communica t ion |
RS485/CAN etc.
All can Customized to your needs |
| Net Weight |
| Dimension |

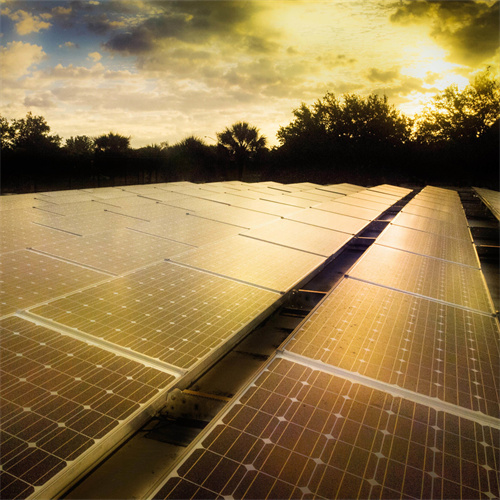

Application Scenarios
1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications
-
-
-
-
Household New Energy Vehicles
All Product Models
♦ Customized service : logo/size/color/etc.
♦ Custom Function: WIFI , Blue tooth , Communication Protocol ,High volt/current Battery. |
|
|
| ZINKWD LiFePO4 Battery |
| Model |
Nominal Voltage |
Nominal Capacity |
Energy |
Size |
| (Customized) |
| CD-25.6V 100AH |
25.6V |
100AH |
2560WH |
500*300*160 mm |
| CD-25.6V 150AH |
25.6V |
150AH |
3840WH |
510*420*210 mm |
| CD-25.6V 200AH |
25.6V |
200AH |
5120WH |
505*475*155 mm |
| CD-48V 50AH |
48V |
50AH |
2400WH |
400*400*180 mm |
| CD-48V 100AH |
48V |
100AH |
4800WH |
500*470*170mm |
| CD-48V 150AH |
48V |
150AH |
7200WH |
530*500*180mm |
| CD-48V 200AH |
48V |
200AH |
9600WH |
600*500*210mm |
| CD-48V 250AH |
48V |
250AH |
12000WH |
570*655*223mm |
| CD-48V 300AH |
48V |
300AH |
14400WH |
780*520*210mm |
| CD-48V 400AH |
48V |
400AH |
19200WH |
470*470*953mm |
| CD-48V 600AH |
48V |
600AH |
28800WH |
670*680*890mm |
| CD-51.2V 50AH |
51.2V |
50AH |
2560WH |
400*400*180 mm |
| CD-51.2V 100AH |
51.2V |
100AH |
5120WH |
500*470*170mm |
| CD-51.2V 150AH |
51.2V |
150AH |
7680WH |
530*500*180mm |
| CD-51.2V 200AH |
51.2V |
200AH |
10240WH |
600*500*210mm |
| CD-51.2V 250AH |
51.2V |
250AH |
12800WH |
570*655*223mm |
| CD-51.2V 300AH |
51.2V |
300AH |
15360WH |
780*520*210mm |
| CD-51.2V 400AH |
51.2V |
400AH |
20480WH |
470*470*953mm |
| CD-51.2V 600AH |
51.2V |
600AH |
30720WH |
670*680*890mm |
| CD-96V 200AH |
96V |
200AH |
19200WH |
670*680*890mm |
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
