48V 50Ah lithium LiFePO4 golf cart battery

  • Apply in Golf cart 48Volt electrical drive system
  • Inside most secure and most powerful LiFePO4 phosphate technology battery cells
  • High end 100A battery management system includes brand Mosfet and IC chips built in provides protect against overheating, over charging, over discharge and short circuit etc
  • Voltage & capacity LED display charger indicator
  • 10 years life span under proper usage



Product Name:

48V 50Ah lithium LiFePO4 golf cart battery


Highlights:

  • Apply in Golf cart 48Volt electrical drive system
  • Inside most secure and most powerful LiFePO4 phosphate technology battery cells
  • High end 100A battery management system includes brand Mosfet and IC chips built in provides protect against overheating, over charging, over discharge and short circuit etc
  • Voltage & capacity LED display charger indicator
  • 10 years life span under proper usage

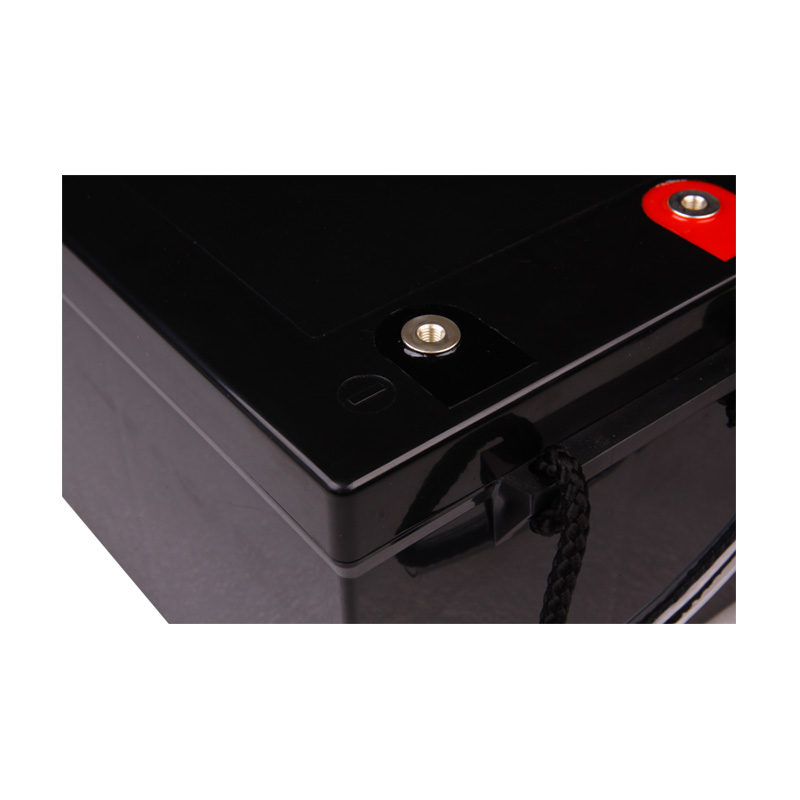

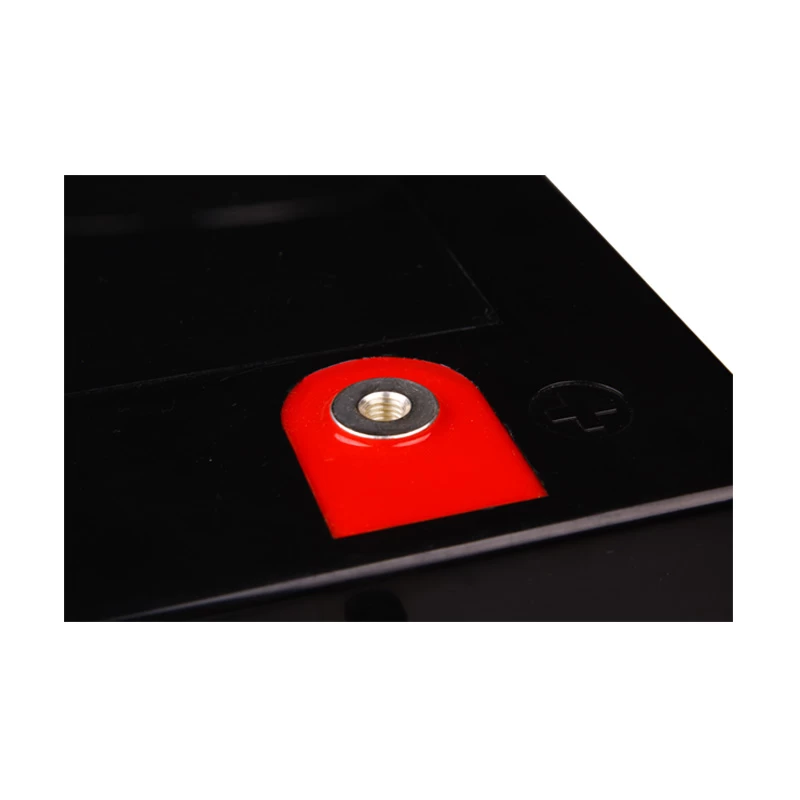

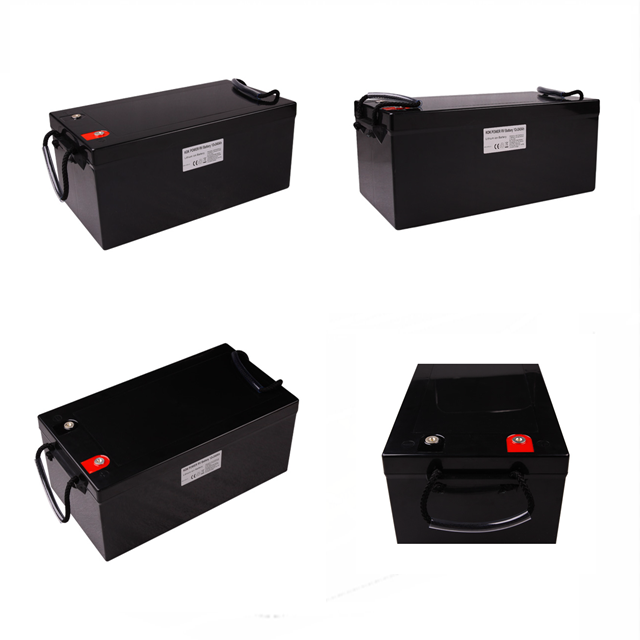

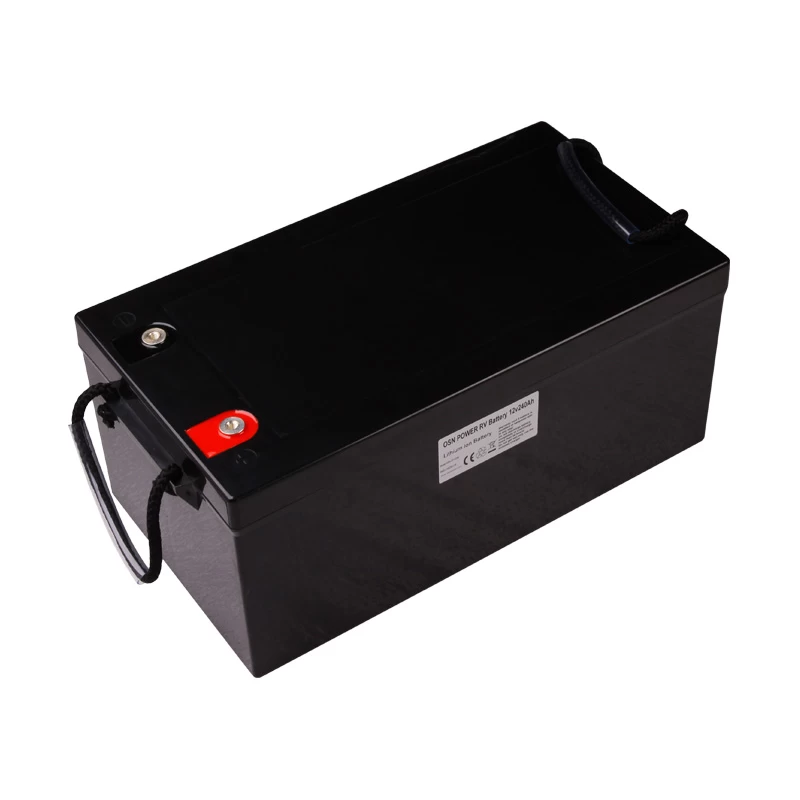

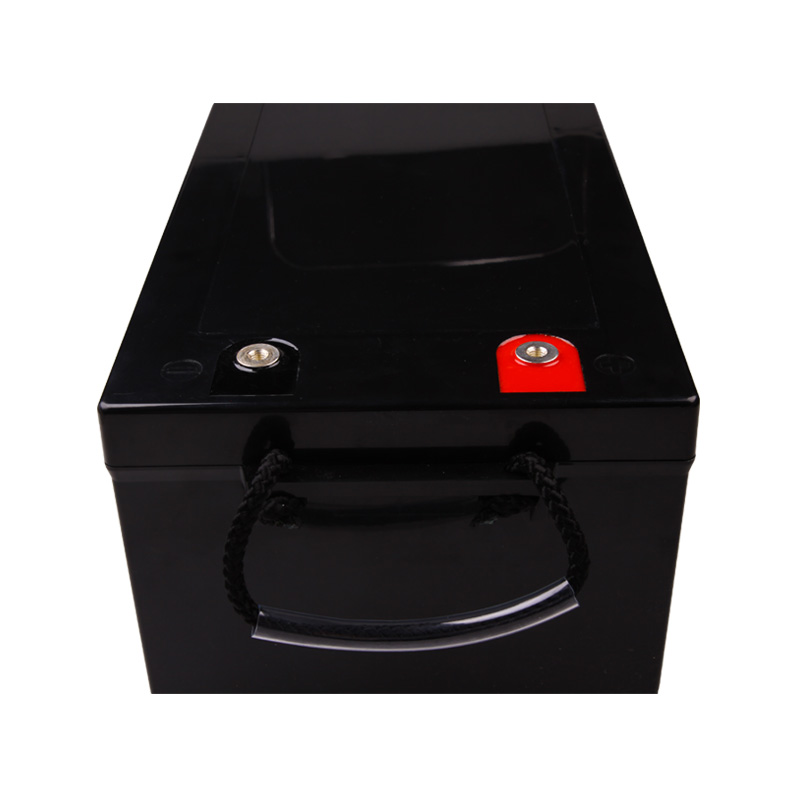

Photos of 48V 50AH LiFePO4 golf cart battery



Datasheet of 48V 50AH LiFePO4 golf cart battery


MODEL

OSN-GC-4850

PERFORMANCE

Rated Capacity

50 Ah

Nominal Voltage

51.2 V

Discharge Ending Voltage

40V

Charging Limited Voltage

58.4V

Max. Charging Current

100.0 A

Max. Continuous Discharging Current

100.0 A

Parallel Connection

No limitation

Containing Cell

3.2V 50AH

Design Life

More than 10 years

Cycle Life

5000 cycles @80% DOD (dependant on actual DOD, usage & temp.)

MECHANICAL SPECIFICATIONS

Dimensions (W*D*H)

Length: 20.55 In  Width: 10.6 In   Height: 8.66 In

Weight

20 Kg

Enclosure

ABS plastic case

Power terminal

M8

OTHER

Operating Temperature

Charging: 0 to +45°C / Discharging: -20 to +55°C

Storage Temperature

-20 to +60°C

Warranty

5 years


More features

  • No limitation on parallel , you can connect 48v 50ah battery in parallel to get more storage for your demands, 2 48V 50AH in parallel connection, 48V 100AH you will get, double drive mileage.
  • Easy to install, plastic case or Customize metal case with handle
  •  Special technical requirements on battery accepted, our technician will design perfect lithium battery solution
  • Offer several types of 48V lithium battery for golf carts at different prices to meet high-end market and cost-effective market
  • 3 years life time limited warranty

Application


Related batteries for golf carts



OSN power supply mature golf cart battery  solution-one lithium battery pack replaces  of several original lead acid batteries for your golf cart. More, we also provide 12V lithium batteries connected in series to get 36V or 48V batteries.
