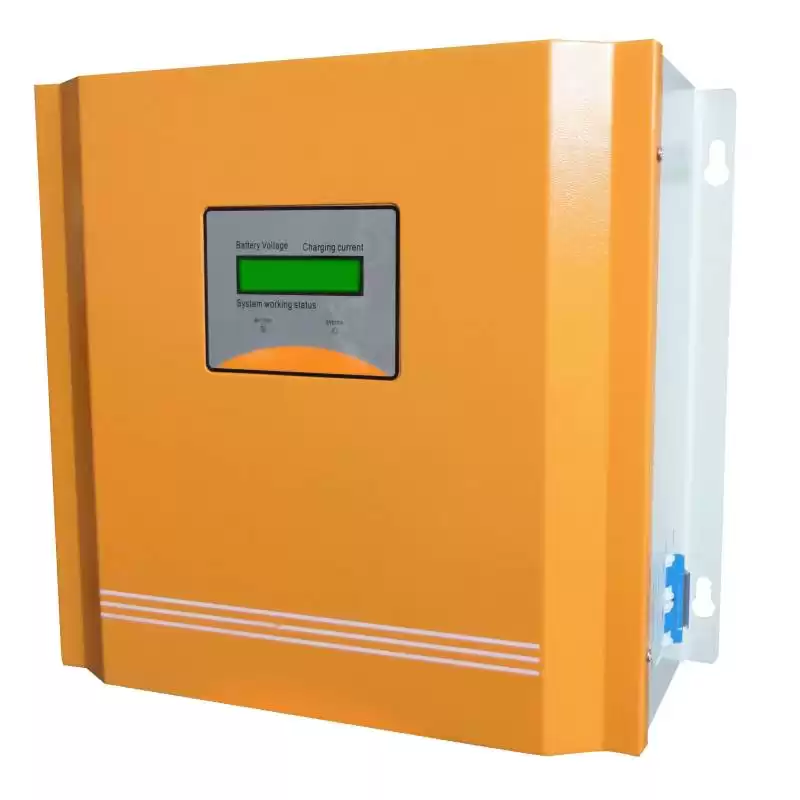

48V 96V 120V 192V 240V Solar Charge Controller 1-10kw

The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging. Charging process has been optimized for long battery life and improved system performance. Meanwhile, the comprehensive self-diagnostics and electronic protection functions can prevent damage from installation or system faults.



Feature of solar charge controller


  •  Accomodate 2 strings input of solar module arrays
  • Digital and module structure designed
  • LCD equipped to show parameters of system running status
  • High efficiency with by PWM charge mode
  • Multi protections as anti-reverse connection, no charging reversely on night. And over-charge, limited charging current &voltage protections for battery
  • With system abnormal status alarm function
  • Users can to modify the system parameters by setting keys
  • Equipped with data communication function (optional)
  • Be able to offer DC power supply (optional)
  • Day and night double processing mode
  • Intelligent cooling system inset


Technical Data of solar charge controller


System Capability

Model

SSCP-48V

SSCP-96V

SSCP-120V

SSCP-144V

SSCP-240V

PV modules Vmp [V]

60-72

120-144

150-180

180-216

300-360

Module arrays input [array]

1 (standard) ; 2(optional)

Rated charging current [A]

30  / 40  / 60  / 75  /  85

Rated battery bank voltage [V]

48  / 96  / 120  /144 / 240

Performance

Consumption at standby [mA]

<50

Consumption at night [mA]

<15

Topology

Transformerless

Operating Temperature Range

-25℃ to +60℃ (45℃ to 60℃ with derating)

Cooling Method

Convection with double cooling fans

Ambient Humidity

0%~98% Non-condensing

Altitude [m]

Up to 2000 (without power derating)

General Data

Terminal

Universal UK series

LCD Display

LCD (16X2characters,green backlight)

Display Language

English

Data communication

RS232

Ingress Protection Class

IP20 (indoor)

Noise [dBA]

<30

Mounting

Wall mounting type

Dimensions (W*D*H) [mm]

380 *355 *150

Net weight [kg]

8.5

Standard Warranty [year]

1
