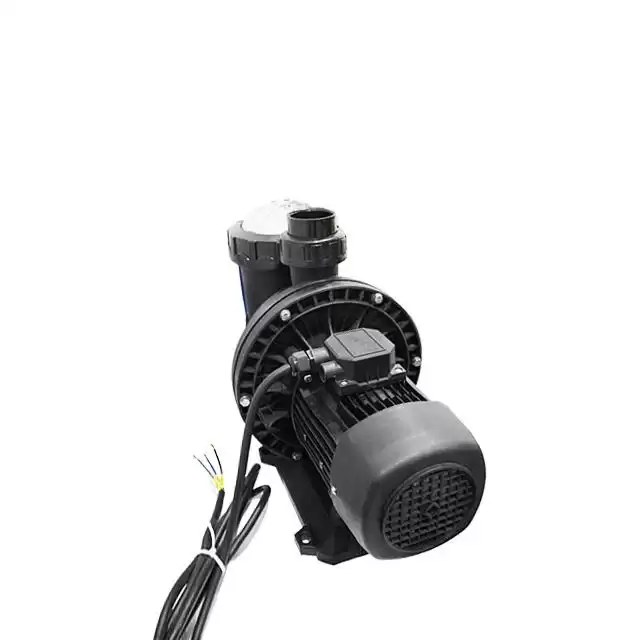

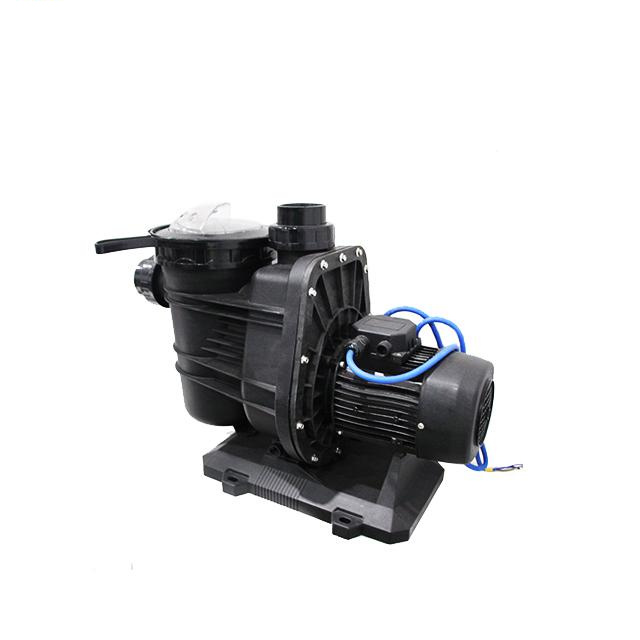

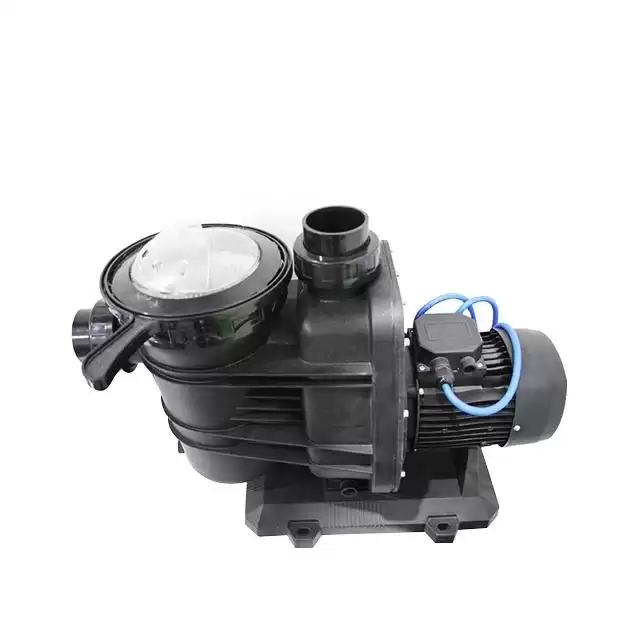

48V DC Swimming Pool Solar Water Pump
Features

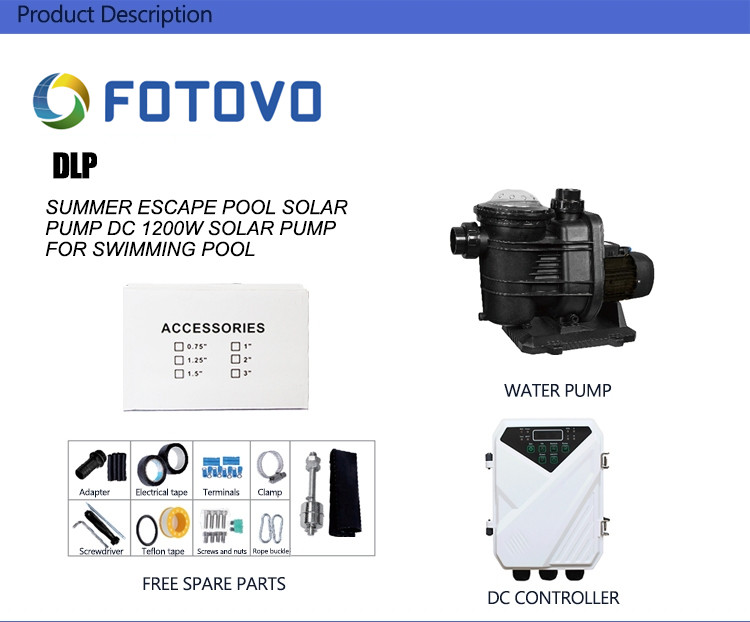

1. Summer escape pool soalr water pump.
2. DC 1200W pump for swimming pool.
3. Alloy mechanical seal: Longer working life and high reliability.
4. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is
much improved.
5. Intelligent water shortage protection: The pump stops working automatically when there is no water in the
well, and automatically start working 30 minutes later.

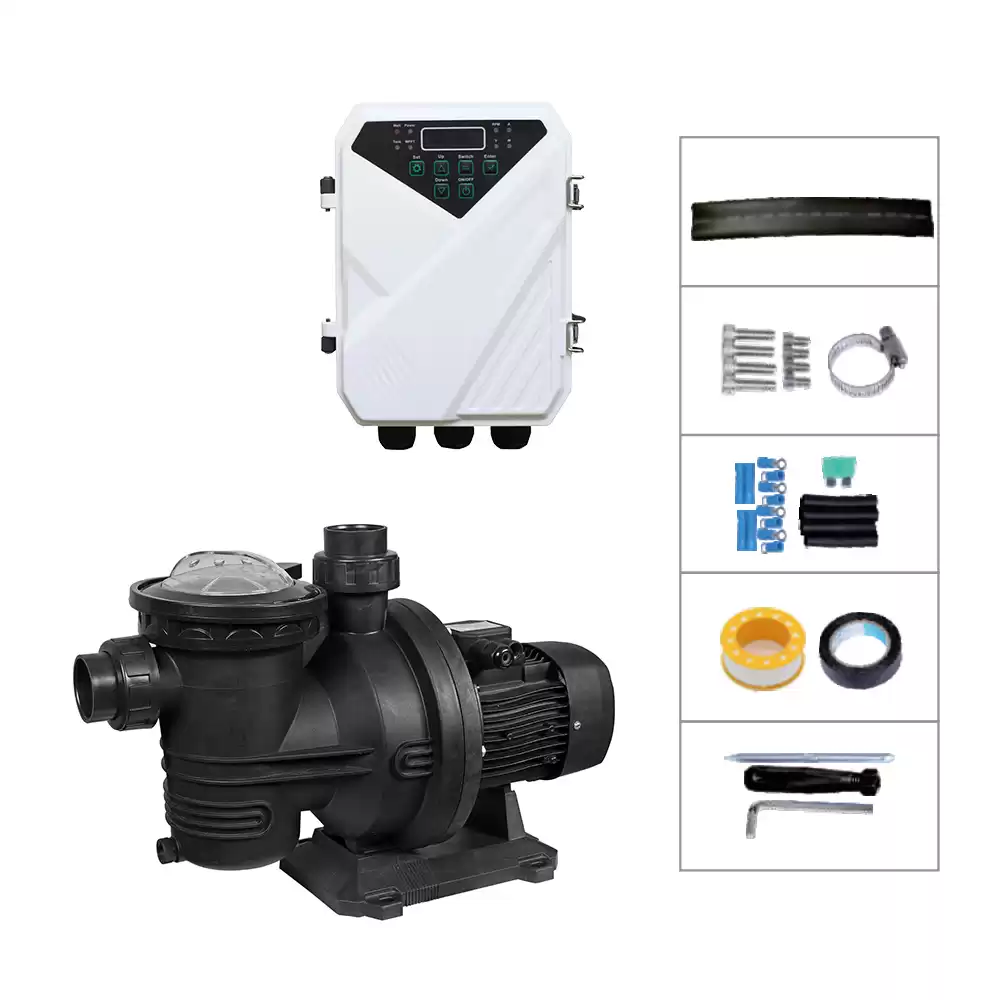

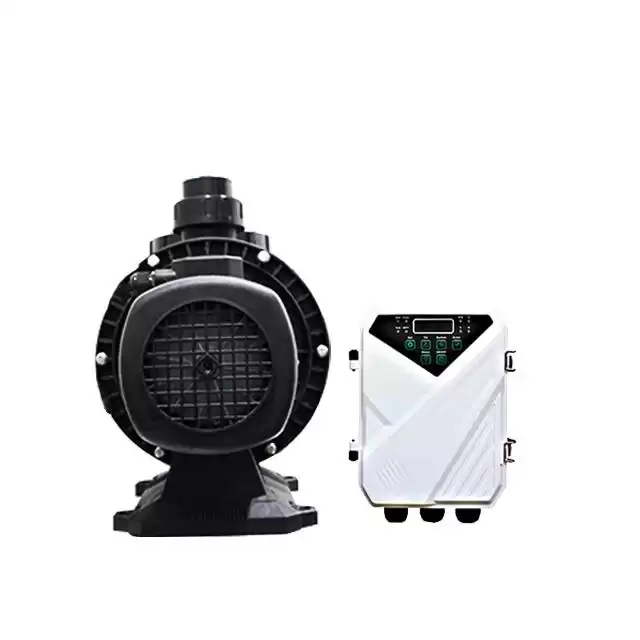

6. Controller:
1)Waterproof grade: IP65
2)Ambient temperature:-15℃~60℃
3)Water proof and leak-proof: Double seal effect.
4) Sofe start: No impulse current, protect the pump motor.
5) High voltage/Low voltage/Over-current/High temperature protection.
7. 2 years warranty.

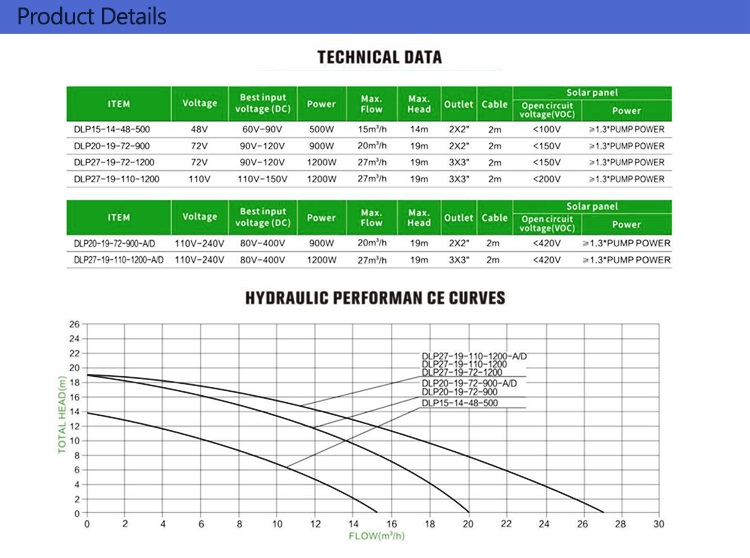

Technical Data
Item
|
Voltage
|
Best input voltage(DC)
|
Power
|
Max.Flow
|
Max.Head
|
Outlet
|
Cable
|
Solar panel
|
|
Open circuit voltage (VOC)
|
Power
|
|
DLP15-14-48-500
|
48V
|
60V-90V
|
500W
|
15m³/h
|
14m
|
2×2"
|
2m
|
<100V
|
≥1.3*PUMP POWER
|
|
DLP20-19-72-900
|
72V
|
90V-120V
|
900W
|
20m³/h
|
19m
|
2×2"
|
2m
|
<150V
|
≥1.3*PUMP POWER
|
DLP27-19-72-1200
|
72V
|
90V-120V
|
1200W
|
27m³/h
|
19m
|
3×3"
|
2m
|
<150V
|
≥1.3*PUMP POWER
|
DLP27-19-110-1200
|
110V
|
110V-150V
|
1200W
|
27m³/h
|
19m
|
3×3"
|
2m
|
<200V
|
≥1.3*PUMP POWER
|
DLP20-19-72-900-A/D
|
110V~240V
|
80V-400V
|
900W
|
20m³/h
|
19m
|
2×2"
|
2m
|
<420V
|
≥1.3*PUMP POWER
|
|
DLP27-19-110-1200-A/D
|
110V~240V
|
80V-400V
|
1200W
|
27m³/h
|
19m
|
2×2"
|
2m
|
<420V
|
≥1.3*PUMP POWER
|
|
More technical data details please contact GREYSTONE team,thank you!
|
1. A: Can I have sample order for solar water pump?
Q: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. A: Do we need to pay attention to the connection between the controller and the pump of this product?
Q: Yes, of course. The controller must match with the recommended solar pumps. Please do not use the controller for
other pumps. If the pump problem is caused by this reason, we do not bare any responsibility. For the perfect
performance and long-life working, the controller should be kept away from strike, shake, sunshine, salt mist, oil mist and etc.
3. A: What's the warranty?
Q: 2 years.
4. A: Any contact details?
Q: Please contact us by trade manager, Email, Whatsapp or Wechat. Surely call me when you need.
5. A: Is there anything we need to pay attention to when installing？
Q: Do keep the pump under water at all times when operating, make sure that remove the pump if not used for a long time, and
wipe the screw and body. Wipe with vegetable oil. Do not run the pump out of water, even momentarily or it will void the warranty.
6. A: What are the uses of this solar water pump?
Q: Solar Swimming Pool Pump System.
