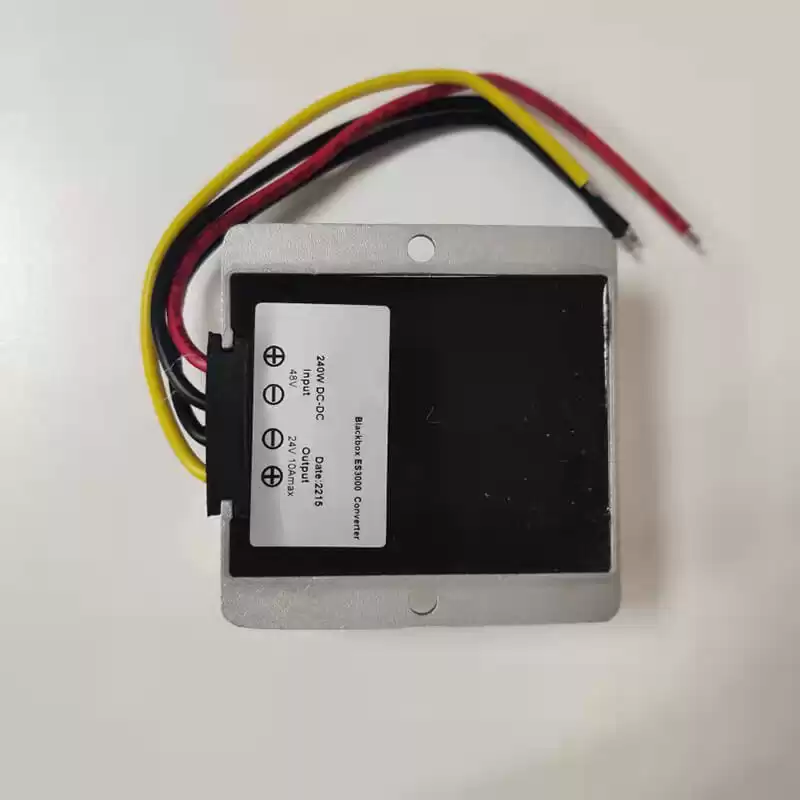

48V to 24V 10A DC to DC step down converter 240W step-down module voltage regulator
Voltage Step-Down Capability: The AJPOWER 48V to 24V 10A DC to DC Step Down Converter can efficiently reduce the voltage from 48V to 24V, making it compatible with devices or systems that require a lower voltage.
High Power Handling: With a maximum power handling capacity of 240W, this step-down converter can handle moderate power loads and provide a stable power supply for various applications.
Efficient Voltage Regulation: The voltage regulator ensures precise and reliable voltage output, maintaining a steady power supply for connected devices or systems.
Wide Range of Applications: This step-down converter is suitable for a wide range of applications, including automotive, solar power systems, or industrial equipment, where a lower voltage is required.
Compact and Reliable Design: The AJPOWER step-down converter is designed to be compact and reliable, featuring high-quality components that ensure durability and long-term performance.
| MODEL |
AJP4824C240Z |
| Rated output power (W) |
240W |
| Rated input voltage (V) |
48VDC |
| Rated output voltage (V) |
24VDC |
| |
| Voltage (V) |
30V-60VDC |
| Starting voltage (V) |
30VDC 100% load |
| Input reverse polarity protection (V) |
none |
| Input Low Voltage Protection (V) |
none |
| No-load power consumption (W) |
＜ 3W |
| Typical Efficiency |
96% |
| |
| Voltage (V) |
24 VDC |
| Current (A) |
10A |
| Voltage regulation rate |
1% |
| |
| Load Regulation |
3% |
| Ripple Voltage（mvp-p） |
250mv external 22UF capacitor ESR﹤0.1Ω100KHZ |
| Overcurrent Protection |
In the case of rated output, if it is greater than 120% of the rated current, the overcurrent protection will operate, and it will automatically recover after the overcurrent disappears. |
| Short circuit protection |
Equal to maximum current 12A output voltage 0V |
| Input reverse polarity protection |
none |
| Input-Output |
non-isolation |
| Waterproof |
Fully sealed glue filling and waterproof |
| Size |
74*74*32mm |
| Weight |
300g |
| Rated temperature rise (°C) |
45℃ |
| Reliability |
＞100000h |
| cooling method |
natural cooling |

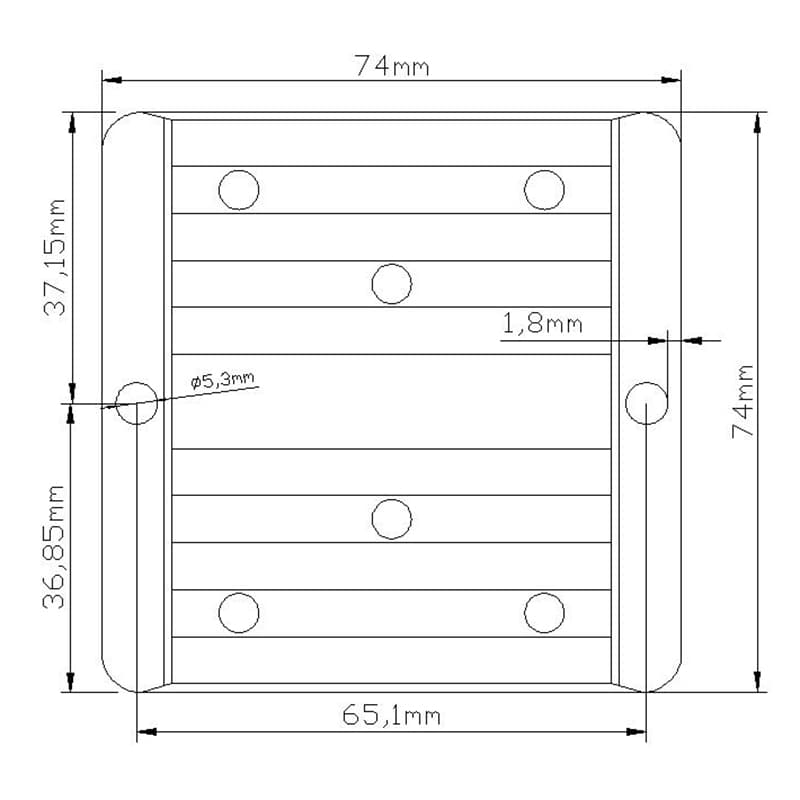

| Installation dimensions |
|
|
| 1 |
Design meeting RoHS / CE |
| 2 |
High efficiency: 96% |
| 3 |
Non-isolated between input and output |
| 4 |
Internal capacitor: NCC & NICHICON (high reliability) |
| 5 |
100% full load burn-in test |
| 6 |
Over load, Over temperature and Over voltage protections |
| 7 |
Fully sealed glue filling and waterproof |
| 8 |
12 months warranty |
