Parameter
|
|
Bus Model No.
|
BJ6122U8MJB-A2
|
|
Seat No.
|
49+1+1
|
|
Driver hand
|
Left hand driver
|
|
Overall dimension(mm)
|
12000X2550X3790
|
|
Specification
|
|
Engine
|
WP10.375 Euro 3
Rated power (KW(PS)/RPM):276 (375)/2200
|
|
Cooling system
|
Electromagnetic clutch fan
|
|
Transmission
|
FAST 6DS180T gear box
|
|
Clutch
|
Ø430
|
|
Front axle
|
6.5T front alxe free maintenance, disk break
|
|
Rear axle
|
13T rear axle free maintenance, drum break
|
|
Suspension
|
6 air bag suspension, import shock absorb, front suspension stabilizer bar
|
|
Retarder
|
FAST Hydraulic retarder
|
|
Tyre
|
Double coin brand 295/80R22. 5(one spare tyre）
|
|
Wheel hub
|
Aluminum alloy polishing wheel
|
|
Steering
|
Integral Power Steering
|
|
ECAS
|
With
|
|
Brake
|
Front disk and rear drum break
|
|
ABS
|
WABCO
|
|
Clearance Adjuster
|
With
|
|
Fuel System
|
400L |
|
Inlet location
|
Overhead air intake
|
|
Floor structure
|
Levelling floor
|
|
Floor cover
|
PVC floor and anti-grinding floor leather
|
|
Rear view mirror
|
Double rabbit ear type with defroster
|
|
Front passenger door
|
Single closed front door with sliding window (black color)
|
|
Window
|
Front window shield: Up-- laminated glass, black color
Down--- laminated glass, colorless
|
|
Rear window：Closed black color single layer glass
|
|
Side window: left and right side totally closed, the last window sliding.
Single layer black color glass
|
|
Driver window：Sliding toughened colorless glass
|
|
Windscreen shade
|
Up: the whole electric windscreen shade
Down：Double manual shade curtain
|
|
Inner luggage rack
|
Luggage rack on both side with cover, the lamp wit 7 kind color
|
|
Emergency exit
|
With, same side as driver window
|
|
Emergency Door on the roof
|
1 unit ventilator emergency door on the roof
|
|
Luggage compartment door
|
Aluminum manual up-sliding luggage compartment door
|
|
Luggage compartment
|
Aluminum alloy floor cove for the luggage compartment.
Luggage compartment with PVC floor
|
|
Driver Seat
|
High backrest shock absorption adjustable, message function
|
|

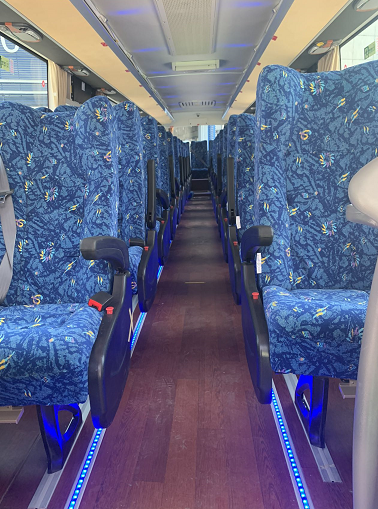

Passenger Seat
|
30 Units, VIP type passenger door, USB charging, backrest adjustable, foot rest,
leg bracket, book net, imitation leather cover, peach wooden mahogany armrest Two-point seat belt、drink holder、LED TV
(last row passenger seats with three-point safe seat belt)
|
|
Visual and Audio System
|
Hard disk player,front 27’s LED TV
1 Microphone(1 wireless)
|
|
Reverse monitor system
|
7’S display
No.1 monitor: on the instrument for monitoring the front
No.2 monitor: one the rear ,for reversing monitor .
No.3&4 monitor: Installed above the left rear-view mirror to shoot the left rear side
NO.5 Front door for driver area and passenger area
NO.6 Front passenger area for the front to rear passenger area
NO.7 Rear passenger area for the rear to front passenger area
All cameras have night vision and waterproof functions
|
|
Air-Conditioner
|
32680 Cal/h, roof mounting non- independent
|
|
Refrigerator
|
With
|
|
Heater
|
Front windshield defroster
|
|
Inner lighting
|
Driver roof lamp, Long roof LED lamp, Step lamp, reading lamp,

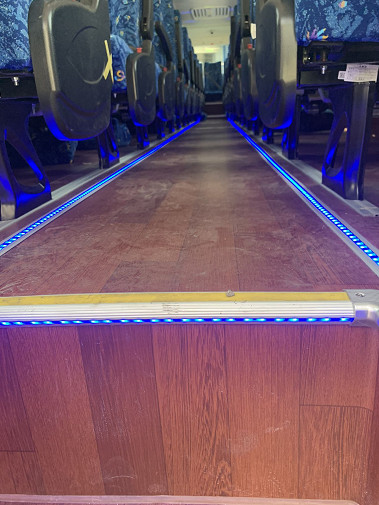

LED lamp on the side top，High brake light, flat floot light strip
|
|
LED guideboard
|
Front, left and right side LED
|
|
Tire pressure alarm device
|
With
|
|
Wiper
|
180W
|
|
Battery
|
2 units, 195Ah, free maintenance
|
|
Others
|
Electronic Clock
Vehicle Flow Tank
Stainless Steel Wheel Cover
Automatic fire extinguishing device in engine compartment
WIFI reserved line
1unit 5 kg dry powder fire extinguisher
Six safety hammers
Curtain
Instrument desk: peach wooden mahogany (Design by factory)
Painting: FOTON stand
|
|
If any specification is not specified above, please refer to Foton’s standard specs
|
