Waste collection sweeper truck Isuzu
Basic Description
Road clean car Isuzu (also called as road cleaning sweeper truck, street sweeping truck, brush road sweeper, road sweeper vehicle, dust cleaner road sweeper truck, sanitation vacuum road sweeper truck, vacuum road sweeper, Mechanical road sweeping vehicle, compact road sweeper truck) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.

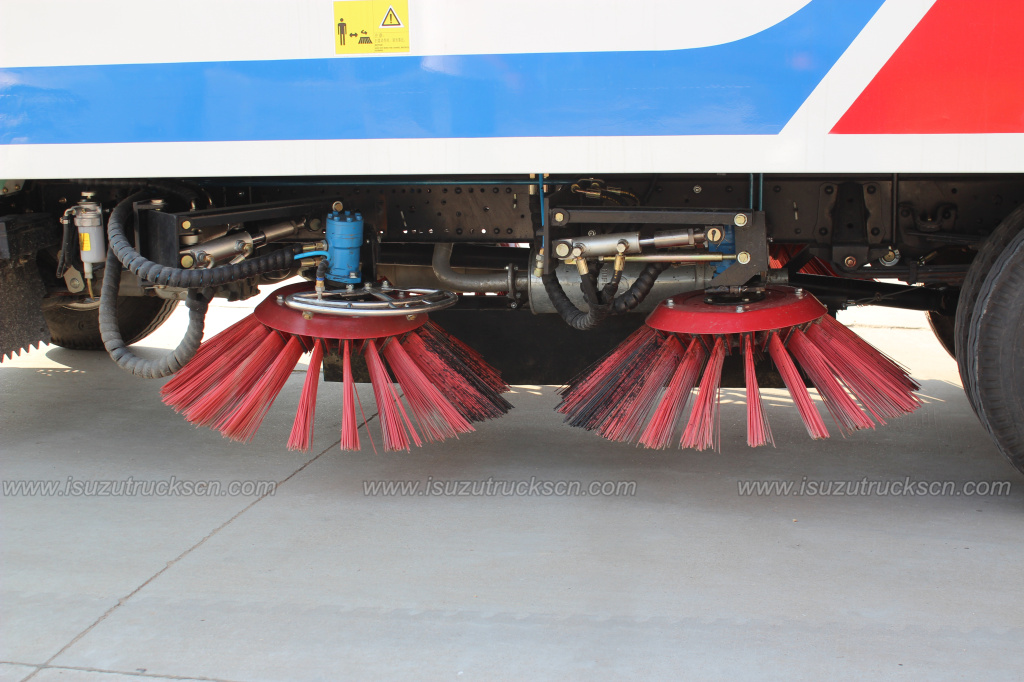

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Key Features
ISUZU NKR Chassis, Durable & Performance.
Sweeping, Sprinkling and garbage transportation
Stainless steeel garbage bin & Stainless water tank, longer service life
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on road sweeper truck exporting.
Main specifications
Model
|
PT5070TSL
|
Driving Type
|
4x2
(Left hand drive)
|
Wheelbase
|
3360
mm
|
Overall Dimension
|
5935X1980X2430 mm
|

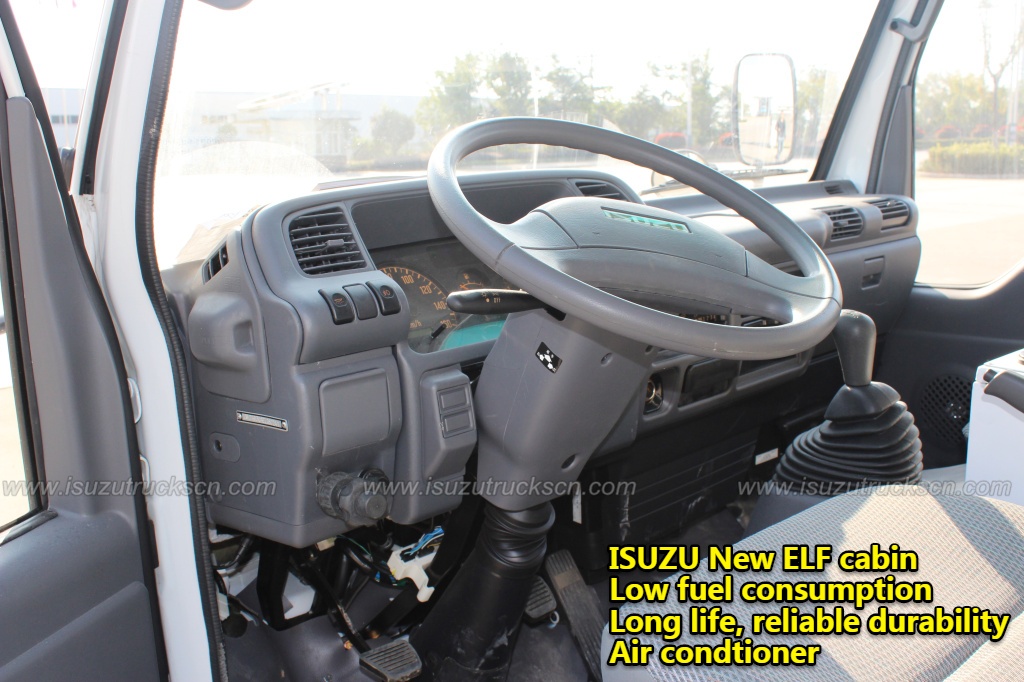

Cab
|
Forward control over
engine, all-steel-welded construction
|
Sweeping System
|
Auxiliary
engine
|
Isuzu
tech engine
|
Stainless
Steel Hopper Effective Volume
|
4 CBM
|
Stainless
Steel Water Tank Volume (L)
|
1200
|
Sweeping
Width (mm)
|
3000
|
Sweeping
speed (km/h)
|
3~20
|
Sweeping
Capacity (m2/h)
|
16500~82500
|
Blower
rated rotation speed (rpm)
|
1800
|
Blower
air capacity (m3/h)
|
8000
|
Blower
air pressure (Pa)
|
7000
|

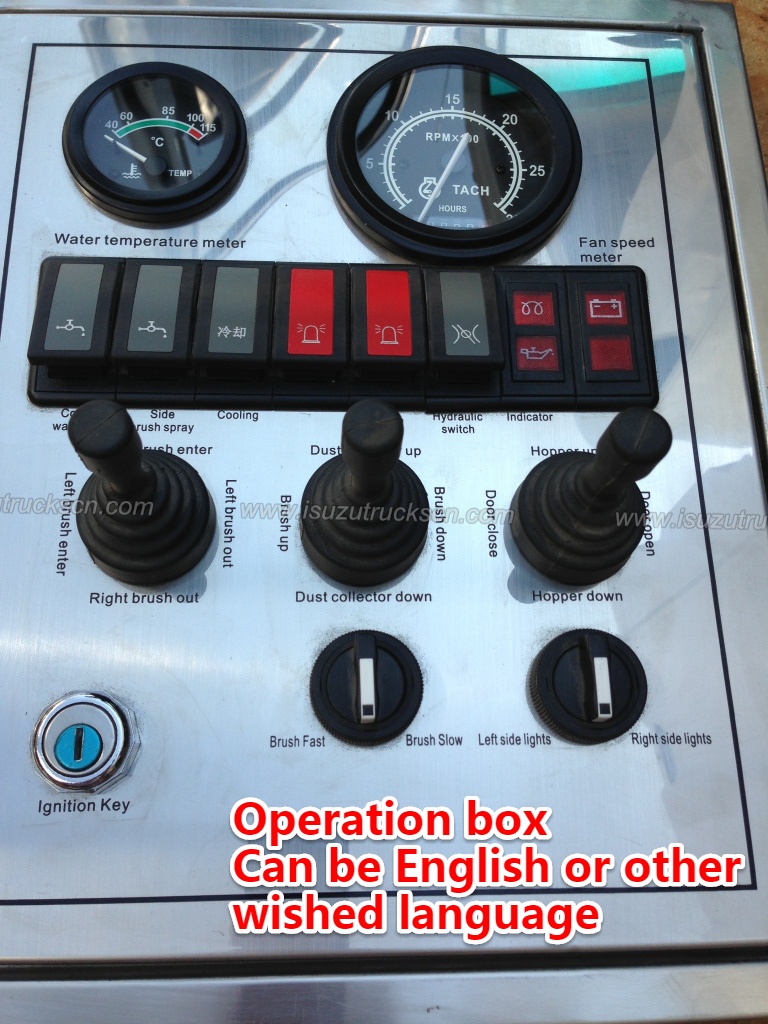

Side
Brush Sweeping Brush Drive and Control
|
Electric
control lever and switch control, Hydraulic driving
|
Engine
|
Model
|
4JB1CN
|
Type
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
Max.
Power
|
72
KW (98 HP)
|
Gearbox
|
MSB
5-shift, mechanical type, 5 forward and 1 reverse with
|
Tire
|
7.00-16
|
Color
|
Red (Any color & logos up to wish)
|
Max Speed
|
100
km/h
|

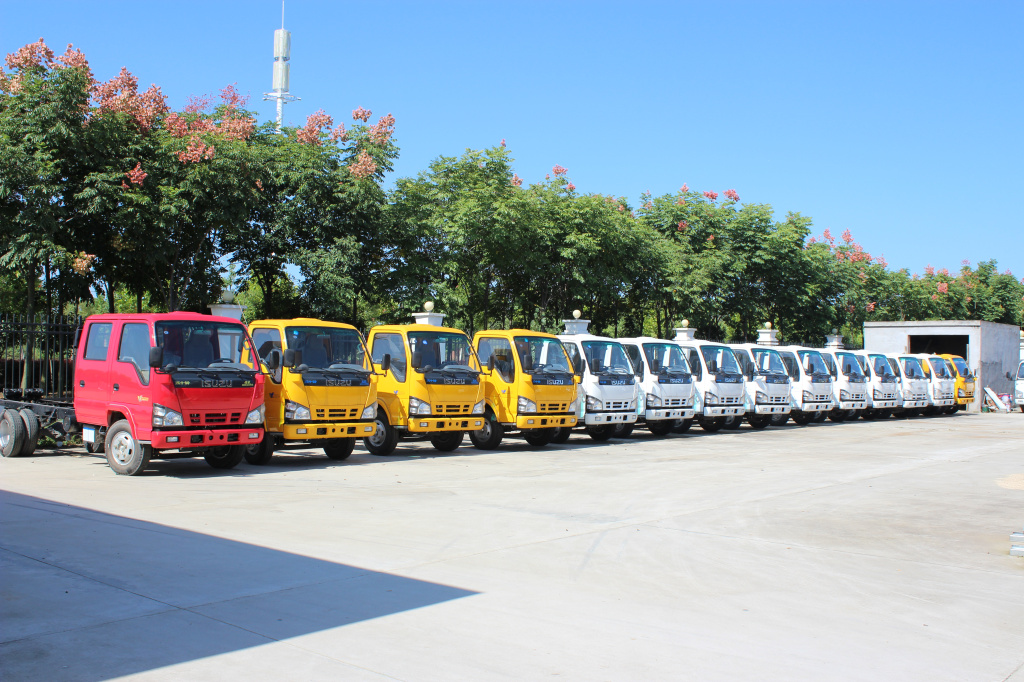

Huge ISUZU Road sweeper truck chassis in store
|
|
Sweeper truck chassis Front left review
|

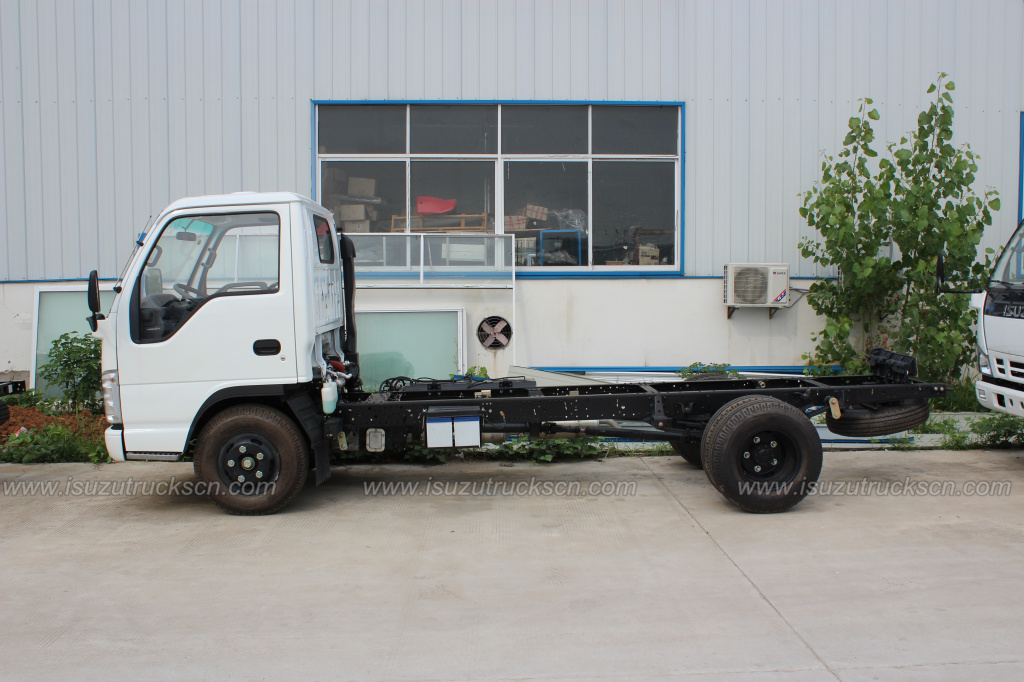

Left side review |
|
|

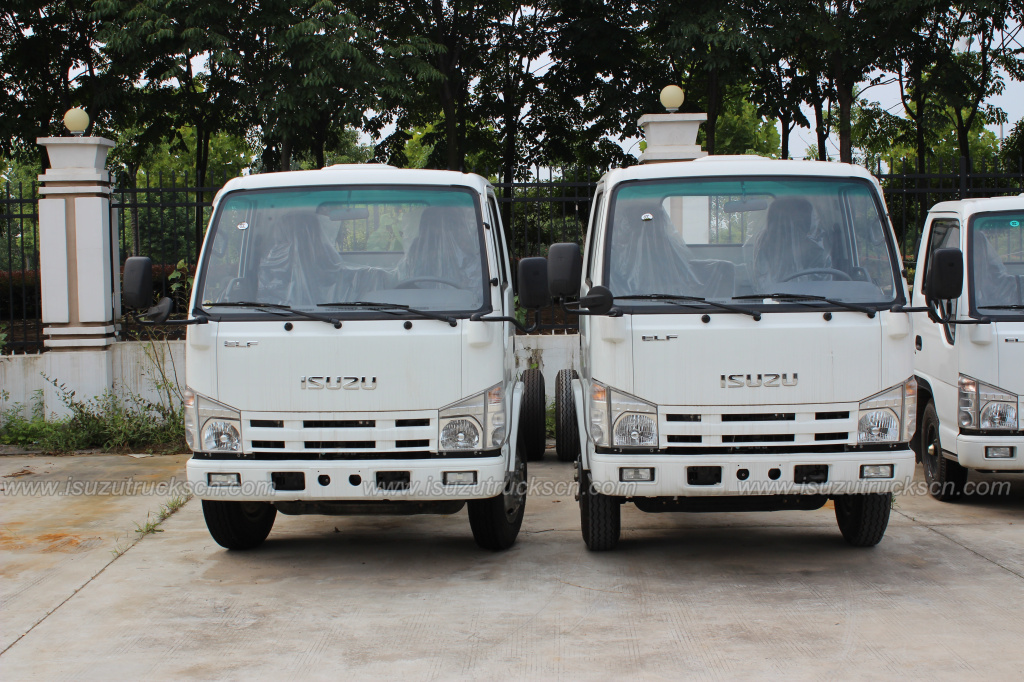

Sweeper truck chassis Front review |

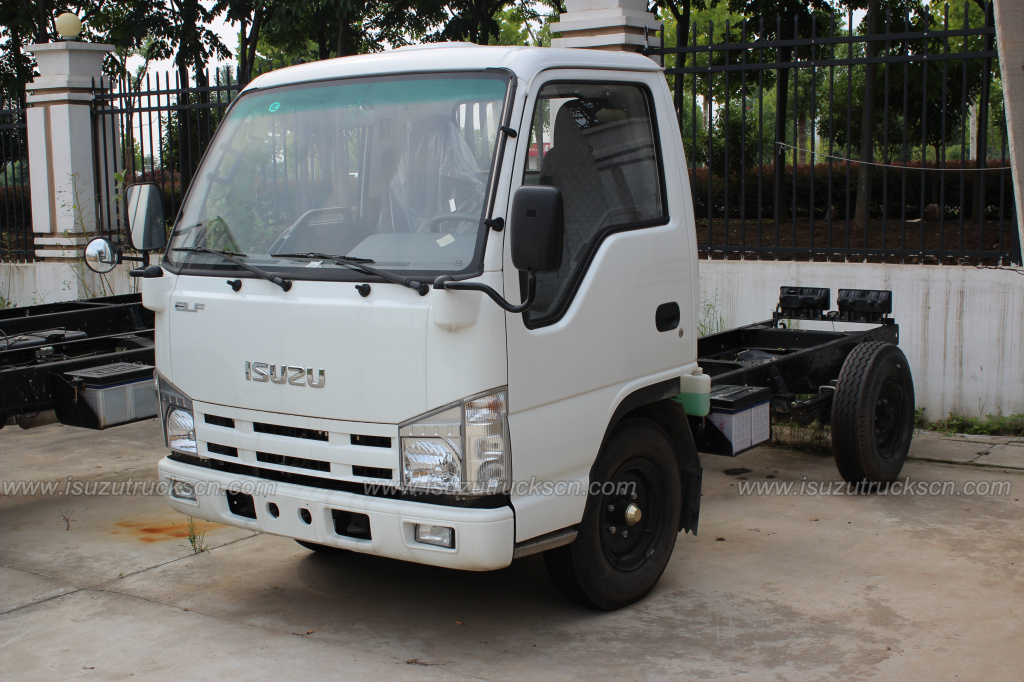

Sweeper truck chassis Front left review |
Customer build example:
|
|

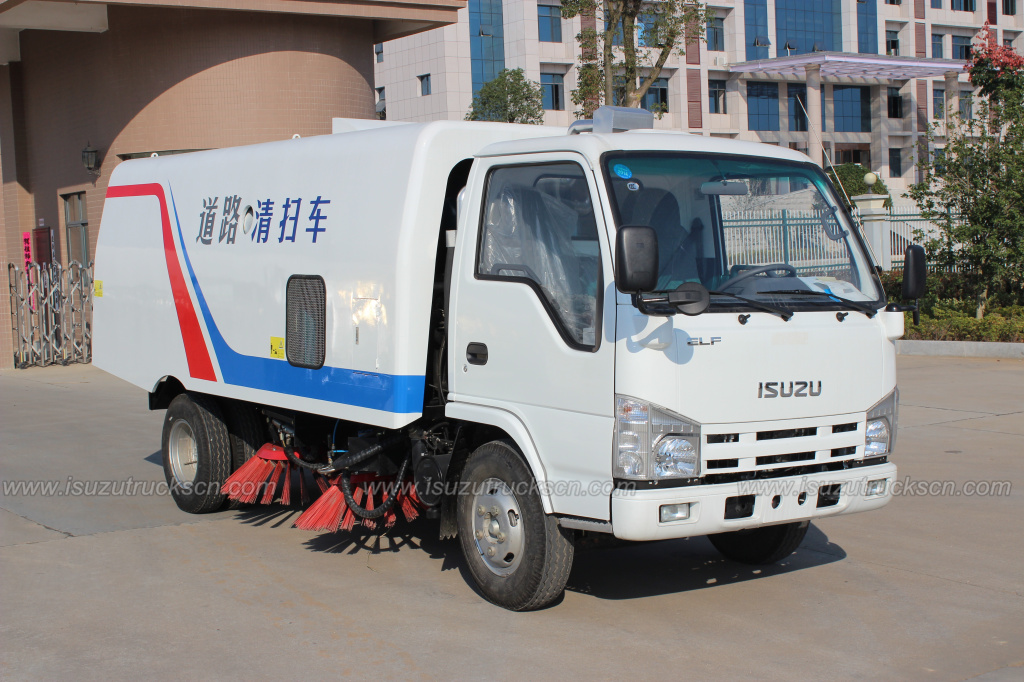

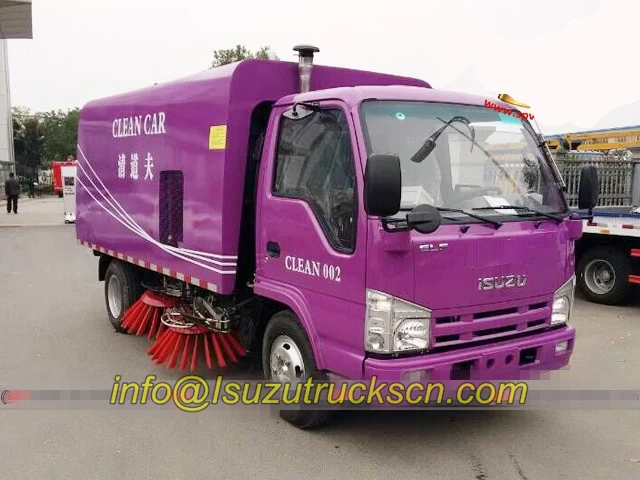

Front right view
|

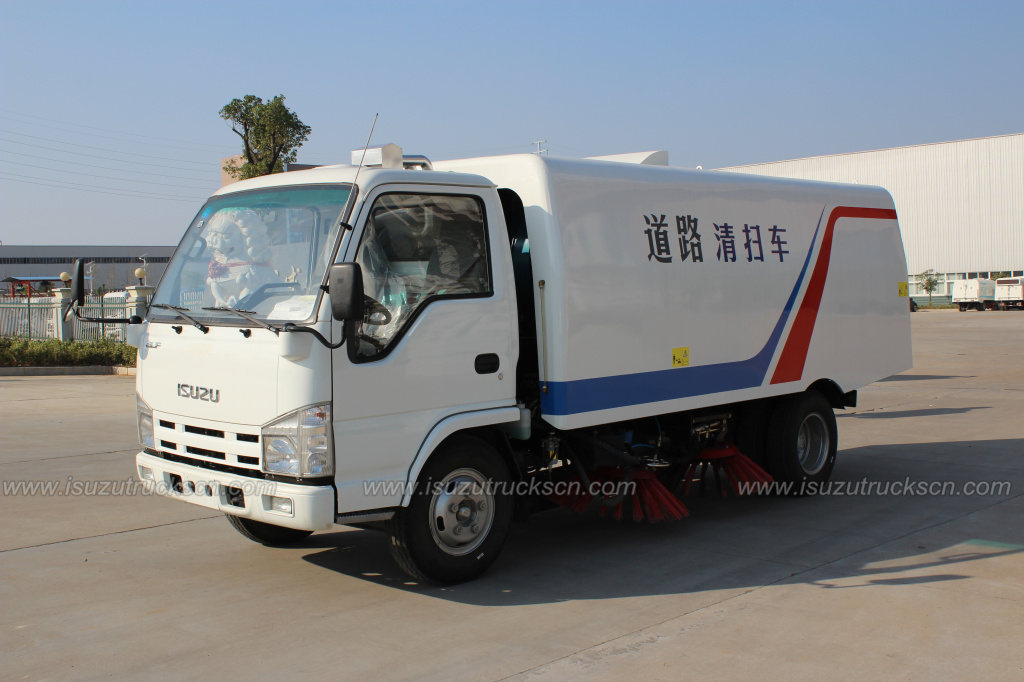

Front left view |
|
|

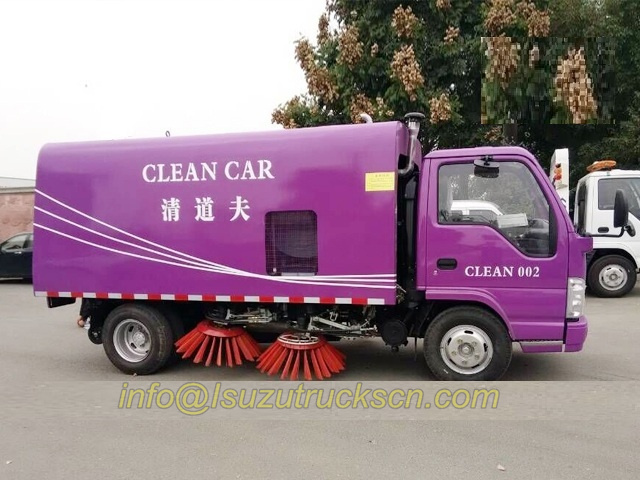

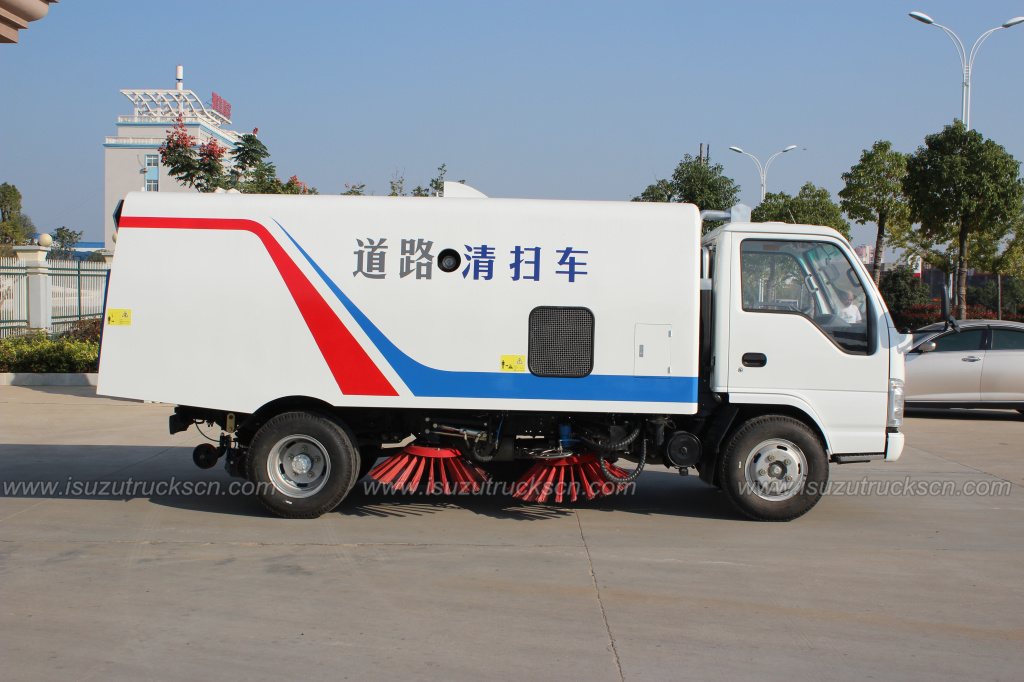

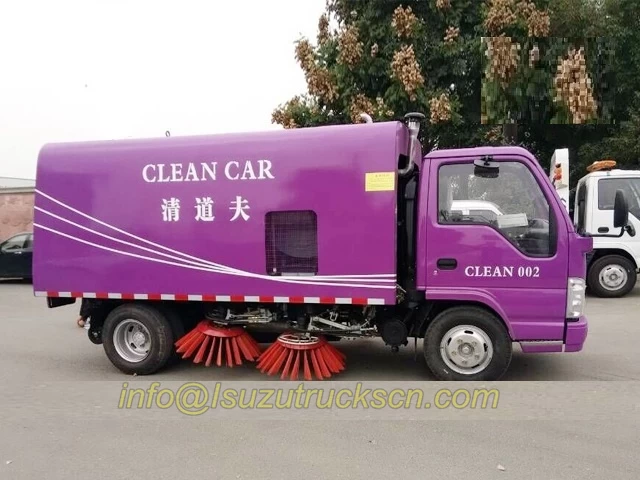

Right side view |

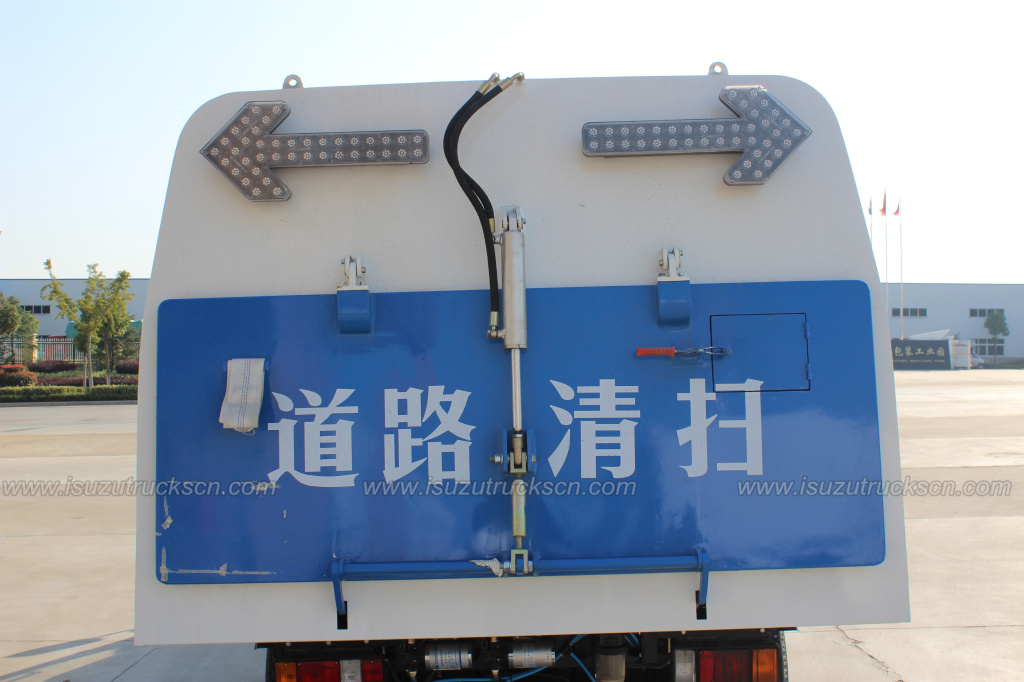

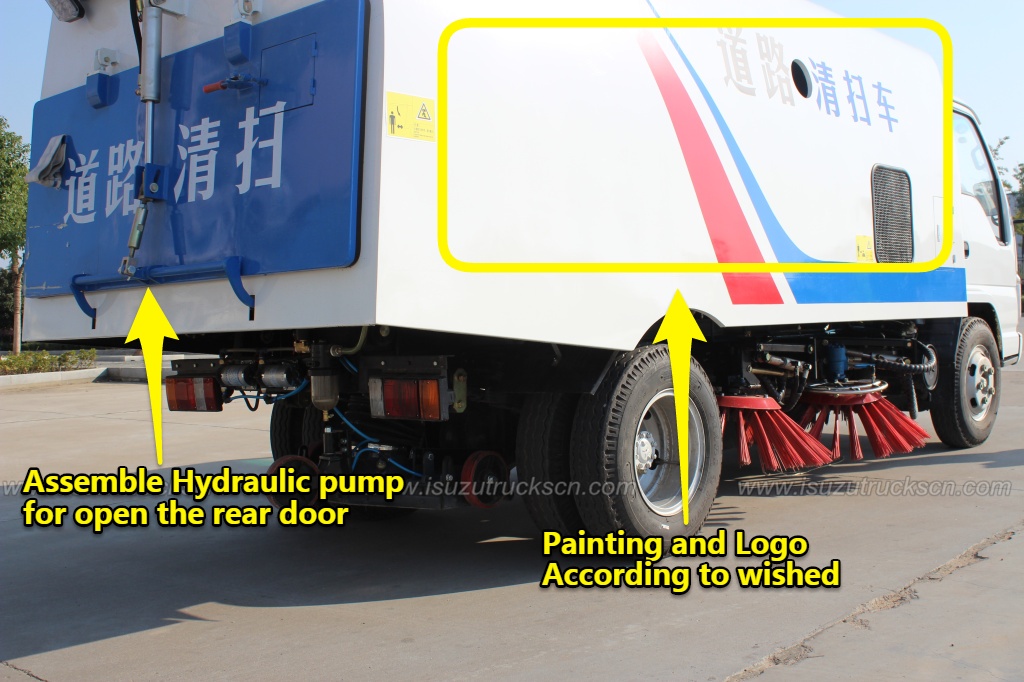

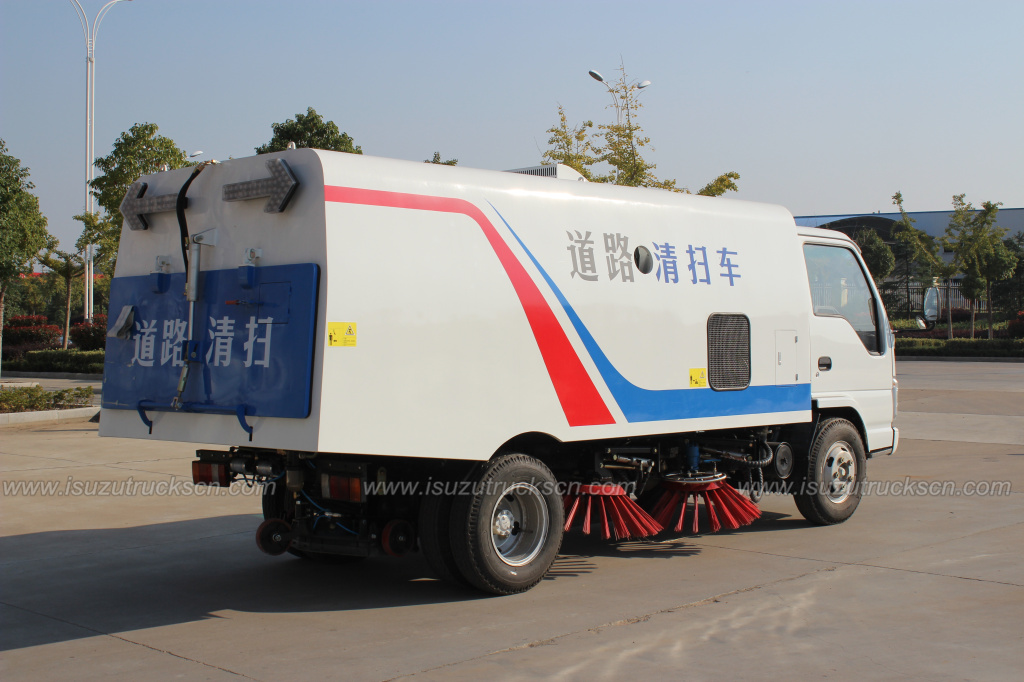

Rear right view
|
