4CH Dual SD Hybrid MDVR/MNVR AHD+IPC
Product advantages：
Teswell TS-830X Hybrid MDVR/MNVR, support 4CH AHD + 1CH IPC; 2CH AHD + 2CH IPC; 4CH IPC; 4CH AHD; 4CH AHD+ 2CH IPC；support AI MDVR to connect ADAS, DMS, BSD, Set belt detection; Support Dual SD card(each to 64GB, 128GB, 256GB) max to 512GB; widely used for logistics vehicles, long-distance passenger transport, dangerous goods transport, bus companies, vehicle rental, taxi and other industries.
Product introduction:
-4CH video local recording and playback, support 1080P/720P/960H/D1/CIF resolution.
-Meet anti-electric disturbance standard ISO7637-2, adopted stable positioning communication modules and stable performance.
-Record information: vehicle speed, steering, braking, reversing, and opening& closing doors.
-Watermark: prevent data from been tampered and ensure the data authenticity and legal validity.
-Network: support resume from break-point resume, remote video monitoring, video download, remote alarm and network timing sync, remote settings and upgrade.
-Upgrade: support local and remote upgrade.
-Support integration with third party platform(universal platform or third party CMS), high flexibility.
-Dynamic transmitting: Self adapt to 3G/4G according to bandwidth changing, improving the video consistency.
-Mini size(132×137×40mm) ranks the top of the industry, easier for shipping and installation.
-Right Side Blind Spot Detection Function: Automatic monitoring the people and non-motorized vehicle which in the vehicle blind area and alarm when the condition is triggered, it can remind driver and people to avoid the accident in time.
-Active Safety Assisted Driving System Function: The alarm supports fatigue driving, yawning, calling, smoking, camera blocked, LDW, HMW, FCW etc.
Product Feature:
-Mini size
-Encrypted
-Lockable
-HD 1080P H.265/H.264
-24 hours off delay
-Loop recording
-ADAS/DSM/BSD/Passenger counting
Product Parameter:
|
Item
|
Equipment parameter
|
Performance standard
|
|
Name
|
Product name
|
Hybrid MDVR: 4CH AHD + 1CH IPC; 2CH AHD + 2CH IPC; 4CH IPC; 4CH AHD;
|
|
System
|
OS
|
LINUX
|
|
|
Operation Interface
|
Graphical menu operation interface (OSD Menu)
|
|
|
File system
|
TES Error correction encrypted file management system
|
|
Video
|
Video input
|
4 Channels AHD/IPC
|
|
|
Video output
|
1ch PAL/NTSC output 1.0Vp-p，75Ω，CVBS；1ch VGA output（support 720P）
|
|
|
Video display
|
1 or 4 channels
|
|
|
Video standard
|
PAL: 25FPS; NTSC: 30FPS
|
|
|
System resource
|
PAL: 100FPS; NTSC: 120FPS
|
|
|
Video compression
|
H.265 /H.264
|
|
Audio
|
Audio input
|
4 Channels independent input 600Ω
|
|
|
Audio output
|
1 Channel(4 Channels Can Be Convert Freey) 600Ω,1.0-2.2V
|
|
|
Record format
|
Synchronized video & audio
|
|
|
Audio compression
|
G711A
|
|
Active Safety
Assisted Driving
System
|
DMS
|
Support 1CH DSM video input(DriverMonitor System) , supportSafetyAlarm ofFace Recognition, Yawning,Phone Answering/ Calling,Smoking, Distracted Driving Alarm, Video blocked,Infrared blocking sunglasses failure, MDVR malfunction Alarm, etc.
|
|
|
ADAS
|
Support 1CH ADAS video input(Advance Driving Assistance System) , support safety alarm of LDW, THW,PCW,FCW, etc.
|
|
|
BSD
|
Support 1CH BSD(Blind Spot Detection) video input, supportSafetyAlarm of people, non-motorized vehicles(bicycles, motorcycles, electric bicycles, tricycles, and other traffic participants that can be seen the contours of the human body), includingFront,Side andBack.
|
|
Digital processing
|
Image resolution
|
PAL:4*1080P(1920*1080), NTSC:4*1080P(1920*1080)
|
|
|
Image quality
|
1-14 levels adjustable
|
|
|
Video bit-rate
|
1080P: 192K~8M bps(per channel)
|
|
|
Video space taken
|
1080P: 85M~3600M Byte/hour(per channel)
|
|
|
Playback resolution
|
PAL:1-2*1080P(1920*1080), NTSC:1-2*1080P(1920*1080)
|
|
|
SD storage
|
2xSD slot, Support 64GB/128GB/256GB
|
|
Alarm
|
Alarm input
|
4 channels ( activated by high voltage)
|
|
|
Alarm output
|
1 Channels dry contact output
|
|
|
Motion detection
|
Support
|
|
LAN
|
RJ45
|
1x RJ45 optional
|
|
|
Wifi
|
Optional built-in wifi module( supportIEEE 802.11b/g/n ) for remote video check and download
|
|
|
3G/4G
|
Optional built-in 3G/4G module
|
|
GPS
|
GPS
|
Optional GPS/Beidou/GLONASS module
|
|
Extension
|
RS232
|
1xRS232 standard
|
|
|
RS485
|
1xRS485 standard
|
|
|
Intercom
|
Can expand Intercom Module Inside
|
|
|
G-Sensor
|
Standard
|
|
Others
|
Power
|
DC9.5-36V 5% ≤8W
|
|
|
Operating temperature /humidity
|
-40℃~+70℃ / ≤80%
|
|
|
Dimension
|
132（L）*137（W）*40（H） mm
|
|
|
Package
|
L178*W120*H178mm/unit
|
Product Application:

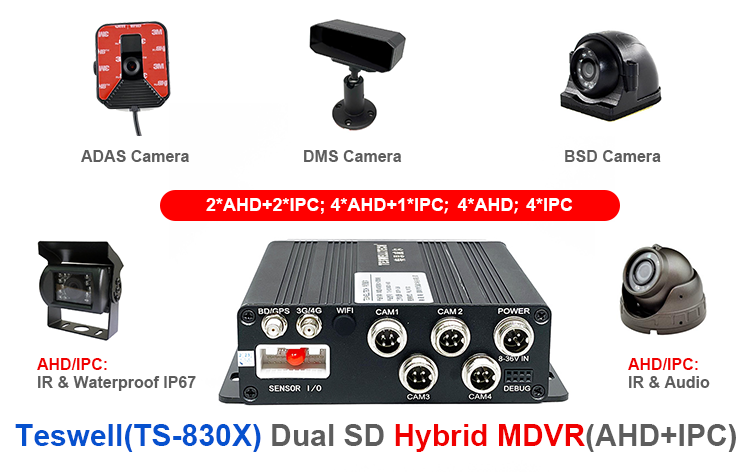

TS-830X Dual SD Hybrid MDVR/MNVR(4CH AHD + 1CH IPC; 2CH AHD + 2CH IPC; 4CH IPC; 4CH AHD);
can work in mini bus, truck, forklift, etc. support up to 5 cameras.
FAQ:
1： MDVR does not start？
a: Please check the power supply of the host to see if the power of the host is connected correctly and whether there is real voltage to the host
b: Whether the key switch of the host is locked
c: Whether the ignition control line of the host is connected properly,
d: whether there is a control voltage input (when testing in the office, the ignition control line is directly connected to the positive pole of the host power input)
2：The hard disk video recorder automatically restarts after a few minutes of startup or often crashes？
a: Input voltage is unstable or too low
b: The hard disk wiring is loose or poorly connected
c: Hard disk has bad sectors
d: Poor heat dissipation, too much dust, and the machine operating environment is too harsh
e: Inadequate installation of anti-vibration facilities
3:The remote control does not work?
a: Check the power section on the remote control
b: If the hard disk is installed, check whether the hard disk is inserted in place
4:Can't enter the settings menu?
The TESWELL factory default of this machine is to automatically record when the system is started, unless it is manually stopped or the system is powered off;
to enter the setting menu, you must first stop the recording with the stop button on the remote control, and then press the menu button to enter.
