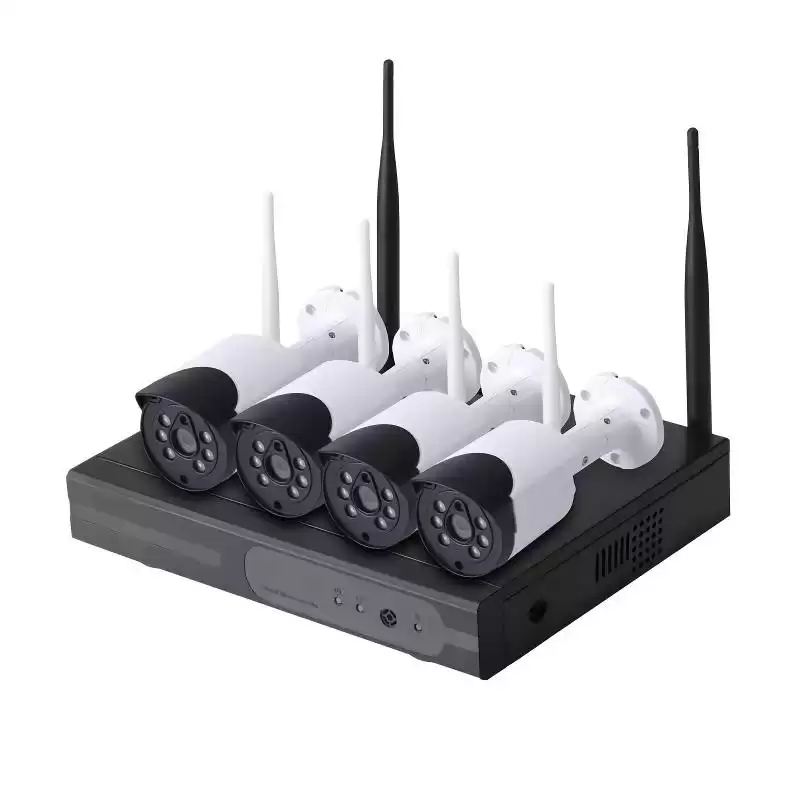

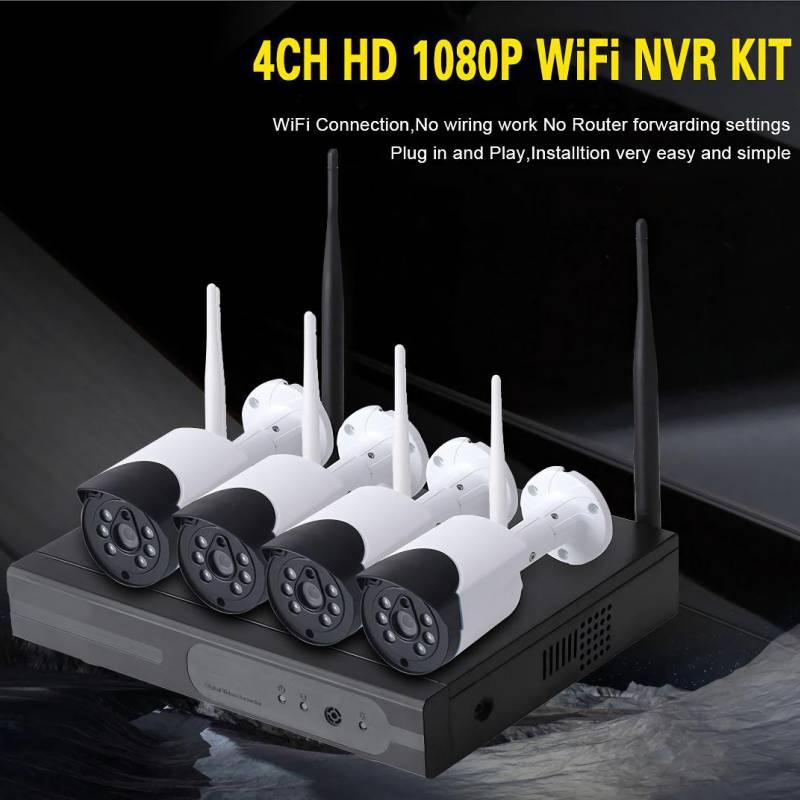

Product Name:4CH HD 1080P Outdoor Wireless Surveillance Security CCTV NVR System Kit
Feature
●WiFi Connection,No wiring work No Router forwarding settings Plug in and Play,Installation very easy and simple.Powers on, Images out.
●WiFi Range up to 50 meters,Dual antenna WiFi router built in,stable and powerful WiFi signal.

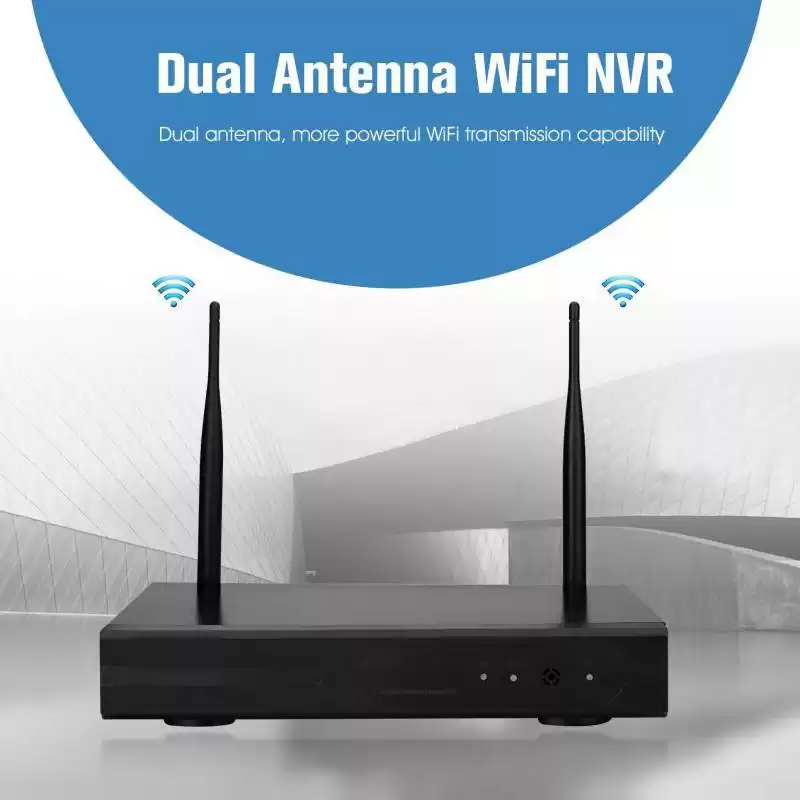

●Dual antenna WiFi NVR, more powerful WiFi transmission capability.

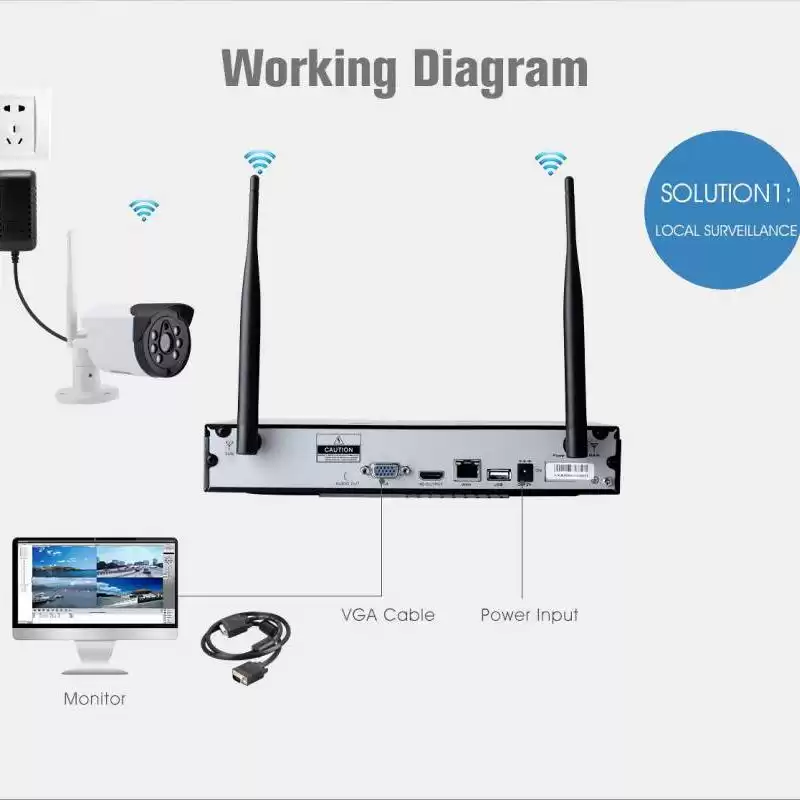

●Working diagram solution1
Local surveillance:Monitor,Power input,VGA cable.

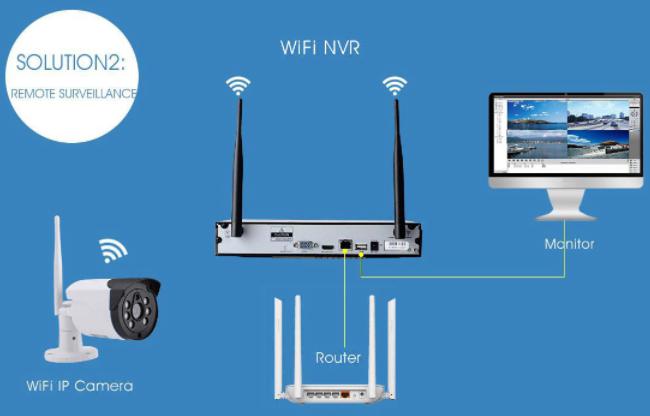

●Solution2
Remote surveillance:WiFi NVR,Router,WiFi IP Camera,Monitor.
●Camera video signal encrypted,WiFi Signal encrypted,NVR decryption.With encrypted video signal not only on IP camera but also on NVR, the recorded video data, more safety, more safety life.
●Built in powerful WiFi transmit module, WiFi range cover up to 200meters in open side.
●Wireless partition transmission up to 30 meters,WiFi stable.

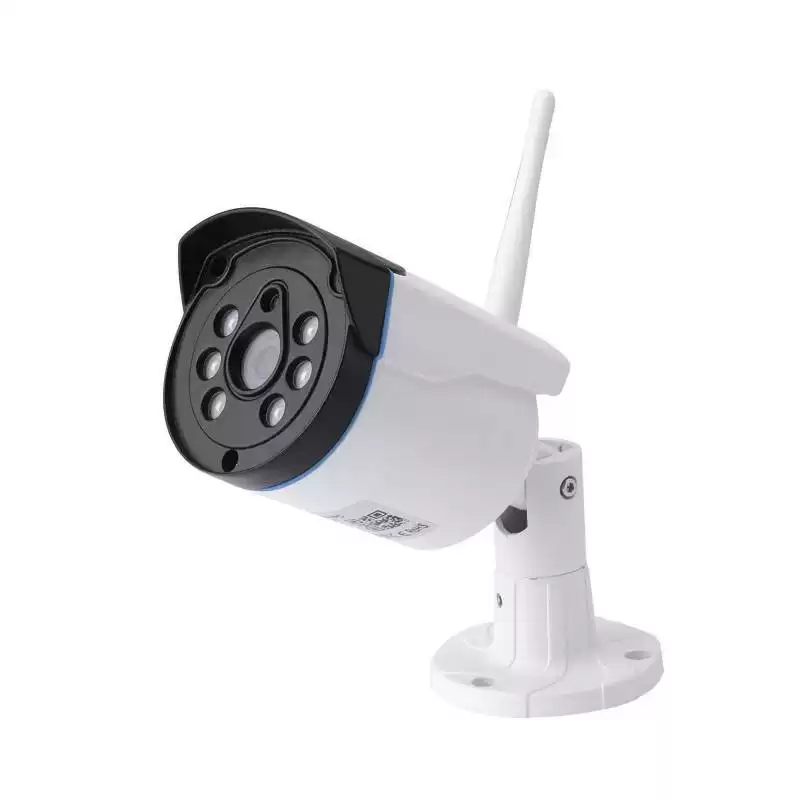

●IP66 waterproof metal housing suitable for indoor and outdoor use, all-weather environment applications.
●Support day night,built in 6pcs array IR LED, automatic switch IR cut filter, enables ultra clear night image quality.
●Support motion detection,When motion objects detected, it will trigger alarm notification.
●Support Android/iOS mobile, easy to get camera images even remotely miles away.
Specification
|
Model
|
ANSDEN YAN-WNK044
|
|
Camera Parameter
|
|
Camera
|
|
Image Sensor
|
1/4”CMOS
|
|
Effective Pixels
|
1920*1080(2MP)
|
|
Lens
|
3.6mm
|
|
Angle of View
|
Horizontal: 70°, Vertical: 58°
|
|
Day/Night Mode
|
Auto Switch over
|
|
Min. Illumination
|
0.1Lux/F1.2(Color)；0.01Lux/F1.2(B/W)
|
|
IR Distance
|
15m(50 ft)
|
|
Video
|
|
Compression
|
H.264
|
|
Resolution
|
Main Stream:1920*1080（1080P）
|
|
Sub Stream:704*576(D1),640*480(VGA)
|
|
Bit rate
|
64 Kbps~ 4Mbps
|
|
Frame Rate
|
20fps
|
|
Audio
|
|
Interface
|
Not support
|
|
Network
|
|
Interface
|
One 10M/100Mbps RJ45
|
|
WIFI
|
WIFI 802.11b/g/n,Only 2.4Ghz
|
|
Network Protocol
|
TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
OS Supported
|
PC: Windows; Smart Phone: iOS, Android
|
|
General
|
|
Power Supply
|
DC12V
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-10℃~+55℃(14°F~131°F), 10%~90%
|
|
Ingress Protection
|
IP66
|
|
Dimensions
|
107*68*60mm
|
|
Weight
|
0.35KG
|
|
NVR Parameter
|
|
System
|
|
Operating System
|
Embedded Linux OS
|
|
A/V Input
|
|
Video Input
|
4*WiFi IP Camera
|
|
Audio Input
|
Not support
|
|
A/V Output
|
|
VGA Output
|
1024*768,1280*1024,1440*900,1920*1080(1080P)
|
|
HDMI Output
|
1024*768,1280*1024,1440*900,1920*1080(1080P)
|
|
Audio Output
|
Not support
|
|
Playback Resolution
|
1080P/720P
|
|
Synchronous Playback
|
4 Channel
|
|
HDD
|
|
Interface Type
|
1 SATA Interface
|
|
Maximum Capacity
|
4TB
|
|
External Interface
|
|
USB Connector
|
1*USB 2.0
|
|
Network Interface
|
10M/100M Ethernet RJ45 port
|
|
Network
|
|
Network Protocol
|
TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
Mobile Device
|
iPhone, Android Smart phones
|
|
Remote Software
|
App, PC Client (Windows)
|
|
ONVIF
|
Support
|
|
General
|
|
Power Supply
|
Input 110~260V, 12V 2A
|
|
Consumption
|
<6W (Without HDD)
|
|
Working Environment
|
-10°C~+45°C (14°F~113°F),10%~90%
|
|
Dimension
|
257*210*42mm
|
|
Weight
|
0.75kg
|
|
Package information
|
|
Dimension
|
340*185*270mm
|
|
Weight
|
3.3kg
|
|
Packing List
|
4CH WIFI NVR*1,WIFI IP Camera*4,NVR Power Adapter*1,Camera Power adapter *4 Guide*1,USB Mouse*1,Screws Package*4,Waterproof Hat*4,1m Network Cable*1
|
Dimension
Support day night,built in 6pcs array IR LED, automatic switch IR cut filter, enables ultra clear night image quality.
Application
WiFi Connection,No wiring work No Router forwarding settings Plug in and Play,Installation very easy and simple
.Powers on, Images out.Local Remote surveillance.
