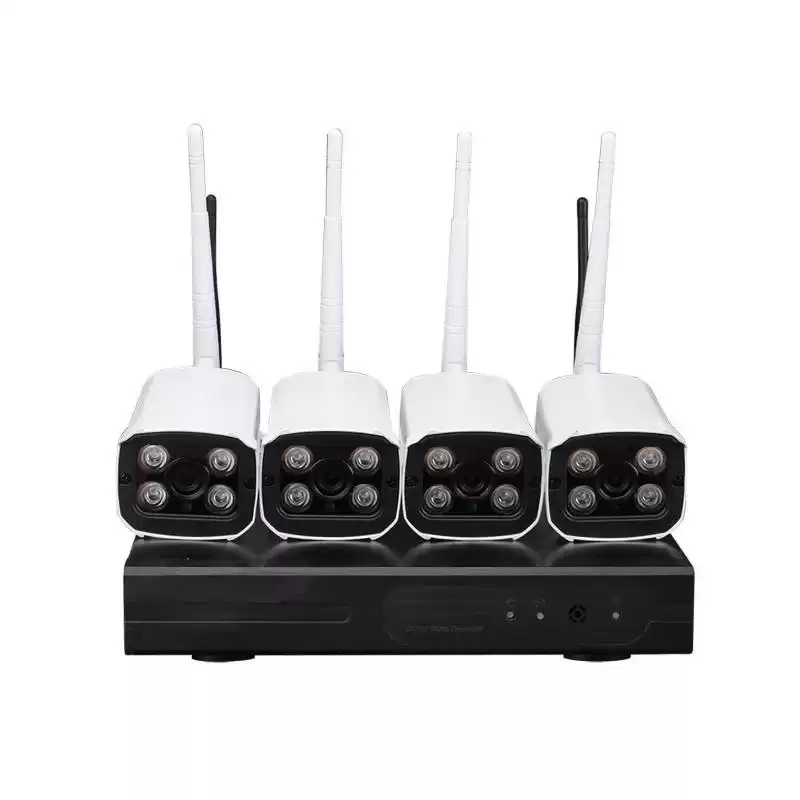

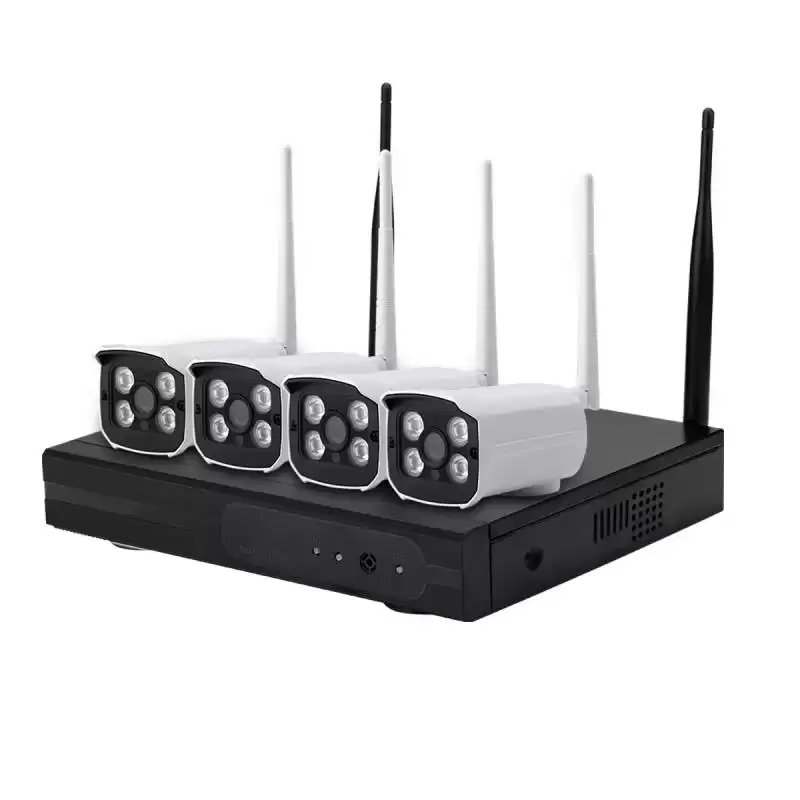

Product Name:4CH HD 1080P Outdoor Wireless Surveillance Security CCTV WiFi NVR Kit
Feature
●HD 1080P 1920*1080, resolution up to 2 Megapixel.
●Powers on, Images out, Plug in and Play.No need more cabling and WiFi router setup settings.

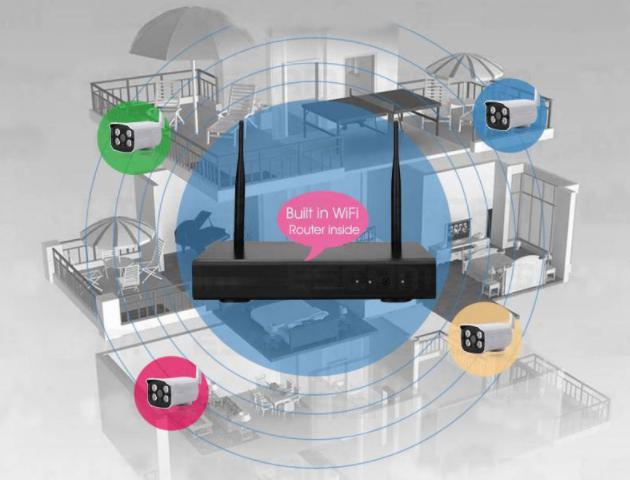

●Dual antenna WiFi router built in, stable and powerful WiFi signal. WiFi transmit range up to 50 meters in open side.
●SOLUTION1: LOCAL SURVEILLANCE
Monitor\VGA Cable\Power Input
●SOLUTION2: REMOTE SURVEILLANCE
WiFi IP Camera\Router\Monitor
●Encryption, more safety life.With encrypted video signal not only on IP camera but also on NVR.
●Built in powerful WiFi transmit module,WiFi range cover up to 200meters in open side.
●Wireless partition transmission up to 30 meters,WiFi stable.

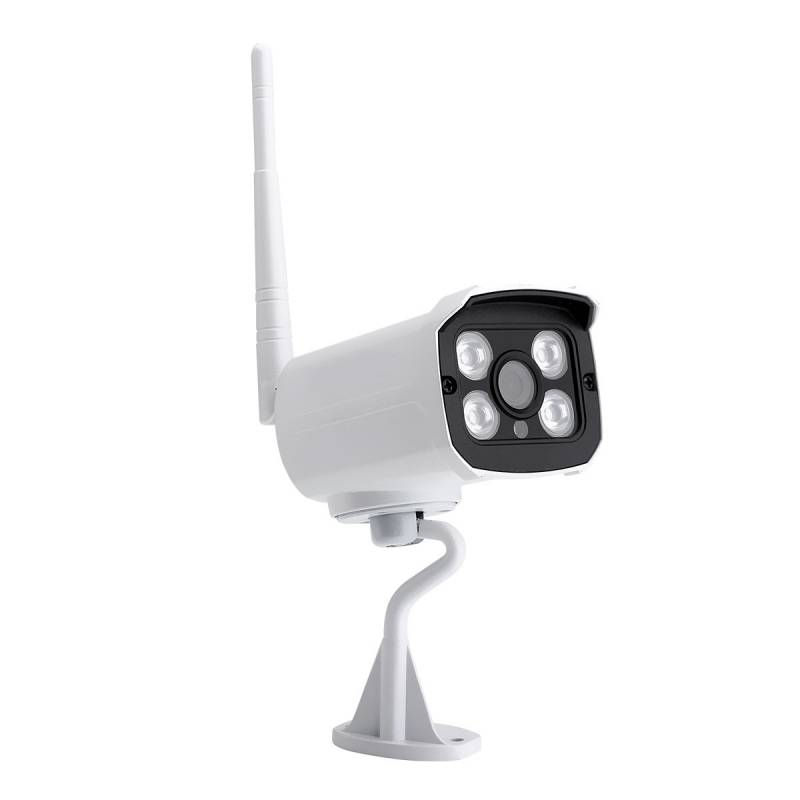

●IP66 Waterproof metal housing, Suitable for indoor and outdoor use, all-weather environment.
●Support Day/Night,built in 4pcs array IR Leds, automatic switch IR cut filter, enables ultra clear night image quality.
●Support motion detection.When motion objects detected, it will trigger alarm notification.
●Support Android/iOS mobile, easy to get camera images even remotely miles away.
Specification
|
Model
|
ANSDEN YAN-WNK043
|
|

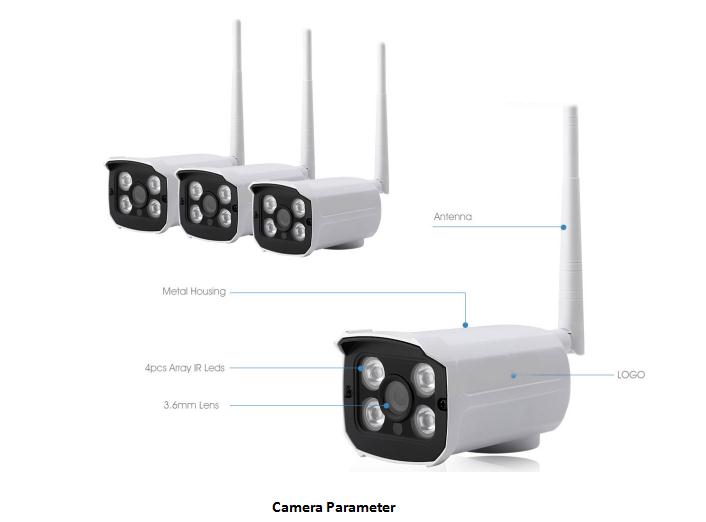

Camera Parameter
|
|
Camera
|
|
Image Sensor
|
1/4”CMOS
|
|
Effective Pixels
|
1920*1080(2MP)
|
|
Lens
|
3.6mm
|
|
Angle of View
|
Horizontal: 70°, Vertical: 58°
|
|
Day/Night Mode
|
Auto Switch over
|
|
Min. Illumination
|
0.1Lux/F1.2(Color)；0.01Lux/F1.2(B/W)
|
|
IR Distance
|
15m(50 ft)
|
|
Video
|
|
Compression
|
H.264
|
|
Resolution
|
Main Stream:1920*1080（1080P）
|
|
Sub Stream:704*576(D1),640*480(VGA)
|
|
Bit rate
|
64 Kbps~ 4Mbps
|
|
Frame Rate
|
20fps
|
|
Audio
|
|
Interface
|
Not support
|
|
Network
|
|
Interface
|
One 10M/100Mbps RJ45
|
|
WIFI
|
WIFI 802.11b/g/n,Only 2.4Ghz
|
|
Network Protocol
|
TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
OS Supported
|
PC: Windows; Smart Phone: iOS, Android
|
|
General
|
|
Power Supply
|
DC12V
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-10℃~+55℃(14°F~131°F), 10%~90%
|
|
Ingress Protection
|
IP66
|
|
Dimensions
|
107*68*60mm
|
|
Weight
|
0.25KG
|
|

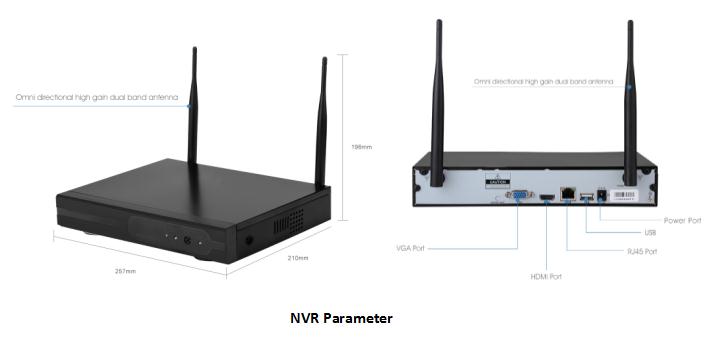

NVR Parameter
|
|
System
|
|
Operating System
|
Embedded Linux OS
|
|
A/V Input
|
|
Video Input
|
4*WIFI IP Camera
|
|
Audio Input
|
Not support
|
|
A/V Output
|
|
VGA Output
|
1024*768,1280*1024,1440*900,1920*1080(1080P)
|
|
HDMI Output
|
1024*768,1280*1024,1440*900,1920*1080(1080P)
|
|
Audio Output
|
Not support
|
|
Playback Resolution
|
1080P/720P
|
|
Synchronous Playback
|
4 Channel
|
|
HDD
|
|
Interface Type
|
1 SATA Interface
|
|
Maximum Capacity
|
4TB
|
|

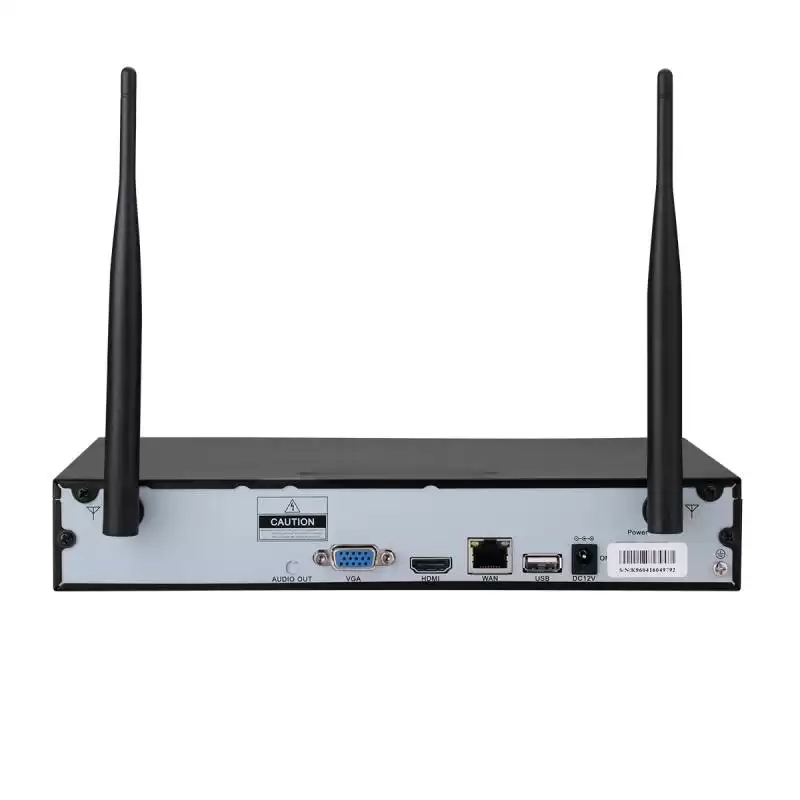

External Interface
|
|
USB Connector
|
1*USB 2.0
|
|
Network Interface
|
10M/100M Ethernet RJ45 port
|
|
Network
|
|
Network Protocol
|
TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
Mobile Device
|
iPhone, Android Smart phones
|
|
Remote Software
|
App, PC Client (Windows)
|
|
Onvif
|
Support
|
|
General
|
|
Power Supply
|
Input 110~260V, 12V 2A
|
|
Consumption
|
<6W (Without HDD)
|
|
Working Environment
|
-10°C~+45°C (14°F~113°F),10%~90%
|
|
Dimension
|
257*210*42mm
|
|
Weight
|
0.75KG
|
|
Package information
|
|
Dimension
|
340mm*185mm*270mm
|
|
Weight
|
2.8KG
|
|

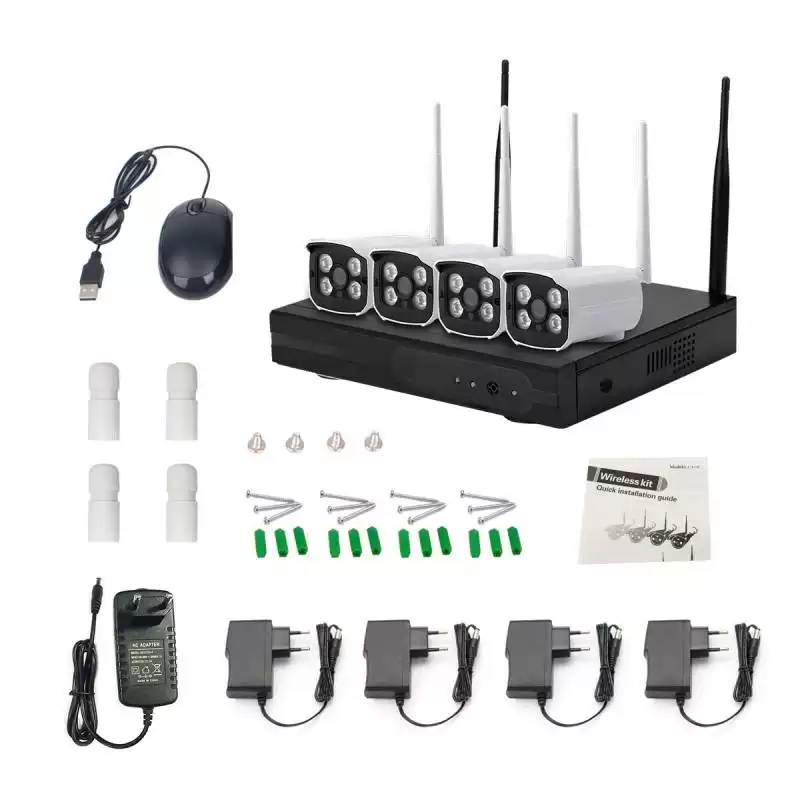

Packing List
|
4CH WIFI NVR*1,WIFI IP Camera*4,NVR Power Adapter*1,Camera Power adapter *4,Guide*1,USB Mouse*1,Screws Package*4,Waterproof Hat*4,1m Network Cable*1
|
Dimension
Built in powerful WiFi transmit module,WiFi range cover up to 200meters in open side.
Application
Support motion detection.When motion objects detected, it will trigger alarm notification.
